Post 1.

After finished my previous project of DIY Magnetic bracket for quick mount / dismount ( see that project thread link below )

viewtopic.php?f=31&t=2169

... I still was not fully satisfied, because dash camera was not as stealthy as I wanted ( did not blend in with rear-view mirror ) and despite quick magnetic mount / dismount, it still took time and effort every time to find a correct place / alignment to mount it into correct place. Every time I needed to lean and look under the rear-view mirror to see that correct spot to mount dash camera.
So I was tired and came up with another idea for my new project.

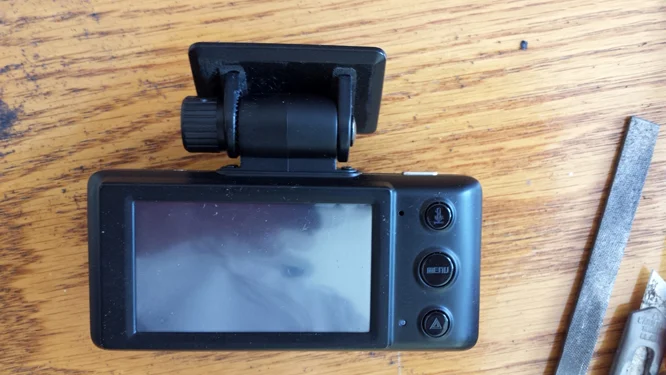

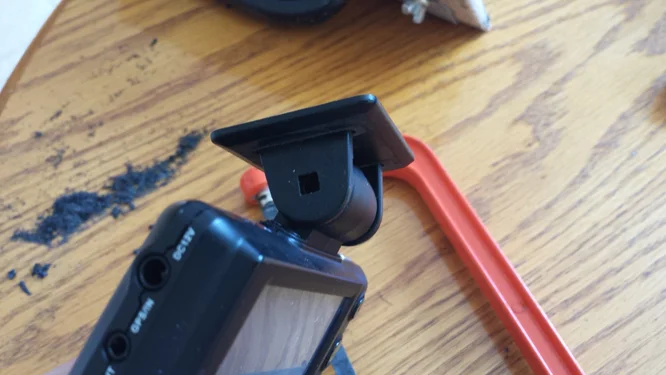

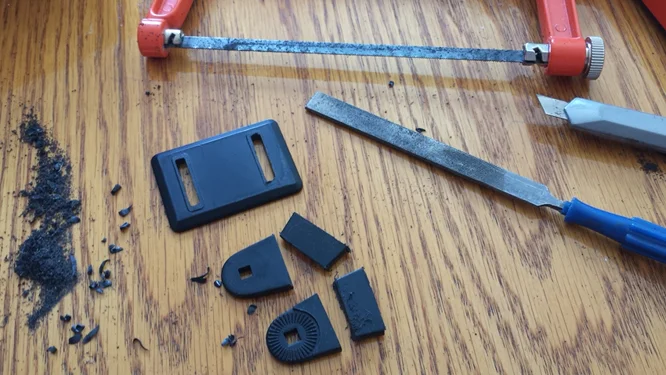

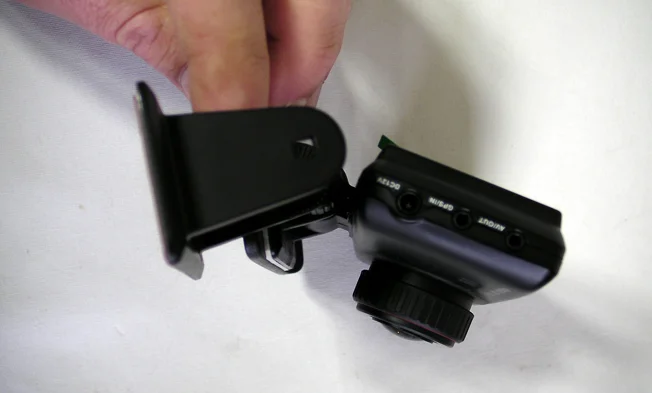

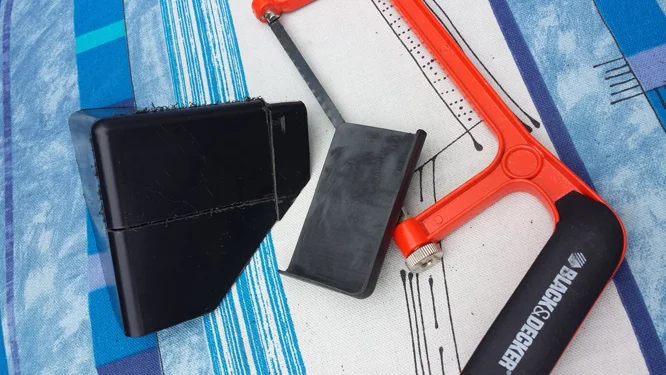

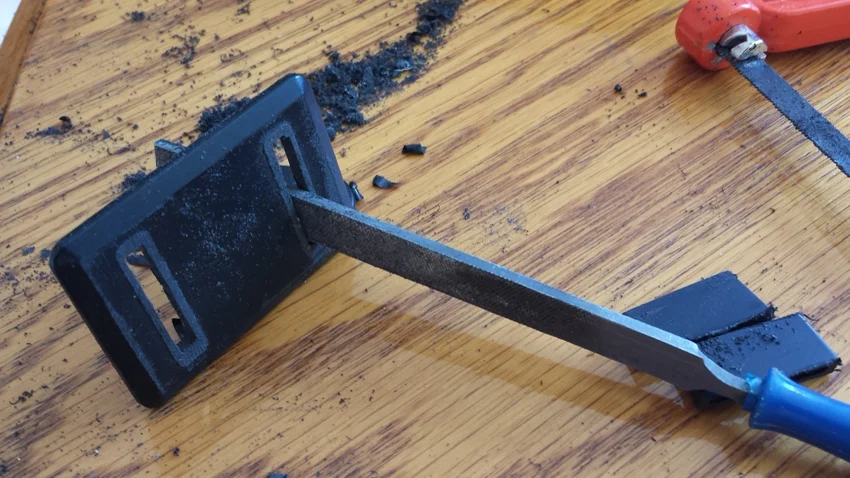

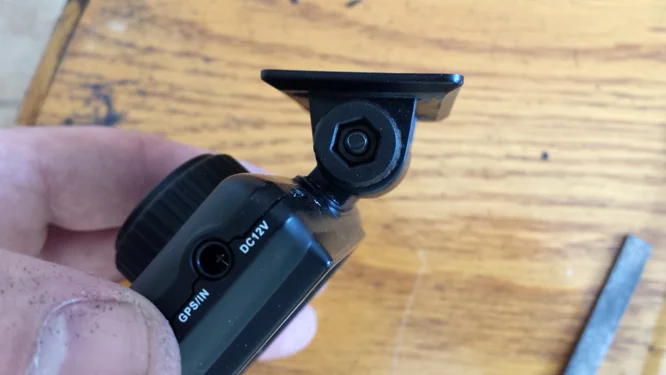

First, I have shortened an original bracket about 1 cm, this way dash camera ( Panorama2 ) can be mounted more up to fully blend in with rear view mirror for stealthy look.











Last edited by a moderator:
OP
niko

niko

Well-Known Member
Retailer
Joined
May 1, 2013
Messages
10,651
Reaction score
6,542
Location
Dublin
Country
Ireland
Dash Cam
Street Guardian UK / EU / EEA Distributor
Re: "Blindfolded" Quick Mount-dismount Magnetic Bracket, Hol

Post 2.

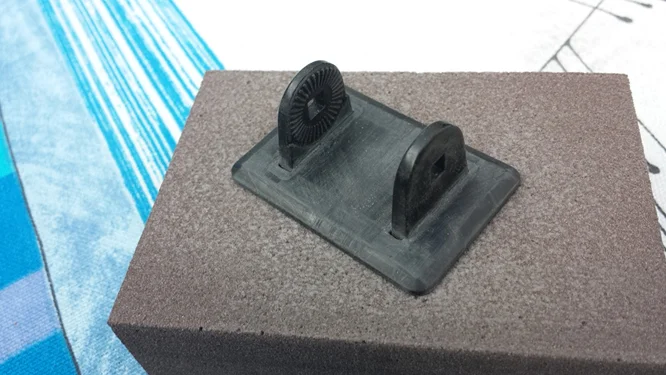

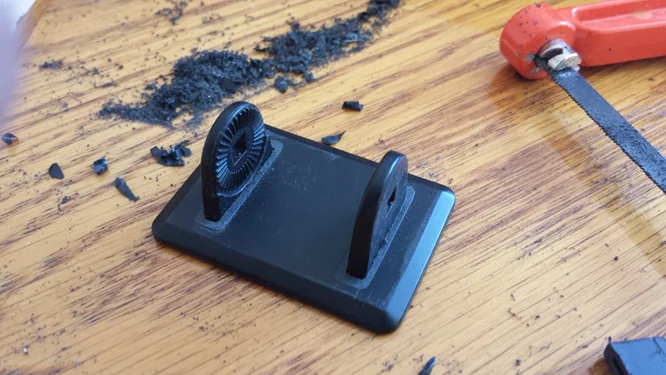

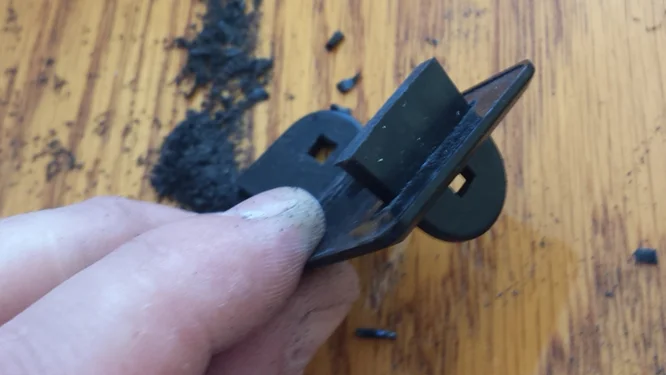

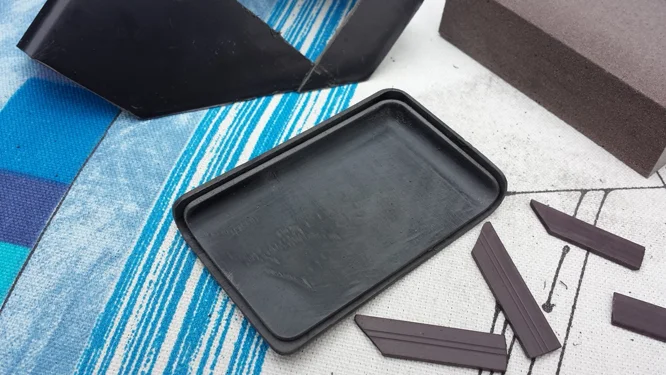

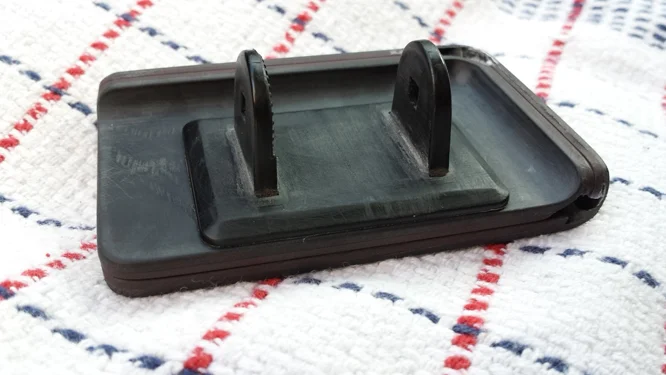

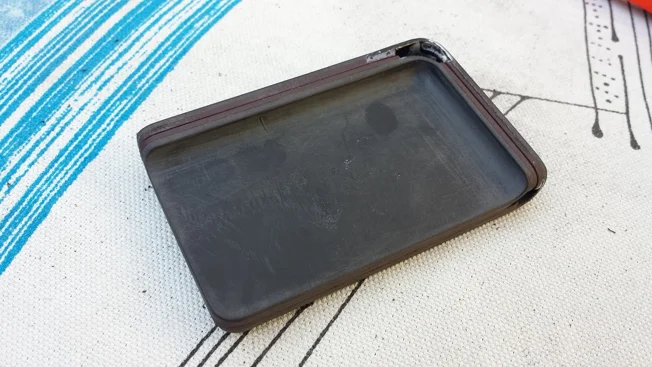

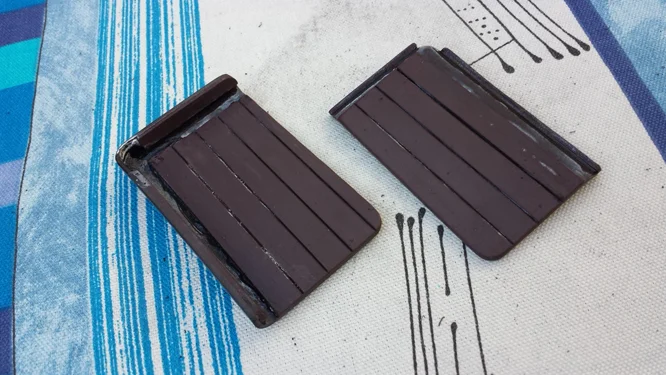

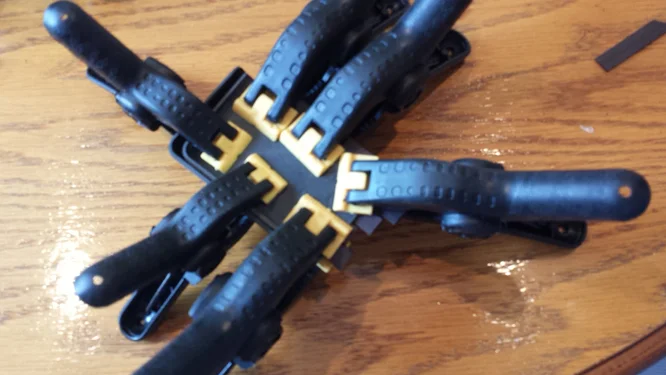

Then I have added a 2 additional DIY bracket mount ( base / pads with larger magnetic area) with edges on two sides that helping me to guide dash camera alignment.
Now mounting of the camera is extremely quick and I don't even have to look for alignment. Now I can mount dash camera into correct position even BLINDFOLDED :)
Watch my videos below in post nr.4 on how I can attach - detach dash camera quickly.

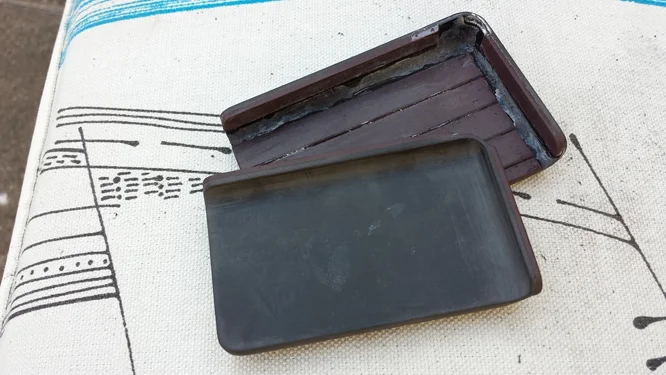

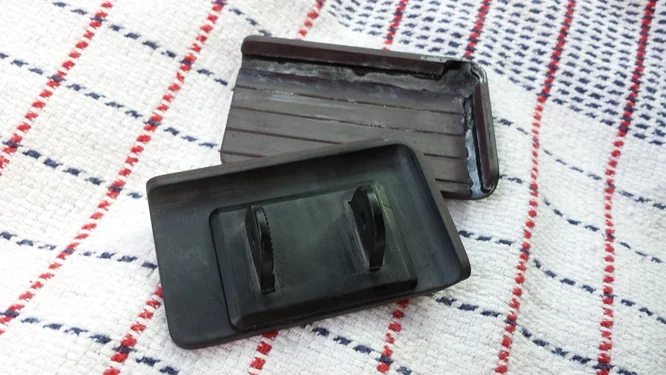

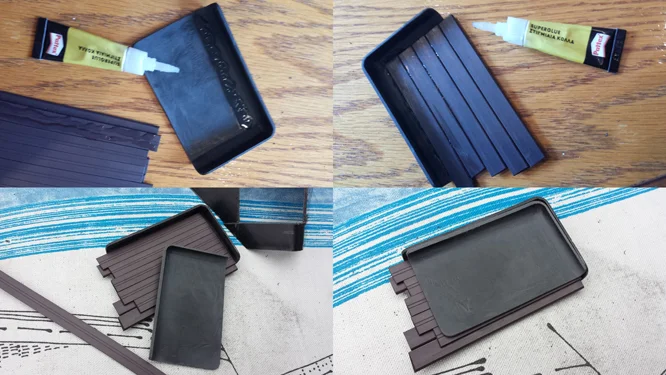

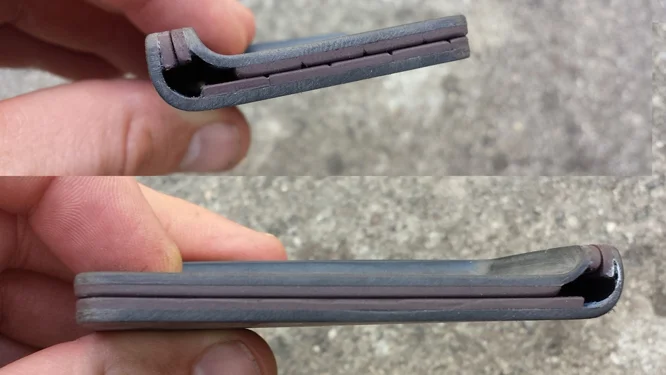

Glue fridge door seal magnetic stripes


Attachments

  • c1.jpg
    275.3 KB · Views: 525
  • c2.jpg
    263.2 KB · Views: 500
  • c3.jpg
    273.9 KB · Views: 504
  • c4.jpg
    217.9 KB · Views: 506
  • c5.jpg
    272.3 KB · Views: 490
  • c6.jpg
    185.1 KB · Views: 487
  • c7.jpg
    237.7 KB · Views: 480
  • c8.jpg
    223.8 KB · Views: 478
  • c9.jpg
    199.2 KB · Views: 483
  • c10.jpg
    248.8 KB · Views: 496
OP
niko

niko

Well-Known Member
Retailer
Joined
May 1, 2013
Messages
10,651
Reaction score
6,542
Location
Dublin
Country
Ireland
Dash Cam
Street Guardian UK / EU / EEA Distributor
Re: "Blindfolded" Quick Mount-dismount Magnetic Bracket, Hol

Post 3.

Finished project result

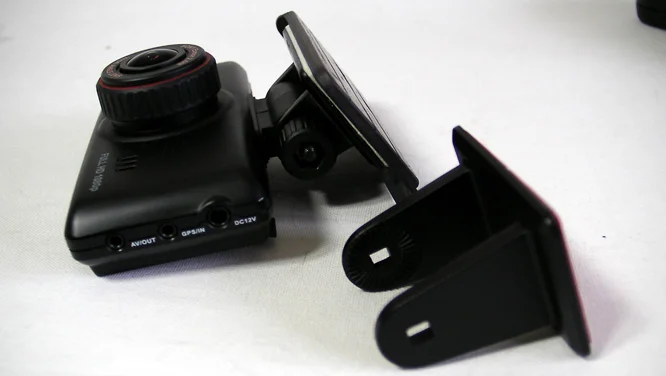

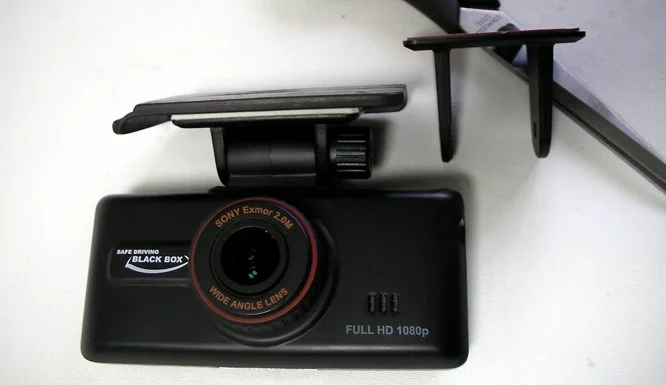

Before and After bracket size comparison

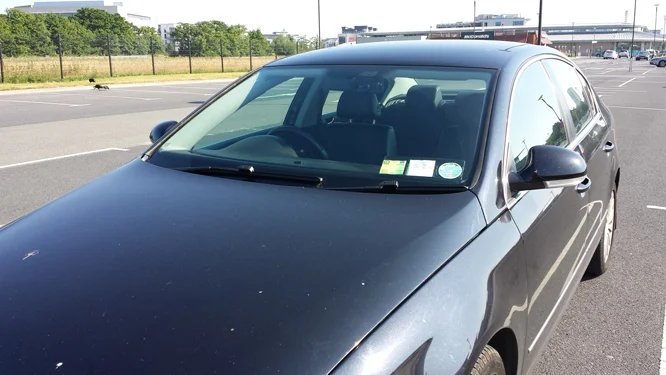

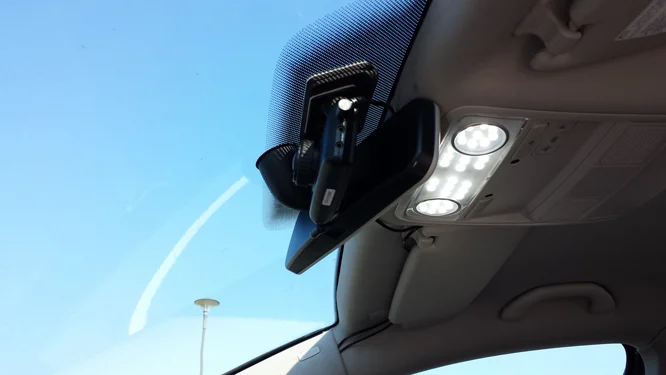

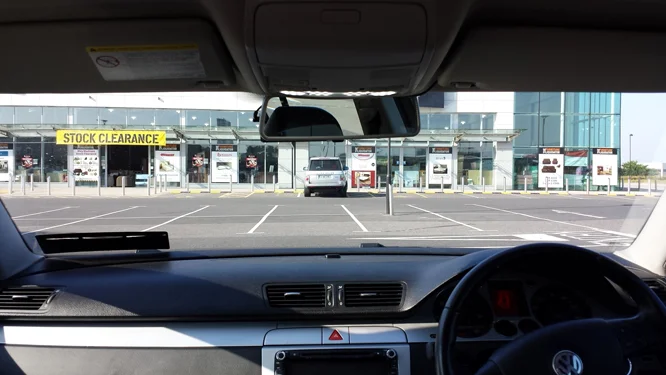

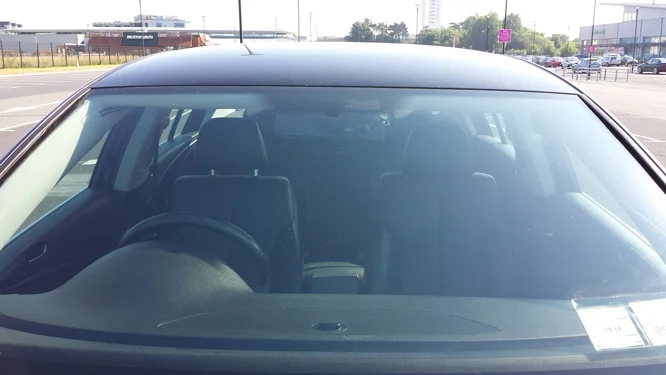

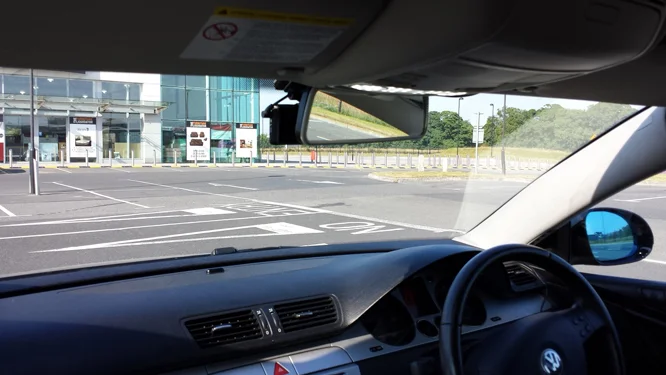

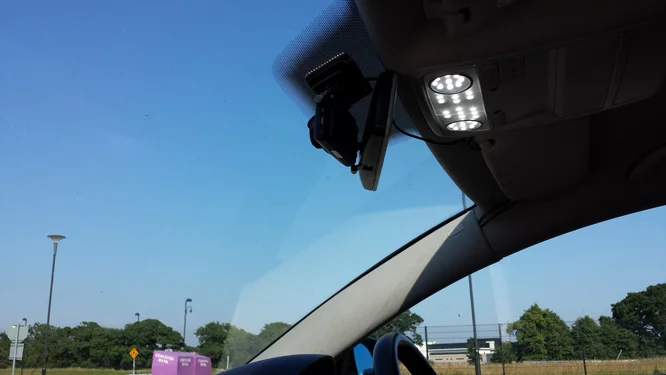

Fully hidden behind rear-view mirror








I guess you can adopt similar mount / dismount solution to any type of dash camera mount ( suction mount or permanently fixed, doesn't matter ). Just need some creativity and DIY.
Hope you can take useful tips / ideas from my project for your dash camera mount DIY.
If you have any new ideas/ suggestions, please share.
