Blueskysea B1W dashcam

estore009

Well-Known Member
Retailer
Joined
Nov 25, 2013
Messages
1,780
Reaction score
624
Location
Shenzhen
Country
China
Dash Cam
B1W/Mini0906
Blueskysea B1W HD 1080p WIFI dashcam

Super mini size
360 degree rotating design
All black body and stealthy design
Parking gurad mode with hardwire kit
One entry-level dashcam,No operation button on camera

Now the question is what is the value its worth might be?






Last edited:

Mtz

Well-Known Member
Joined
Nov 15, 2012
Messages
3,578
Reaction score
1,910
Location
Nice place
Country
Romania
Dash Cam
Viofo A119. WR1. SGGCX2. GitUp.
Nice camera. Is looking so small and discred. Can you give us some specs like CMOS, chipset, lens?
The camera can be unmounted from the windshield like on Mini series? Seems that mount part is solid, with bigger contact area compared to Mini series.
Nice name, seems that B1W means BlueSkySea 1 Wi-Fi. :cool:

enjoy,
Mtz


speuk

Active Member
Joined
Dec 27, 2015
Messages
135
Reaction score
54
Country
United Kingdom
Looks good! I like the rotating lens to record in cabin. :)


Nigel

Well-Known Member
Joined
Jul 7, 2014
Messages
8,359
Reaction score
4,130
Location
Devon
Country
United Kingdom
Dash Cam
Gitup F1, A129, B1W, B2W
Now the question is what is the value its worth might be?
Depends on if it has a super capacitor or a battery, everyone wants a super capacitor these days but it is not in the specification...
Then video quality is very important, is it real FHD, or only 720 like most cheap dashcams - we need some samples before we can judge the value.

I think the children in the cabin will all get motion sick if they watch where they are going on their phones instead of looking out the windows :D
Can it cope with all three children watching the live video at the same time? That is a lot of wi-fi to transmit!


kamkar1

Well-Known Member
Joined
Oct 11, 2013
Messages
20,996
Reaction score
11,461
Country
Denmark
Dash Cam
10 years, many dashcams
The barrel designs are popular too, and this one have no additional stuff to it making it very discrete.
It do look like you can slide it off the mount, which are good for some people at least, but it look like power go into the housing and not the mount and this i also like as it eliminate potential connection issued between mount and camera.
And if the USB connector to the camera are a angled one so it can go strait up towards headliner / top of windscreen it will be good, but even if it use a regular strait USB plug should not be too bad as you should be able to get wire up and out of sight.
Looking forward to see review and footage from the camera, and also know if it use one of the newer optimized sensors like IMX 323 maybe

The value prize are hard to tell, but if the camera are strong and dont loose any of its optical properties then it will be priceless for the one having it and getting into a accident.
Cuz the #1 feature of a dashcam are that it is always working on every drive, and it record fairly good video.


Mark S-H

Member
Joined
Jan 4, 2015
Messages
88
Reaction score
67
Location
Pomorie, Bulgaria
Country
Bulgaria
Dash Cam
K6000, G1WH, G1WC, B1W
Certainly a nice looking camera and very discrete.
I see all the settings are achieved via the WiFi capability.
The rotating head is a nice idea, but if the head is rotated from front to rear, does the image automatically rotate 180° or do you have to change it in the settings?
Also, I think most people, once they have the rotating head in the direction they want, they normally stick with that direction and not adjust it.
It looks like a 3M mount. I cannot see any power lead connection in the photos. Is it battery or capacitor operated? What is/are the processor(s)?

The price really depends on the specifications and durability.


Nigel

Well-Known Member
Joined
Jul 7, 2014
Messages
8,359
Reaction score
4,130
Location
Devon
Country
United Kingdom
Dash Cam
Gitup F1, A129, B1W, B2W
I cannot see any power lead connection in the photos.
Power goes in the end, just above the mSD card.
I think that is sensible, you don't want power on the rotating bit and you don't want it on the side in case you mount it backwards with the mount on the left.
Might be a little difficult to get to the mSD card with the power cable plugged in?

  • Like
Reactions: Mtz

Mtz

Well-Known Member
Joined
Nov 15, 2012
Messages
3,578
Reaction score
1,910
Location
Nice place
Country
Romania
Dash Cam
Viofo A119. WR1. SGGCX2. GitUp.
And if the USB connector to the camera are a angled one so it can go strait up towards headliner / top of windscreen it will be good
I think angled cable is a must.
Then video quality is very important, is it real FHD, or only 720 like most cheap dashcams - we need some samples before we can judge the value.
I expect to be Full HD, like this:

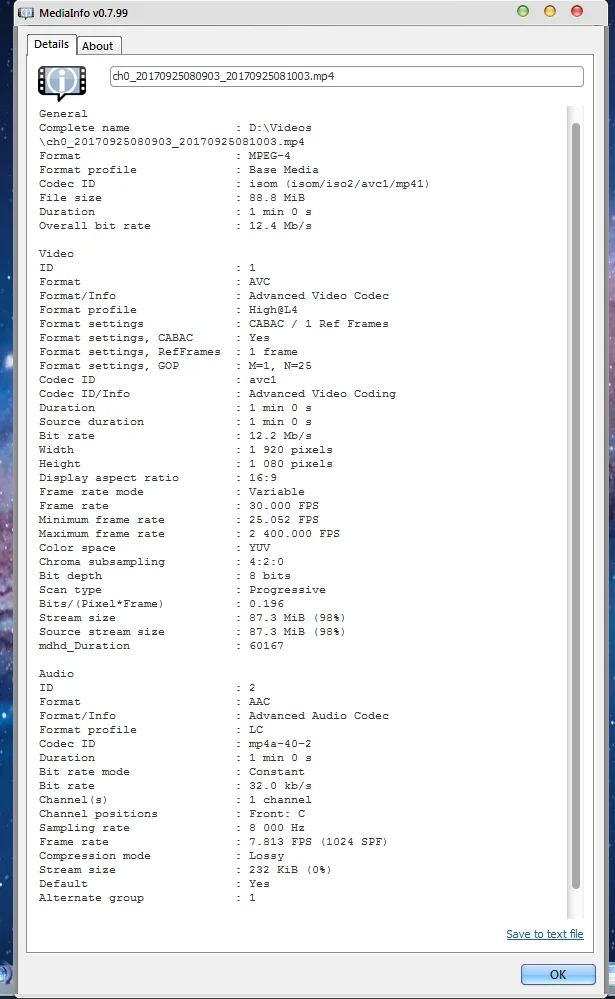

Code:
Format                                   : MPEG-4
Format profile                           : Base Media
Codec ID                                 : isom (isom/iso2/avc1/mp41)
File size                                : 88.8 MiB
Duration                                 : 1 min 0 s
Overall bit rate                         : 12.4 Mb/s

Video
ID                                       : 1
Format                                   : AVC
Format/Info                              : Advanced Video Codec
Format profile                           : High@L4
Format settings                          : CABAC / 1 Ref Frames
Format settings, CABAC                   : Yes
Format settings, RefFrames               : 1 frame
Format settings, GOP                     : M=1, N=25
Codec ID                                 : avc1
Codec ID/Info                            : Advanced Video Coding
Duration                                 : 1 min 0 s
Source duration                          : 1 min 0 s
Bit rate                                 : 12.2 Mb/s
Width                                    : 1 920 pixels
Height                                   : 1 080 pixels
Display aspect ratio                     : 16:9
Frame rate mode                          : Variable
Frame rate                               : 30.000 FPS
Minimum frame rate                       : 25.052 FPS
Maximum frame rate                       : 2 400.000 FPS
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progressive
Bits/(Pixel*Frame)                       : 0.196
Stream size                              : 87.3 MiB (98%)
Source stream size                       : 87.3 MiB (98%)
mdhd_Duration                            : 60167

Audio
ID                                       : 2
Format                                   : AAC
Format/Info                              : Advanced Audio Codec
Format profile                           : LC
Codec ID                                 : mp4a-40-2
Duration                                 : 1 min 0 s
Bit rate mode                            : Constant
Bit rate                                 : 32.0 kb/s
Channel(s)                               : 1 channel
Channel positions                        : Front: C
Sampling rate                            : 8 000 Hz
Frame rate                               : 7.813 FPS (1024 SPF)
Compression mode                         : Lossy
Stream size                              : 232 KiB (0%)
Default                                  : Yes
Alternate group                          : 1
Maybe with a higher bitrate, up to 15-17mbps.
also know if it use one of the newer optimized sensors like IMX 323 maybe
Yeah $60 price with IMX323 can be a good alternative.
But also the lens should be considered: some lens with less flare. And this can increase the price.
CPL support will be nice to have too.

enjoy,
Mtz


CaptureYourAction

Well-Known Member
Retailer
Joined
Feb 6, 2016
Messages
2,713
Reaction score
1,299
Location
New England
Country
United States
Dash Cam
DOD, Dome Technologies, VicoVation, Viofo, GitUp
estore009 posted a price of $50 on Reddit.


kamkar1

Well-Known Member
Joined
Oct 11, 2013
Messages
20,996
Reaction score
11,461
Country
Denmark
Dash Cam
10 years, many dashcams
OP
estore009

estore009

Well-Known Member
Retailer
Joined
Nov 25, 2013
Messages
1,780
Reaction score
624
Location
Shenzhen
Country
China
Dash Cam
B1W/Mini0906
@Mtz Its specification: Novatek GM8135S+IMX323; F1.8,6G Lens,Capacitor base dashcam,No battery;


Module 79L

Well-Known Member
Joined
May 17, 2015
Messages
3,793
Reaction score
1,503
Country
Portugal
Dash Cam
AT11DA, SG9665XS, G1W-H
The rotating head is a nice idea, but if the head is rotated from front to rear, does the image automatically rotate 180° or do you have to change it in the settings?
That's exactly what I was about to ask. If it's not automatic it'll be completely useless in an emergency or to record something on the spot.


Mtz

Well-Known Member
Joined
Nov 15, 2012
Messages
3,578
Reaction score
1,910
Location
Nice place
Country
Romania
Dash Cam
Viofo A119. WR1. SGGCX2. GitUp.
If is something really important like an emergency is more important to have image even reversed compared to have no image.
yeah, not Novatek, not 1080p
The same Mediainfo details like in my previous post. :D
Maybe the chipset is GM8138S which is supporting Full HD? Or maybe because Novatek bought Grain Media they could add 1080p to 8135s chipset?

enjoy,
Mtz
