DDPAI Z40 review

[Jeremy Wong]

Author's Note: The original review is found at jwtech, please head to the site to show us your support as well. Click here to view all my product reviews!


Thank you DDPAI for sending over the new Z40 for review





Technical Specs:
• Processor: SigmaStar 8629Q
• Sensor: Sony IMX335
• Lens: 6 optical lens & 1 infrared IR, 140° wide angle, F1.8 aperture; rear – 5 optical lens, 125° wide angle, F2.0 aperture
• 2” IPS screen
• Supports up to 128GB microSD card
• Resolution: front – 2592×1944 & 1920×1080; rear – 1920×1080
• Supercapacitor
• D²save Storage Technology
• Built-in 2.4GHz Wi-Fi
• Time-lapse parking mode (requires the hardwire kit)
• Built-in GPS
• Sense Reality 2.0 (GPS model only)

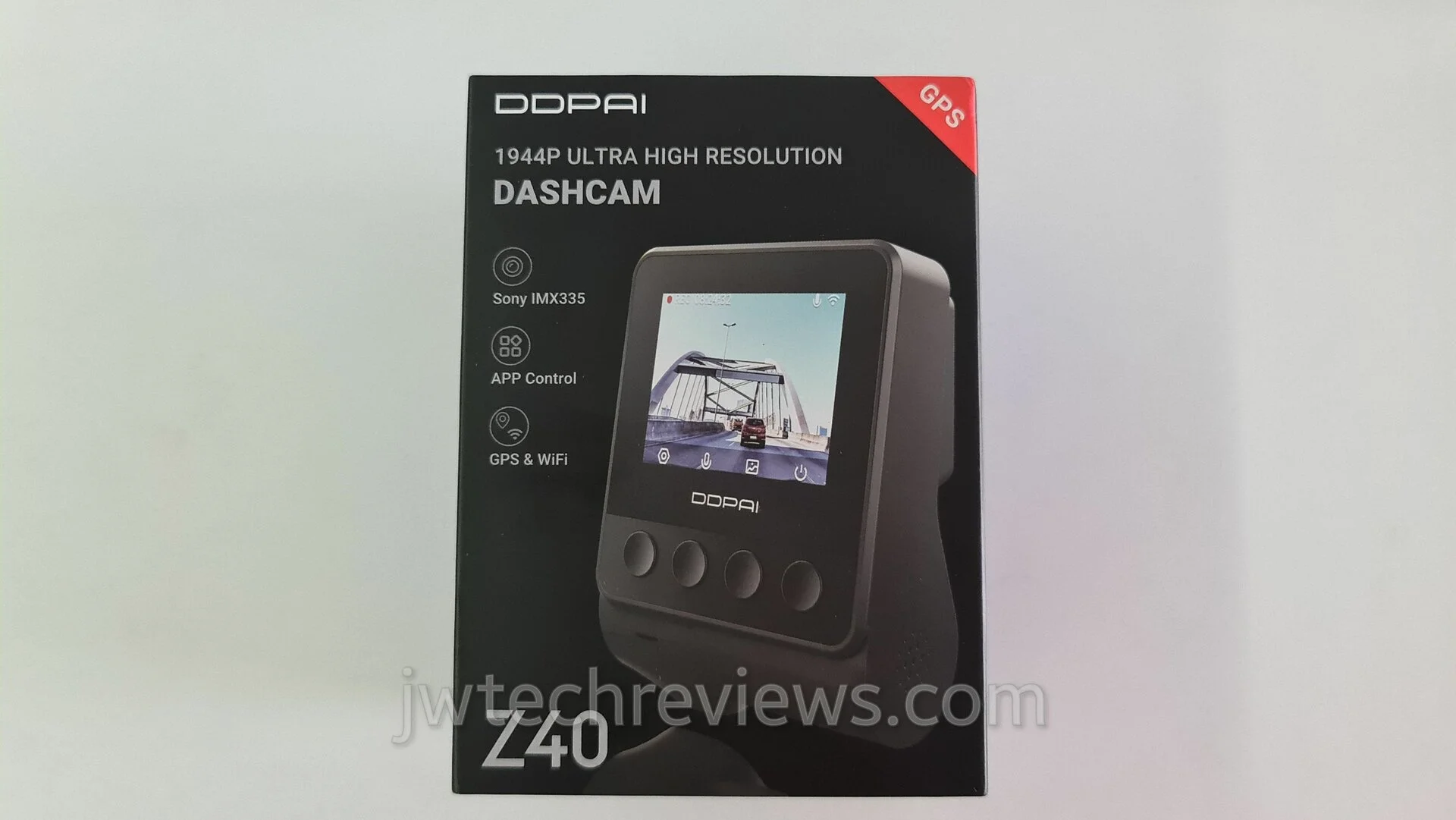

The box






Open box

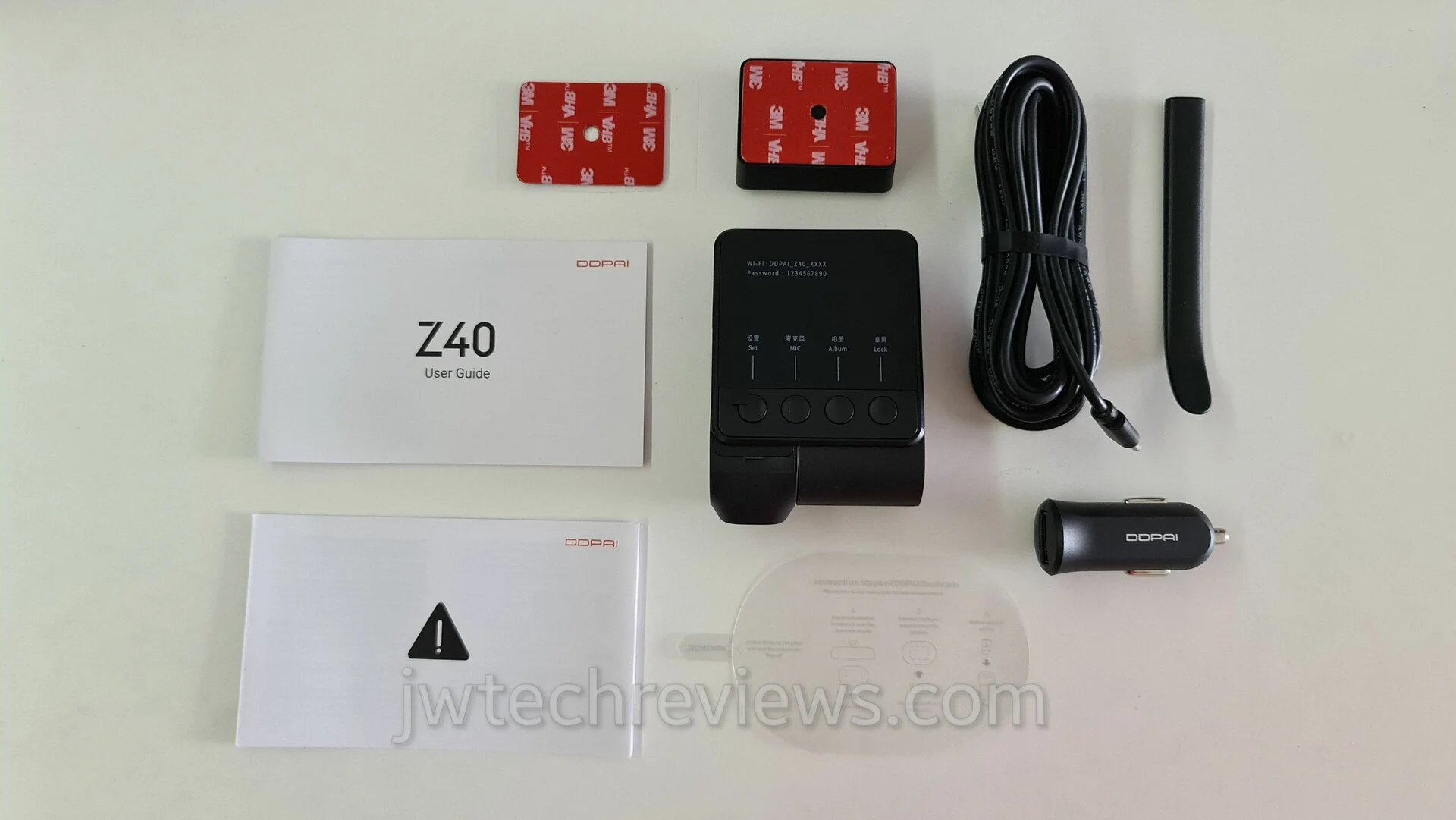

Contents

• Z40
• Tape mount
• USB car charger
• USB Type-C cable
• Prying tool
• Spare mounting tape
• Electrocstatic film
• User manual & safety notice



[Jeremy Wong]

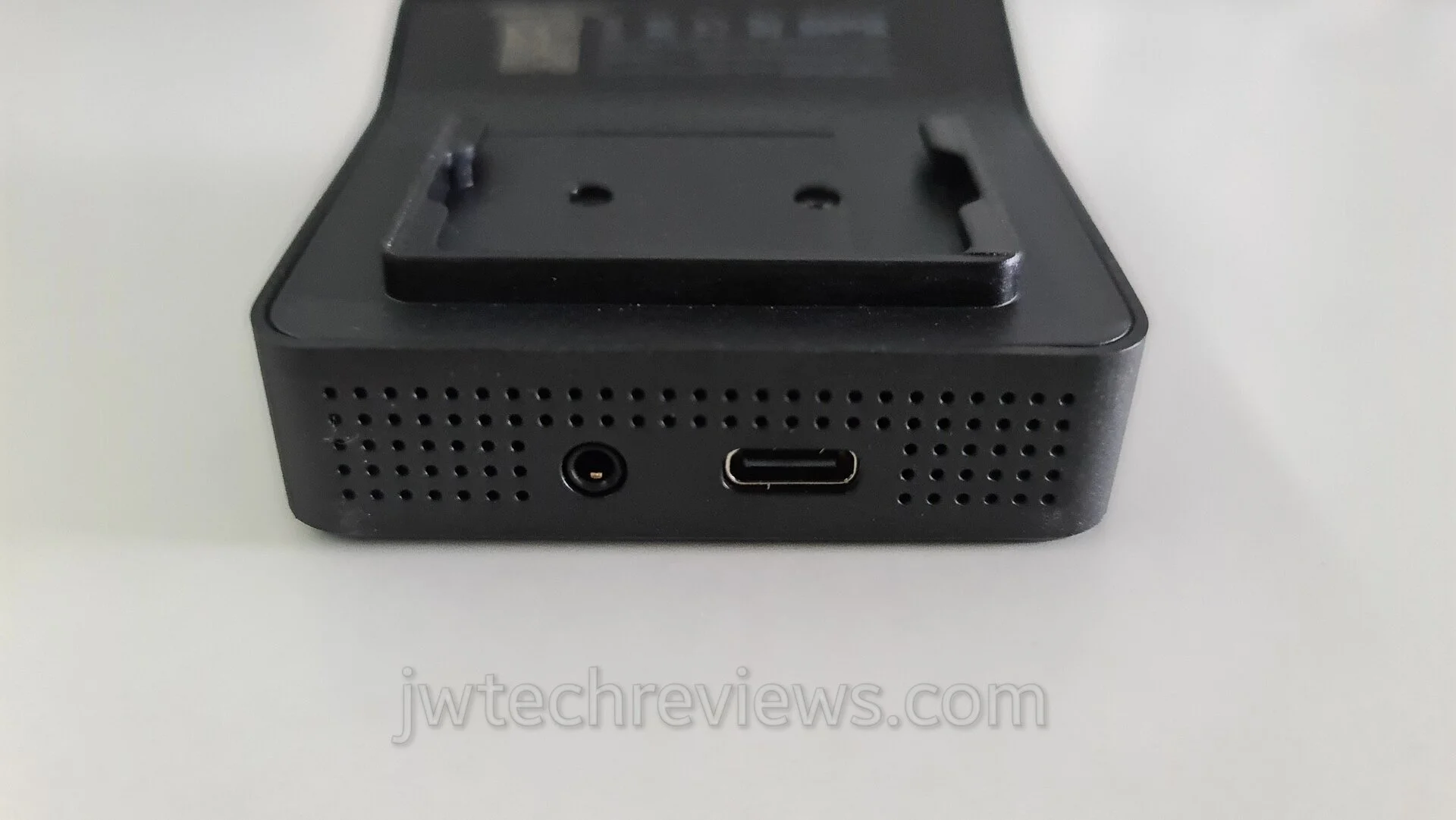

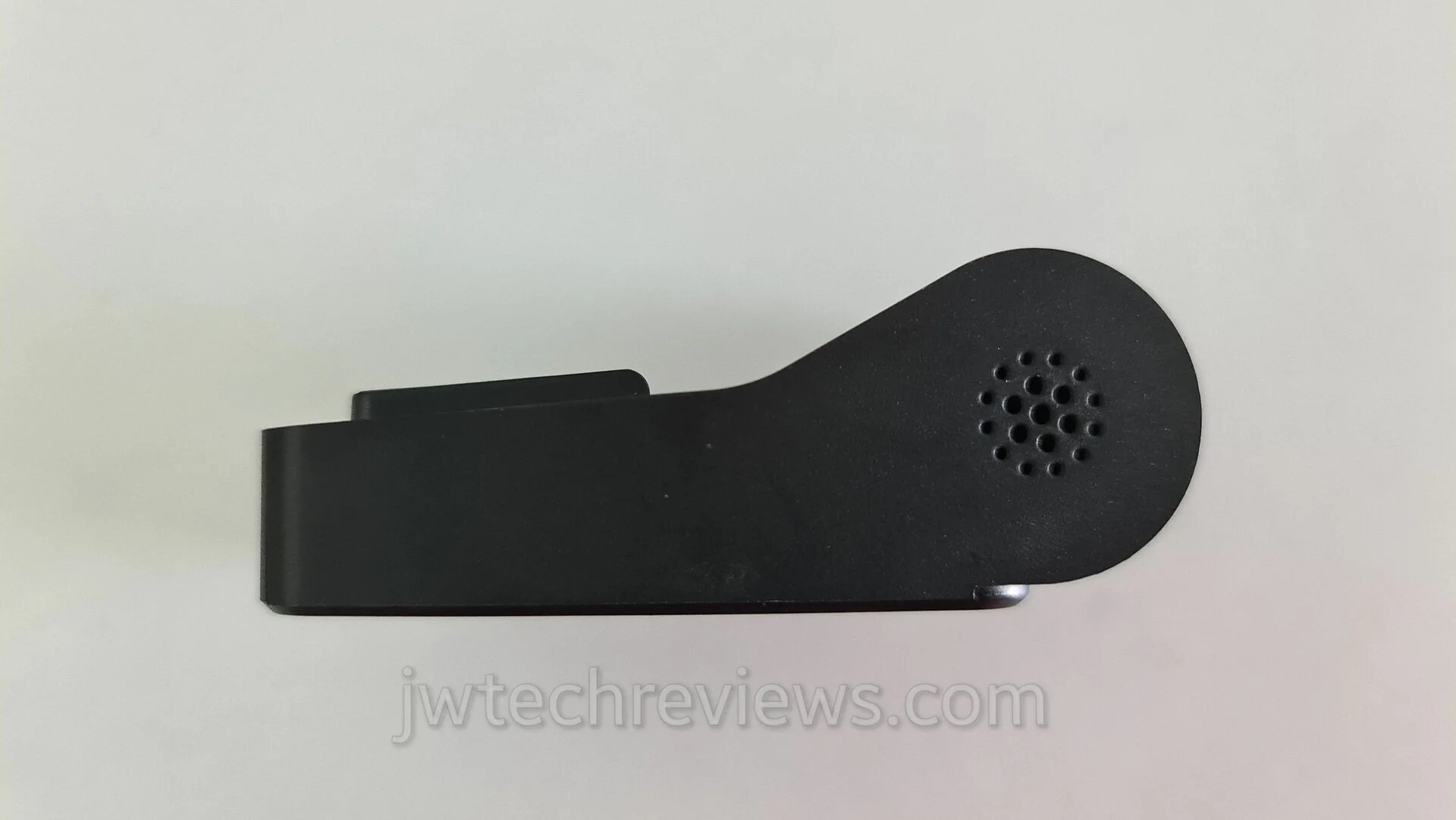

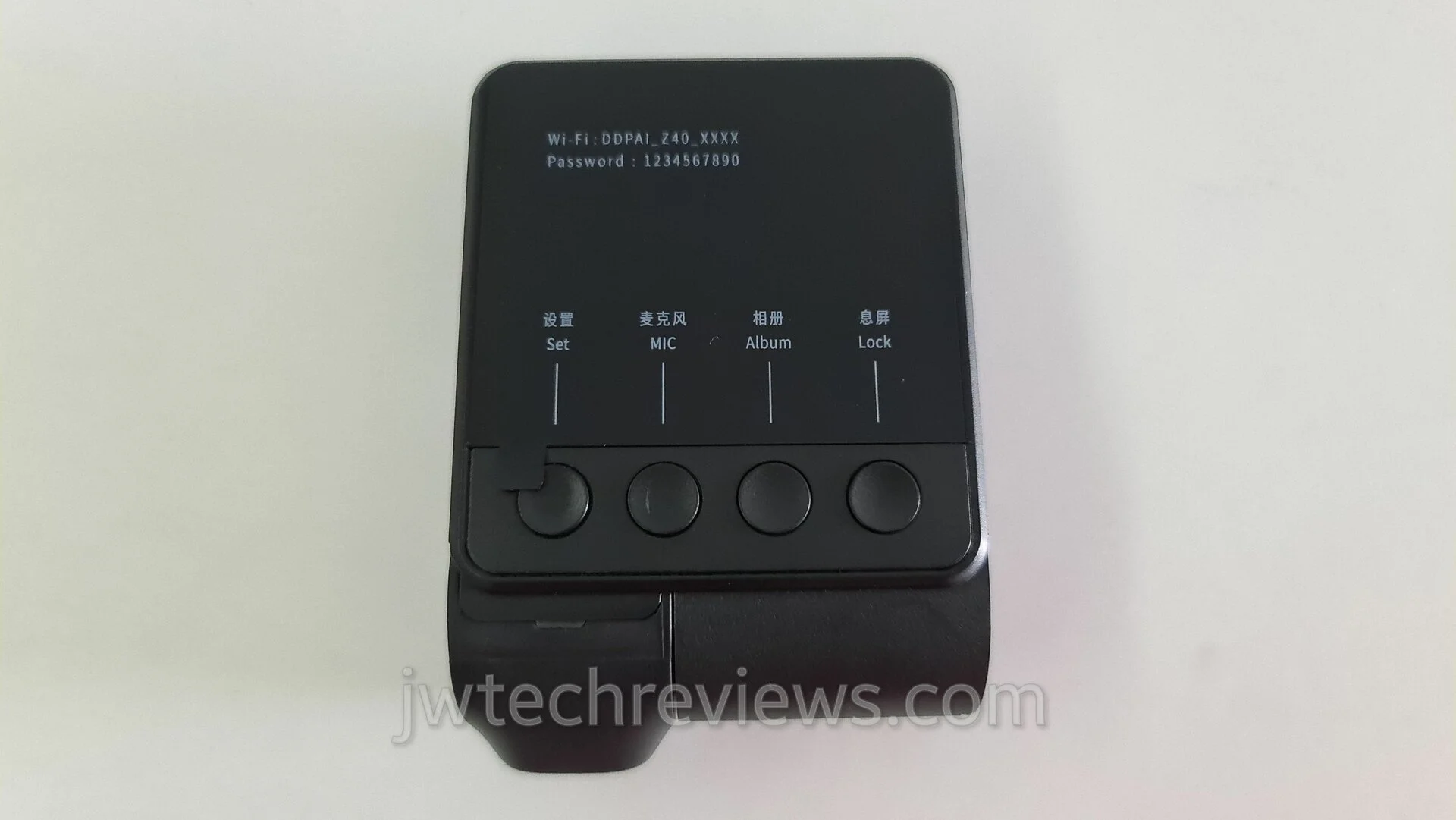

Z40



[Jeremy Wong]

Tape mount

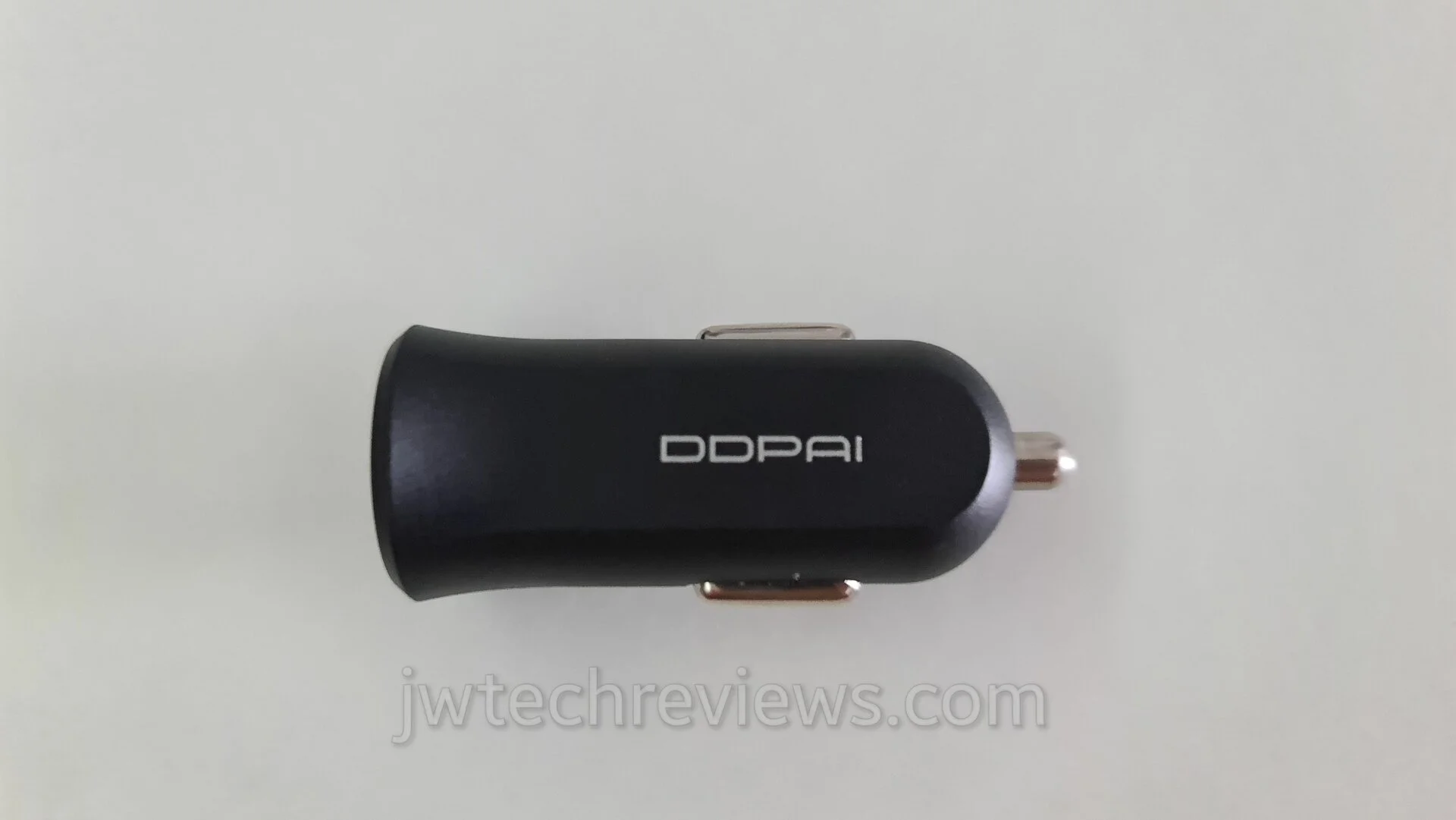

USB car charger



USB Type-C cable



[Jeremy Wong]

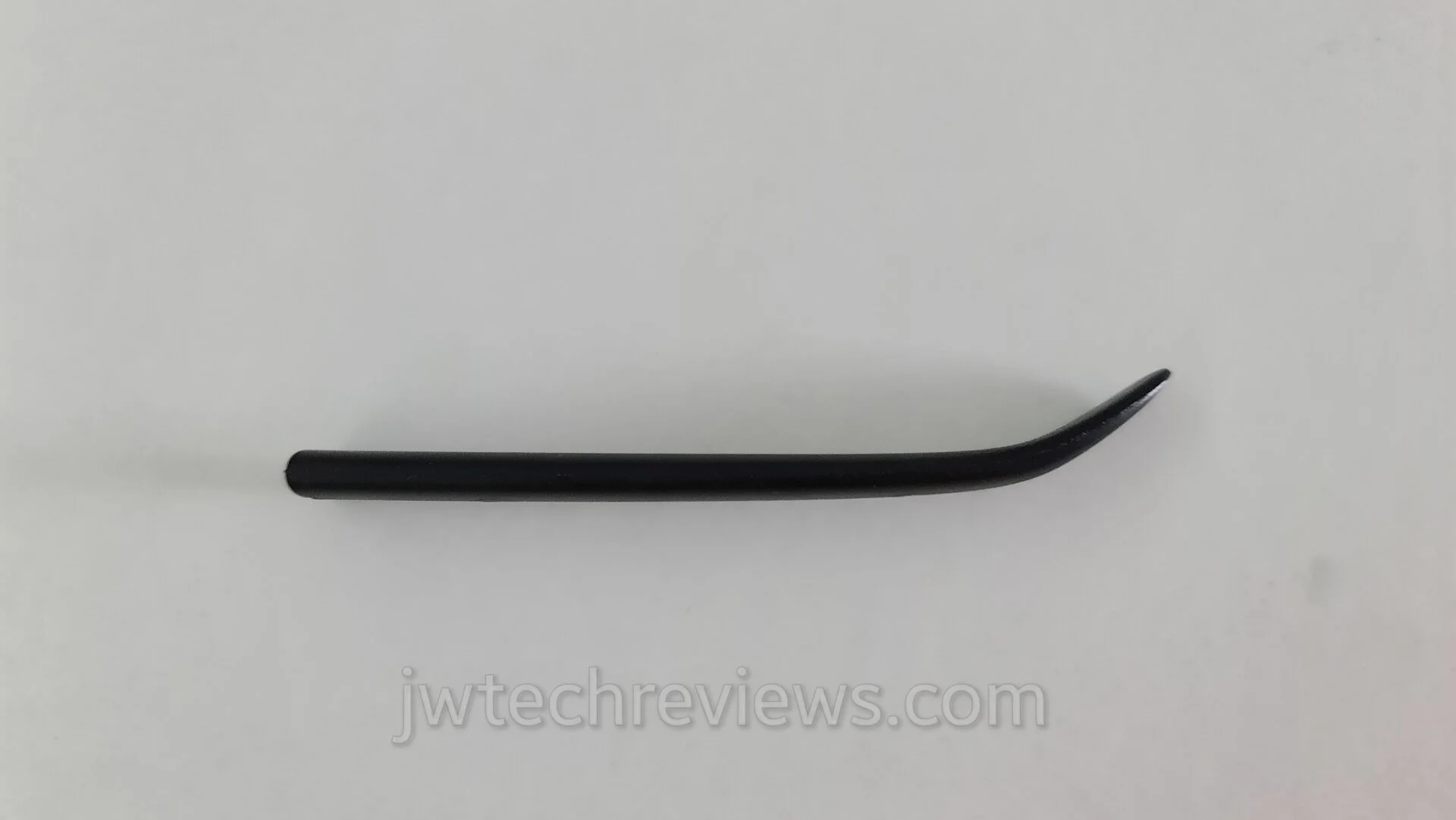

Prying tool



Spare mounting tape

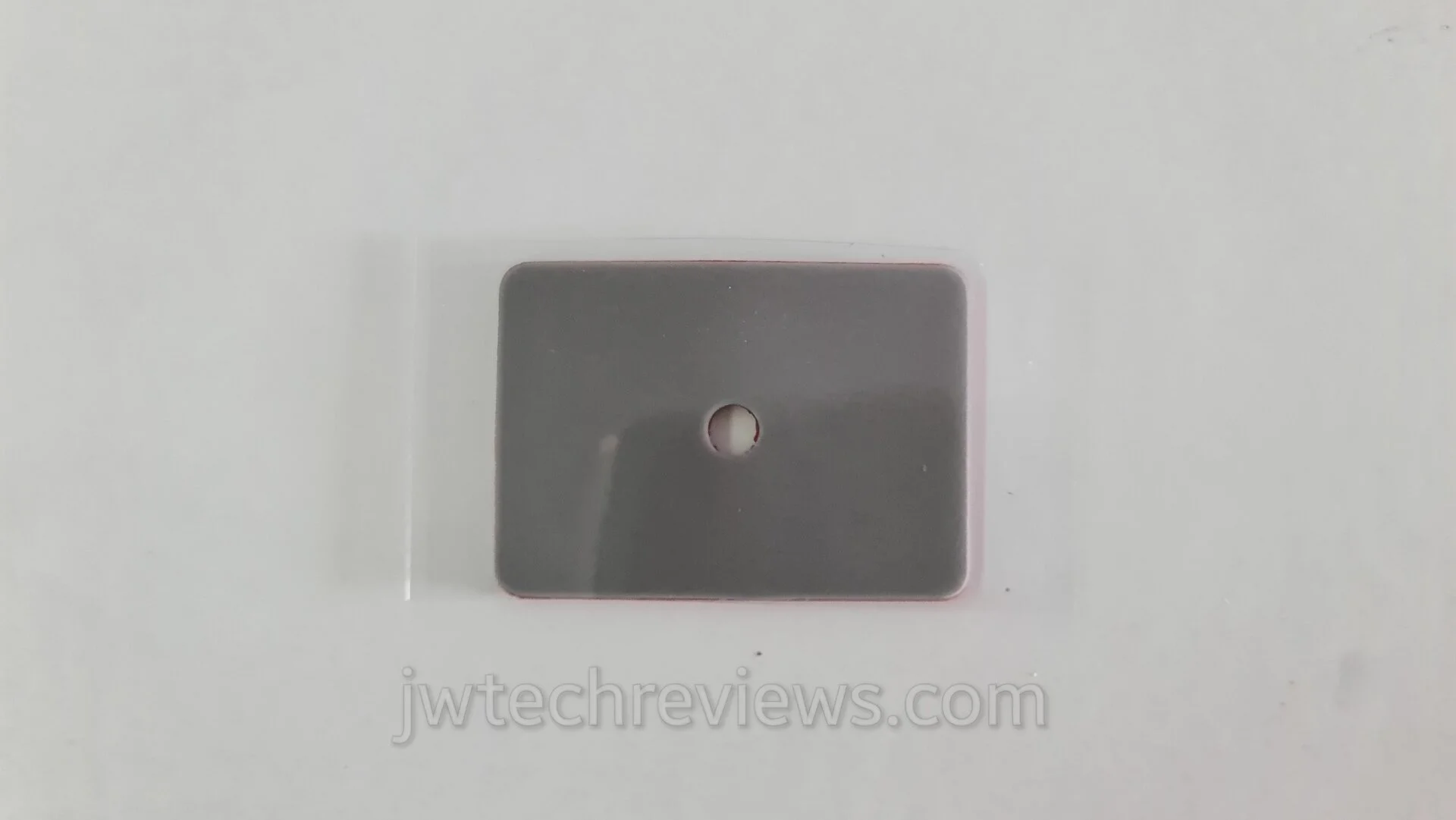

Electrostatic film

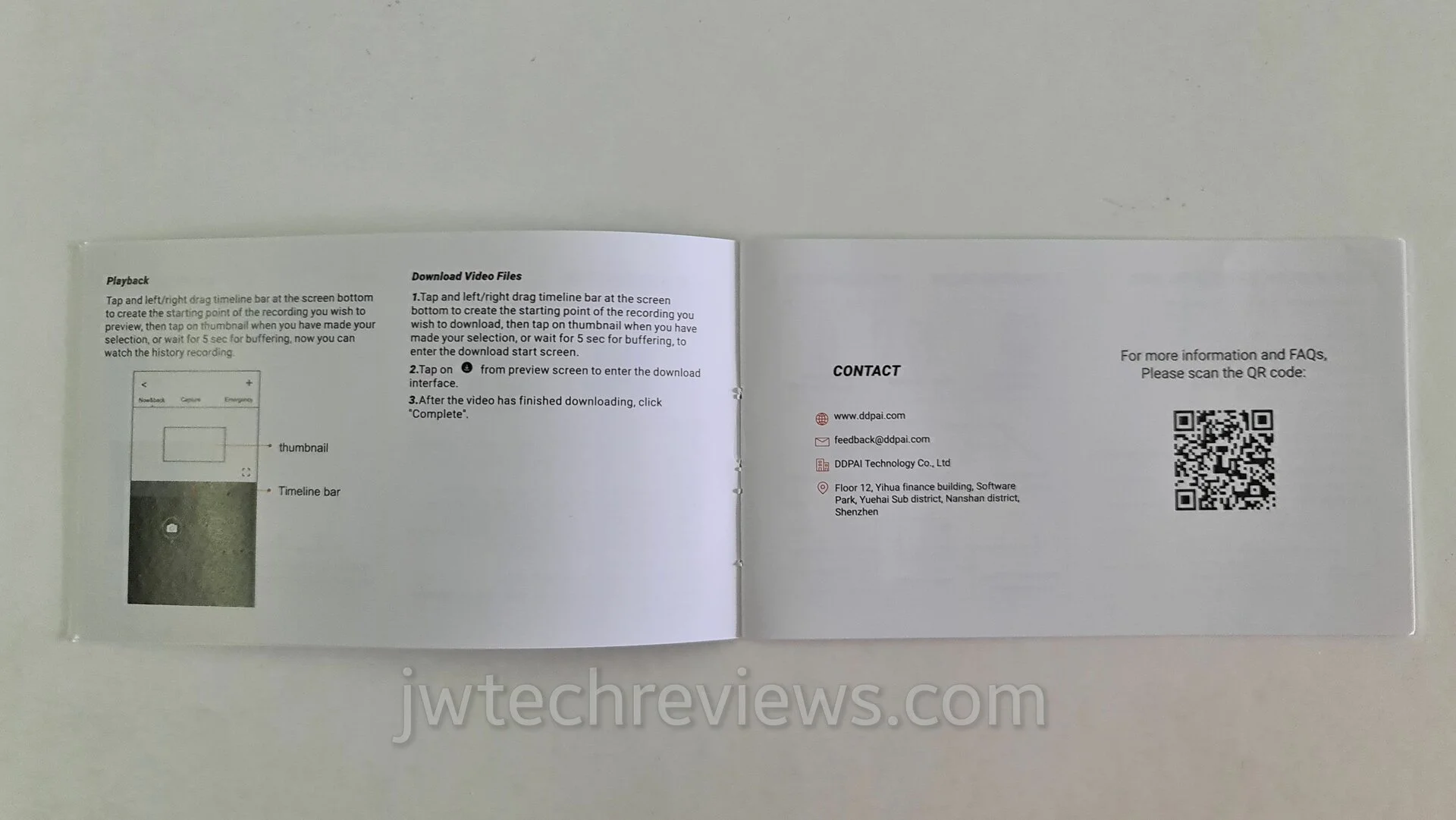

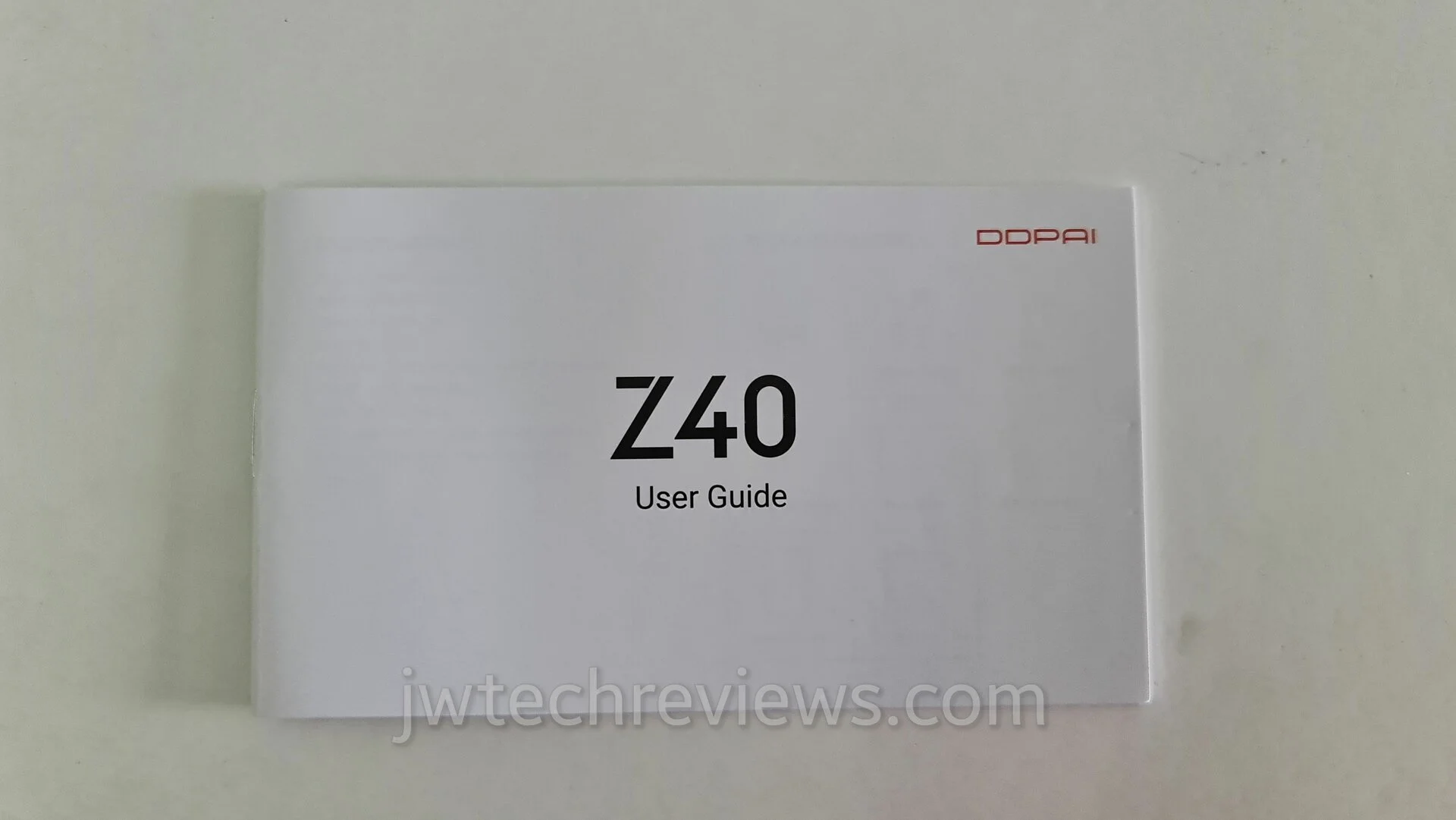

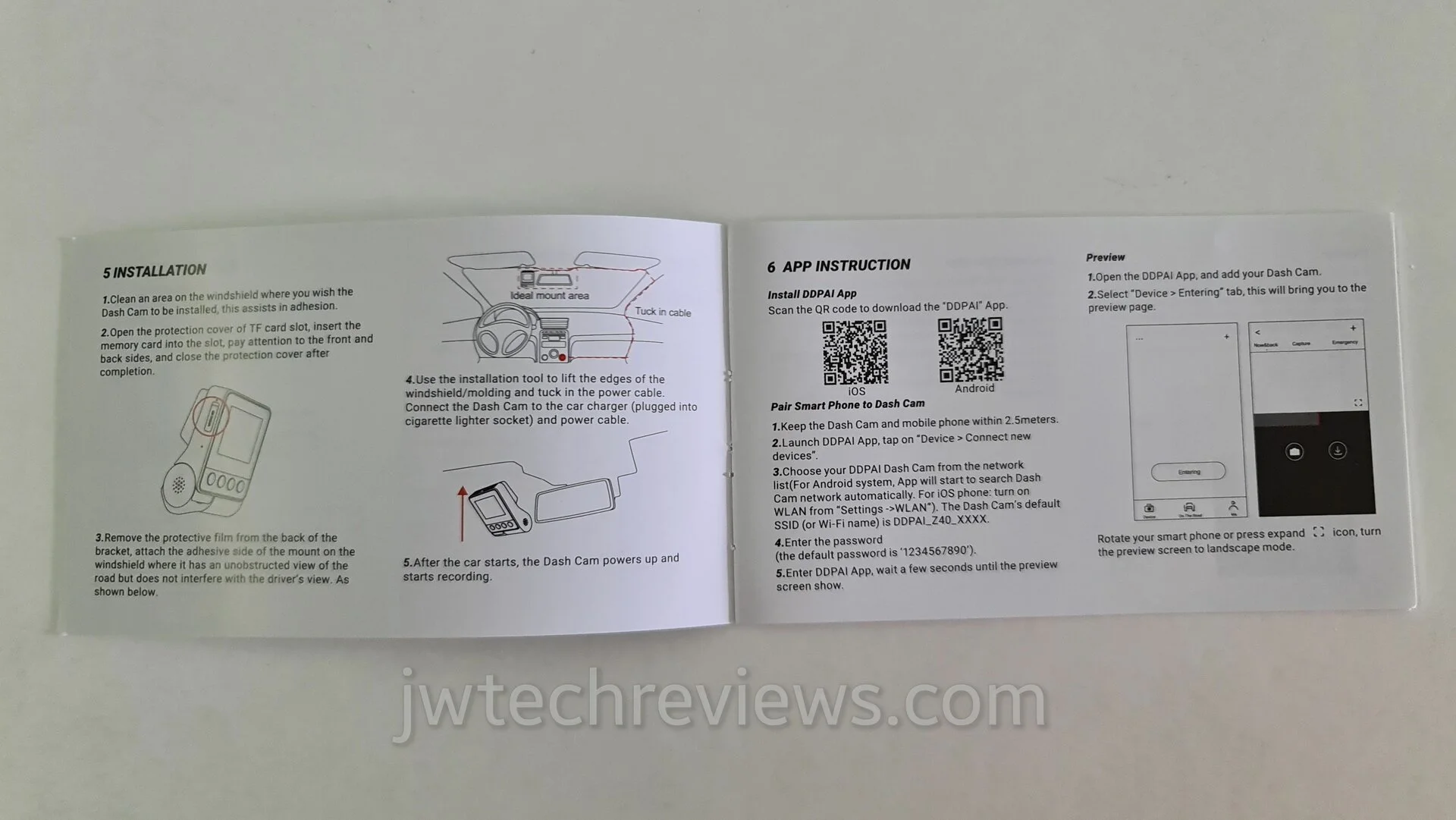

User manual



[Jeremy Wong]

DDPAI RC1 rear cam box



Open box

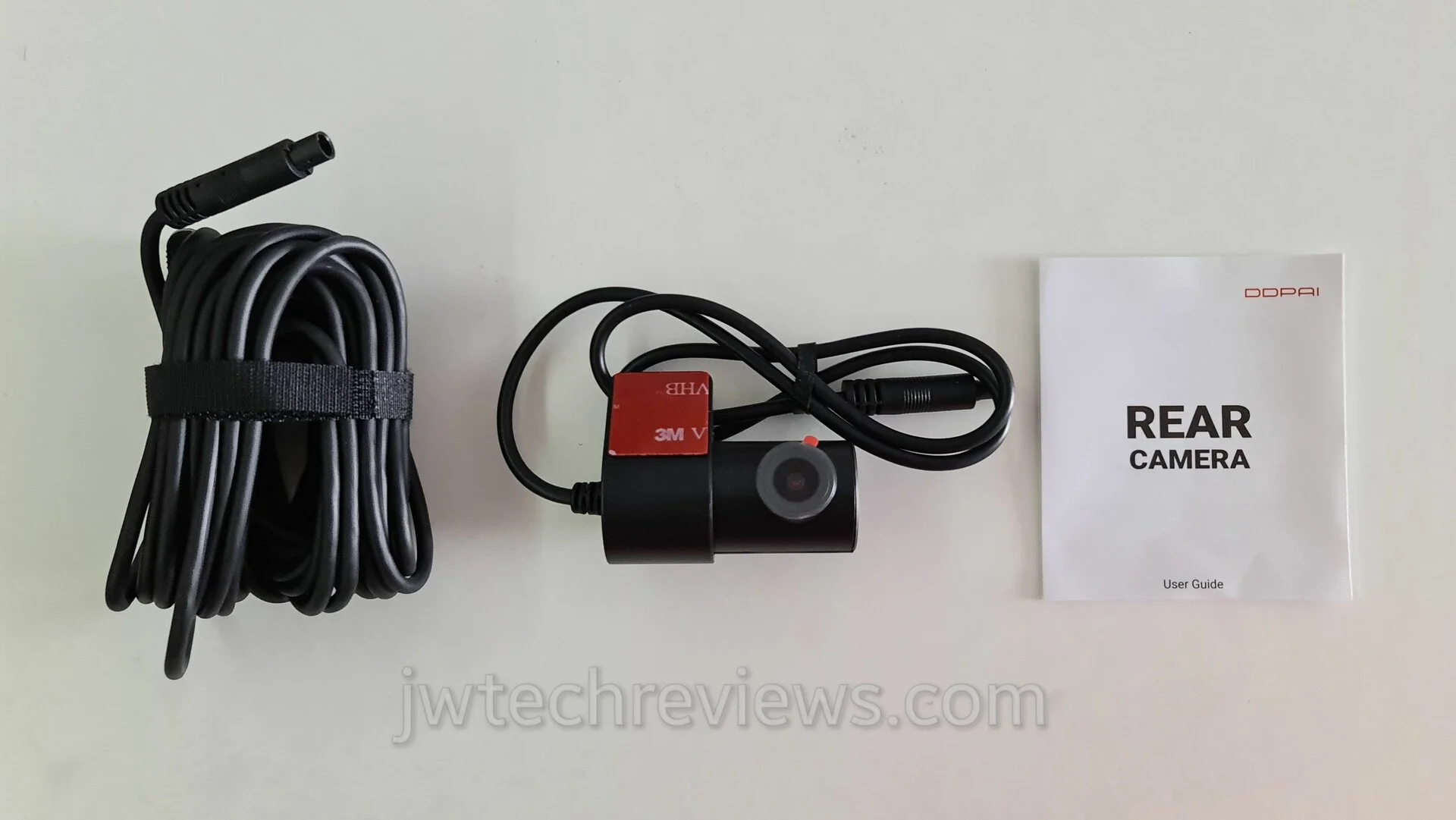

Contents

• RC1
• Rear camera cable
• Installation guide

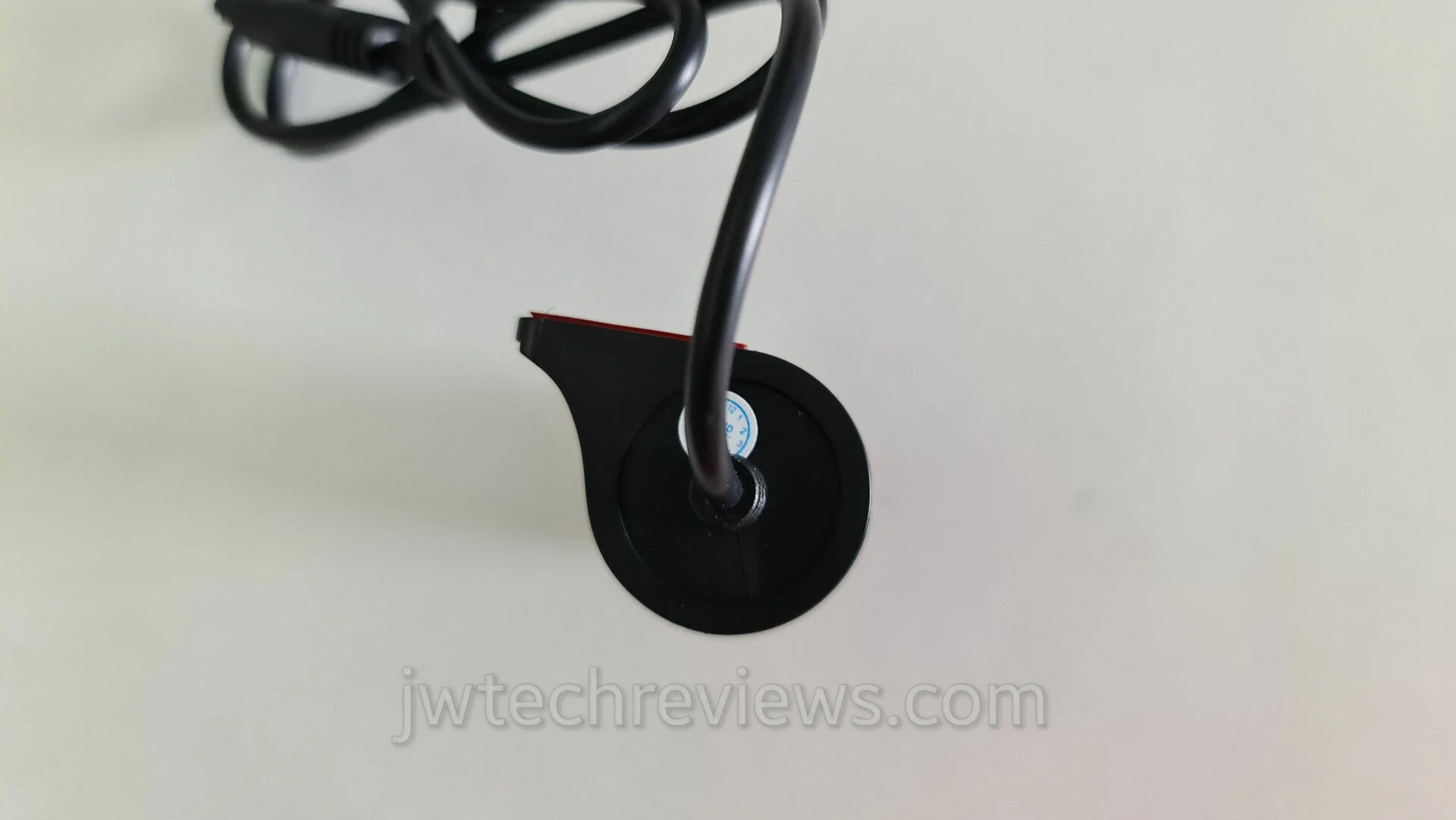

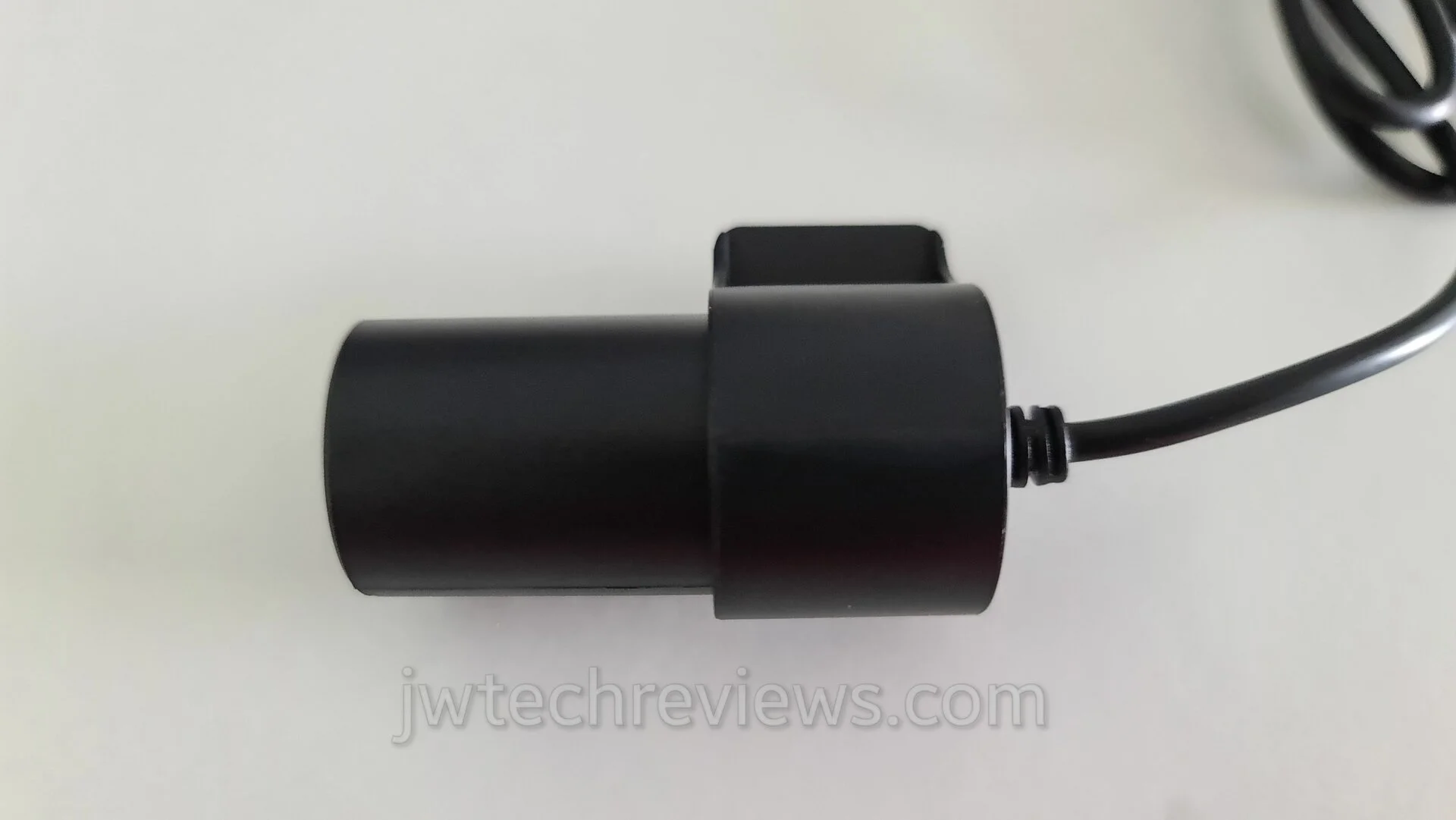

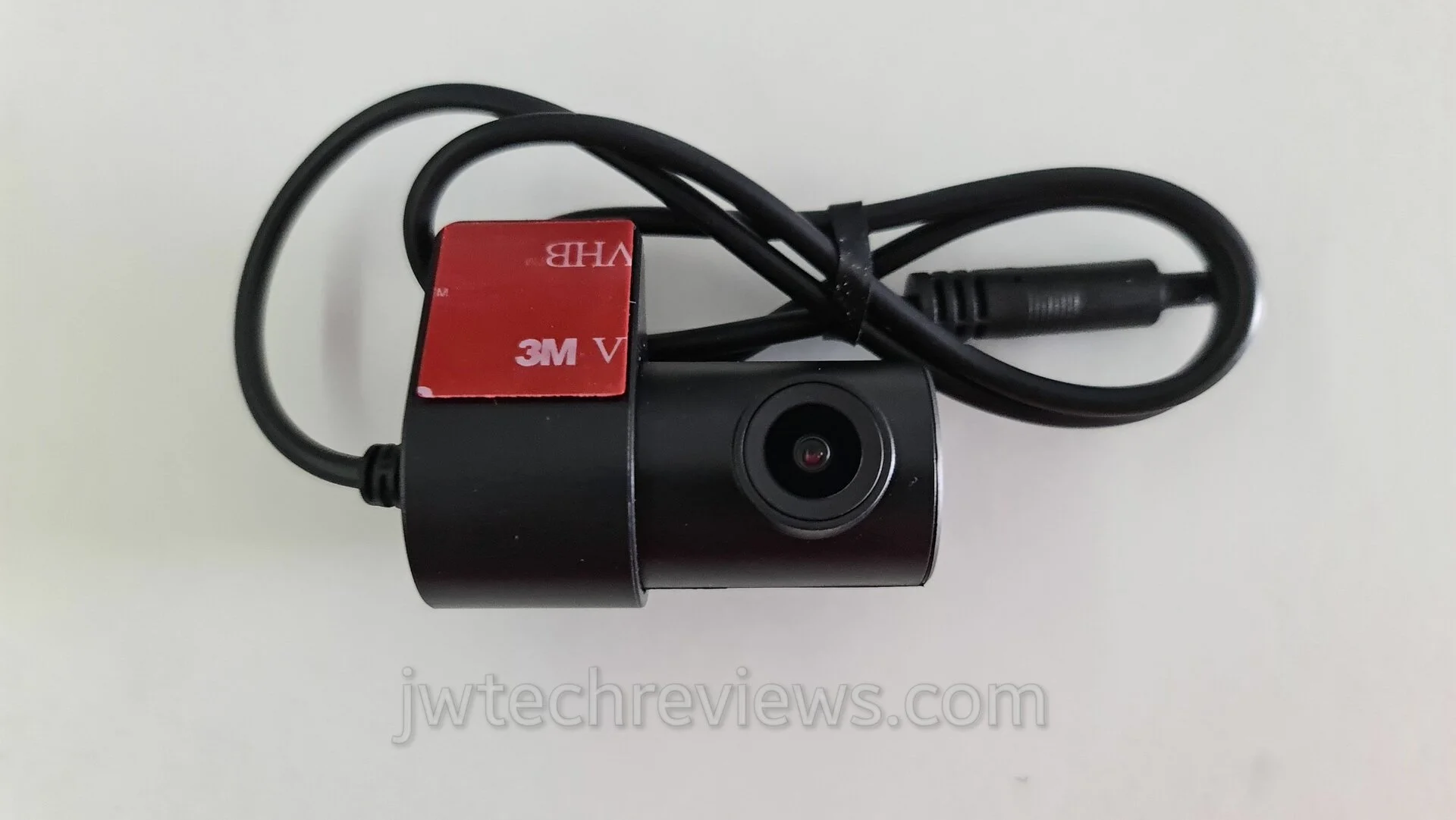

RC1



[Jeremy Wong]

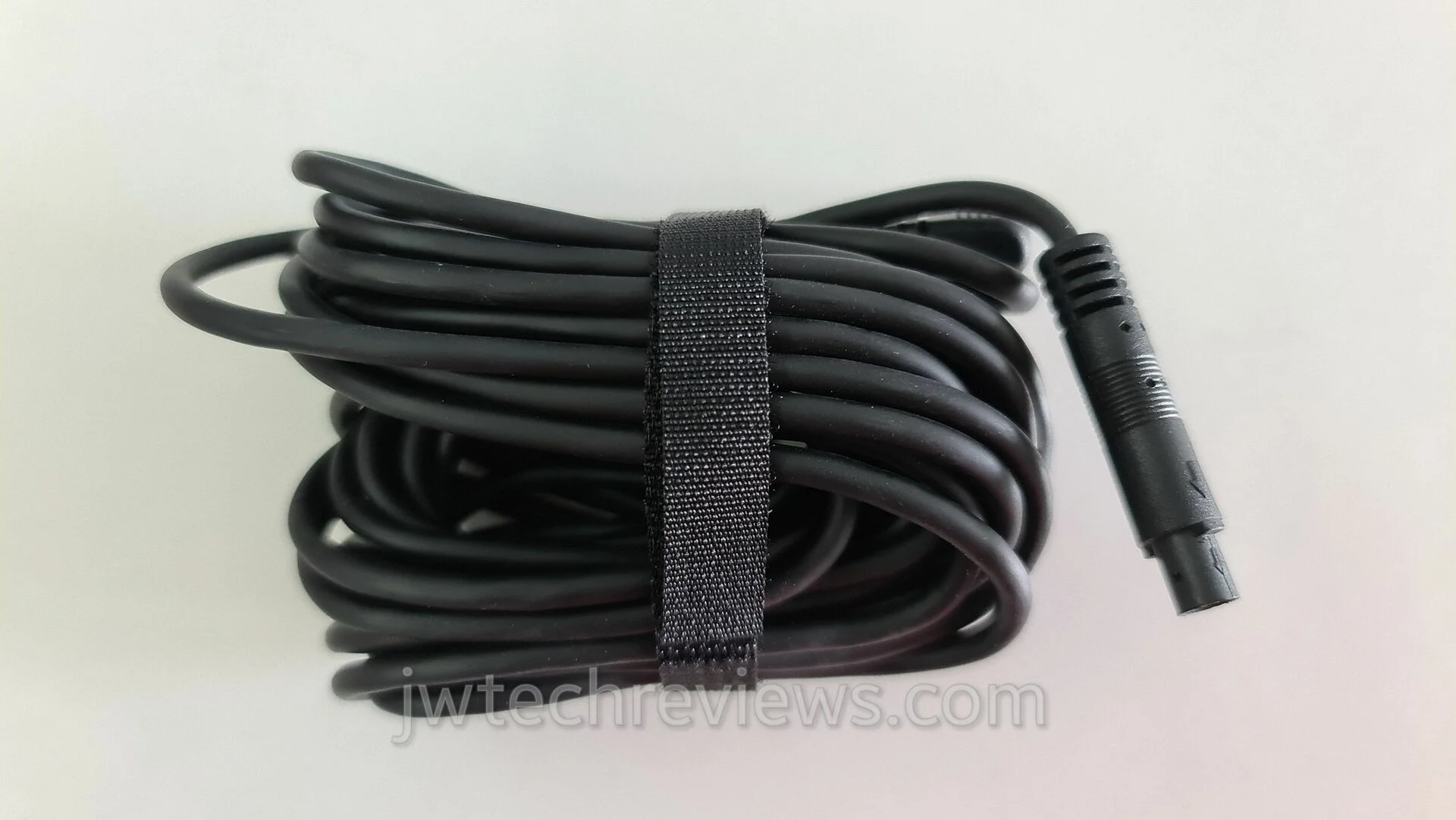

Rear camera cable

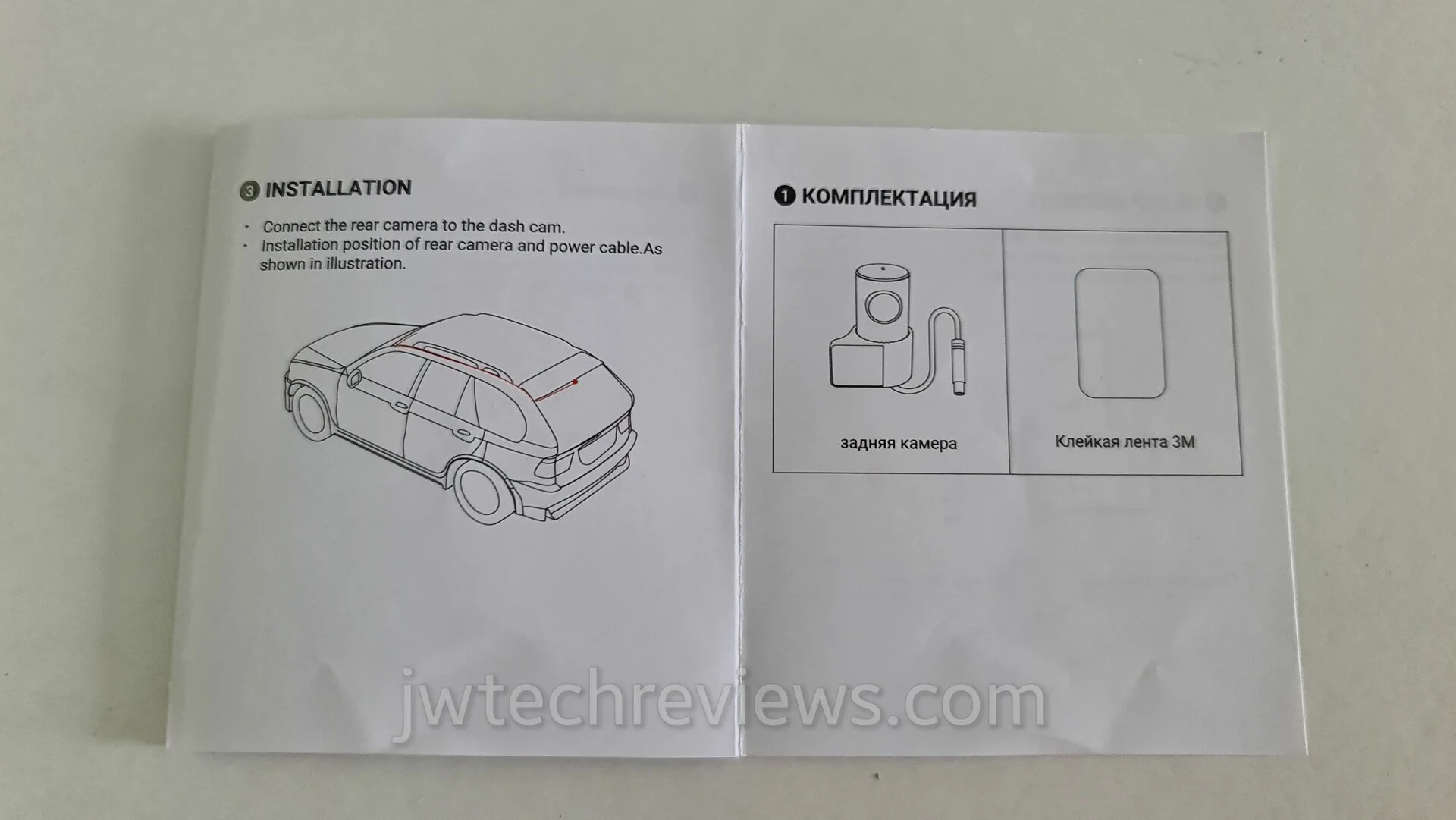

User guide

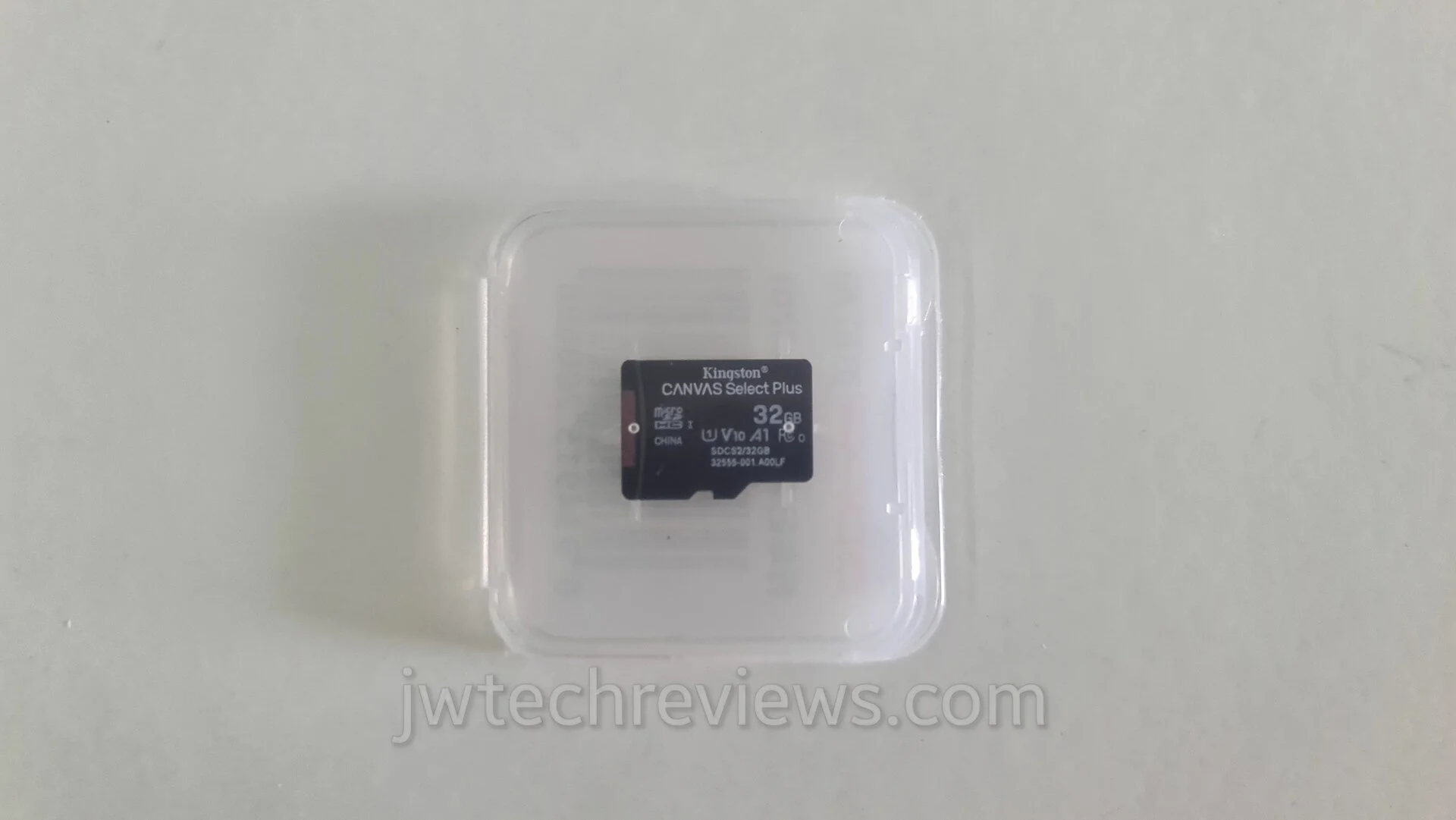

DDPAI 32GB microSD card (Kingston CANVAS Select Plus)



[Jeremy Wong]

DDPAI Type-C USB intelligent hardwire kit



Contents

• Type-C USB intelligent hardwire kit
• Fuse taps (ATO, mini & low-profile mini)
• User guide

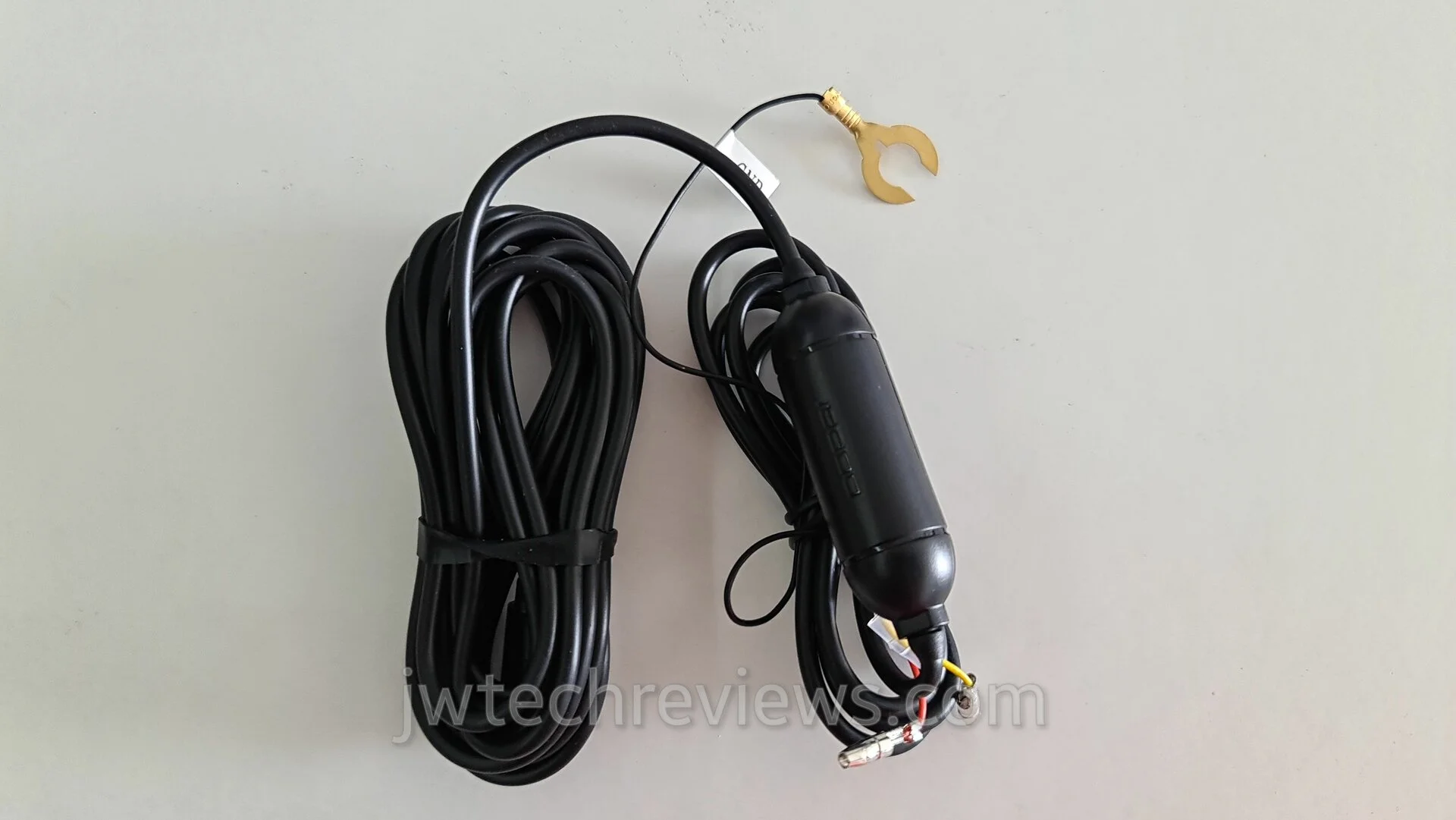

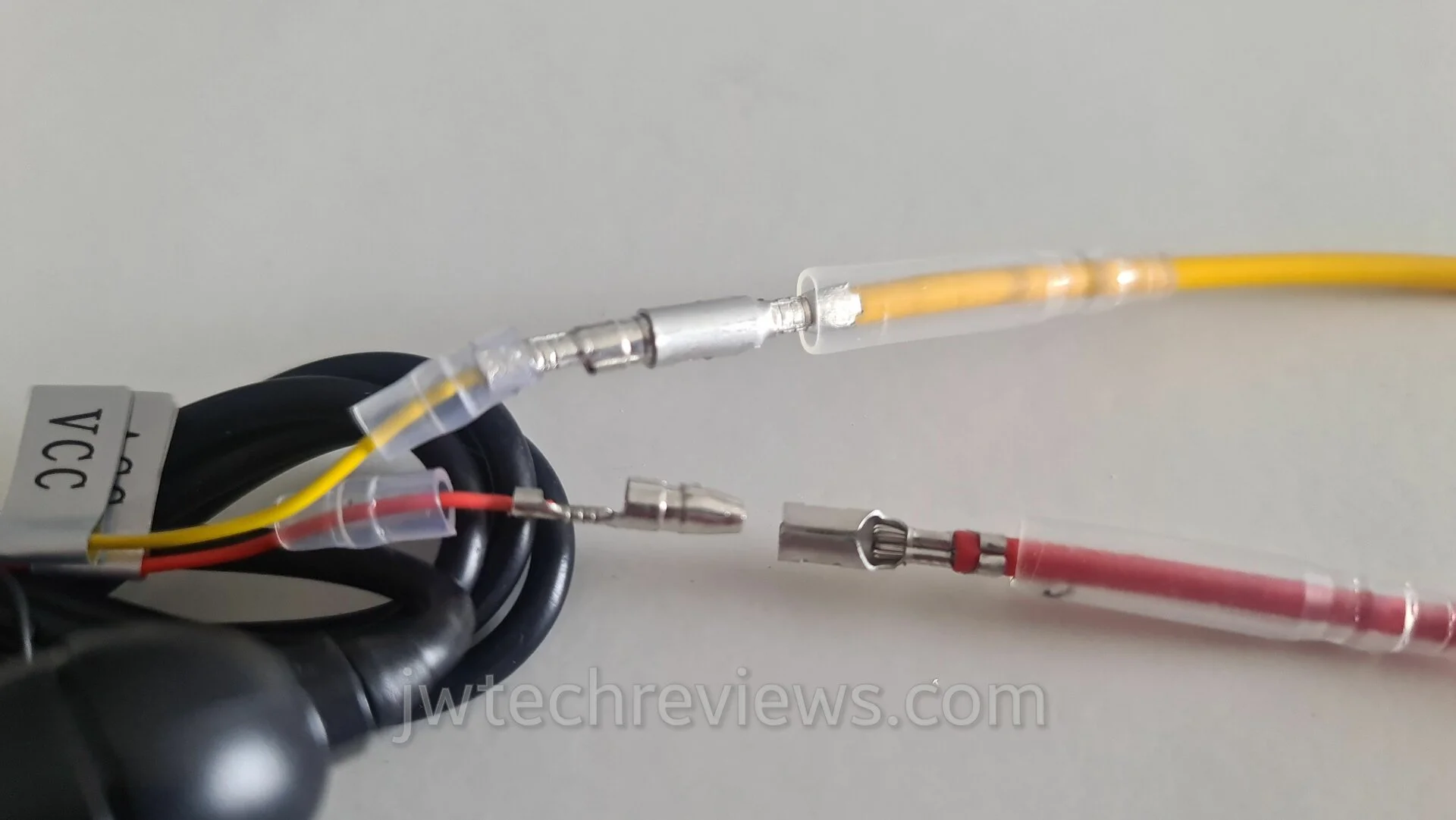

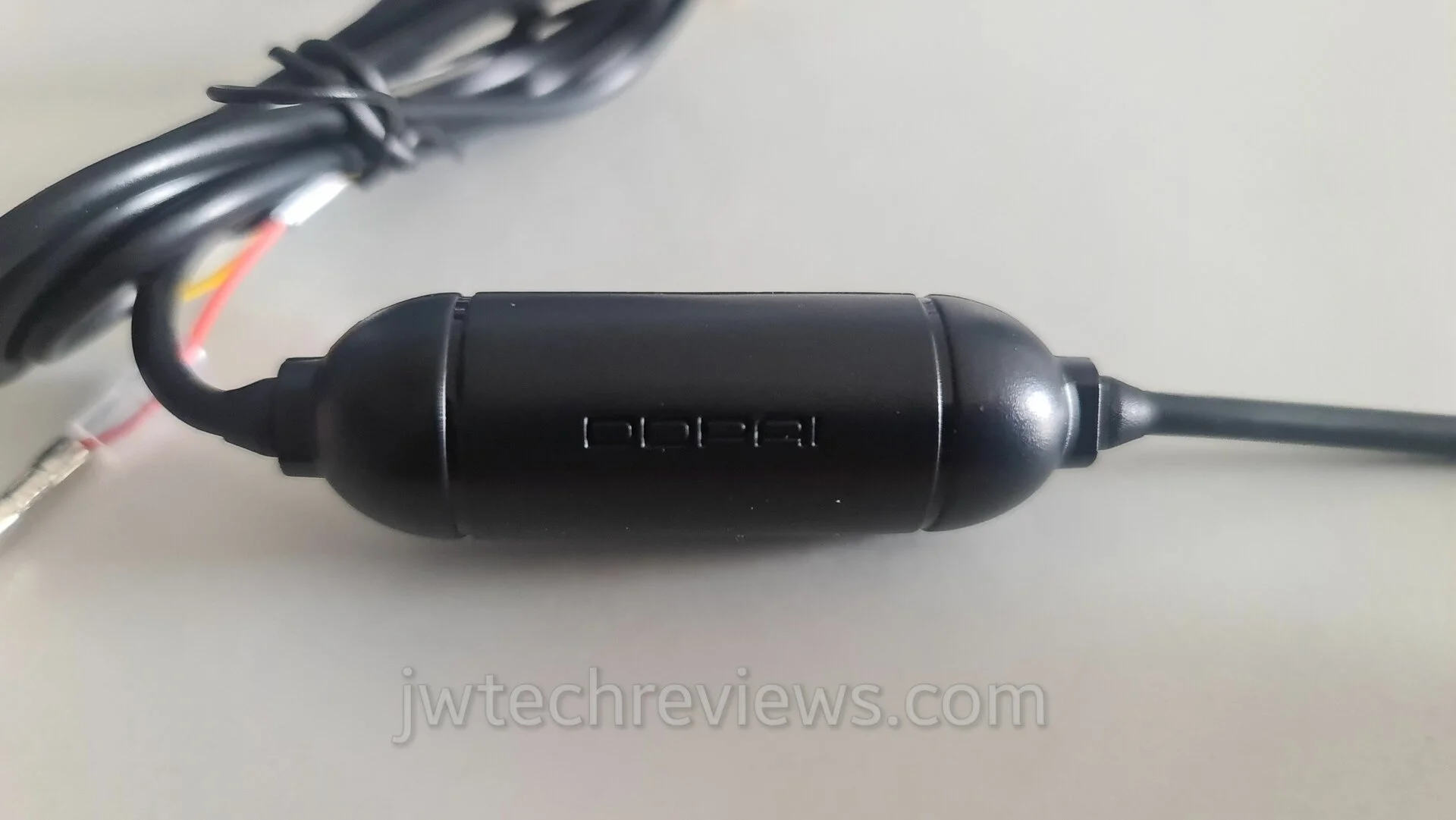

Type-C USB intelligent hardwire kit



Fuse taps (ATO, mini & low-profile mini)



[Jeremy Wong]

User guide

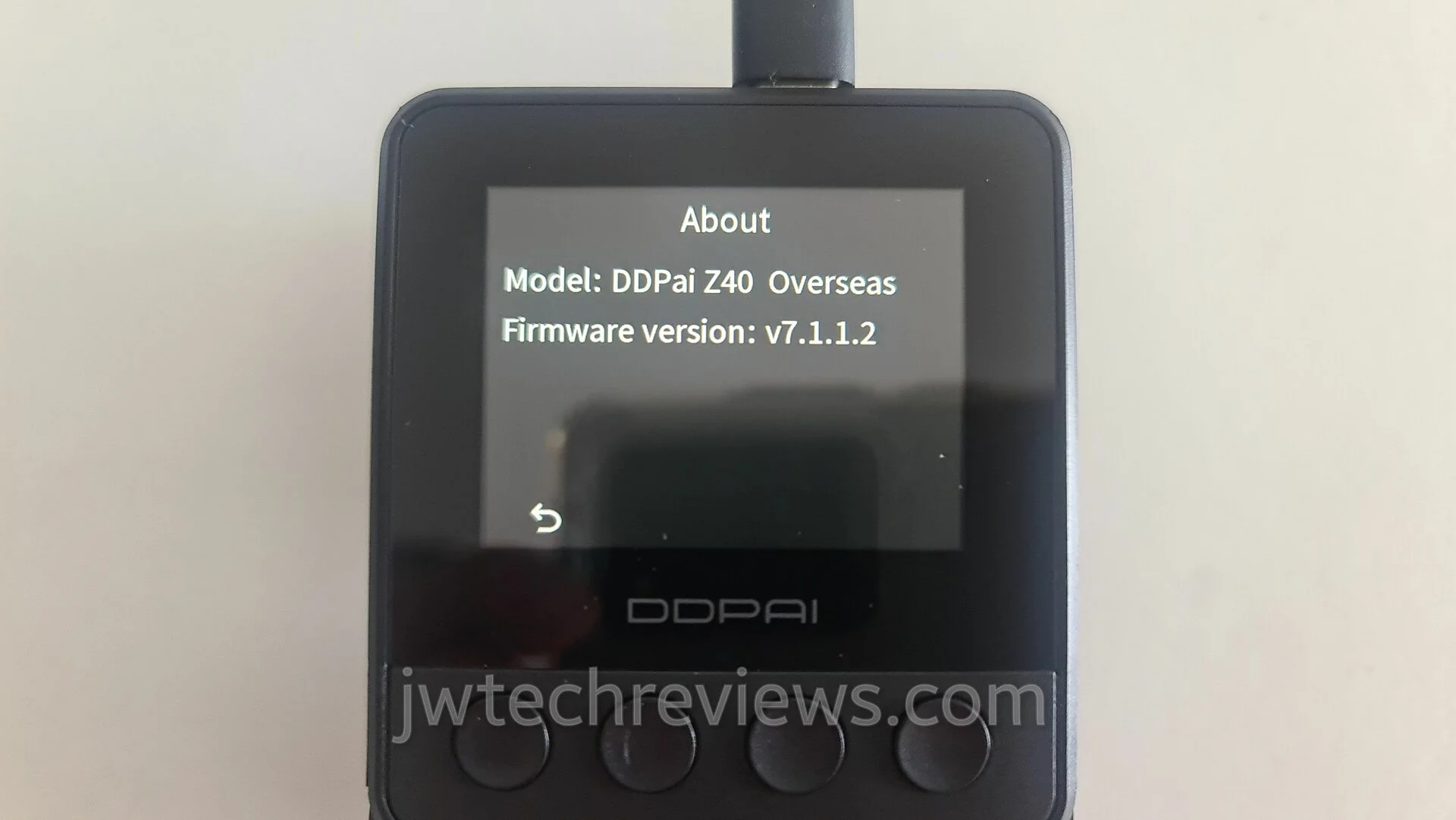

Initial firmware out of the box

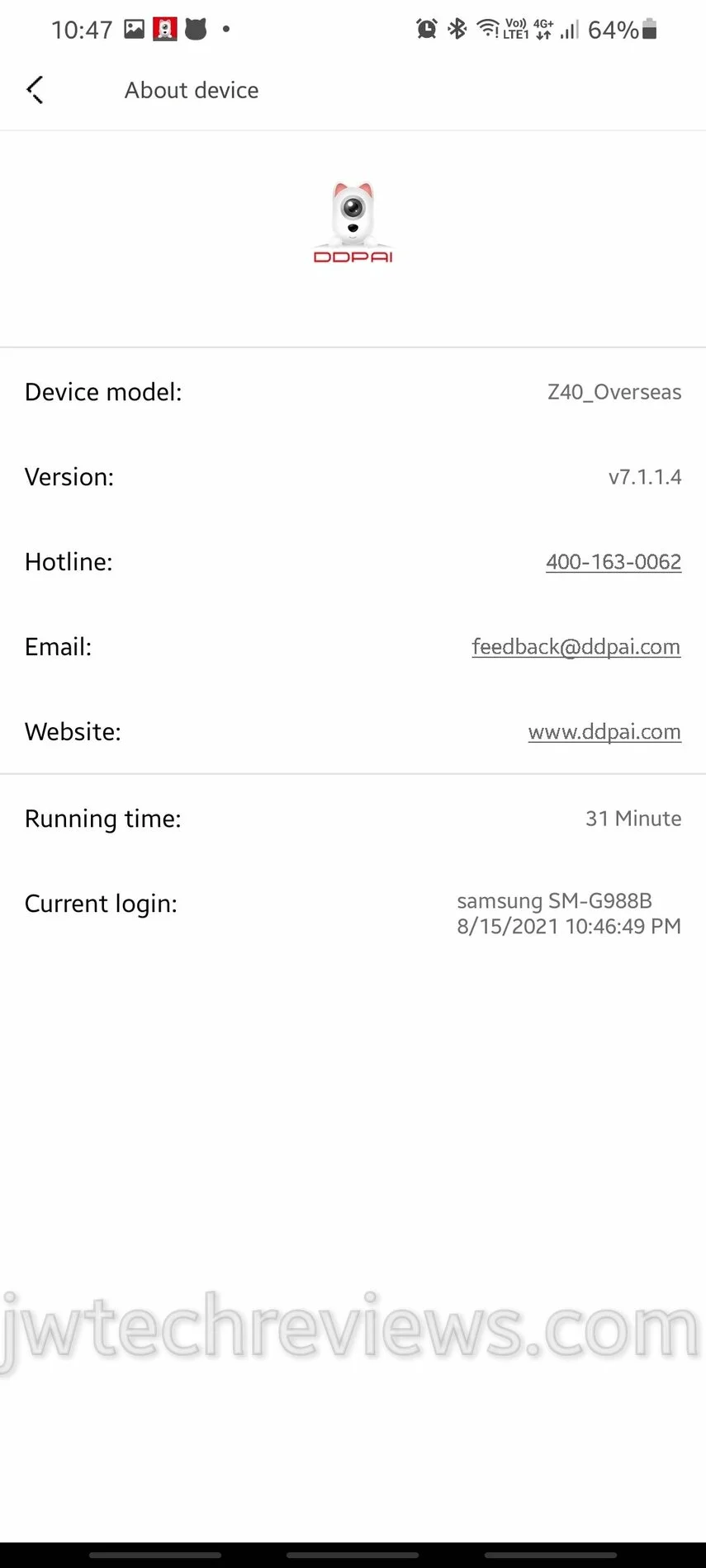

Updated to firmware v7.1.1.4 via the DDPAI app from firmware v7.1.1.2

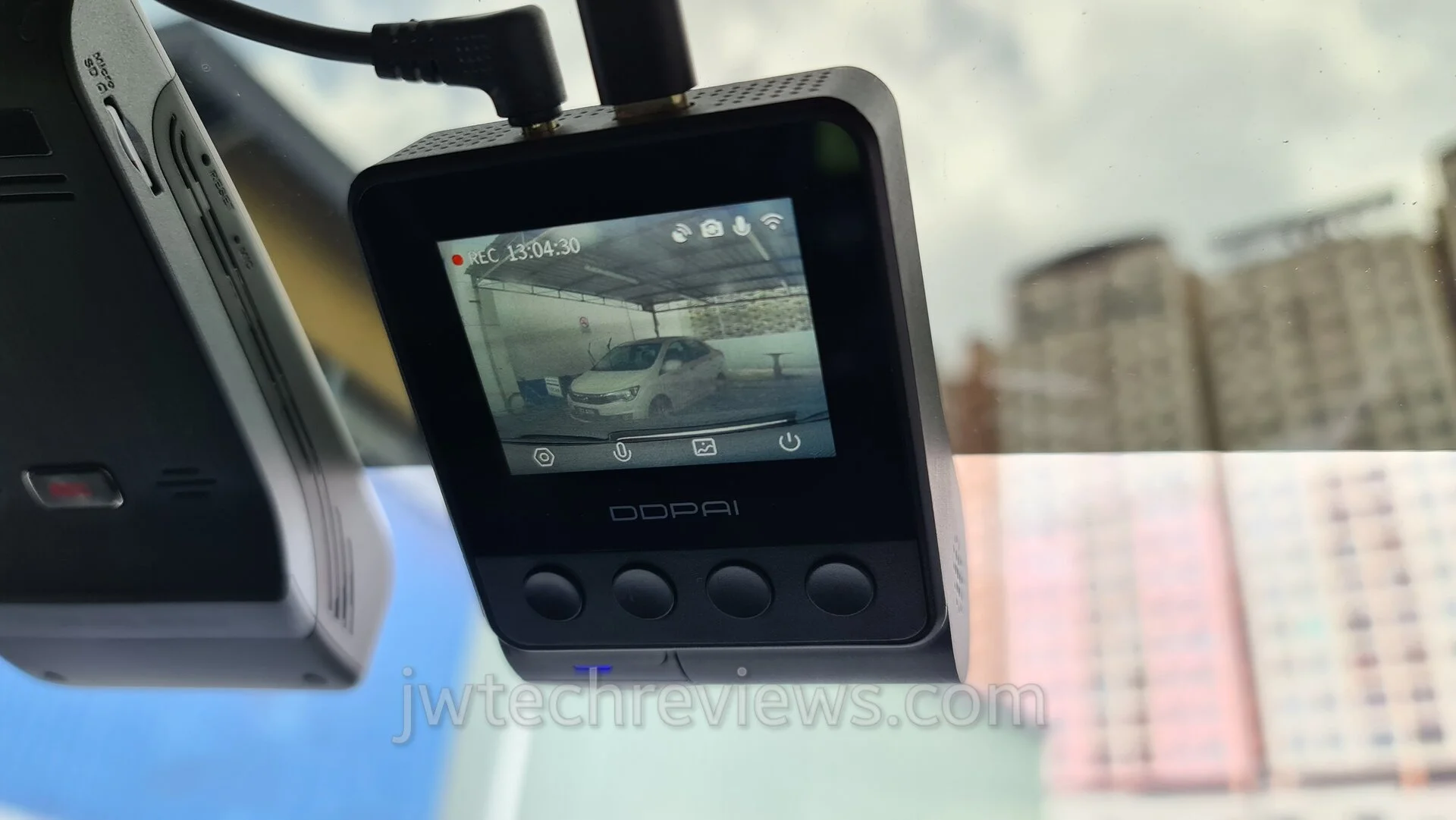

Test setup

Using a 128GB Samsung Evo Plus microSD for the recordings.



[Jeremy Wong]

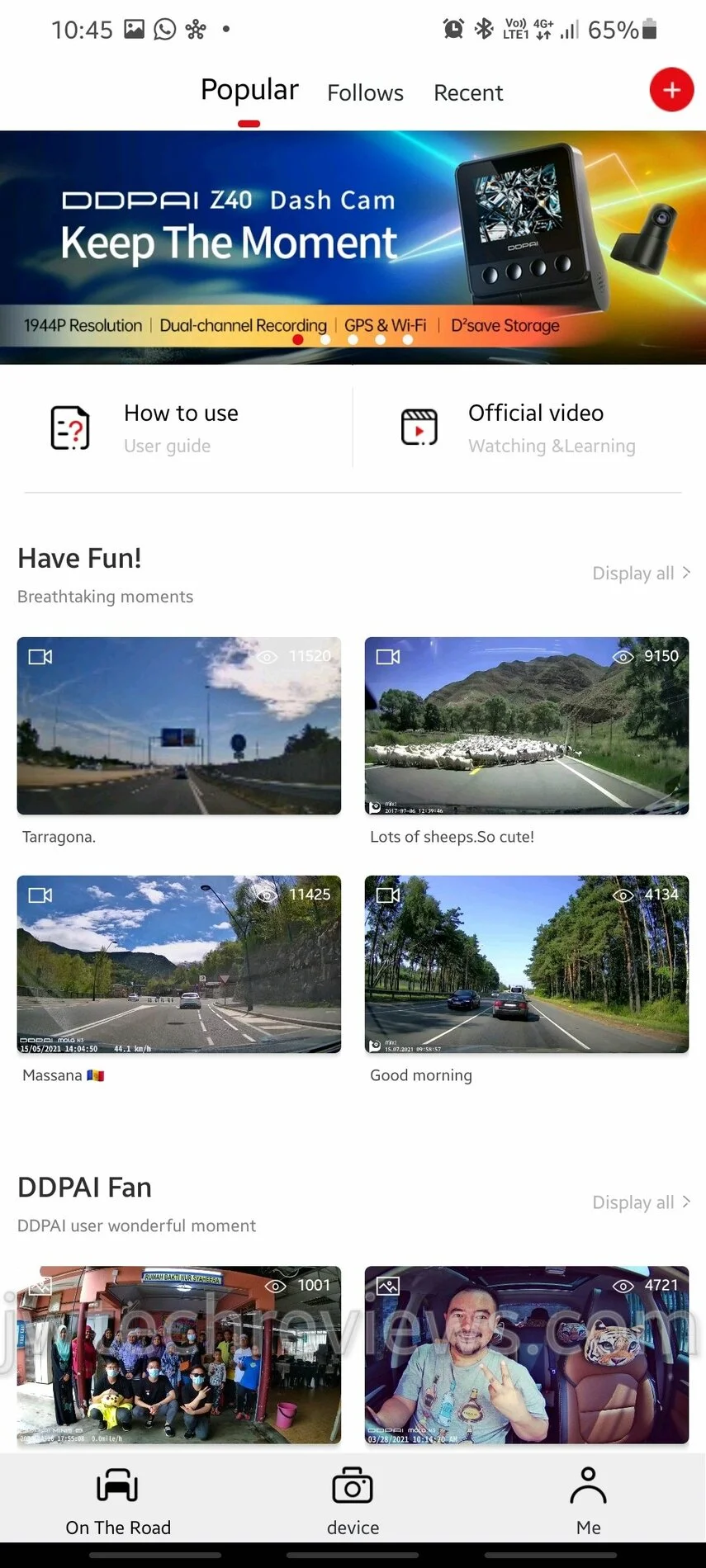

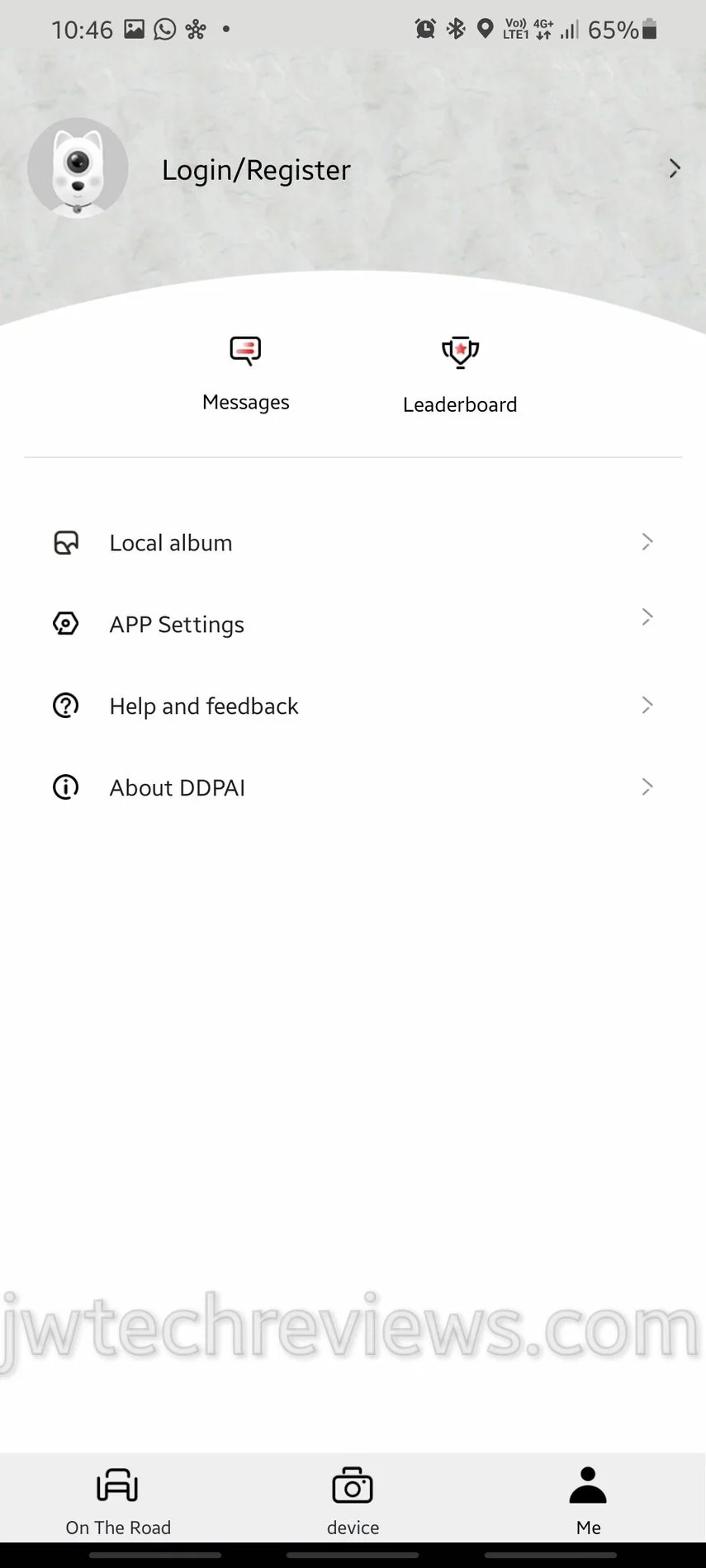

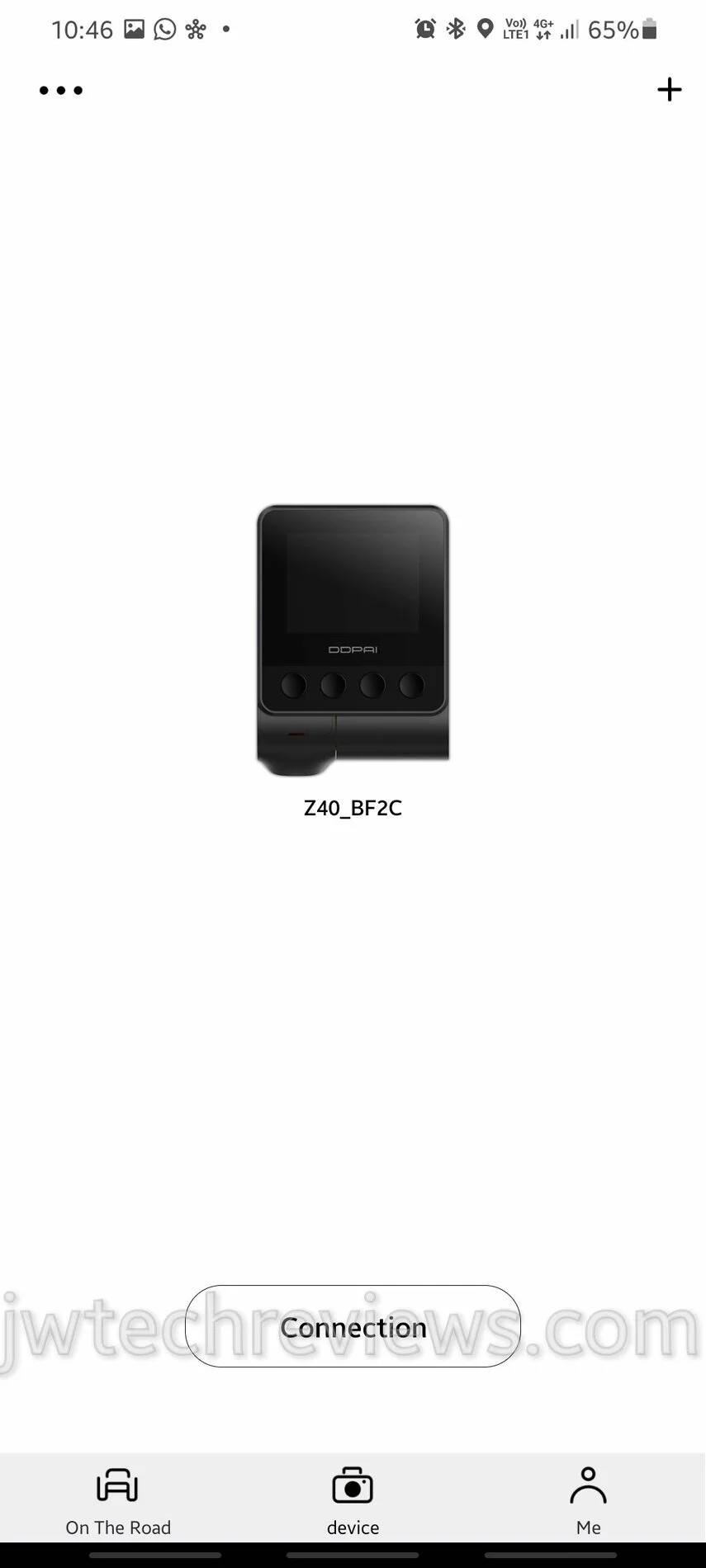

DDPAI app



[Jeremy Wong]

Videos
Front cam recorded in HVC1 2592×1944 25fp with an overall bit rate of 19.5 Mb/s.



[Jeremy Wong]

Rear cam recorded in HVC1 1920×1080 25fps with an overall bit rate of 8,383 kb/s.



[Jeremy Wong]

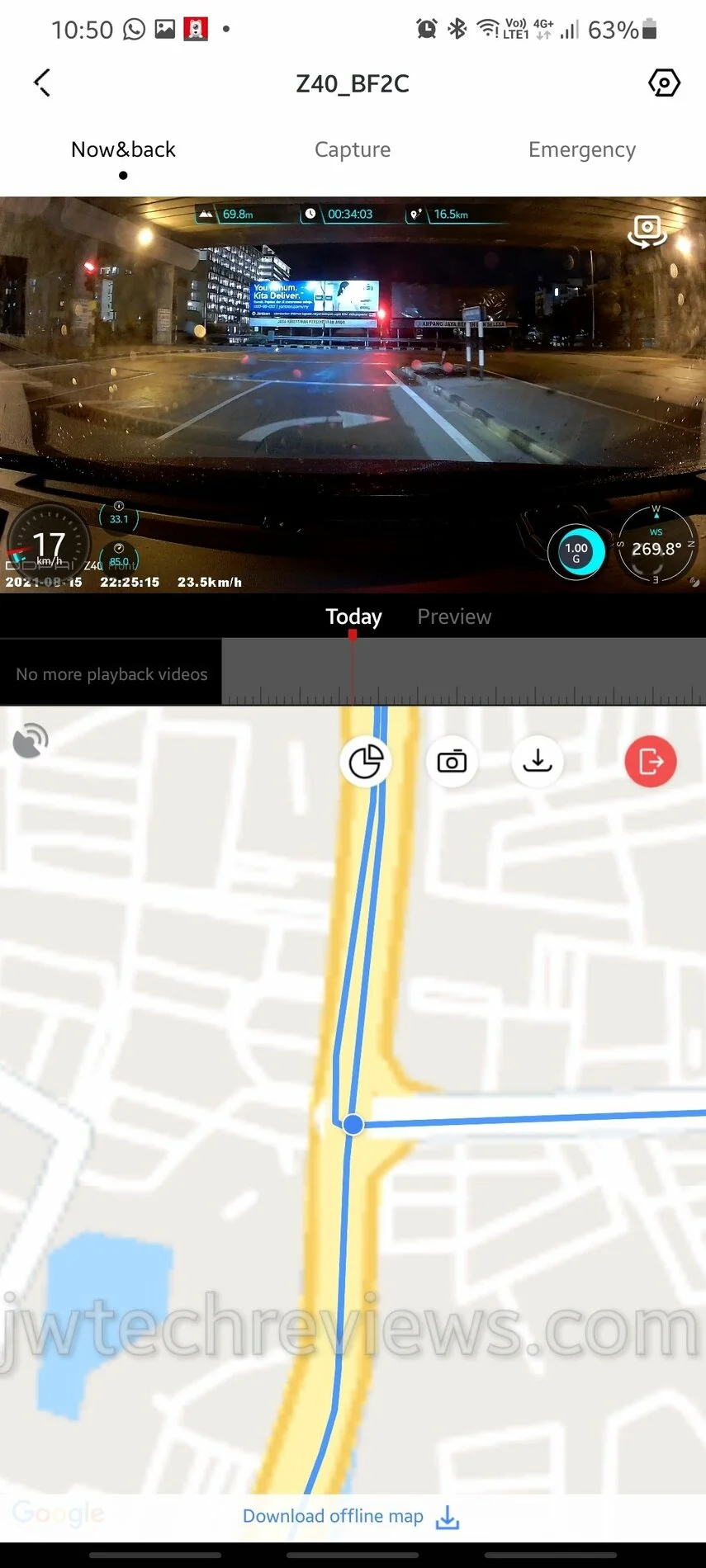

Sense Reality 2.0

Video with Sense Reality 2.0 can only be downloaded via the DDPAI app and a maximum of 30 seconds video.

Final thoughts
The Z40 has a clear video quality front and rear. A great contender in the budget range of dual dashcam.

The Sense Reality 2.0 is a nice gimmick that you can share with friends for that JARVIS feel from Iron Man.

DDPAI’s new D²save Storage Technology makes sure that recordings get saved in case of a faulty microSD card. The D²save Storage Technology makes sure that the last video is stored in the NAND Flash if any failure occurs. When a working microSD card is inserted then the stored video will be saved to the microSD card.

DDPAI mentioned the Z40 will have support for their ADAS Black Technology in the new version. Can’t wait for it.
