[DIY- the easiest way] CPL for mini 0801s

Discussion in 'DIY Projects' started by hultaj, May 15, 2017.

  1. hultaj

    hultaj New Member

    Messages:
    13
    Likes Received:
    11
    Country:
    Poland
    It is very easy and looks like the oem. You can adopt this idea with other dash cams with protruding lens.

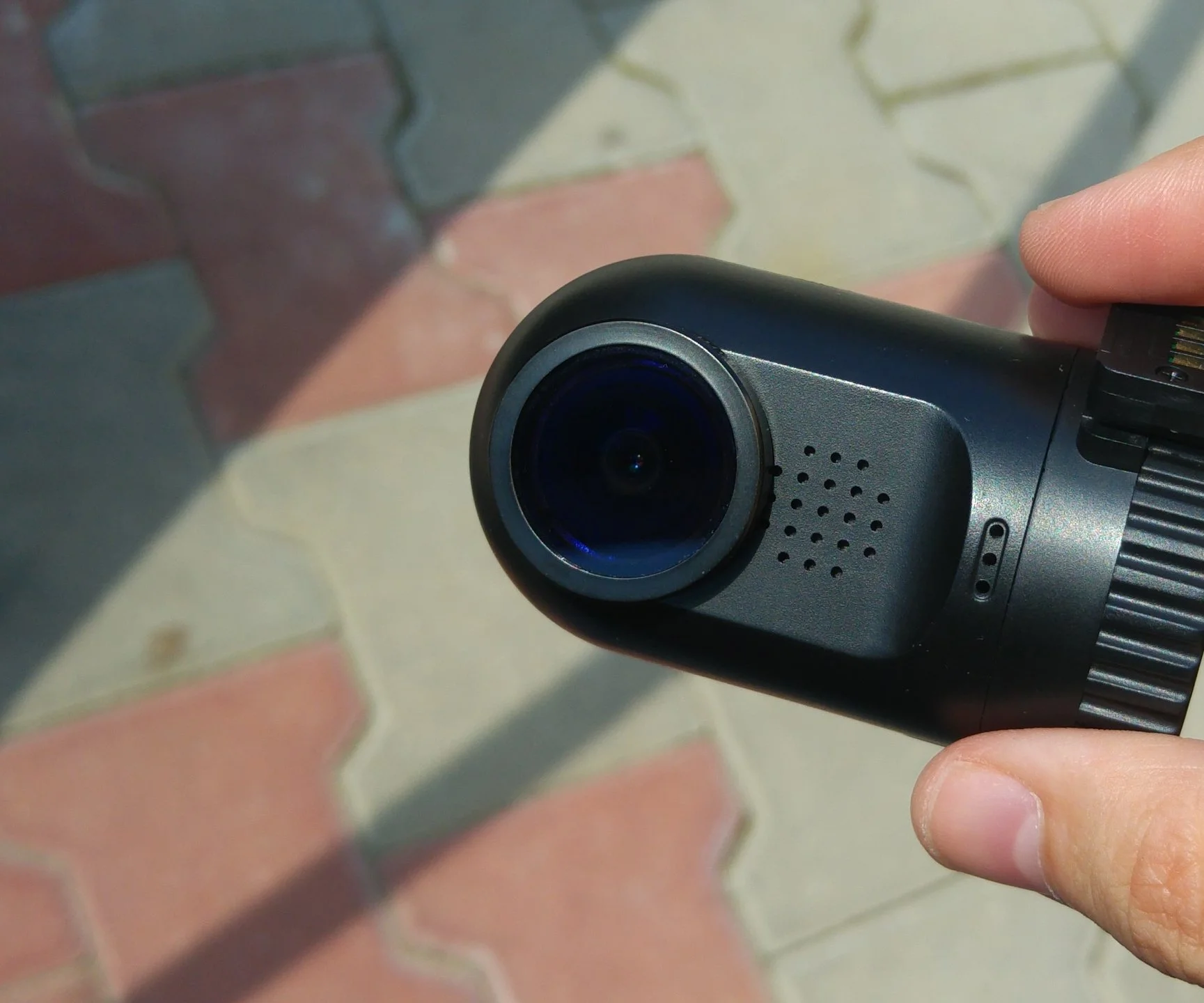

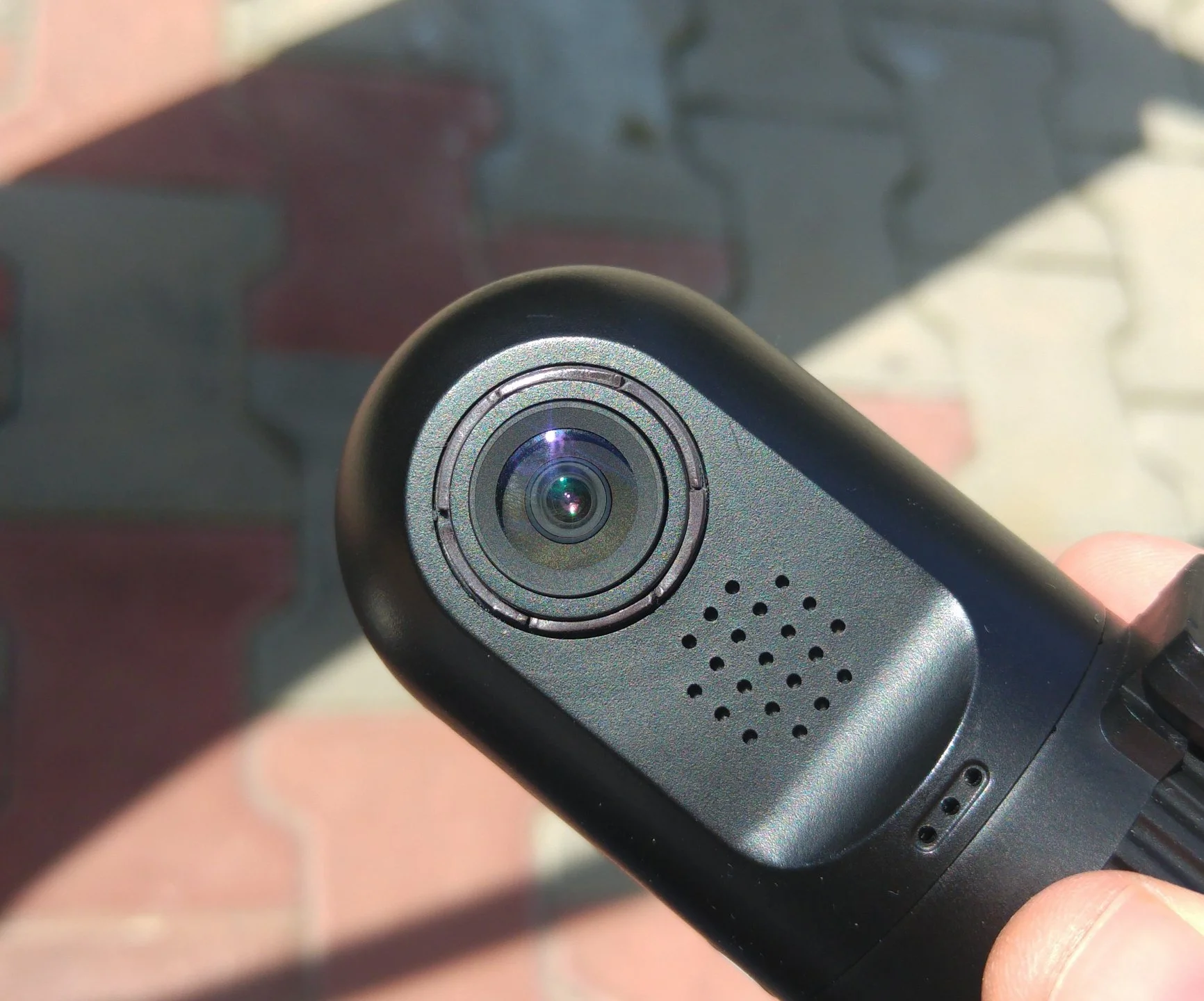

    so let's start. lens in 0801s is small. the smallest cpl I have found was 24mm- still too big for 0801s. BUT it has a metal ring inside it. All You need to do is go to a store and buy flexible magnet tape. yes, it is weak magnet, but trust me- it will work, and cpl won't move, or fall off even when You shake it. I bought 1.5mm. when I stuck it around the lens, it turned out it was too thick. so I cut thin stripes and put them around the lens. and that's all!

    . 1.jpg 2.jpg

    windshield was dirty, dots are not reflections from the inside of my car ;)

  2. jackalopephoto

    jackalopephoto Active Member

    Messages:
    124
    Likes Received:
    33
    Country:
    United States
    FYI you shouldn't need a circular polarizer. You'll get less light loss with a linear polarizer
