More than I can review. ;)
Just received G90 dashcam from Gearbest.
With expedited shipping, it was delivered very quickly.
Less than 5 days from Singapore to USA via Hongkong counting weekend. Kudos to Karen @ gearbest.

Here is product link: http://www.gearbest.com/car-dvr/pp_33655.html
EDIT: Now it's on sale @ $69.98 after coupon code BL950.
http://dashcamtalk.com/forum/threads/gearbest-com-has-g90-bl950-for-69-98-after-coupon.6729/

The actual product box was inside a brown cardboard box that was in a DHL packet.
Came in perfect condition except some scuffs on the external DHL plastic packet that is expected.
The box doesn't mention G90 anywhere on it.
It just has Car Camcorder and specifications printed.
It came with the dash cam, mount, car charger and usb cable.

I'll add pictures of the product/box later.

I had it in the car today morning with HDR off.
It has the same audio issue as other G90's though.
C600 has very low volume but I can clearly hear/understand NPR radio on it but G90 has breaks/vibrations on the sound and very hard to understand anything.
It's like when you record a video outdoors in the wind.
I have to get better firmware and see how much difference that makes in audio.

It is not a fair comparison against my C600 but man what a difference!
Colors are more natural, sharp and lots more detail compared to washed out colors in C600.

Even when the Sun is right in front, G90 is very clean and can read street signs and names easily.
It's still hard to read license plate in front due to dashboard reflection in that area and due to the Sunlight shining on the windshield imperfections (I have many sand sparkles on windshield that shines on direct light).
When the Sun is on the right, G90 has more dashboard reflection on that side than the C600.
May be due to wider FOV.
Polarizing filter should clean it.

Also, it is with HDR OFF. I'll test with HDR ON and see how that handles direct sunlight.
BTW, there is no indication of HDR off or on on the file properties that I can find so need to remember when I had it on and when I had it off. Hmmm...
Will post videos later after driving around different conditions.

I realized that I had it pointed little higher so need to point it down.

Here are few screenshots from windows media player.
My work monitor is not 1080p so it may not be as clear as if I grab frame at full resolution.

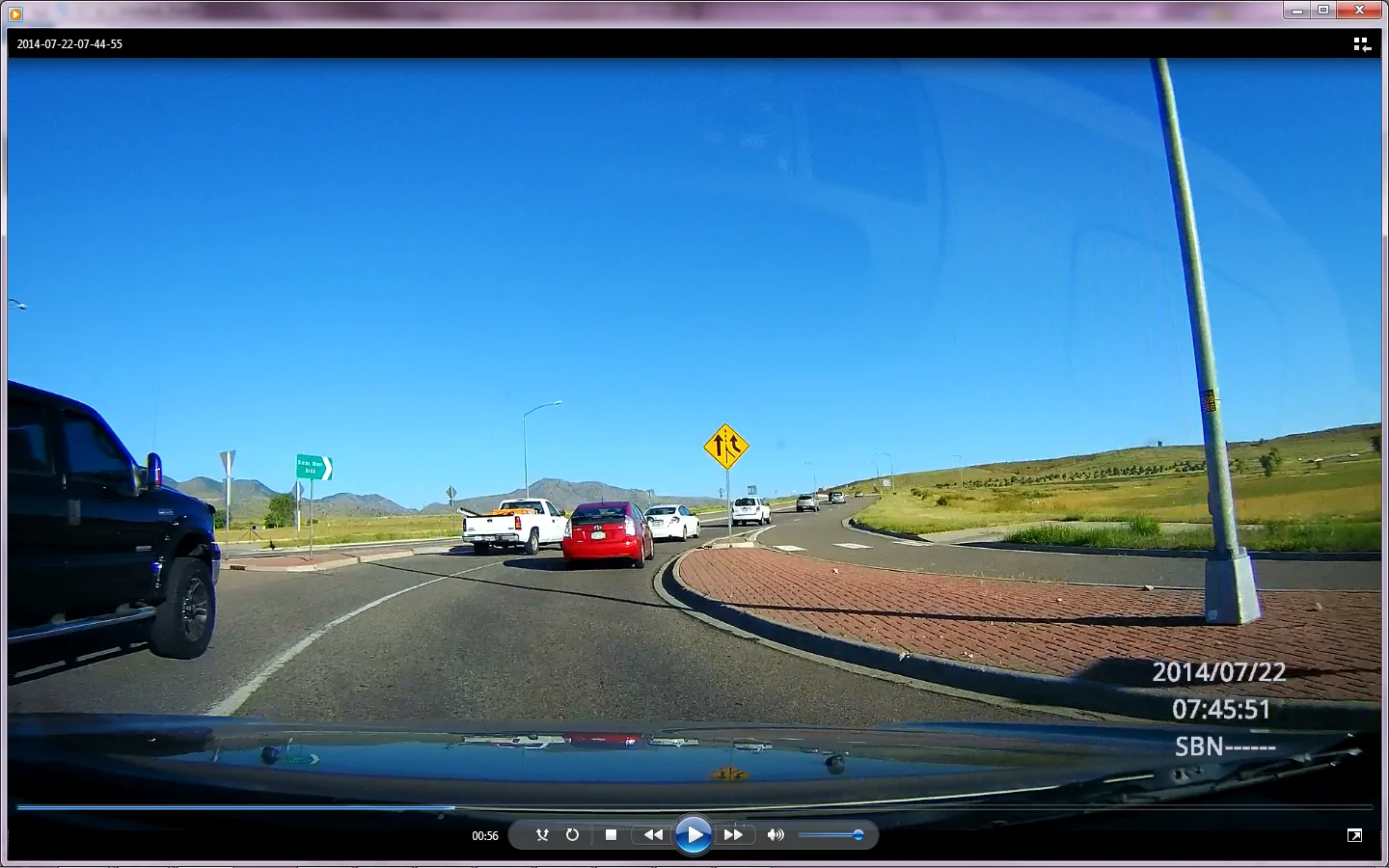

G90: Mountains, shrubs and trees are clean, clear and natural color just like I see.
20140722-g90-screenshot-1-png.6340

C600:
20140722-c600-screenshot-1-png.6346

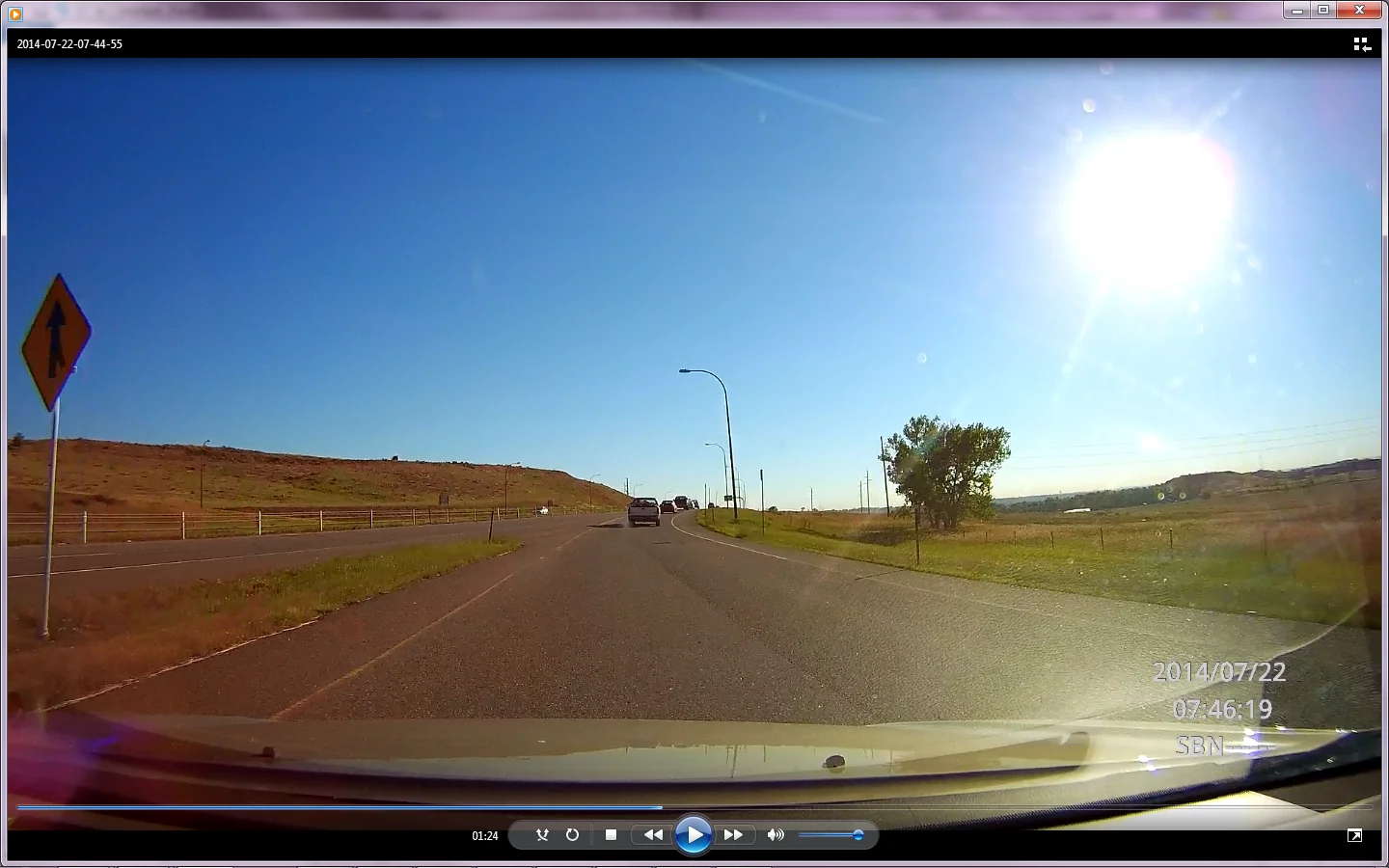

G90: Handles sunlight much better.
20140722-g90-screenshot-2-png.6341

C600:
20140722-c600-screenshot-2-png.6347

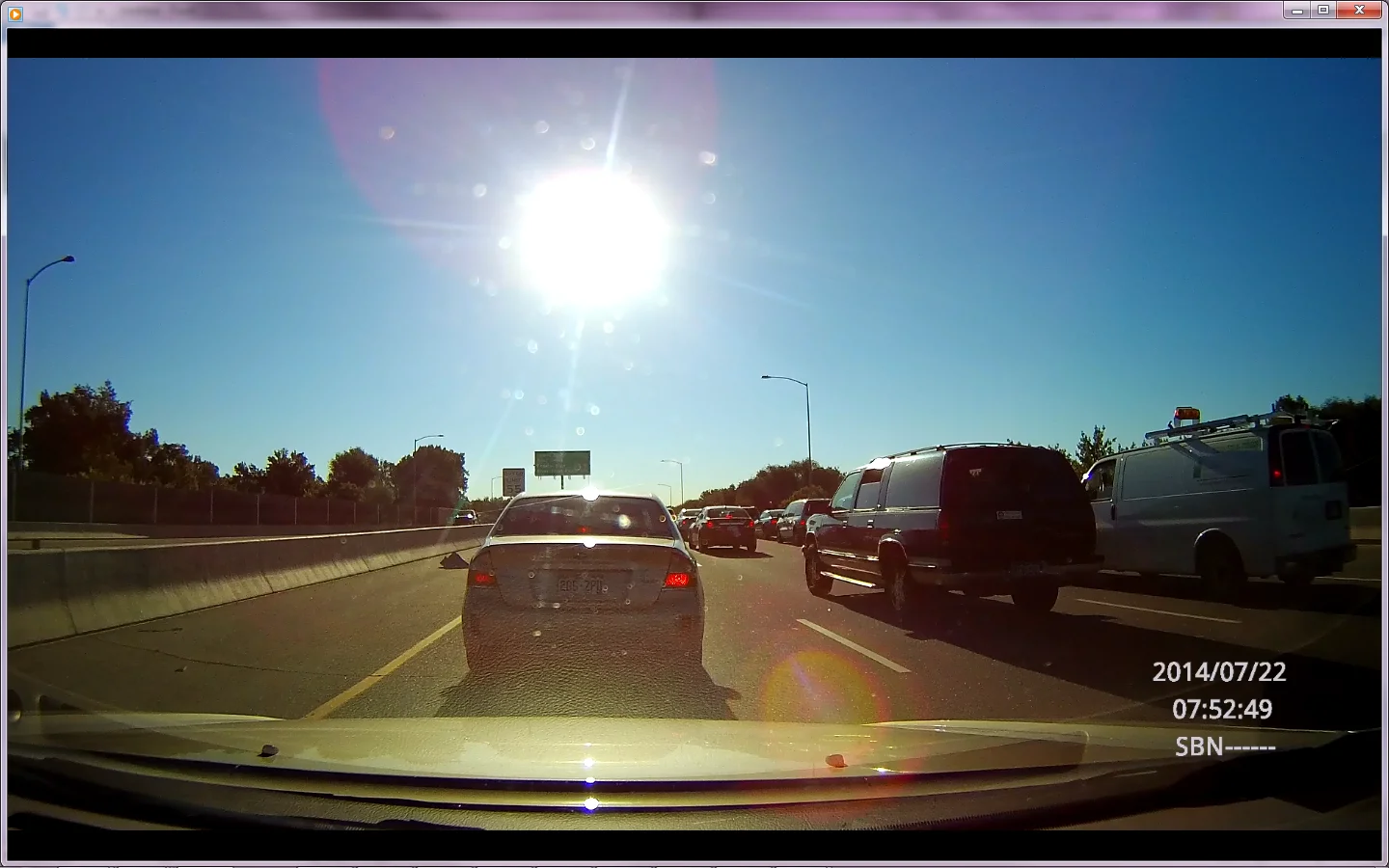

G90: Handles sunlight much better. The green signboard is green and can make out something is written there.
20140722-g90-screenshot-3-png.6342

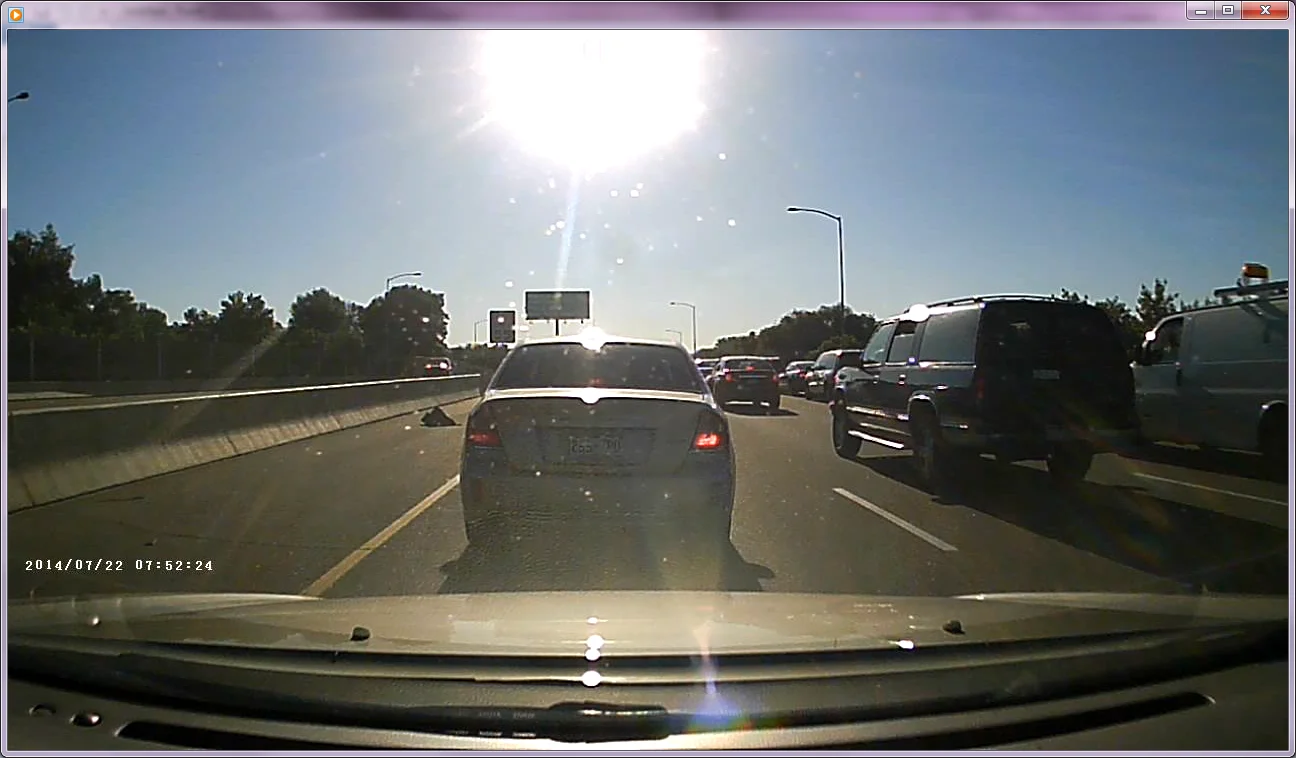

C600: Green signboard looks dark and no writings can be seen on C600.
20140722-c600-screenshot-3-png.6348


G90: Can read writings on the far lane truck easily.
20140722-g90-screenshot-4-png.6343

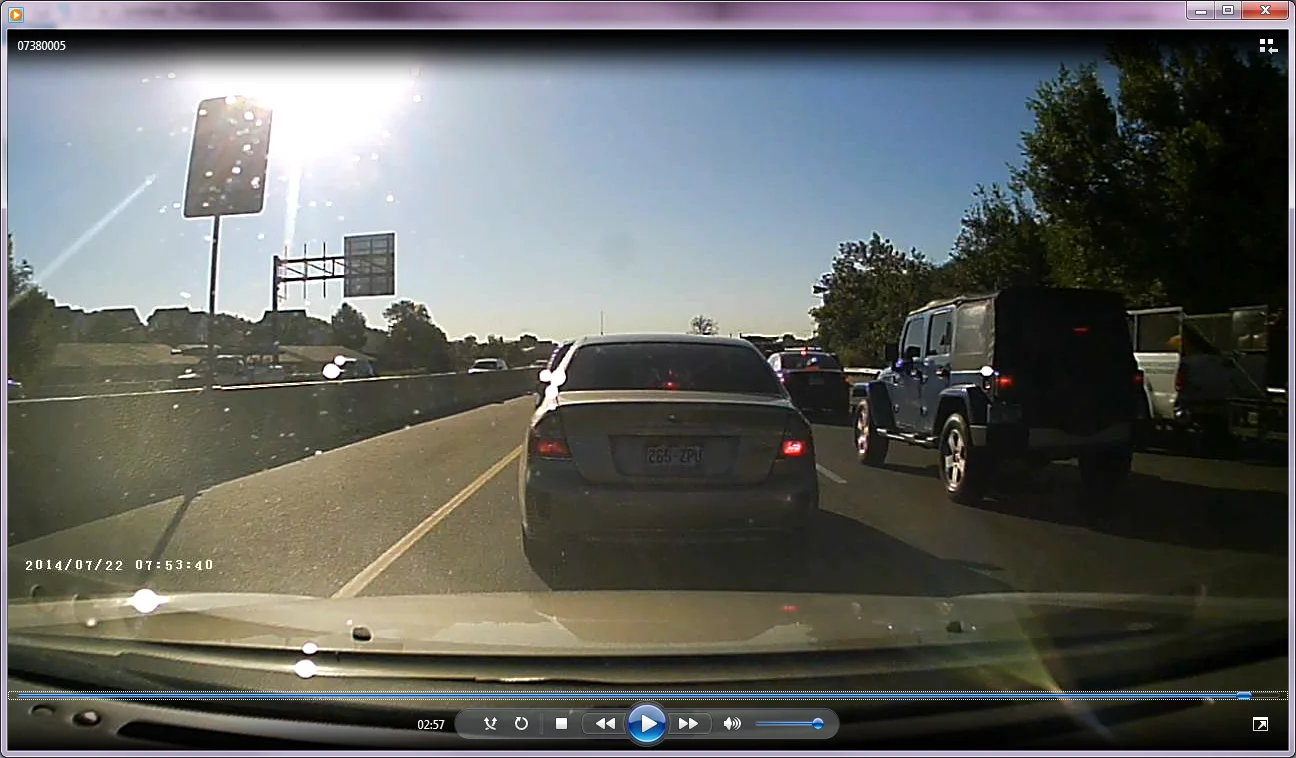

C600: No can do.
20140722-c600-screenshot-4-png.6349

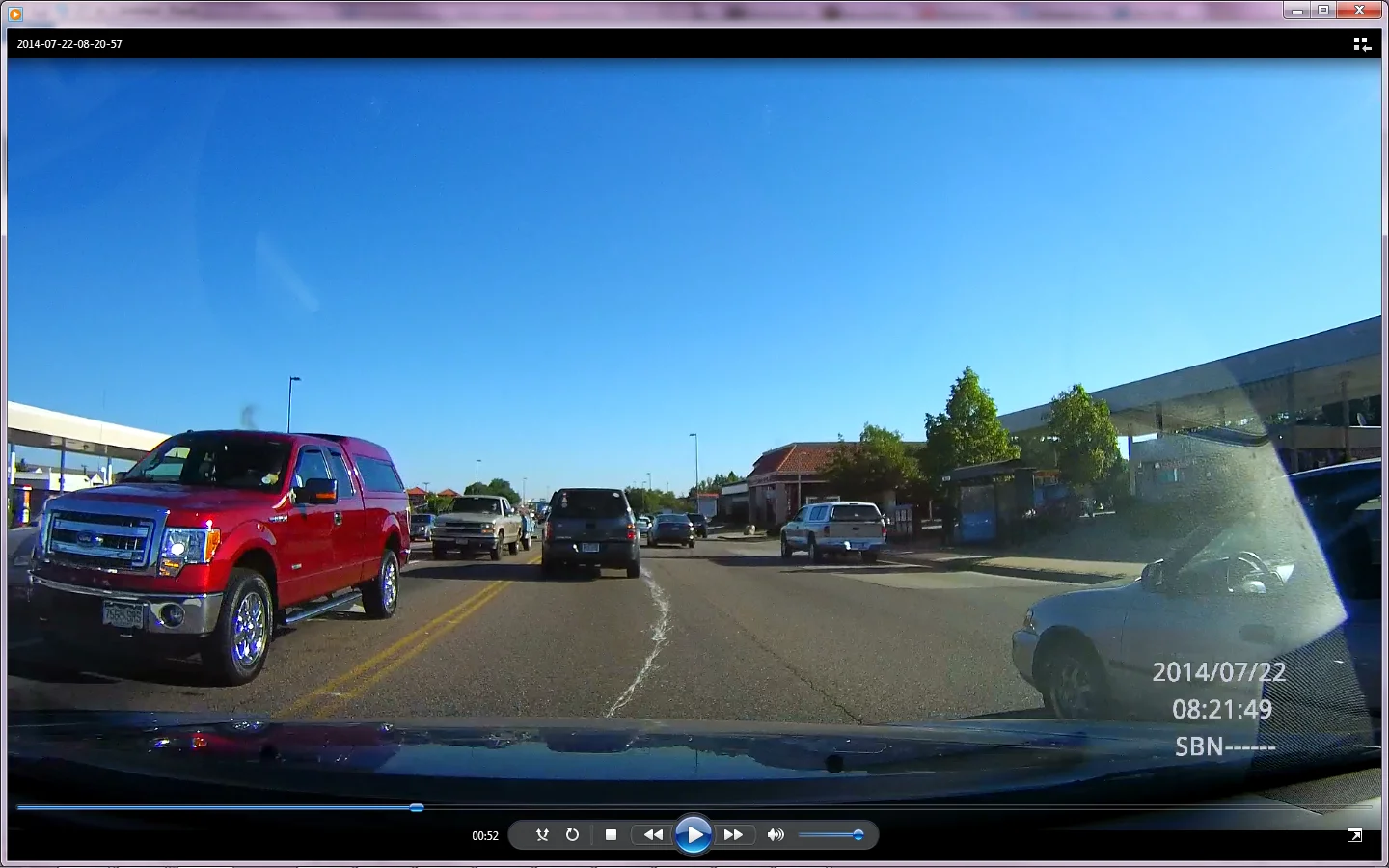

G90: Can read license plate on the left.
20140722-g90-screenshot-5-png.6344

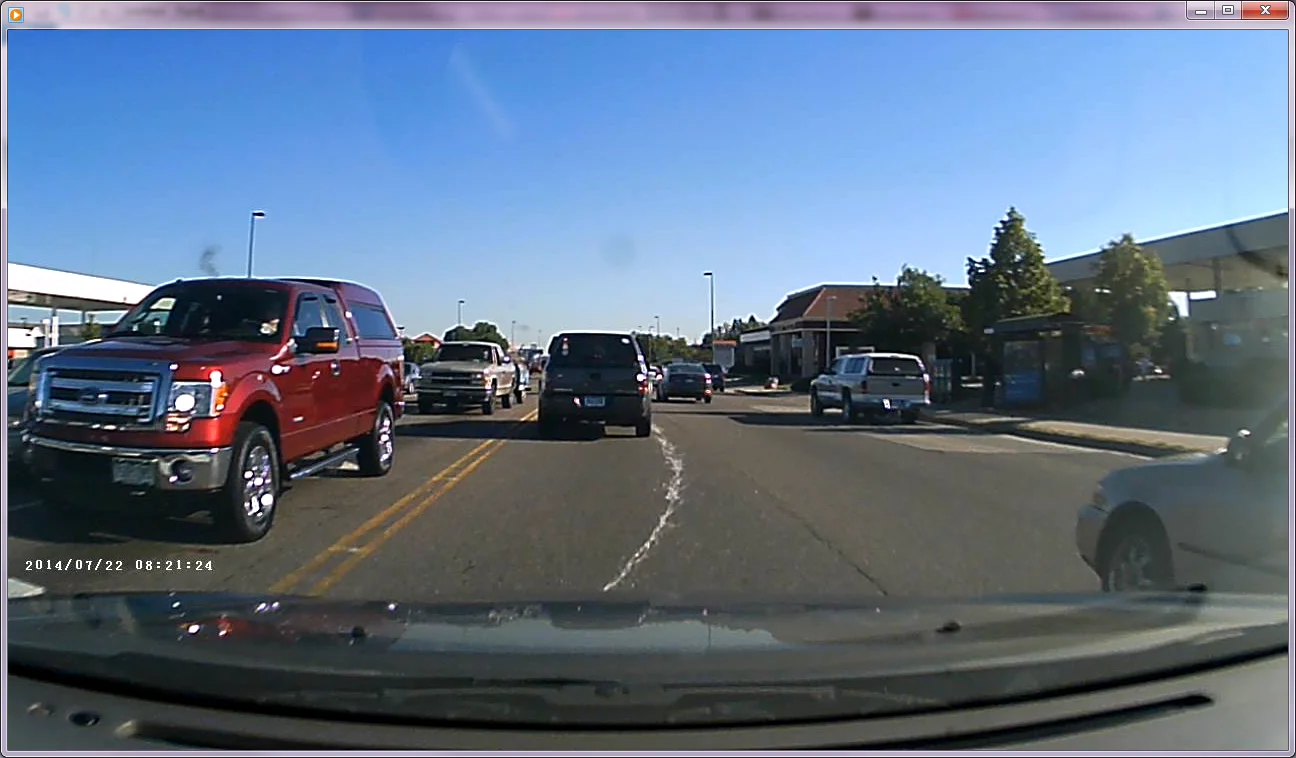

C600: Not easy to figure out license plate.
20140722-c600-screenshot-5-png.6350


It's looking very good.

I'm still waiting on G1WH that I ordered from Gearbest before the G90 but without expedited shipping so it's taking its time.
I'll do a comparison against G1WH once it gets here.
More later...

Same screenshots as above...
20140722-G90-Screenshot-1.png 20140722-G90-Screenshot-2.png 20140722-G90-Screenshot-3.png 20140722-G90-Screenshot-4.png 20140722-G90-Screenshot-5.png 20140722-C600-Screenshot-1.png 20140722-C600-Screenshot-2.png 20140722-C600-Screenshot-3.png 20140722-C600-Screenshot-4.png 20140722-C600-Screenshot-5.png

Last edited by a moderator:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
One more screenshot...

G90: Can read street sign easily. Buildings and trees on the left and far right are very crisp and natural.

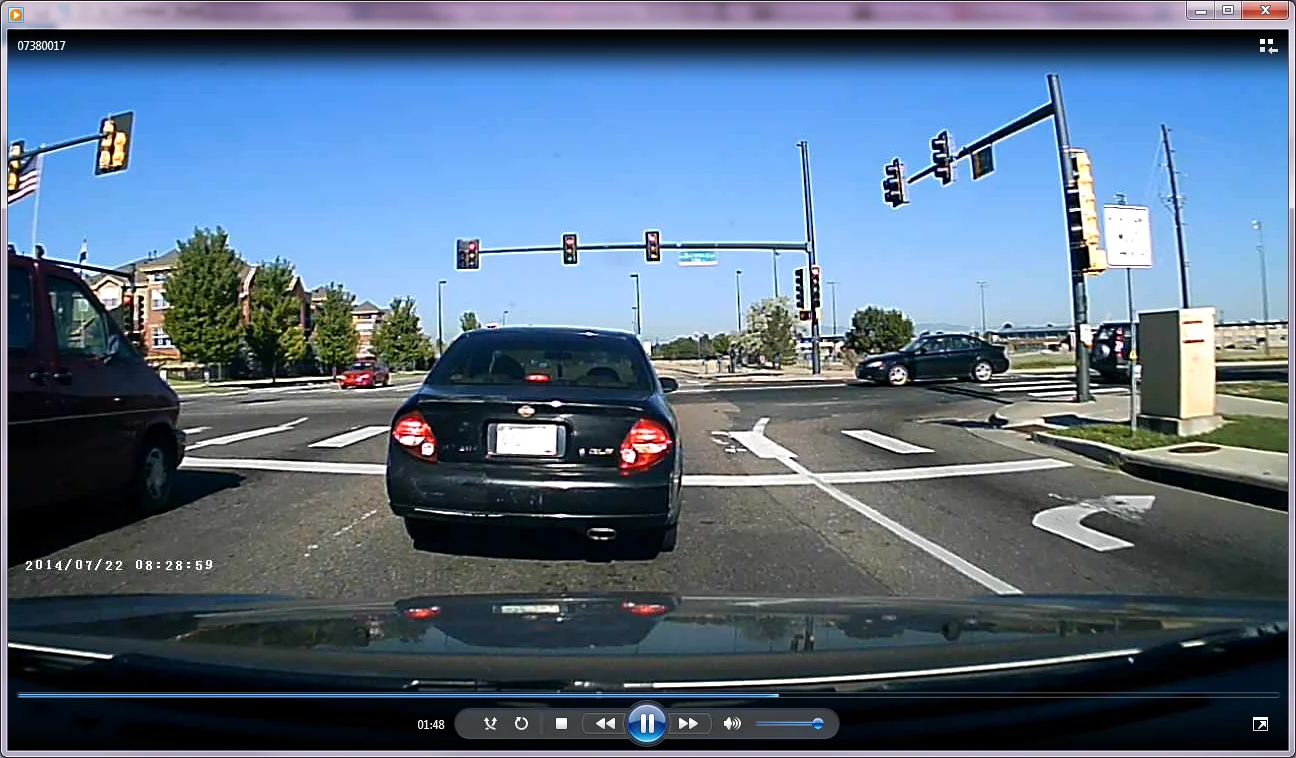

C600:


Last edited:

Doreen

Member
Manufacturer
Joined
Dec 17, 2013
Messages
83
Reaction score
46
Location
Shenzhen City, China
Country
China
Dash Cam
G90, G50, G1W
hi Sunny, tks for making the comparisions between G90 and C600.
Although it is not a fair comparison, one is Ambarella A7, one is NTK96220, but this make people easily to understand
what is high-end dash cam, what is A7, what is G90. ;)


Doreen

Member
Manufacturer
Joined
Dec 17, 2013
Messages
83
Reaction score
46
Location
Shenzhen City, China
Country
China
Dash Cam
G90, G50, G1W
Regarding the sound, as mentioned before, it is the problem from the first batch of mass production, what we can do is to improve it a bit better by firmward,
cannot 100% solve it. But from the second batch MP, there is no such problem.
I'll upload videos from second batch soon.

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
Regarding the sound, as mentioned before, it is the problem from the first batch of mass production, what we can do is to improve it a bit better by firmward,
cannot 100% solve it. But from the second batch MP, there is no such problem.
I'll upload videos from second batch soon.

Okay so that brings this question.
Is it possible to replace the faulty mic with the one that works better?

Also, it doesn't stay on battery power.
As soon as it starts up, it displays 'Goodbye' and shuts down.
Is it something with menu settings?

Here is my firmware. It doesn't say anything so not sure what it has.
It could be initial or somewhat later version.
https://dashcamtalk.com/forum/attachments/20140723_072342-jpg.6371/

20140723_072342-jpg.6371

Last edited by a moderator:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
Last edited:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
G90 vs G1WH. --> winner is easily G90.
With initial firmware:
Filename is by date time in G90 (2014-07-24-08-48-19) while G1WH files just have number (12430015).

Filesize for 3 minute clips: G90 @ 348mb; G1WH @ 282mb.
Total Bit rate: G90 @ 15378kbps; G1WH @ 12389kbps.
Data rate: G90 @ 14992kbps; G1WH @ 11877kbps.
Audio bit rate: G90 @ 385kbps; G1WH @ 512kbps.
Audio Sample rate: G90 @ 48kHz; G1WH @ 32kHz.

Physical size:
G1WH is much wider than the G90.
20140724_085245-jpg.6401


Sorry for terrible reflection.
20140724_085413-jpg.6387


Charger is exactly same for both.
The two on the right.

20140724_085229-jpg.6385


Focus:
G90 has uniform sharp and crisp focus while G1WH has soft focus on the lower right area.

Colors:
G90 all the way. Very natural, very bright and crisp.
G1WH looks slightly washed out in comparison.

FOV: G90 has more in the view. Objects in G1WH look closer as it doesn't have as wide angle as G90.

Details:
G90 has much more details than G1WH.
If you check screenshots, road and tree etc... patterns are very crisp and sharp in G90 compared to G1WH.

Against sunlight:
G90 handles sunlight better.
Green signboards appear green even with the Sun in front in G90 while G1WH washes the color out and makes it very dark.

Audio: G1WH has smooth audio while G90 has choppy audio spikes.

Conclusion: G90 is very natural, crisp and clear video.
Except in audio, everything goes to G90.
Looks like Ambarella A7 is clearly better than NT96650.

Screenshots:

G90:
20140724-g90-screenshot-1-png.6396

G1WH:
20140724-g1wh-screenshot-1-png.6390


G90:
20140724-g90-screenshot-2-png.6397

G1WH:
20140724-g1wh-screenshot-2-png.6393


G90:
20140724-g90-screenshot-32-png.6398

G1WH:
20140724-g1wh-screenshot-32-png.6400



Video samples:
I haven't spent time to combine videos in one so they are individual clips.
G90:
G1WH:
***************************************
G90:
G1WH:


Night-time (low light):
I haven't had a chance to take night videos yet so that'll be in few days to come.


Attachments

  • 20140724_085229.jpg
    393.7 KB · Views: 821
  • 20140724_085245.jpg
    310.5 KB · Views: 24
  • 20140724_085413.jpg
    118.7 KB · Views: 393
  • 20140724-G1WH-Screenshot-1.png
    1.9 MB · Views: 614
  • 20140724-G1WH-Screenshot-2.png
    1.7 MB · Views: 608
  • 20140724-G90-Screenshot-1.png
    1.9 MB · Views: 355
  • 20140724-G90-Screenshot-2.png
    1.9 MB · Views: 377
  • 20140724-G90-Screenshot-32.png
    1.7 MB · Views: 342
  • 20140724-G1WH-Screenshot-32.png
    1.3 MB · Views: 603
  • 20140724_085245.jpg
    310.5 KB · Views: 818
Last edited by a moderator:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
Few more screenshots: I had to reduce size to upload here so that may have degraded some quality.

G90:
20140724-g90-screenshot-3-wmp-png.6406

G1WH:
20140724-g1wh-screenshot-3-wmp-png.6402


G90:
20140724-g90-screenshot-4-png.6407

G1WH:
20140724-g1wh-screenshot-4-png.6403


G90:
20140724-g90-screenshot-5-png.6408

G1WH:
20140724-g1wh-screenshot-5-png.6410


G90:
20140724-g90-screenshot-6-png.6409

G1WH:
20140724-g1wh-screenshot-6-png.6405


***********************************


Attachments

  • 20140724-G1WH-Screenshot-3-WMP.png
    1.4 MB · Views: 585
  • 20140724-G1WH-Screenshot-4.png
    1.8 MB · Views: 572
  • 20140724-G1WH-Screenshot-6.png
    1.8 MB · Views: 560
  • 20140724-G90-Screenshot-3-WMP.png
    1.9 MB · Views: 316
  • 20140724-G90-Screenshot-4.png
    1.8 MB · Views: 315
  • 20140724-G90-Screenshot-5.png
    1.8 MB · Views: 305
  • 20140724-G90-Screenshot-6.png
    1.7 MB · Views: 310
  • 20140724-G1WH-Screenshot-5.png
    1.6 MB · Views: 565
Last edited by a moderator:

soddo

Member
Joined
Jun 22, 2014
Messages
72
Reaction score
15
Location
Sydney
Country
Australia
Dash Cam
polariod
Do you have any night video and sunny to shady videos?


GearBest

Well-Known Member
Retailer
Joined
Jul 7, 2014
Messages
1,069
Reaction score
168
Location
Shenzhen
Country
China
Wow, thanks OP for this nice review. It is a good way to let us know more about G90. ;)

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
Do you have any night video and sunny to shady videos?

I haven't had chance to drive at night but here is a small clip of sunlight to shadow under bridges.
It adjusts to different lights almost instantly.
Very good.


OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
Evening time screenshots.
G1WH has fuzzy right side. I need to check if my finger print or smudge is there.


G90: Pedestrian is clear.
20140724-g90-screenshot-7-jpg.6412


G1WH: Pedestrian is not clear.
20140724-g1wh-screenshot-7-jpg.6416


G90: Car is sharp and license is crisp.
20140724-g90-screenshot-8-jpg.6413

G1WH: Car is not as sharp and license is not as crisp as G90.
20140724-g1wh-screenshot-8-jpg.6417


G90: LIGHTENING... COOL...
20140724-g90-screenshot-9-jpg.6414


G1WH: LIGHTENING... COOL...
20140724-g1wh-screenshot-9-jpg.6418


G90:
20140724-g90-screenshot-10-jpg.6419

G1WH:
20140724-g1wh-screenshot-10-jpg.6415


***************************


Attachments

  • 20140724-G90-Screenshot-7.jpg
    403.6 KB · Views: 286
  • 20140724-G90-Screenshot-8.jpg
    273.6 KB · Views: 284
  • 20140724-G90-Screenshot-9.jpg
    281.5 KB · Views: 236
  • 20140724-G1WH-Screenshot-10.jpg
    268.4 KB · Views: 413
  • 20140724-G1WH-Screenshot-7.jpg
    318.1 KB · Views: 286
  • 20140724-G1WH-Screenshot-8.jpg
    229.5 KB · Views: 282
  • 20140724-G1WH-Screenshot-9.jpg
    226.8 KB · Views: 440
  • 20140724-G90-Screenshot-10.jpg
    257.4 KB · Views: 237
Last edited by a moderator:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
I found that there is some blue tint on the top right corner of G90 videos, specially when the Sunlight is on that side.

G90:
20140725-g90-screenshot-2-png.6444


G1WH doesn't have blue tint but it's not that sharp in that area either:
20140725-g1wh-screenshot-2-png.6445


G90: Sharp in all areas:
20140725-g90-screenshot-1-png.6447


G1WH: Right lower corner not sharp even with upgraded Seezeus GT300 firmware:
20140725-g1wh-screenshot-1-png.6443


*****************************


Attachments

  • 20140725-G90-Screenshot-2.png
    1.8 MB · Views: 321
  • 20140725-G1WH-Screenshot-2.png
    1.2 MB · Views: 508
  • 20140725-G90-Screenshot-1.png
    1.9 MB · Views: 321
Last edited by a moderator:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
Sunny, pls download and test the updated firmware
https://www.sendspace.com/file/ke0m2p

Sunny: View attachment 6376

-- Yes. We changed from the second batch.
Upgraded to trunk: svn r328 and now it stays on with battery so one issue resolved even though battery doesn't last more than few minutes.
BTW, menu has 'Meter Mode Setting'.
What's best there? It was on center but I usually use average in my DSLR camera so should it be average?

Last edited:

Sabe

Well-Known Member
Joined
Oct 6, 2012
Messages
1,250
Reaction score
563
Country
Finland
Dash Cam
G90, GT300W, Mobius A, C
Upgraded to trunk: svn r328 and now it stays on with battery so one issue resolved even though battery doesn't last more than few minutes.
BTW, menu has 'Meter Mode Setting'.
What's best there? It was on center but I usually use average in my DSLR camera so should it be average?

I would like to know that what meter mode does really - does it matter what setting you choose?
Other thing Sunny, is your FPS now 25 or 30, you can check that from video resolution setting page?

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
I would like to know that what meter mode does really - does it matter what setting you choose?
Other thing Sunny, is your FPS now 25 or 30, you can check that from video resolution setting page?

Well in DSLR, metering is the way how light exposure is calculated.
It's different for portraits vs landscape pictures.
For dashcam video, I'm not sure what's best. This option was not there in other cameras so just asking what's the best.
Doreen should have the answer.

Overall bit rate increased from 15.8mbps to 19.5mbps even though video and audio bit rate is unchanged???
How's that possible?
May be I need to take longer video for proper data.

This properties is from Mediainfo.

As for files, here is before with initial firmware.
General
Complete name : F:\NORMAL\2014-07-23-17-34-30.MOV
Format : MPEG-4
Format profile : QuickTime
Codec ID : qt
File size : 340 MiB
Duration : 3mn 0s
Overall bit rate mode : Variable
Overall bit rate : 15.8 Mbps
Encoded date : UTC 2014-07-23 17:34:30
Tagged date : UTC 2014-07-23 17:34:30
AMBA :

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Main@L4.0
Format settings, CABAC : Yes
Format settings, ReFrames : 1 frame
Format settings, GOP : M=1, N=15
Codec ID : avc1
Codec ID/Info : Advanced Video Coding
Duration : 3mn 0s
Bit rate mode : Variable
Bit rate : 15.0 Mbps
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 29.970 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.241
Stream size : 322 MiB (95%)
Title : Ambarella AVC / Ambarella AVC
Language : English
Encoded date : UTC 2014-07-23 17:34:30
Tagged date : UTC 2014-07-23 17:34:30
Color primaries : BT.709
Transfer characteristics : BT.709
Matrix coefficients : BT.709

Audio
ID : 2
Format : ADPCM
Codec ID : 11
Codec ID/Hint : Intel
Duration : 3mn 0s
Bit rate mode : Constant
Bit rate : 408 Kbps
Channel(s) : 2 channels
Channel positions : Front: L R
Sampling rate : 48.0 KHz
Stream size : 8.76 MiB (3%)
Title : Ambarella AAC / Ambarella AAC
Language : English
Encoded date : UTC 2014-07-23 17:34:30
Tagged date : UTC 2014-07-23 17:34:30
***********************************************************

With new r328 firmware: It's a short clip I did inside the room but that should give the idea.
General
Complete name : F:\NORMAL\2014-07-26-08-36-32.MOV
Format : MPEG-4
Format profile : QuickTime
Codec ID : qt
File size : 40.0 MiB
Duration : 17s 217ms
Overall bit rate mode : Variable
Overall bit rate : 19.5 Mbps
Encoded date : UTC 2014-07-26 08:36:32
Tagged date : UTC 2014-07-26 08:36:32
AMBA :

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Main@L4.0
Format settings, CABAC : Yes
Format settings, ReFrames : 1 frame
Format settings, GOP : M=1, N=15
Codec ID : avc1
Codec ID/Info : Advanced Video Coding
Duration : 17s 217ms
Bit rate mode : Variable
Bit rate : 15.0 Mbps
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 29.970 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.241
Stream size : 31.0 MiB (77%)
Title : Ambarella AVC / Ambarella AVC
Language : English
Encoded date : UTC 2014-07-26 08:36:32
Tagged date : UTC 2014-07-26 08:36:32
Color primaries : BT.709
Transfer characteristics : BT.709
Matrix coefficients : BT.709

Audio
ID : 2
Format : ADPCM
Codec ID : 11
Codec ID/Hint : Intel
Duration : 17s 178ms
Bit rate mode : Constant
Bit rate : 408 Kbps
Channel(s) : 2 channels
Channel positions : Front: L R
Sampling rate : 48.0 KHz
Stream size : 856 KiB (2%)
Title : Ambarella AAC / Ambarella AAC
Language : English
Encoded date : UTC 2014-07-26 08:36:32
Tagged date : UTC 2014-07-26 08:36:32


Sabe

Well-Known Member
Joined
Oct 6, 2012
Messages
1,250
Reaction score
563
Country
Finland
Dash Cam
G90, GT300W, Mobius A, C
Maybe it would be best to use every three metering mode choices for a day and then try to figure out what looks best to you, i think it might be different depending are you driving mostly in city or countryside, high buildings can change sunlight very fast.
Thanks for checking framerate, i had some strange FW that had set framerate to 25, now i loaded r328 again and now it is ok 30.

Top
