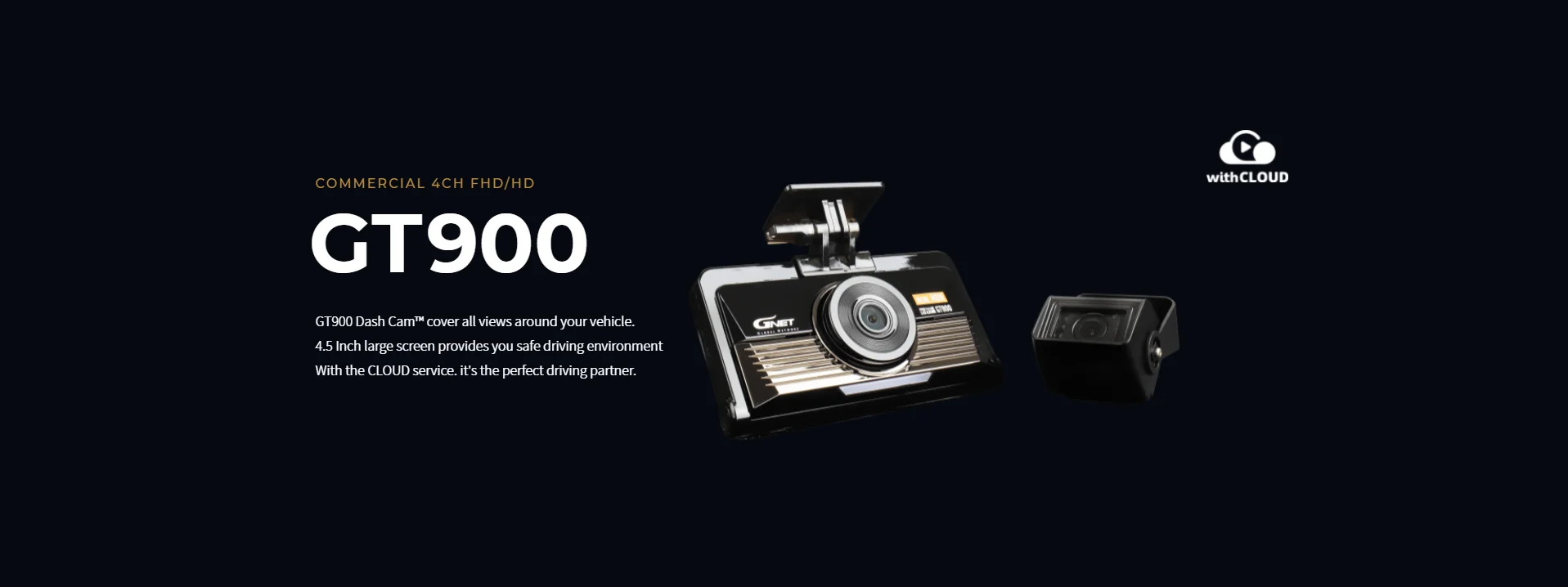

gt900 dash cam detail page front image.png

GT900 DASH CAM specifications, 3CH/4CH
Resolution / Frame per seconds

Front: 1080p (1920 x 1080p), max 60fps, 140°
Exterior: 720p (1280 x 720p), max 30fps, 130° x 3ea

Image Sensor
Front: 2MP CMOS Sensor HDR
Exterior: CMOS Sensor

Camera Connection
Front: FPCB built-in camera(MIPI I,F)
Rear: DIN cable

ADAS
Lane Departure Warning System (LDWS)
Forward Collision Warning System (FCWS)
Front Vehicle Start Alarm (FVDW)

Night Vision
ULTRA X VISION supported

Time-lapse
Recorded in 1fps on parking mode and 10fps 2 seconds ahead of an event

Wi-Fi
Dongle Type: Playback and settings on a smartphone, automatic firmware upgrade

Permanent Power
Low voltage cut-off and boot voltage settings

Audio
Speaker (Statement alarm and 34 voice guidance), built-in Mic

Video / Audio Compression
H.265 (40% less data size than H.264) / ADPCM

G-sensor
Triaxial acceleration sensor (recording by an external impact)

GPS
External GPS antenna (synchronized with Google Maps to determine location and speed)

Storage
Micro SD 8GB - 512GB (Recommended type - MLC, Class10) SD card data restoration

Recording
Normal mode, even(impact) mode, parking mode (motion detection), voice record

Power
DC 12V ~ 24V, about 4.5W based on 12V, Support OBD II power supply

Temperature and Humidity
Operating temperature: -20~60°C
On parking mode: -30°C~80°C, Humidity: 10~95%

PC Viewer
Win7, Win8, Win10(32Bit~64Bit) supported

Cloud
withCLOUD®-Web supported


Official Website: https://www.g-on-the-road.com/gt900/
Driving Footage Day:

Driving Footage Night:

Driving Footage Day(Exterior side):



Driving Footage Day(Exterior rear raining):

withCLOUD® Introduction:



Contact
America: Peter Lee, smlee@gnetsystem.com
Europe & Japan: SJ Kim, sj_kim@gnetsystem.com
Asia & the Middle East & Africa: Seongju Kim, sjk@gnetsystem.com

Last edited:

SJKIM

New Member
Manufacturer
Joined
Mar 22, 2021
Messages
14
Reaction score
4
Location
Seoul
Country
Korea, Republic Of
The multi channel with 4.5 inch wide screen.
Fit for bus, truck and trailer.
Or fleet business with cloud function like gos tracking available.
