Hacking Q3H (allwinner v3 - Camdroid)

Discussion in 'Firmware Modifications' started by thegamut, Jul 25, 2016.

  1. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    So I've made inroads into allwinner v3 chipsets. There is 0 documentation on the allwinner and people speculate it can't do over 1080P, etc, etc Yet many people are ending up with fake 4k cameras that are more software crippled than anything.

    This was done on Q3H (allwinner + Sony IMX sensor maybe)

    8/20 Small Test video: https://sendvid.com/ucnobyqc
    Some more samples: https://www.mediafire.com/folder/o5ncedg5ut39l/Samples
    Partition structure:
    cat /proc/mtd
    dev: size erasesize name
    mtd0: 00040000 00010000 "uboot" -bootloader
    mtd1: 002c0000 00010000 "boot" -kernel + initrc
    mtd2: 00630000 00010000 "system" -config files (squashfs)
    mtd3: 00200000 00010000 "cfg" - file system journals/junk
    mtd4: 00020000 00010000 "boot_logo"
    mtd5: 00020000 00010000 "shutdown_logo"
    mtd6: 00010000 00010000 "env"
    mtd7: 00010000 00010000 "private"
    root@camdroid:/ #

    the dd copies of said partitions: http://ge.tt/1MIkNnc2
    You can unsqashfs "system" with squashfs here: http://domoticx.phoenixinteractive....3-i686-windows-cygwin_(lzma+lzma2+lzo+lz4).7z


    The camera runs camdroid OS equivalent to android 4.2.2. It is laid out like many allwinner tablets.
    V4L is used as a backend for video encoding and MiniGUI (http://www.minigui.org/en/) is the front end.

    Board/chip Pics: https://www.goprawn.com/forum/allwinner-cams/25-allwinner-v3-sony-imx179-action-cameras


    How I enabled ADB:
    Installed https://www.androidfilehost.com/?fid=24459283995302221 after camera detects an unknown "android" in webcam mode. It would not work at first but I connected with Phoenix Suite and hit enter recovery mode. After that ADB works fine. Try just the driver first.

    Adb has root access but some files cannot be written to because of squashfs or being restored at boot.

    What can be done so far:
    High bitrates ~50/60 megabits w/shorter GOP.
    Real sizes for 60fps and 120fps (IMX179s)
    Most ISP processing disabled (IMX179s).
    Sounds are fully silenced.
    Busybox + Other ARM code can be run or added to the image.
    Root+Data on externalSD in ext2 (no guide yet)

    What I hope for:
    Turn off noise reduction and sharpening and edit bit rates + image scaling.
    My camera came with possibly a sony IMX179 and it uses 3kx2k for 4k/2.7k/1080P. Quality is awful because of the post processing.
    Increase audio recorded beyond the awful 8000hz sampling rate.
    In testing, patches from 4pda.ru
    Raw Photos. The current photos aren't usable at all.
    Fully boot off SD card. Doesn't automount extsd.
    Exfat/128gb sd cards. Doesn't automount.
    Automatic ADB over wifi.

    More info:
    http://pastebin.com/4xQvWC5B - system services
    http://pastebin.com/rjpb0KTu - Build.prop
    http://pastebin.com/nJTK6Kmr -boot up kernel messages

    Flash Image:

    http://www.mediafire.com/download/8ela8pnk3ugx1fj/full_img.fex
    Script.fex : http://pastebin.com/QLmnUAKK

    Full Recovery:
    Q3H.IMG http://www.mediafire.com/download/csop12dwyb41m7i/Q3H.img
    Remember, your hardware must match the script.bin Take a full backup of old firmware with DD.
    Once your original script.bin is lost, all info to your camera hardware is GONE!


    Edited Images:
    No Shutter/Click/Startup, Edited menu.cfg: http://www.mediafire.com/download/1l82xgzyd3qblj9/Q3H-NoSounds.img
    Run your code from debug_bin and debug_lib on extSD: http://www.mediafire.com/download/z6cfkaa2a6ajvtb/SDV-BinLibPath.img
    Properly Patch BitRate, can record without loop: http://www.mediafire.com/download/kacyjvm4epbk56q/FixedCalculations.img
    Uniform Modes with new module: http://www.mediafire.com/download/1ik4pkz4v12n56a/NewModuleUniform.img
    Old Kernel + New Modules [configs save, no auto off] : http://www.mediafire.com/download/5ajmt99gd3atd0d/179s-oldkernel-newmodules.img
    *a little old, see next post.
    Q3H-imx179s EXT2 booting flashable (rootfs on SDcard) - http://www.mediafire.com/file/7st6ybssi9qsbgt/Q3H-EXT2_flashable_imx179s.img

    F60 IMX179 firmwares from plutonio - https://www.dropbox.com/s/6gvem9cb3bxh7rj/F60 Firmwares.zip?dl=0

    Modules:
    New Style (355kb)
    http://s000.tinyupload.com/?file_id=23181294993408074307
    Old Style (317kb)
    http://s000.tinyupload.com/?file_id=66147726912749918743
    *a little outdated now, pull them from released rootfs


    Backup Script: https://dashcamtalk.com/forum/attachments/backup-script-zip.25246/
    Packers/Unpackers + Phoenix Suite: http://www.mediafire.com/download/x6u6eoi4atn2do8/Compressors.7z
    Full_img.fex separator + script.bin extractor by NMD & nutsey:
    http://www.mediafire.com/file/rbr2vhv23xr1c2r/3-unfex-refex-scripts.rar
    Unpack/repack Boot Image/kernel by NMD: http://www.mediafire.com/file/1ybmbirb5i46e42/unpack_repack_bootimg_kernel.rar

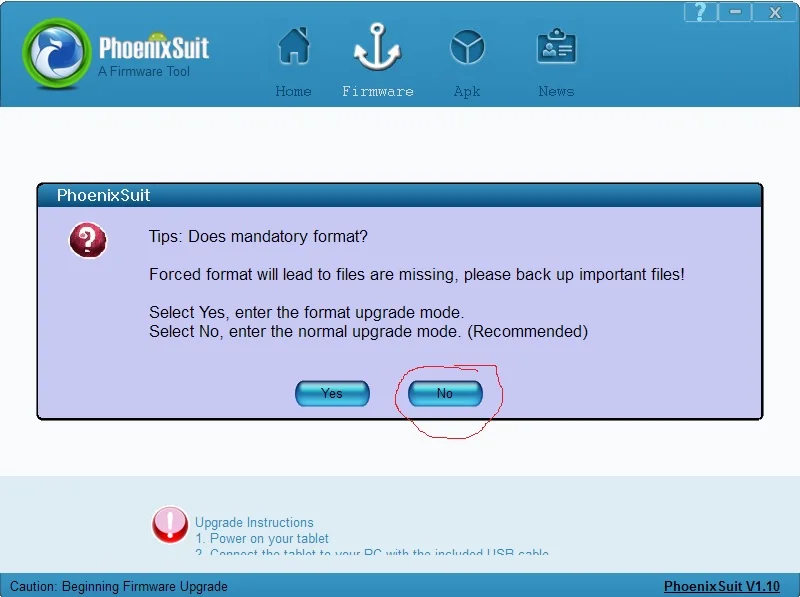

    Flashing with PhoenixSuit (Load IMG first!):
    armedphoenix.jpg format.jpg

    There is a 360 camera too!

    Last edited: Dec 8, 2016
    galagaheart, Petesimon, NMD and 8 others like this.
  2. jokiin

    jokiin Well-Known Member Manufacturer

    Messages:
    37,017
    Likes Received:
    18,933
    Location:
    Shenzhen, China - Sydney, Australia
    Country:
    China
    Dash Cam:
    Too many ¯\_(ツ)_/¯
    would probably do better to try and get good 1080p rather than the processed mess they generally make out of these things

    thegamut likes this.
  3. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    Booting from SD Card


    Why?
    • You don't want to keep flashing the whole FW over and over.
    • Too much flashing may degrade the nand.
    • Quicker Startup
    • No limit to RootFS Size

    What you need:

    Phoenix suite, compressor pack, HXD hex editor.


    How:


    1. Partition the SD card like the image below.
    You'll want to shrink your fat32 partition. Create an extended partition and then another partition from that. The size doesn't so much matter as long as you can fit your RootFS. Write down the starting sector.


    2. Uncompress any phoenix suite image that works to flash your camera with imgRePacker. Throw your full_img.fex inside and overwrite the included one. This is to keep your original script.bin, it has your hardware configuration and memory timings.​

    3. Open up the hex editor and paste-overwrite the kernel with the one below. Make sure you're not changing the file size.

    Kernel (starts IMX179s,IMX179,OV4689): http://www.mediafire.com/download/m1dwzyxl6l3yf6j/boot-JFFscfgSD5root-K621-allsensors.img

    hint: kernel goes from: 0x40000 - 0x2DA7FF


    4. Paste anything else you want into full_img.fex (logos,etc) and pack it back up.​

    5. Open up HXD as administrator. Go to open disk and select your sd card. Make sure you take off "read-only". Open this RootFS (or any booting one) with the hex editor. Now go to the sector box and paste in the starting sector you wrote down and then paste the contents of RootFS.​

    9/3 - RootFS: http://www.mediafire.com/download/qt0ca9r7i6arrcx/RootFS-9-3-16.hex
    10/9 - RootFS: Here
    10/30 - 44100 Audio: Here

    hint: This is also 2-system.img from the backup scripts.


    6. Flash the camera and replace the SD card. You should now be able to boot if you've done things right.​


    Caveats and info:
    • You can format the card in camera, it only touches the fat partition.
    • Where is /data? Still in the flash because I'm unable to mount jffs2 on SD. I kept it because otherwise the config won't save and you'll be at default settings every time.
    • Why not EXT2/4 for both? Ext2 works now, exfat too but vold needs fixing. Only have incomplete source code. Primary Partition EXT2 Kernel
    • You have to prepare every new SD card before using it, those are the breaks.
    • If you have problems connect to adb. Logs are in /proc/kmsg ("cat /proc/kmsg") or type logcat.

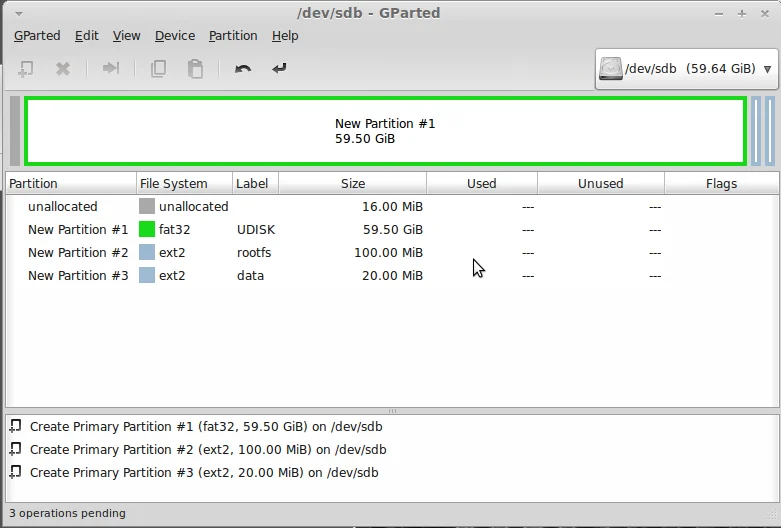

    EXT2 SD Card Layout


    Last edited: Oct 31, 2016
    nutsey likes this.
  4. jokiin

    jokiin Well-Known Member Manufacturer

    Messages:
    37,017
    Likes Received:
    18,933
    Location:
    Shenzhen, China - Sydney, Australia
    Country:
    China
    Dash Cam:
    Too many ¯\_(ツ)_/¯
    I would guess 1080p60 is what you should aim for based on their spec, assuming it has a suitable sensor http://www.allwinnertech.com/en/news/compnews/6041.html

    Agree, I always prefer native resolutions for best results

    Always a possibility unfortunately

  5. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    Yea, that's the only doc I found on allwinner v3. It says 1080P but somehow encodes the higher resolutions, whatever the source may be.

    The files are:
    4k - Bits/(Pixel*Frame) : 0.142
    2.7k - Bits/(Pixel*Frame) : 0.257
    1080P30 - Bits/(Pixel*Frame) : 0.505
    1080P60 - Bits/(Pixel*Frame) : 0.253
    720P120 - Bits/(Pixel*Frame) : 0.283
    720P60 - Bits/(Pixel*Frame) : 0.569
    720P30 -Bits/(Pixel*Frame) : 0.283

    Largest amounts of data are in 1080P30 and 720P60


    Ok, here is some more info on the image processor... It will read INI files

    "/system/etc/hawkview/camera.ini"
    "/system/etc/hawkview/bin/"

    also isp_tuning_param.ini and a few others. Maybe this can be found and the structure analyzed... they are not present on the image.

    and here it is for the wrong type of camera: https://github.com/tank0412/android_vendor_ONDA_kylin_mb976a9-WD/tree/master/system/etc/hawkview

    Looks like the INI can edit all of the evil post process values
    https://github.com/tank0412/android...tc/hawkview/ov8858_4lane/isp_tuning_param.ini

    Last edited: Jul 25, 2016
  6. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    Ok, to upgrade firmware you go to the firmware info page in the menu and hold the up key with full_img.fex in the root of the SD card.

    June-16 FW http://www.mediafire.com/download/8ela8pnk3ugx1fj/full_img.fex

    Beware, the camera says EYoyo. Not much else seems changed.

    BTW, the entire UI is in /system/bin/sdv

    jokiin likes this.
  7. jokiin

    jokiin Well-Known Member Manufacturer

    Messages:
    37,017
    Likes Received:
    18,933
    Location:
    Shenzhen, China - Sydney, Australia
    Country:
    China
    Dash Cam:
    Too many ¯\_(ツ)_/¯
    I think this is the first time I've seen an update for an allwinner based camera, they're most often out of public design houses with no support offered

  8. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    Yea, its pulling teeth getting firmware or docs.

    New updates:

    SDV binary uses the android subsystem to record. There aren't many more settings there than on a phone.
    The INI mentioned above are inside the module in a data section so that seems like the best place to attack.

    ie:

    .data:0000C278 imx179s_1080p60_v3 isp_cfg_pt <imx179s_1080p60_v3_isp_test_settings, \
    .data:0000C278 ; DATA XREF: .data:sensor_win_sizeso
    .data:0000C278 imx179s_1080p60_v3_isp_3a_settings, \
    .data:0000C278 imx179s_1080p60_v3_isp_tuning_settings, \
    .data:0000C278 imx179s_1080p60_v3_isp_iso_settings>
    .data:0000C288 EXPORT imx179s_1080p60_v3_isp_tuning_settings



    My idea is:

    1. Edit the module and try to load/unload through linux.

    2. If that is not possible I can edit the partition and DD it back, hopefully not bricking the camera. I think the files there are loaded at boot anyways and the file system is RO because of the compressed nature of squashFS.

    I should try editing the logos first. Horrible non-realtime process tho.

    The modes: http://pastebin.com/dpJdAvrY

    All exports : http://pastebin.com/FiS3jgha

    Strangely 720P30 and 60 is missing... unless it is default. I have to check.


    Default raw sensor is: 3264 x 2448, the pixel binning factor is 1. Some 1080P modes bin and some do not so its kind of a mystery what they are doing. There are 1080P 90FPS settings in there too.



    .data:00001830 sensor_default_regs+4, 0, 1> ; "Raw RGB Bayer"
    .data:00001844 ; sensor_win_size sensor_win_sizes[22]
    .data:00001844 sensor_win_sizes DCD 0xCC0 ; width
    .data:00001844 ; DATA XREF: sensor_try_fmt_internal+30o
    .data:00001844 ; .text:eek:ff_130o
    .data:00001844 DCD 0x990 ; height
    .data:00001844 DCD 8 ; hoffset
    .data:00001844 DCD 8 ; voffset
    .data:00001844 DCD 0xDD8 ; hts
    .data:00001844 DCD 0x9C0 ; vts
    .data:00001844 DCD 0xFDAD680 ; pclk
    .data:00001844 DCD 0x2793D600 ; mipi_bps
    .data:00001844 DCD 0x1E ; fps_fixed
    .data:00001844 DCD 1 ; bin_factor

    Last edited: Jul 26, 2016
  9. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    Tried to flash FS after turning audio files to 0 and get stuck at the logo. Waiting on a recovery program since I can still hold up + power and get to a generic allwinner recovery. Too bad the FEX isn't recognized by allwinner tools like phoenix suit or live suite.

    BTW, parts 4 and 5 are just PNG files with some padding at the end.

    Another image I found on a youtube for "Q8" camera

    https://s3.amazonaws.com/ebayimg.appinthestore.com/milantrend.com/Lisa/full_img.fex

    Another with polish flashing instructions:
    ftp://ftp.manta.com.pl/firmware/Kamerki/MM357/

    The source is out there somewhere: http://www.eefocus.com/cj909815159/blog/16-02/377596_54012.html

    Last edited: Jul 27, 2016
  10. nutsey

    nutsey Active Member

    Messages:
    289
    Likes Received:
    125
    Country:
    Turkey
  11. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    Thanks.

    I compared the partition that I made with 7zip and the original. I had only changed the resources so it must be the camera hanging on the blank startup wav file. I wish I could convert this fex format into an IMG format and continue. The linux sunxi tools see the recovery mode driver but do not support the SOC. All of the windows tools say "invalid image".

  12. nutsey

    nutsey Active Member

    Messages:
    289
    Likes Received:
    125
    Country:
    Turkey
    How do you boot into recovery? I got slightly different F60B cam and it hangs when I try to power on with any other button pressed.

  13. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    Camera off, I hold up button and then hold power button and connect the USB cord. You won't see anything on the screen and get the allwinner standard recovery device: USB\VID_1F3A&PID_EFE8&REV_02;3

    All of these cameras don't have a G sensor?

    # insmod /system/vendor/modules/bma250.ko

    its commented out.

    Last edited: Jul 27, 2016
  14. nutsey

    nutsey Active Member

    Messages:
    289
    Likes Received:
    125
    Country:
    Turkey
    Thanx!

    I guess no G sensor as there is no sofware for camera use (EIS).

  15. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    There are Gsensor strings in the SDV program and a config for the sensitivity. In the dmesg it tries to load different drivers but not BMA. My exposure compensation and the hidden contrast setting didn't do anything either though.

  16. nutsey

    nutsey Active Member

    Messages:
    289
    Likes Received:
    125
    Country:
    Turkey
    Yep, I also tried contrast setting with no luck of couple of days ago. It just overwrites on boot.

    One more interesting thing is getting script.bin from uboot partition. Managed to extract this file but can't convert it into anything usable.

  17. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    use uberizer to convert from bin to text.

    my contrast did not get overwritten at boot but still did nothing.

    can't find the script.bin in part0 or part 1

    Last edited: Jul 27, 2016
  18. nutsey

    nutsey Active Member

    Messages:
    289
    Likes Received:
    125
    Country:
    Turkey
    fexc tool can't convert that script.bin file for some reason...

    It's in mtdblock0 - starting from offset 32000

    mtdblock1 (boot) is plain SIMG containing kernel.img

  19. thegamut

    thegamut Active Member

    Messages:
    118
    Likes Received:
    67
    Country:
    Barbados
    Dash Cam:
    Q3H aparently.
    You have to use uberizer to convert it, not that tool its too old.

    http://pastebin.com/QLmnUAKK

    My Gsensor is DA380

    Last edited: Jul 27, 2016
  20. nutsey

    nutsey Active Member

    Messages:
    289
    Likes Received:
    125
    Country:
    Turkey
    You don't have any. EXIF from my stills also says I have something I don't really have :)


Share This Page
