How to use the AV-OUT port?

ac2784

New Member
Joined
Aug 14, 2015
Messages
29
Reaction score
13
Country
United States
I did not find any info on the AV-OUT in user's manual and online discussions. Can this port be used to see the video on an external screen? If yes, what kind of cable and video screen do I need to get it working? Thanks!


jokiin

Well-Known Member
Manufacturer
Joined
Jan 27, 2013
Messages
47,499
Reaction score
26,018
Location
Sydney, Australia ~ Shenzhen, China
Country
Australia
Dash Cam
Too many ¯\_(ツ)_/¯
yes, 3.5mm to 2 x RCA lead and it will work with most monitors, has PAL or NTSC output settings as appropriate

OP
ac2784

ac2784

New Member
Joined
Aug 14, 2015
Messages
29
Reaction score
13
Country
United States
yes, 3.5mm to 2 x RCA lead and it will work with most monitors, has PAL or NTSC output settings as appropriate
Will it output full 1080 HD resolution? Does NTSC limit output to just 525 lines, so it can only display VGA resolution? I am a little confused. What I want to know is the what's the highest resolution monitor I can get? Thanks!

Last edited:

Gabacho

Active Member
Joined
Feb 19, 2018
Messages
83
Reaction score
120
That is really interesting. Does the camera continue to record, or does it just display?


jokiin

Well-Known Member
Manufacturer
Joined
Jan 27, 2013
Messages
47,499
Reaction score
26,018
Location
Sydney, Australia ~ Shenzhen, China
Country
Australia
Dash Cam
Too many ¯\_(ツ)_/¯

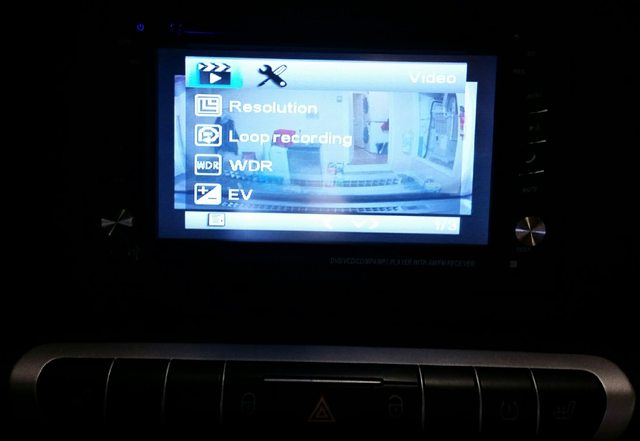

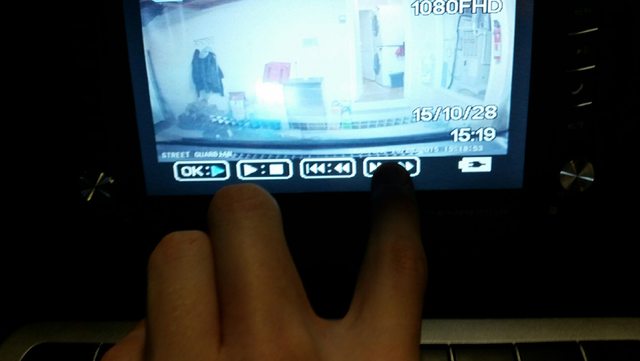

Camera functions as per normal except signal is sent to the AV output (LCD does not come on at all when used like this) and the screen saver settings are void so its active all the time

OP
ac2784

ac2784

New Member
Joined
Aug 14, 2015
Messages
29
Reaction score
13
Country
United States

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
I am looking at a bunch of displays:
http://electronics.mcmelectronics.com/search?p=KK&srid=S3-USESD02&lbc=mcmelectronics&ts=custom&pw=Monitor&uid=702249996&isort=score&view=list&w=Lcd Display&rk=2
What is the aspect ratio, 4:3, 16:9? and horizontal resolution, 800x480? Thanks!
Where are you planning on installing the screen?
There are many 4.3" in Amazon that fold and can be placed on dash or larger ones for the overhead.
Also, if the camera doesn't have mirror flip function, you have to get a monitor that can mirror flip video.

OP
ac2784

ac2784

New Member
Joined
Aug 14, 2015
Messages
29
Reaction score
13
Country
United States
Where are you planning on installing the screen?
There are many 4.3" in Amazon that fold and can be placed on dash or larger ones for the overhead.
Also, if the camera doesn't have mirror flip function, you have to get a monitor that can mirror flip video.
On the dash board, ideally something look like this:


Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
That'll work as long if it's for front view.
For rear view, you have to have mirror flip either in the AV out or in the monitor.

OP
ac2784

ac2784

New Member
Joined
Aug 14, 2015
Messages
29
Reaction score
13
Country
United States
That'll work as long if it's for front view.
For rear view, you have to have mirror flip either in the AV out or in the monitor.
Yes, I will need the monitor to have mirror flip capability.


petepete

Well-Known Member
Joined
Aug 16, 2014
Messages
1,171
Reaction score
452
Country
United Kingdom
Camera functions as per normal except signal is sent to the AV output (LCD does not come on at all when used like this) and the screen saver settings are void so its active all the time
true on the sj4000 which annoyingly switches out of AV mode every time power is cut rendering it unworkable..

the g1wh and the mini 0806 both have screens on as per your settings while Av is outputted..and record as normal

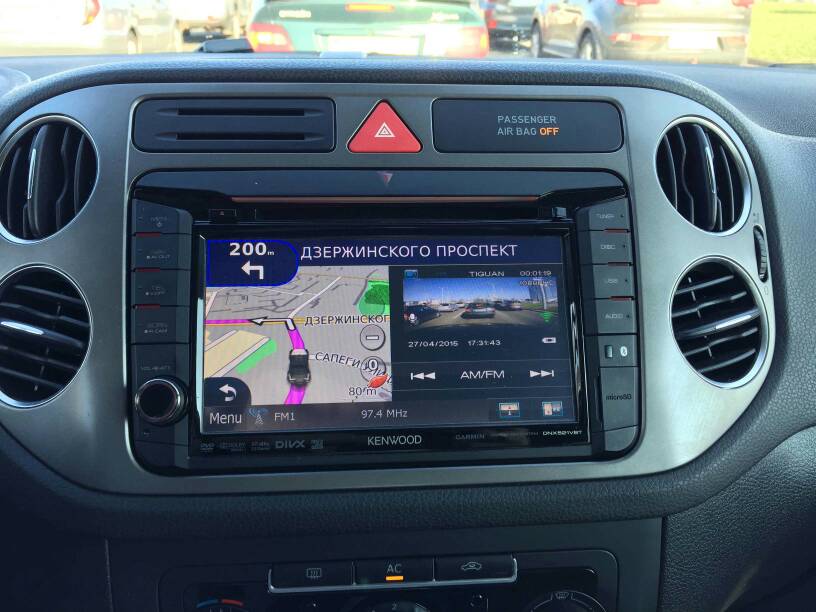

Its a great feature I use every day and night especially as my official reverse camera is low mounted and close cars behind just white the screen out a bit too much with headlights. I just flp to v2 dashcam Av input

Last edited:

The Grand Pooh-Bah

New Member
Joined
Apr 11, 2017
Messages
4
Reaction score
0
Country
United States

Coming out of the cameras AV port, which is video, which is audio and which is common/ground on the plug?
Tip= ?
Ring= ?
Sleeve= ?


jokiin

Well-Known Member
Manufacturer
Joined
Jan 27, 2013
Messages
47,499
Reaction score
26,018
Location
Sydney, Australia ~ Shenzhen, China
Country
Australia
Dash Cam
Too many ¯\_(ツ)_/¯
I'm traveling at the moment and don't have the details with me, will post back when I can get that if nobody else has updated in the mean time


adalex

Member
Joined
Jan 16, 2015
Messages
88
Reaction score
21
Location
Saint Petersburg, FL
Country
United States
Dash Cam
SG9665GC
Can anybody recommend a small screen that is mountable to the windshield? Was looking at the top left or bottom left of windshield
