for the old batch 0903, the discharge current of RTC battery is too high so the RTC survive less than 2 days.
if you can, a DIY work will help (need some DIY solder skill and equipment):
1, take the battery + pin from PCB, use a heat resisting tape to insulate;
2, connect the battery +pin with the diode with a 220R resistor
that means add a resistor between the diode and battery, which will extend the RTC last time effectively.
<<of course, if you can't DIY, it is OK to send the the camera to our factory to repair>>



and some users feedback the last files of every driving is damaged, that is because a charging diode was burn/damaged from high input voltage for some reason.

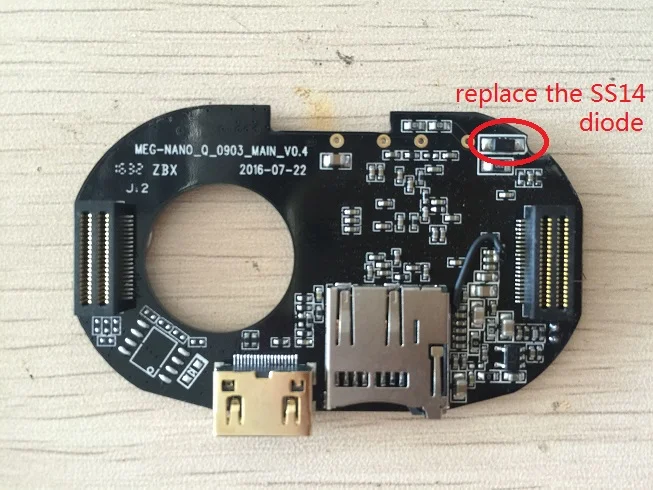

please replace the SS14 diode with a new one, then the camera will work fine.


JordanB

New Member
Joined
Apr 3, 2017
Messages
5
Likes
0
Country
United States
#2
That must be my issue. I just updated to the latest 4/20/17 fw and I have some damaged unplayable files on my Nanoq that I just bought from Gearbest. Also the 1080p30 video quality is not nearly as good as on youtube videos.
I couldn't do the fix that Rayman describes. Where do I have to send my Nanoq? Hope it can be repaired in the US. Mailing to China is too expensive.


soyoeml

New Member
Joined
Mar 31, 2017
Messages
10
Likes
0
Country
United States
#3
some users feedback the last files of every driving is damaged, that is because a charging diode was burn/damaged from high input voltage for some reason.
please replace the SS14 diode with a new one, then the camera will work fine.
View attachment 30327
I found mine has this issue too. How to test SS14 diode is good or not with multimeter without soldering work?


Rayman.Chan

Well-Known Member
Manufacturer
Joined
Oct 7, 2013
Messages
1,189
Likes
678
Location
Shenzhen
Country
China
Dash Cam
mini0806, mini0806S, mini0903/0905, mini0906, mini0808
#4
I found mine has this issue too. How to test SS14 diode is good or not with multimeter without soldering work?
you can use the diode test shift to measure the diode, try to measure in forward direct and backward direction, there should be value display on multimeter in one direction.
If no value in both direction, that means the diode was damaged.


soyoeml

New Member
Joined
Mar 31, 2017
Messages
10
Likes
0
Country
United States
#5
you can use the diode test shift to measure the diode, try to measure in forward direct and backward direction, there should be value display on multimeter in one direction.
If no value in both direction, that means the diode was damaged.
I checked my videos. And don't have this issue with new firmware of 0425. It's looks pretty cool now. Works great!


Grozimo

New Member
Joined
Oct 26, 2014
Messages
11
Likes
0
Country
United States
#6

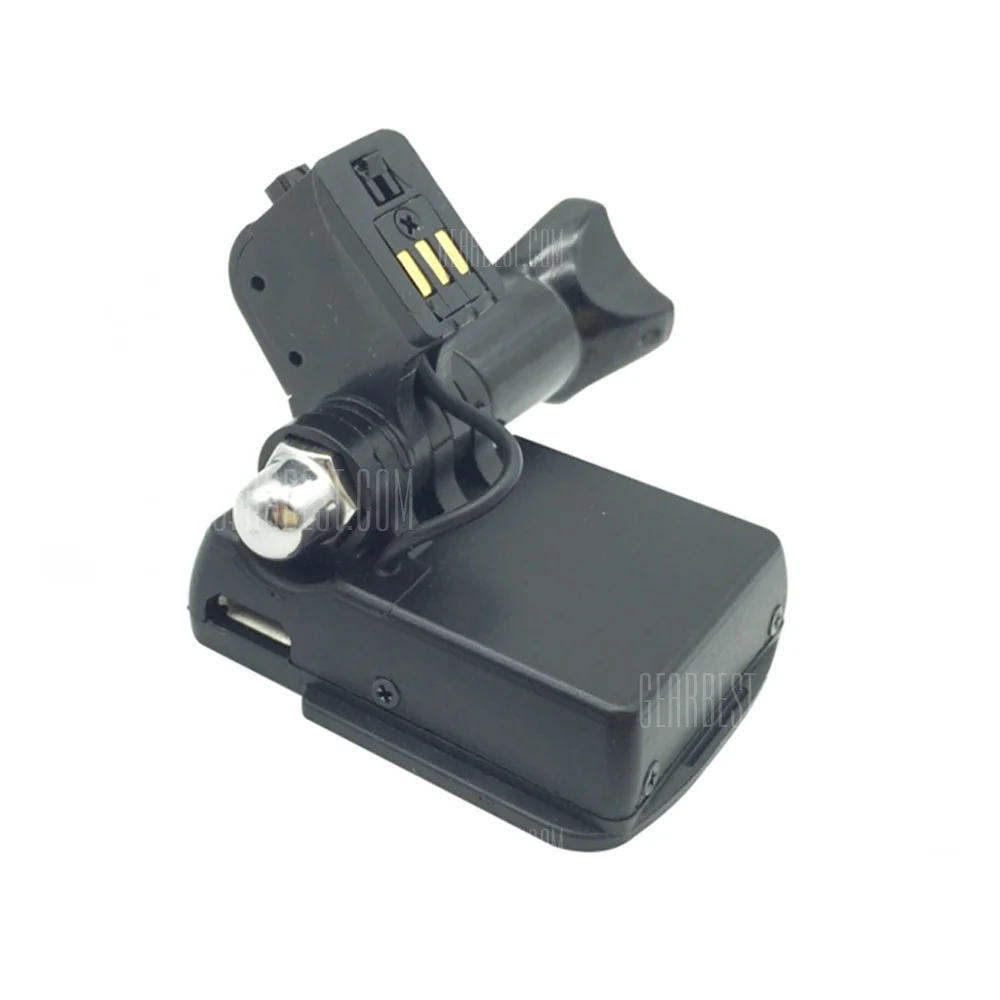

The plastic for the GPS mount breaks by itself very easily, especially around the screws that hold the two halves of the mount together and the round rings that form the hinged joint connected to the camera.

Is there any improvement to the formula used to create the plastic so that it will be more durable? Is there any improvement to reduce electromagnetic interference that causes GPS lock problems?

It has been less than one year and the plastic for my GPS mount already self-destructed. I would like improved replacement plastic parts for the GPS mount, including the hinged joint and connecting arm. Can I receive those parts for my Mini 0903/NanoQ under warranty?


lacibaci

Well-Known Member
Joined
Mar 5, 2015
Messages
966
Likes
399
Country
United States
#7
I received replacement plastics from @Rayman.Chan but the GPS enclosure broke almost immediately.
I'm not sure if that was redesigned lately.


Rayman.Chan

Well-Known Member
Manufacturer
Joined
Oct 7, 2013
Messages
1,189
Likes
678
Location
Shenzhen
Country
China
Dash Cam
mini0806, mini0806S, mini0903/0905, mini0906, mini0808
#8
the GPS enclosure broke almost immediately.
the mold shop used PC material to inject the old GPS housing which we asked for ABS. PC material is more fragility than ABS so easily damaged.
once we found this we changed the supplier and reinforce the plastics then the problem is gone.

Can I receive those parts for my Mini 0903/NanoQ under warranty?
Grozimo please send me a PM of your shipping address & contact number, we will send you a new set of the components immediately.


lacibaci

Well-Known Member
Joined
Mar 5, 2015
Messages
966
Likes
399
Country
United States
#10
the mold shop used PC material to inject the old GPS housing which we asked for ABS. PC material is more fragility than ABS so easily damaged.
once we found this we changed the supplier and reinforce the plastics then the problem is gone.
Hey @Rayman.Chan is this the new design?


Rayman.Chan

Well-Known Member
Manufacturer
Joined
Oct 7, 2013
Messages
1,189
Likes
678
Location
Shenzhen
Country
China
Dash Cam
mini0806, mini0806S, mini0903/0905, mini0906, mini0808
#11
yes added lips around the housing and a new sticking plate, then the GPS mount can be take off together with camera body easily from windshield.


Painter

New Member
Joined
Jul 22, 2016
Messages
10
Likes
13
Country
Greece
#12

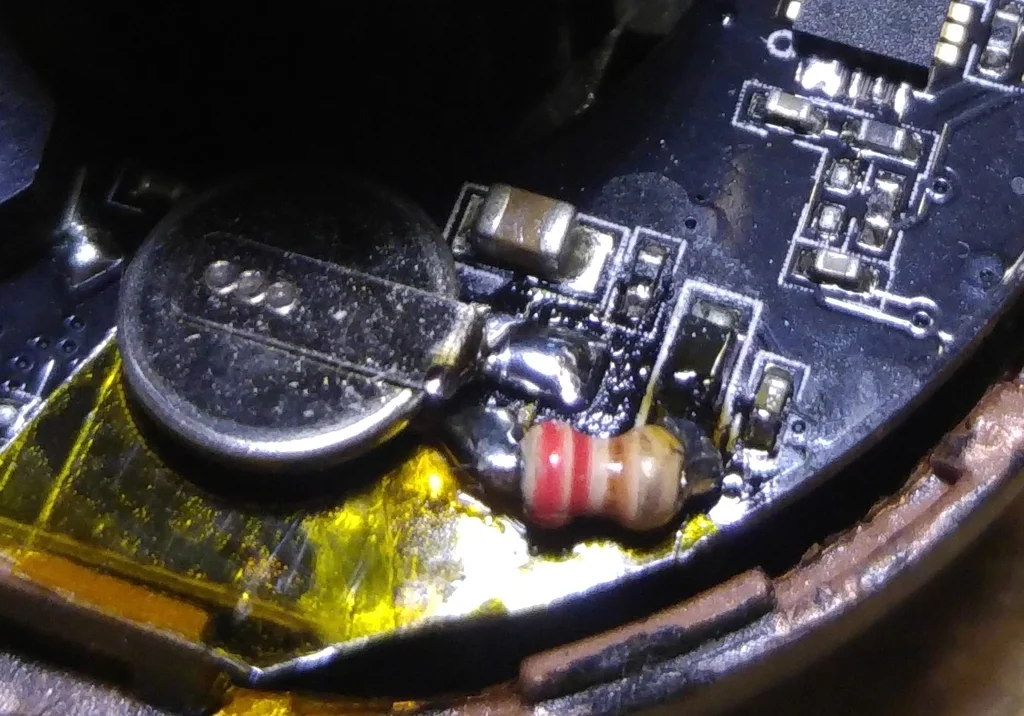

I did the modification, i also loaded the latest F/W. Everything still works ok.

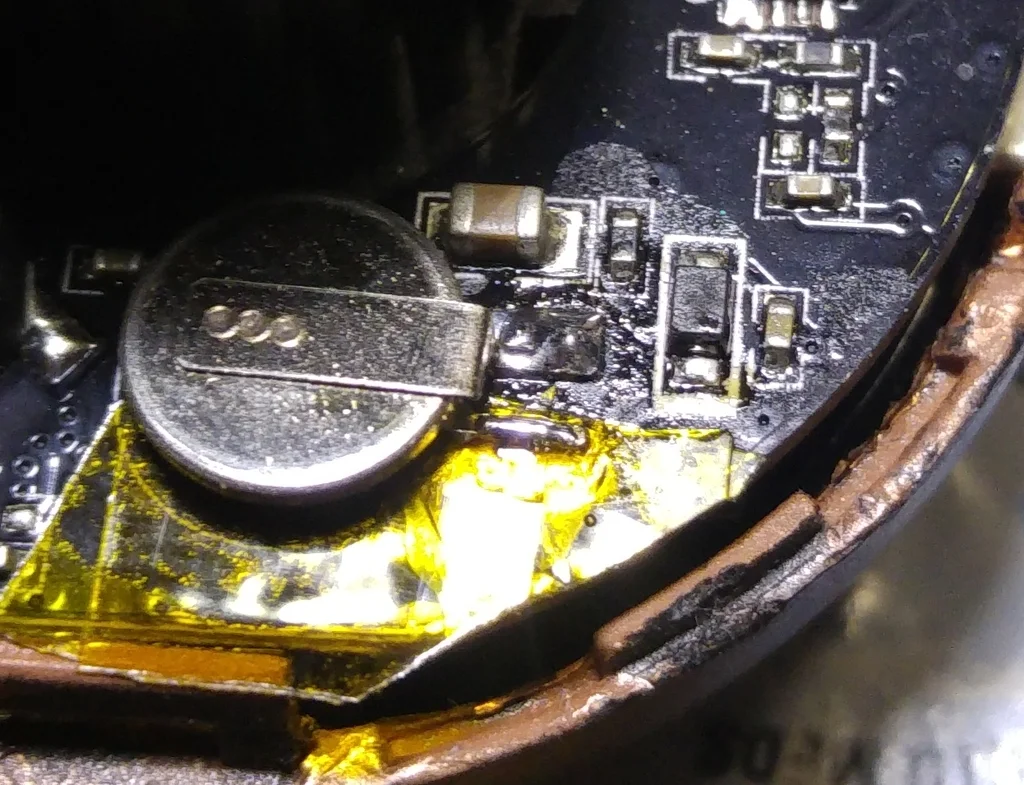

I completelly unsoldered the battery?/capacitor? whatever it is and put two layers of capton tape over the pcb area that needed to isolate.
