Thank you @GearBest for providing CHUPAD D501 WiFi Dashcam for review.
Gearbest product link: http://www.gearbest.com/car-dvr/pp_425427.html*****************************************
Description & Features: Wedge shape dashcam with WiFi. No fish-eye effect, usually this feature is on Ambarella based dashcams.
CHUPAD D501 is a wedge shaped WiFi dashcam based on Novatek NT96658 chipset and Sony IMX 322 sensor.
It has 2.45" LCD and max resolution is 1080p.
*****************************************
Summary: will be updated as I review and test but will note things as I go on.
PROS: Very discrete all black slim wedge design. Well it has chrome mid section on the housing but not visible from the front.
Video quality is very good both at daytime and at night.
Audio is also very good.
Cons: no option to turn the LCD off
*****************************************
Unboxing and sample videos:
Daytime Videos @ 1:20, night videos @ 6:25:

*****************************************

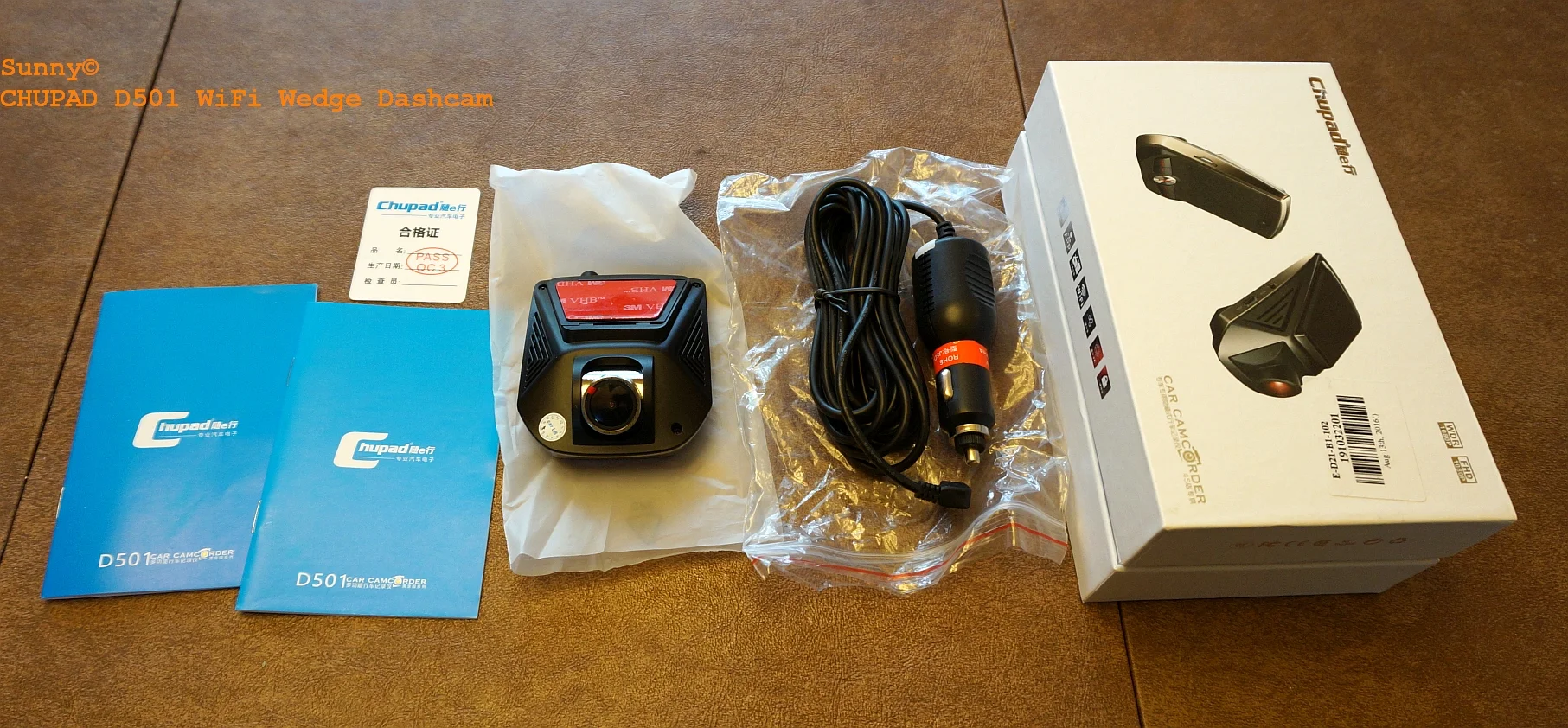

Package Contents: Very minimal contents.
1 x Car DVR, 1 x Car Charger, 1 x Operational Manual ( English ), 1 x Chinese Manual

*****************************************

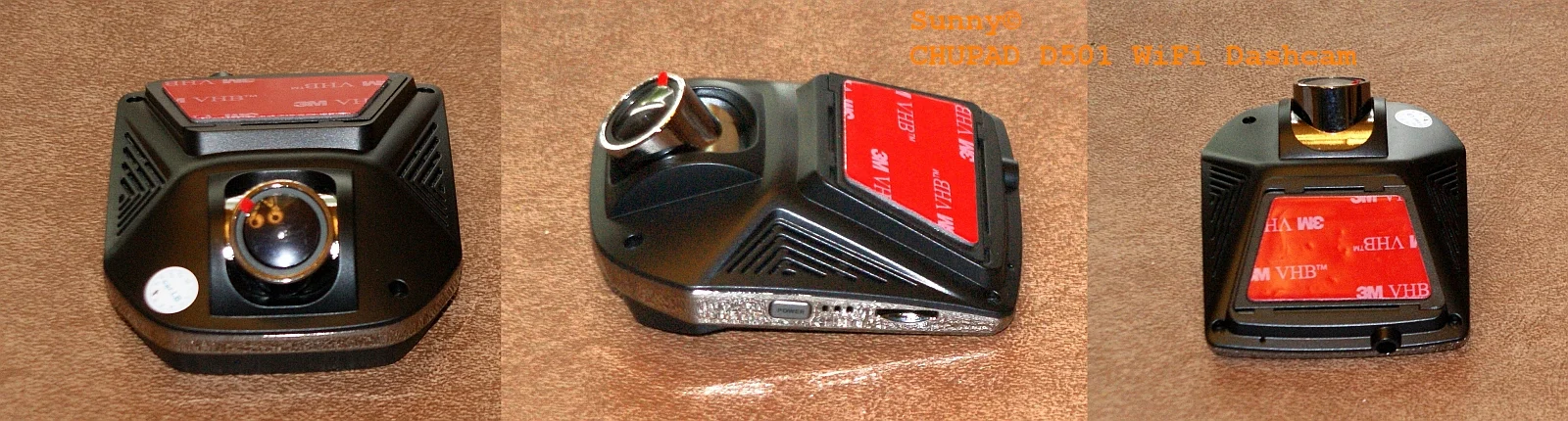

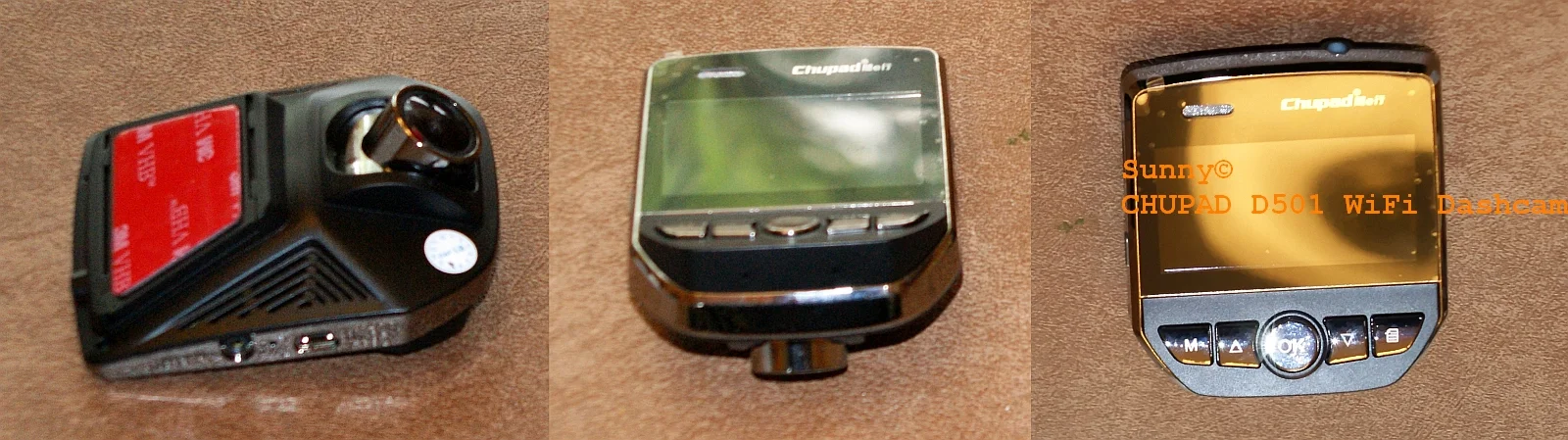

CHUPAD D501 Images:
The lens moves up/down but not sideways.

The right most button triggers event. Up/down buttons zoom in/out.


*****************************************

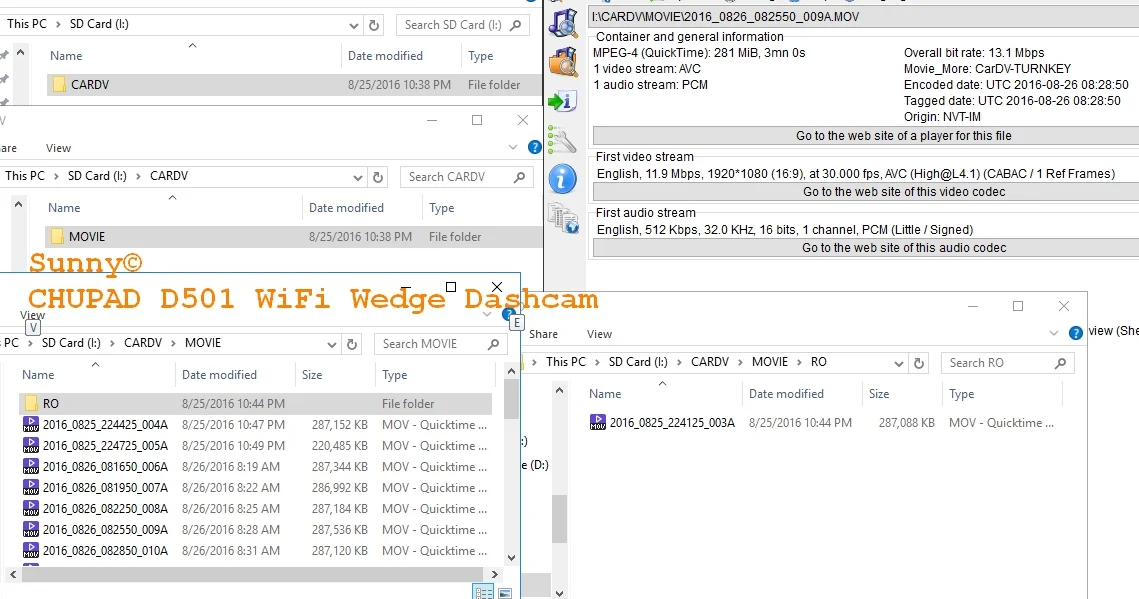

Chupad D501 Folders and VBR:
CARDV>MOVIE: It has normal video files.
>>RO: It has event files. Entire clip is locked.

Variable Bit Rate: Overall Bit Rate is 13.1 mbps with video @ 11.9 mbps and audio @ 512 kbps.
Chupad D501 Dashcam Folders and Bit Rate.jpg

*****************************************
More details coming soon...

Last edited:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)

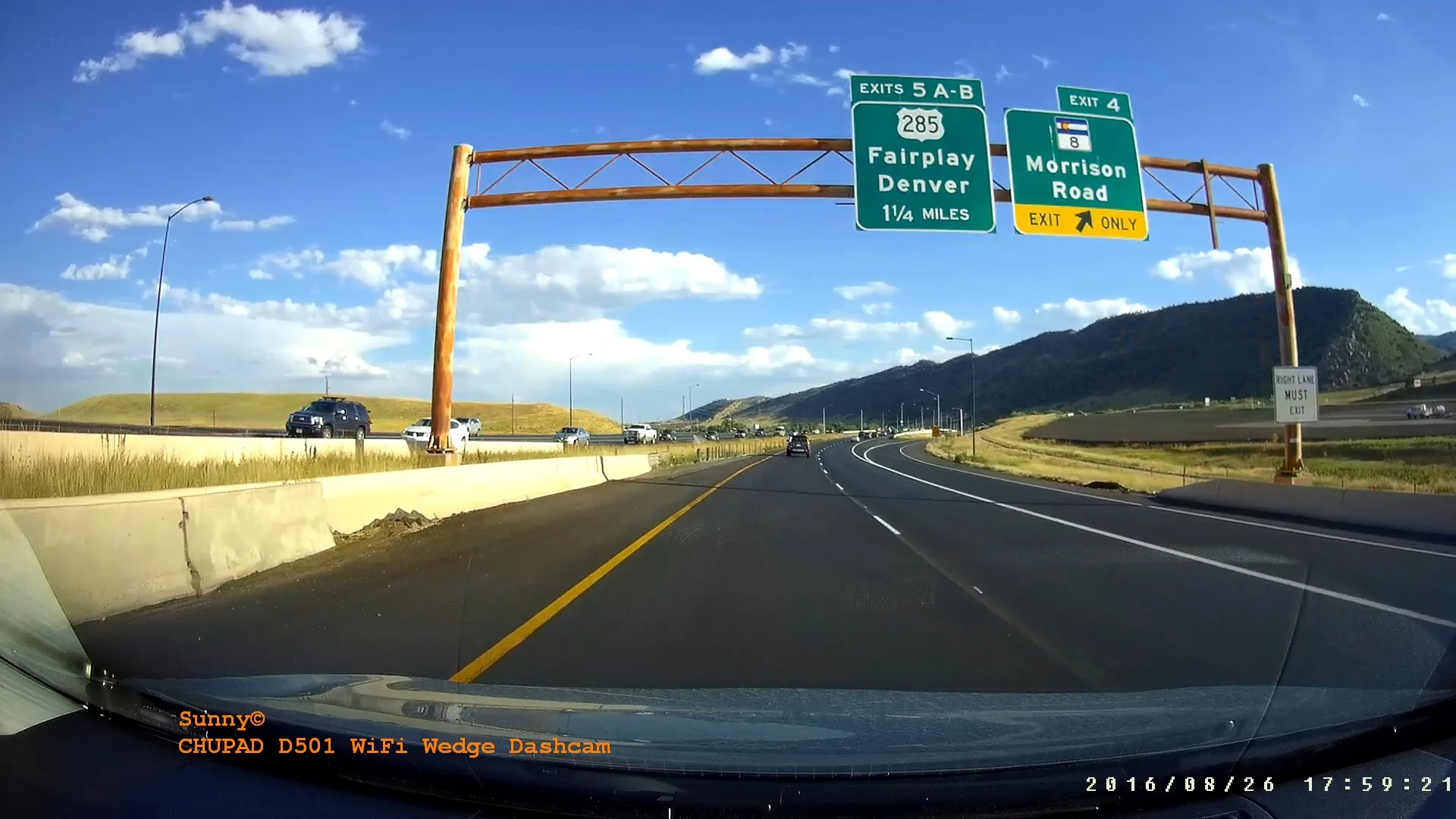

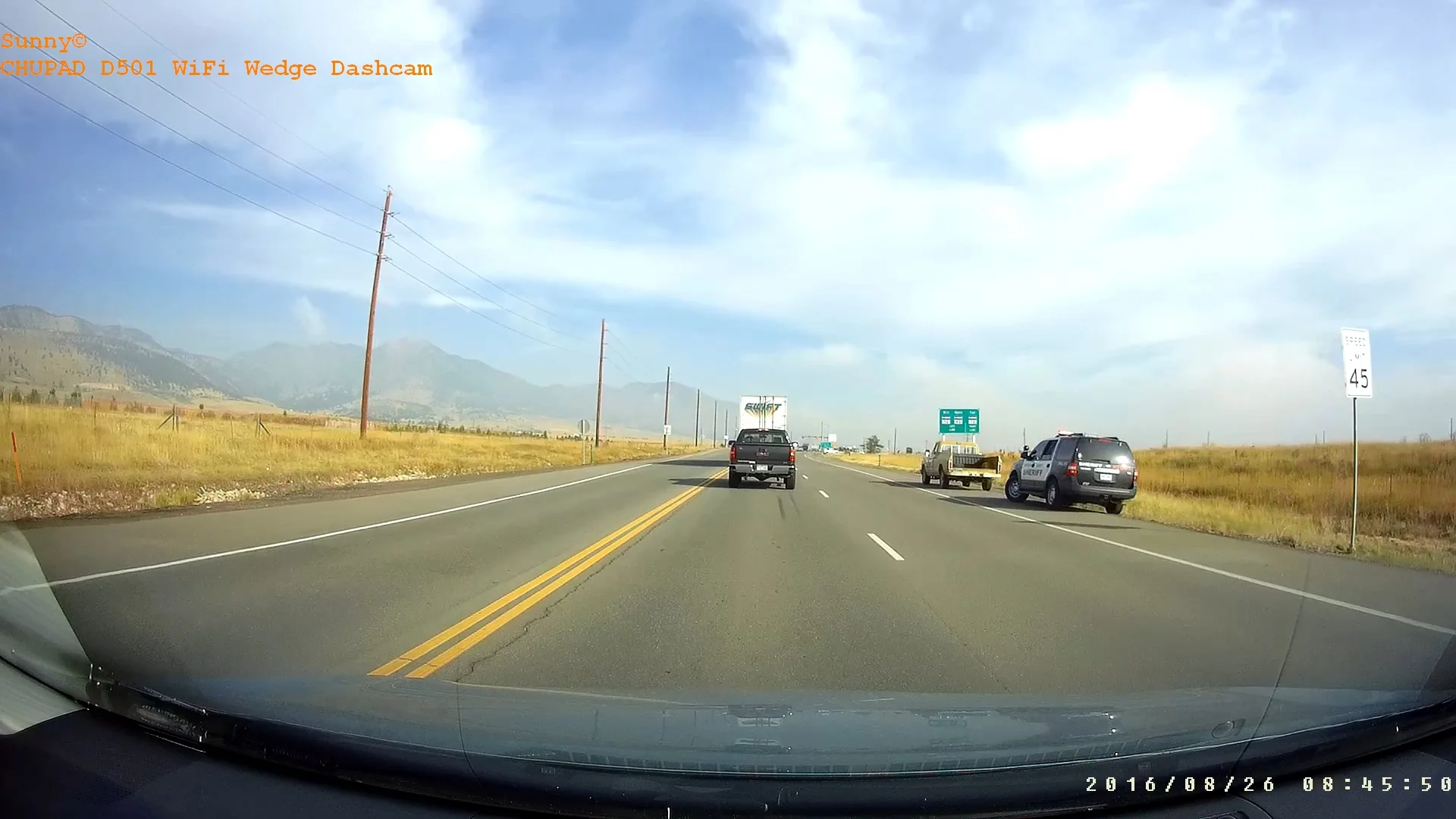

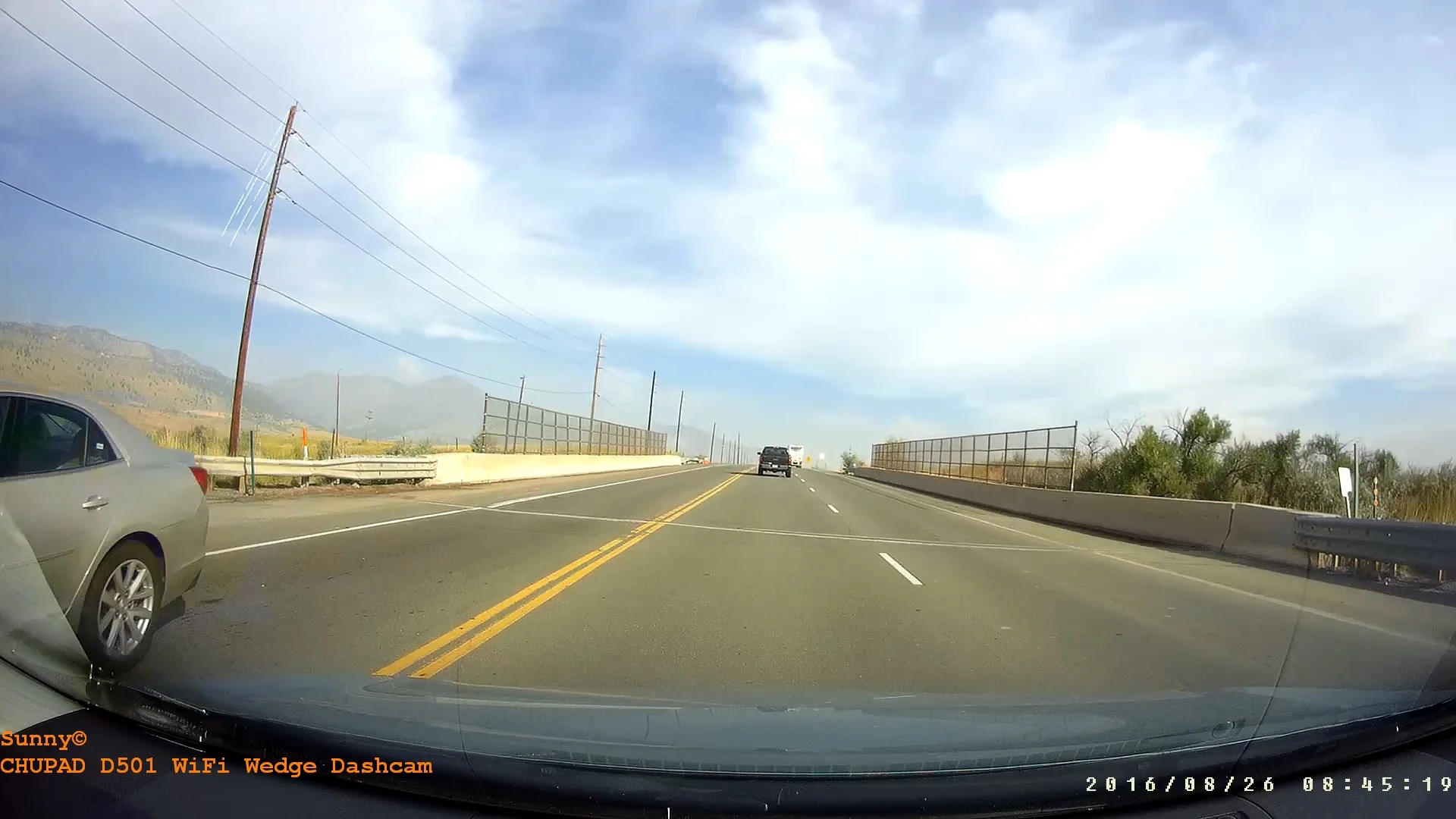

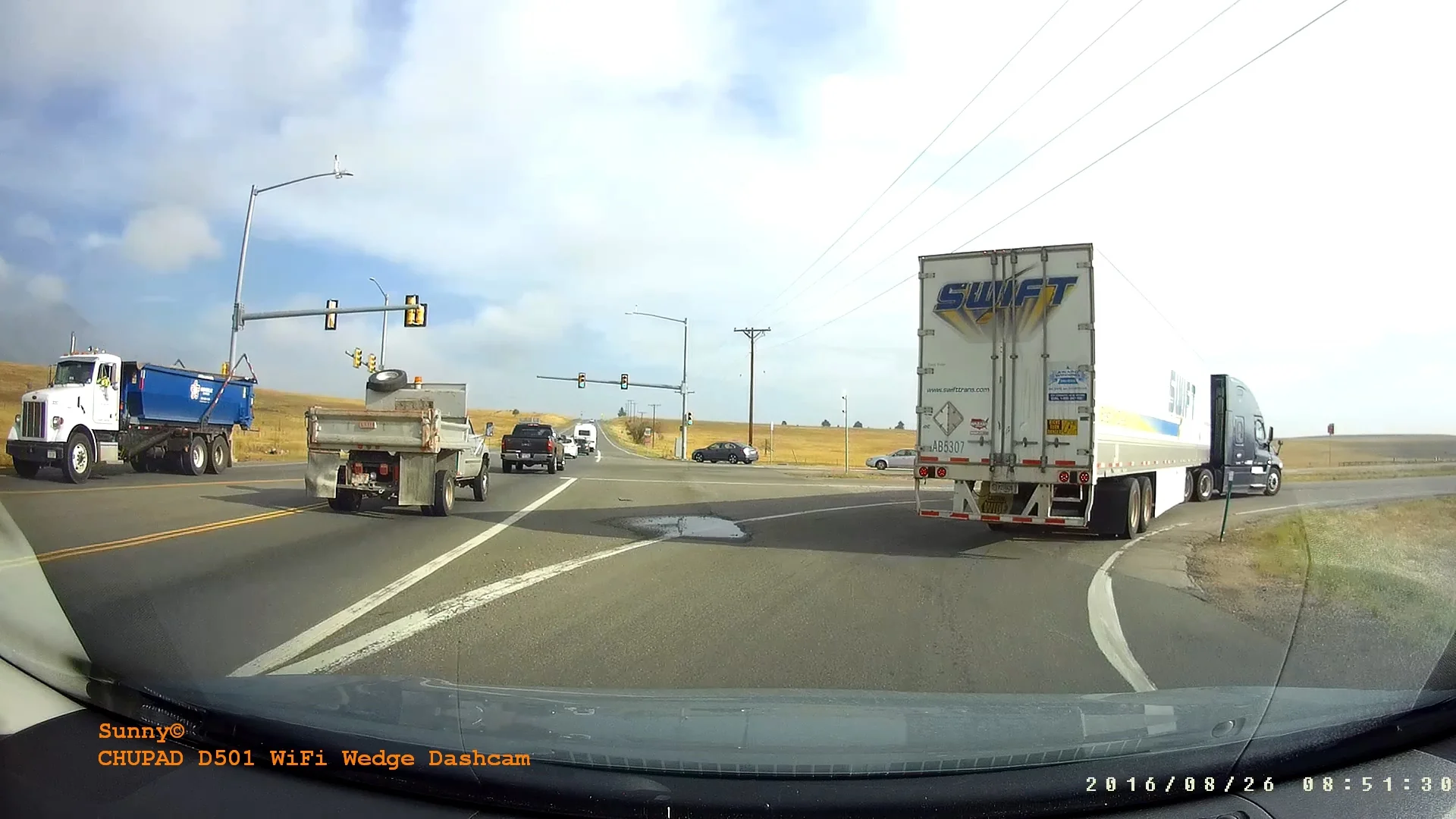

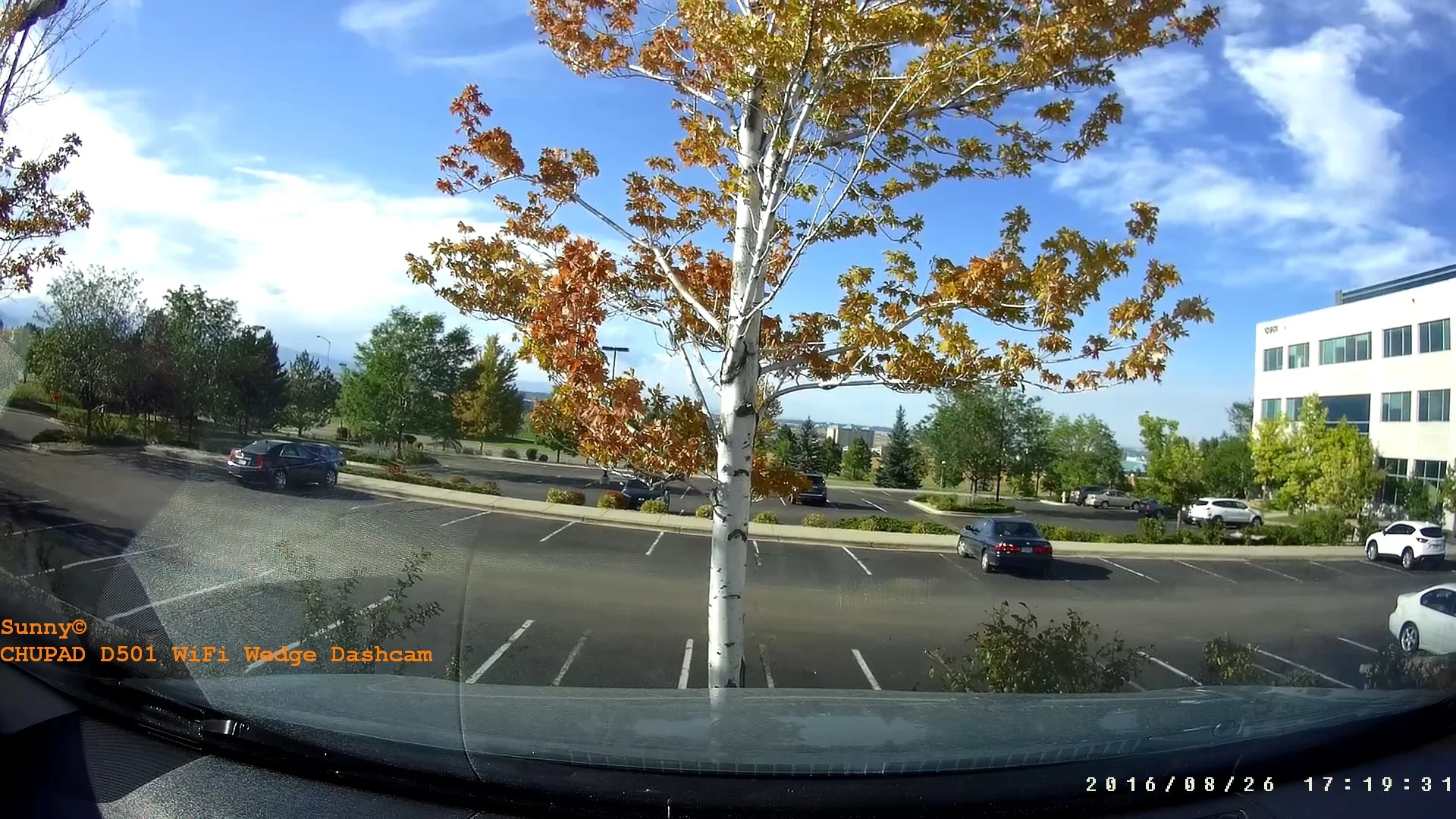

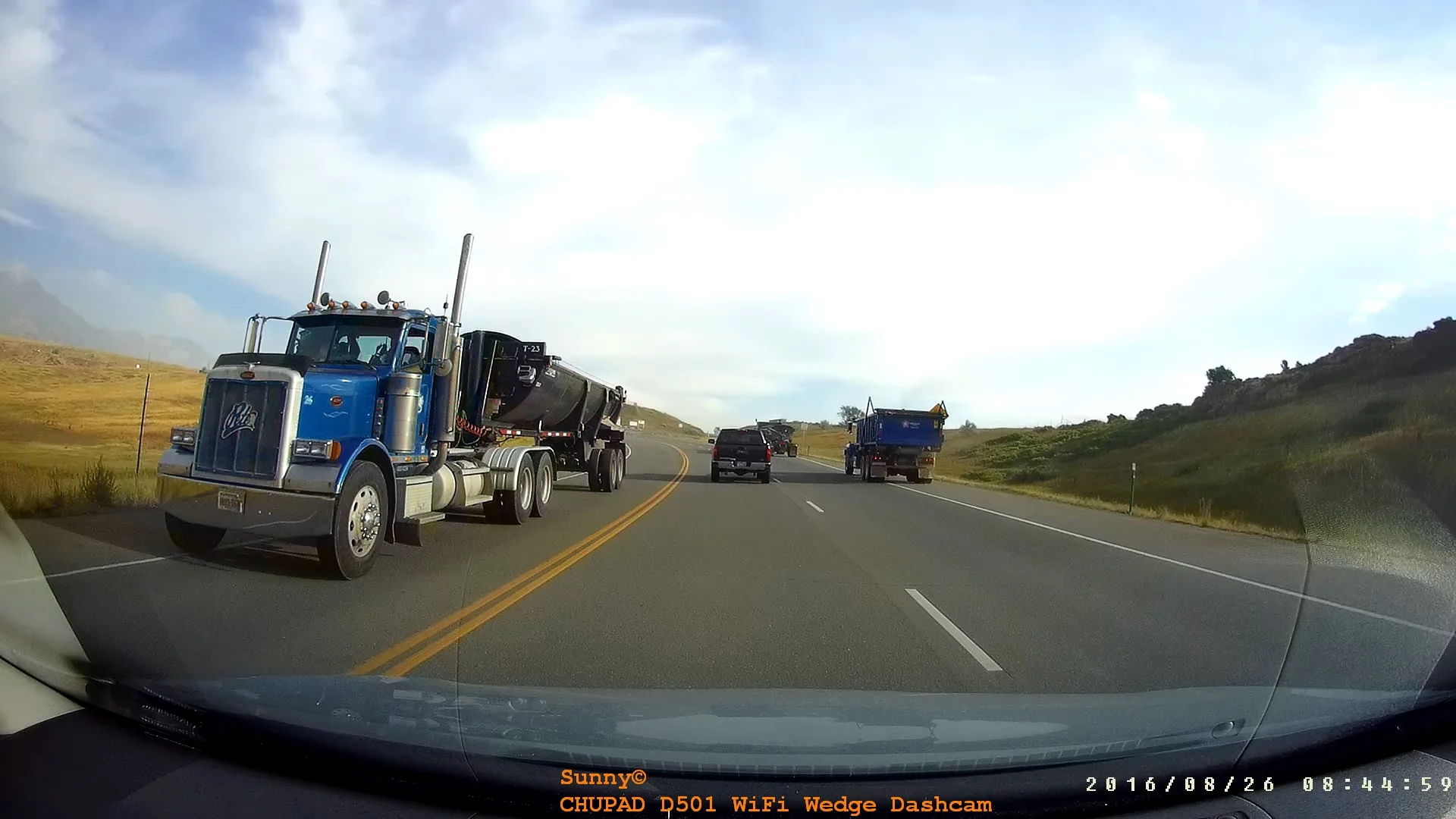

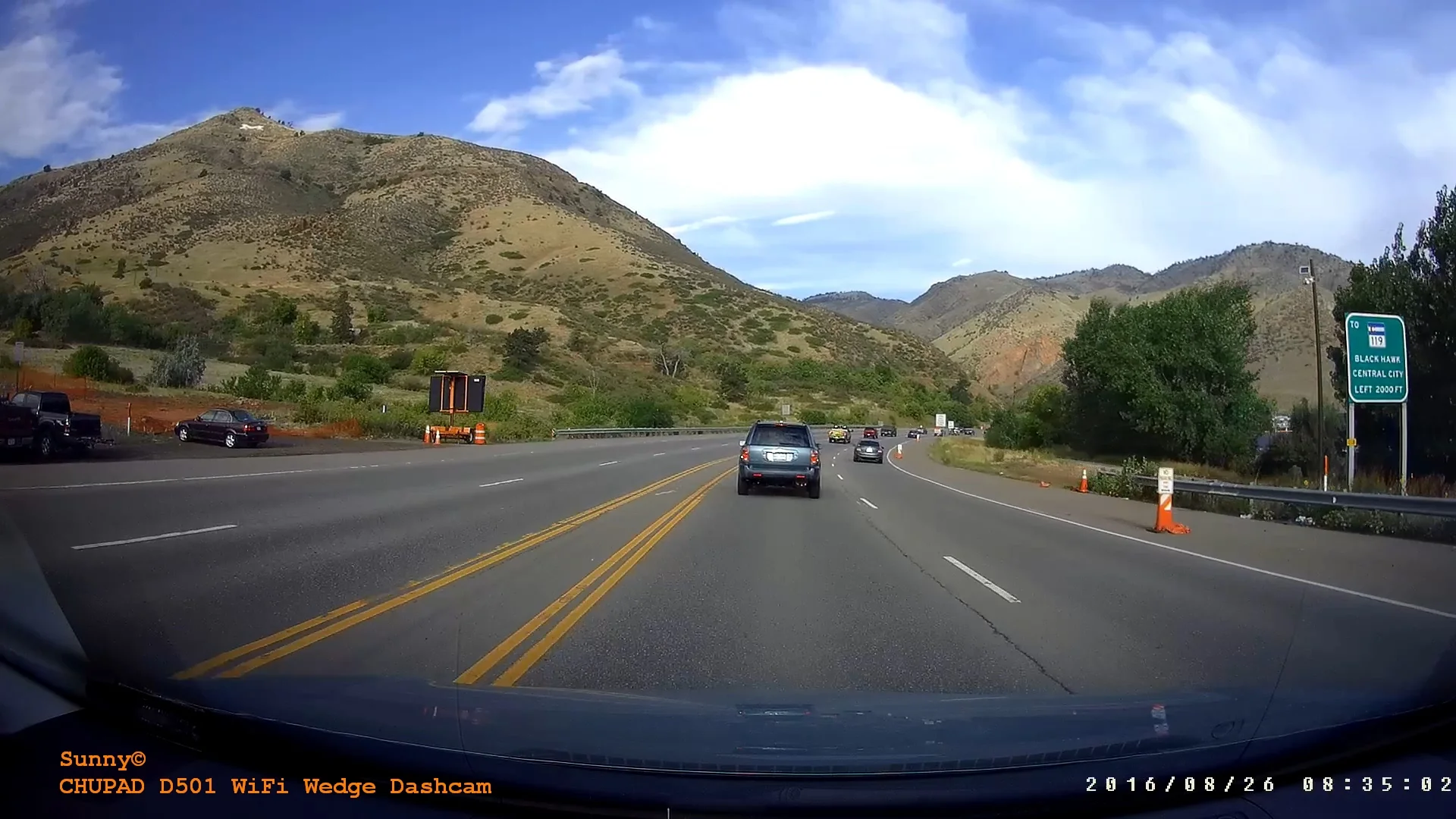

Daytime Video screenshots: Very good quality. Against the Sun washes sky out but roads/vehicles are still good. No fish-eye effect.

Almost like a DSLR photo quality from video screenshot: ;)

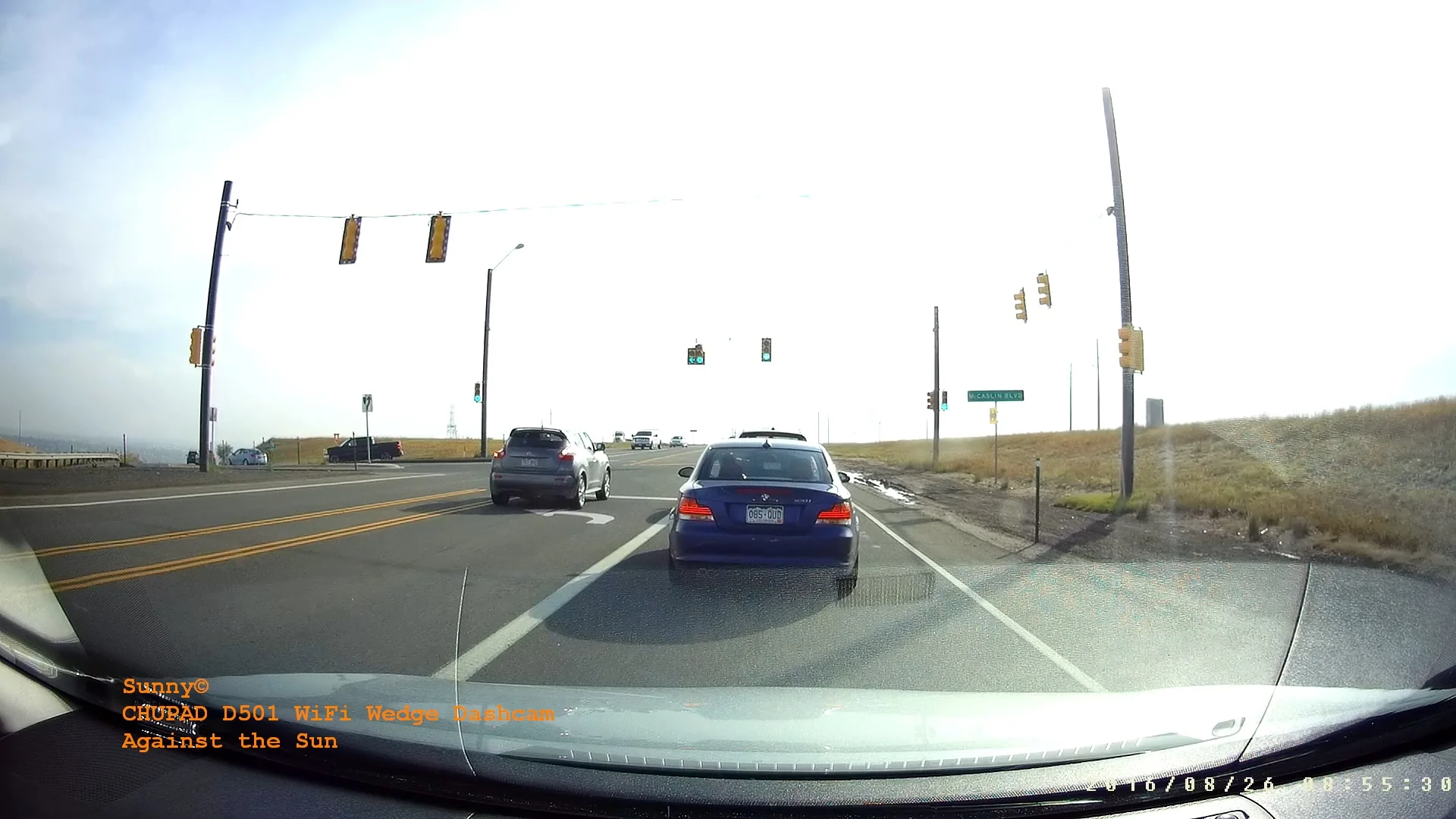

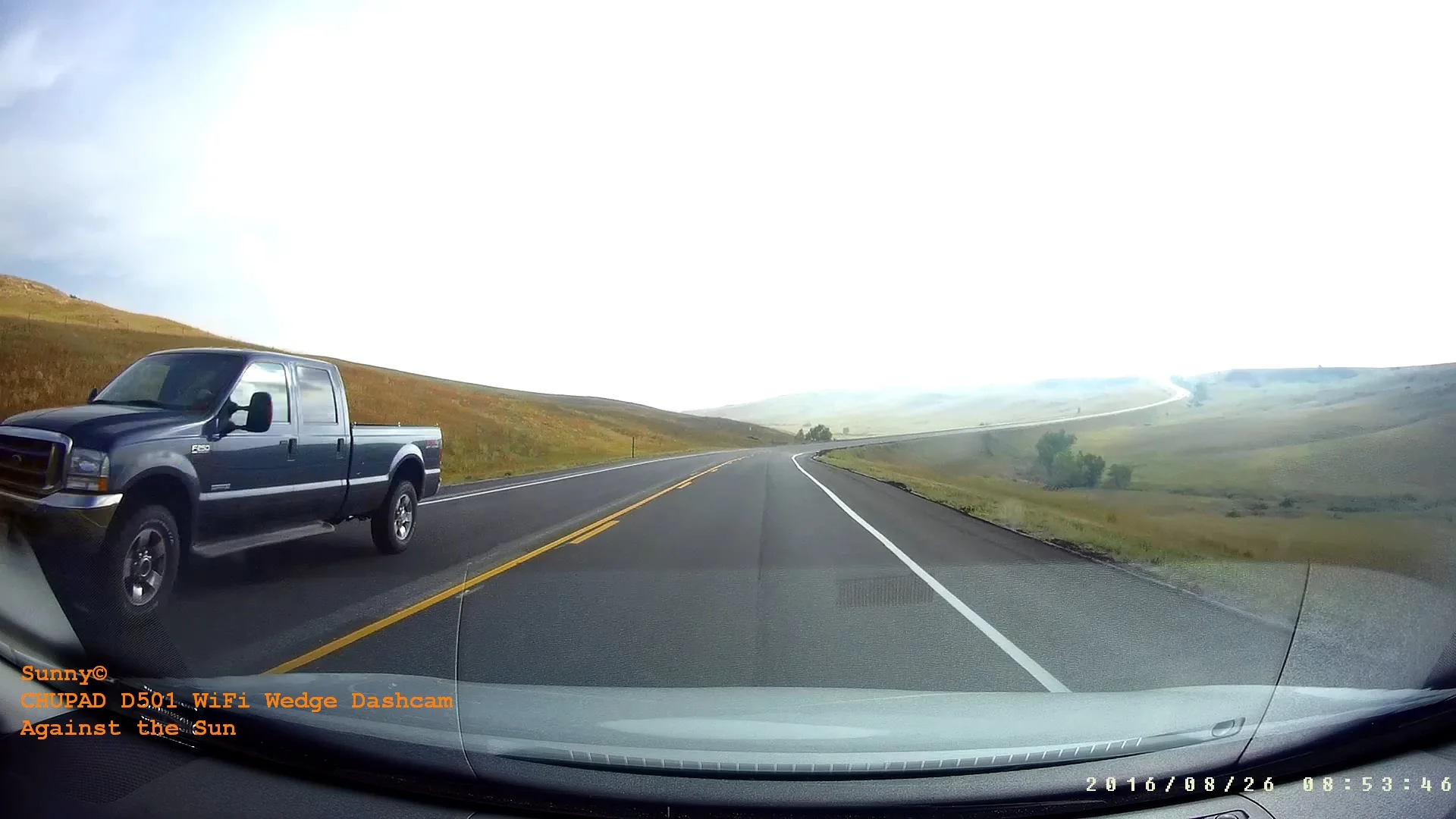

Against the Sun:


Last edited:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)

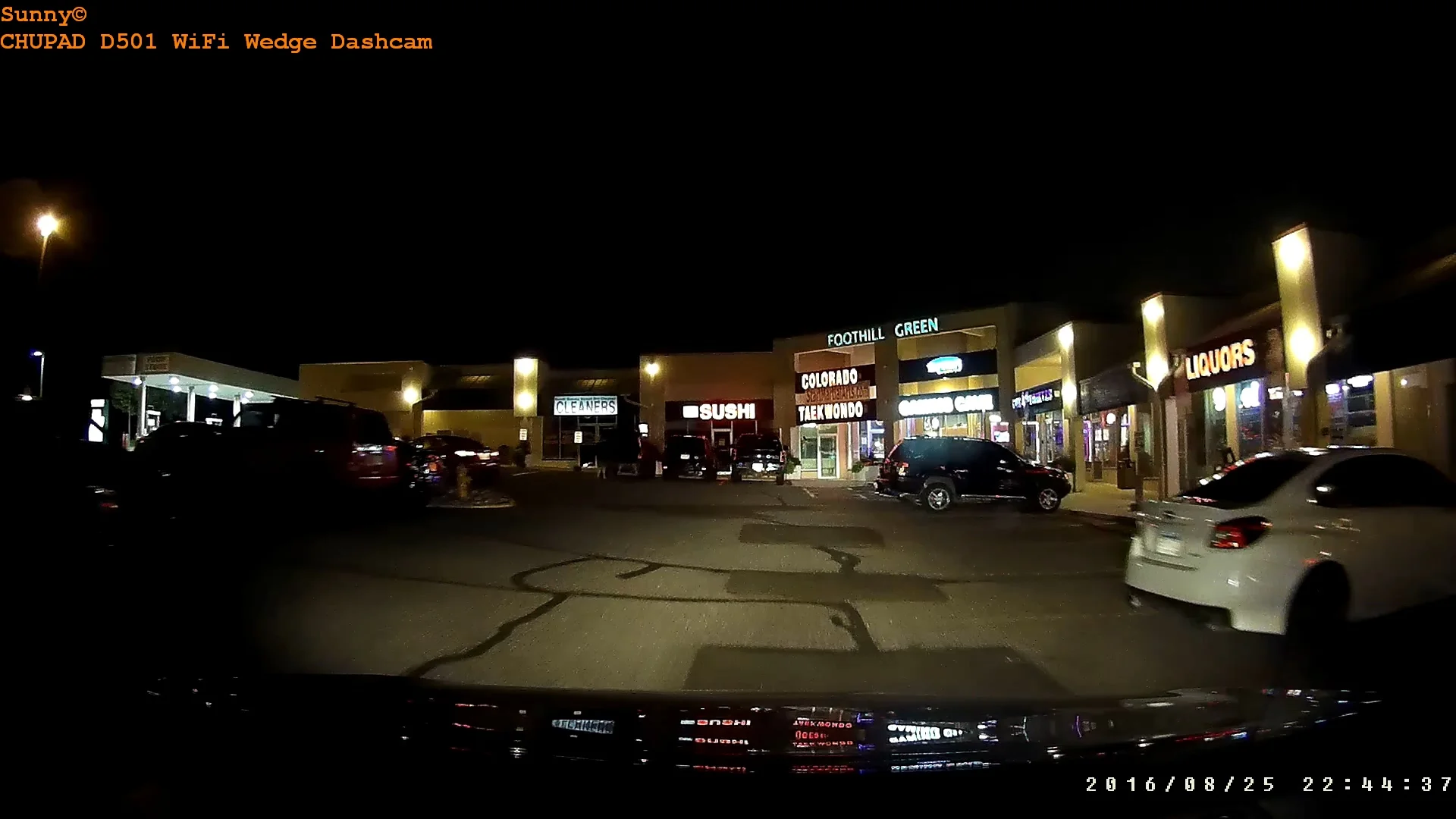

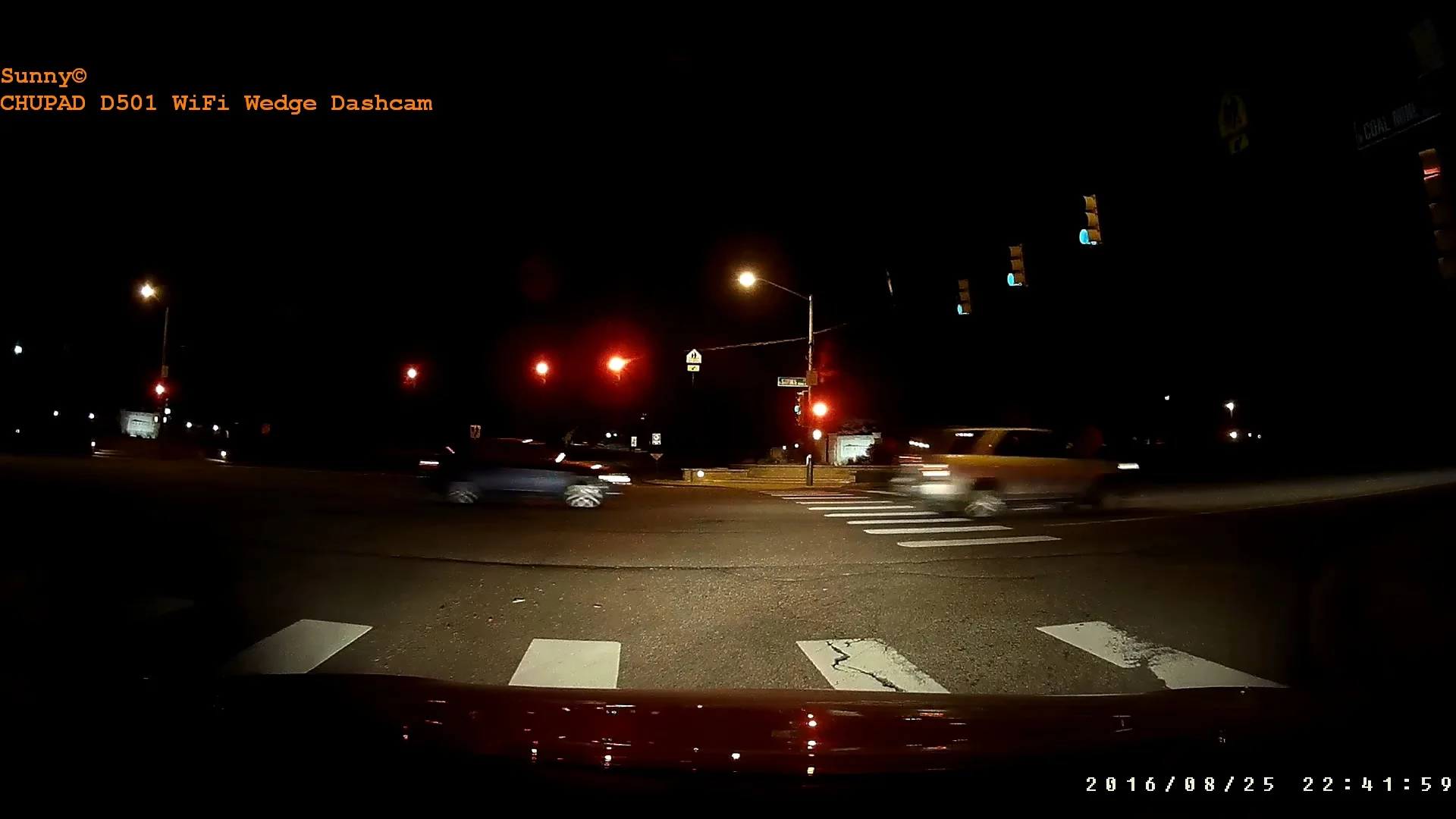

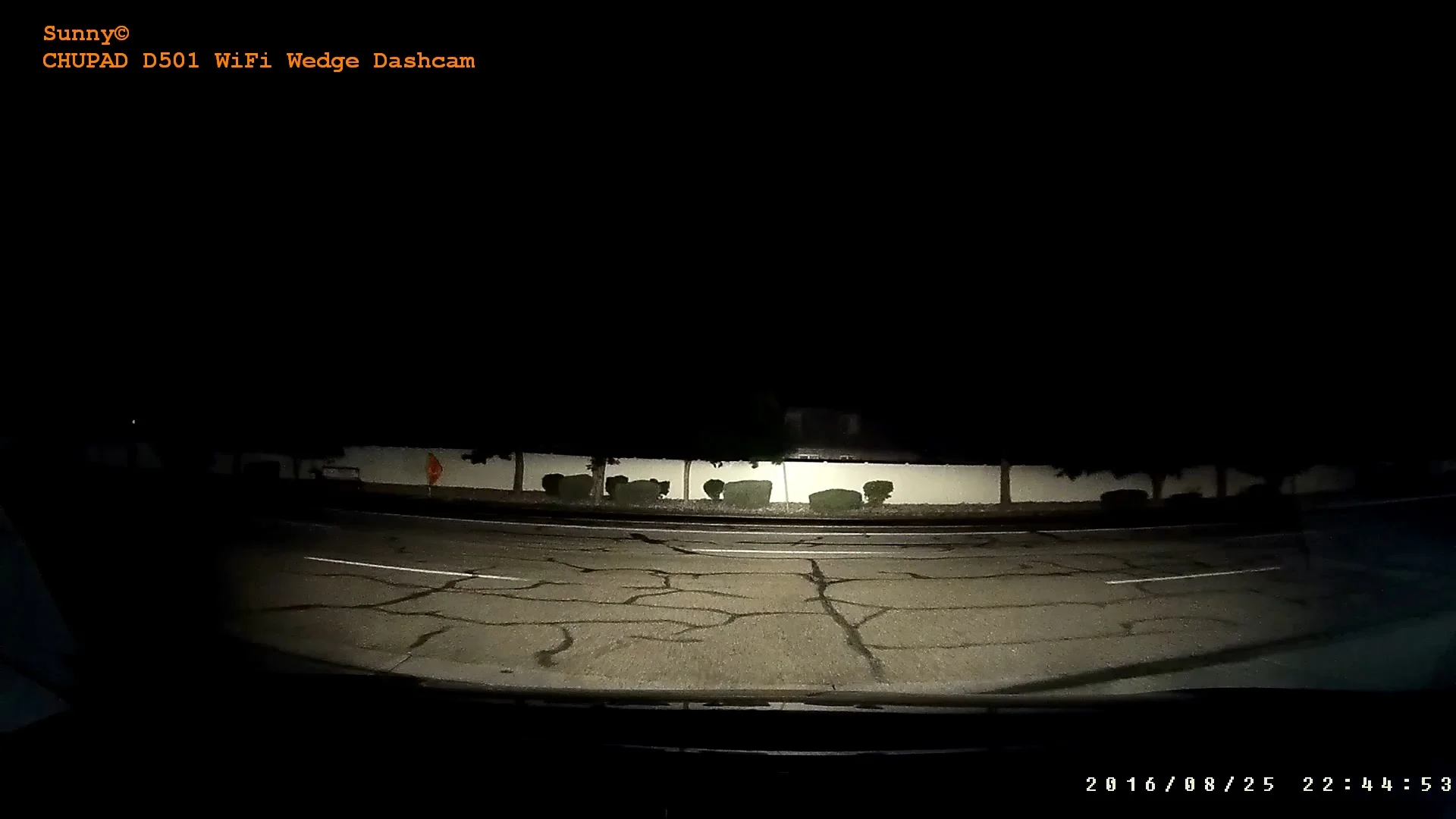

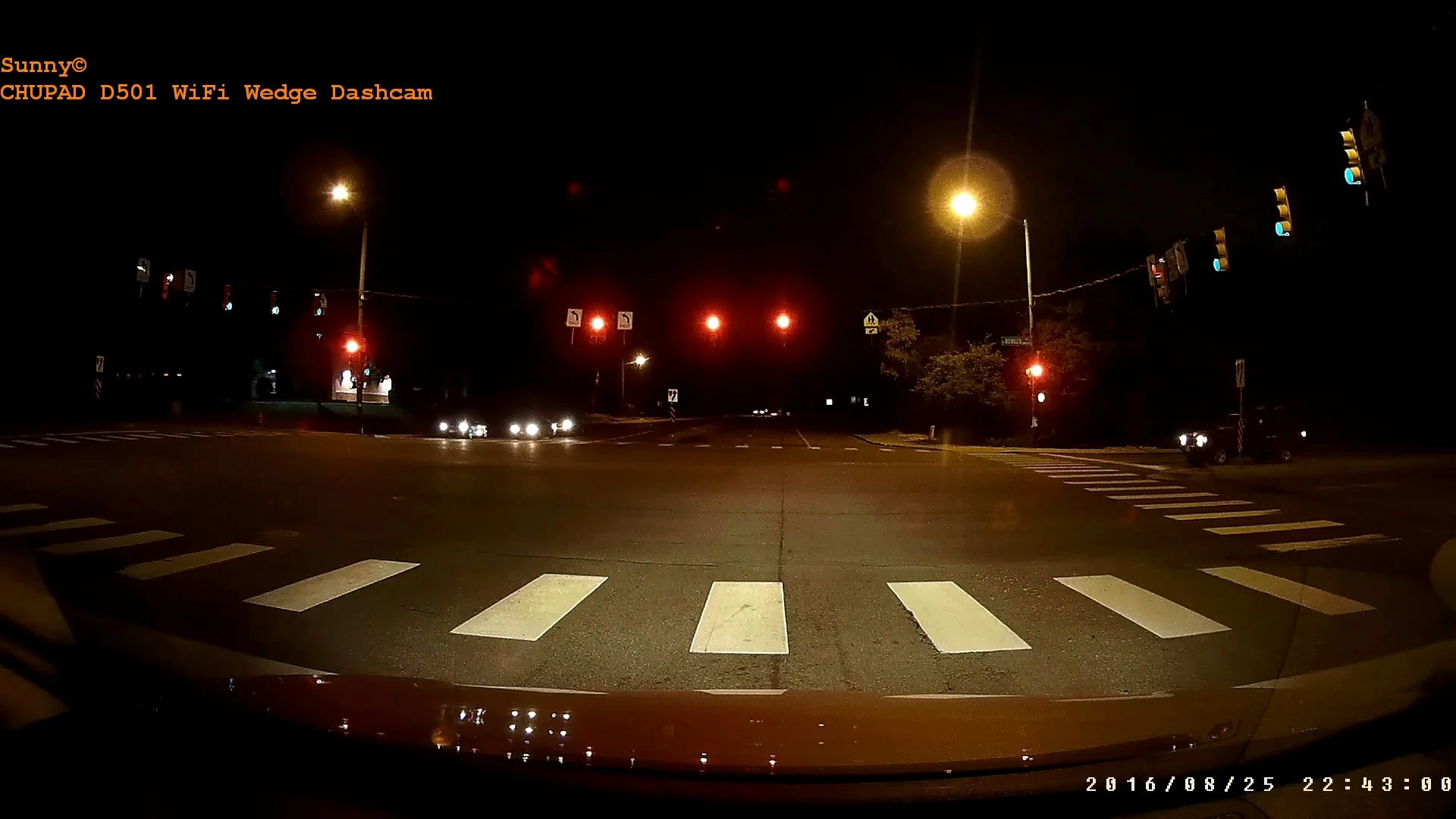

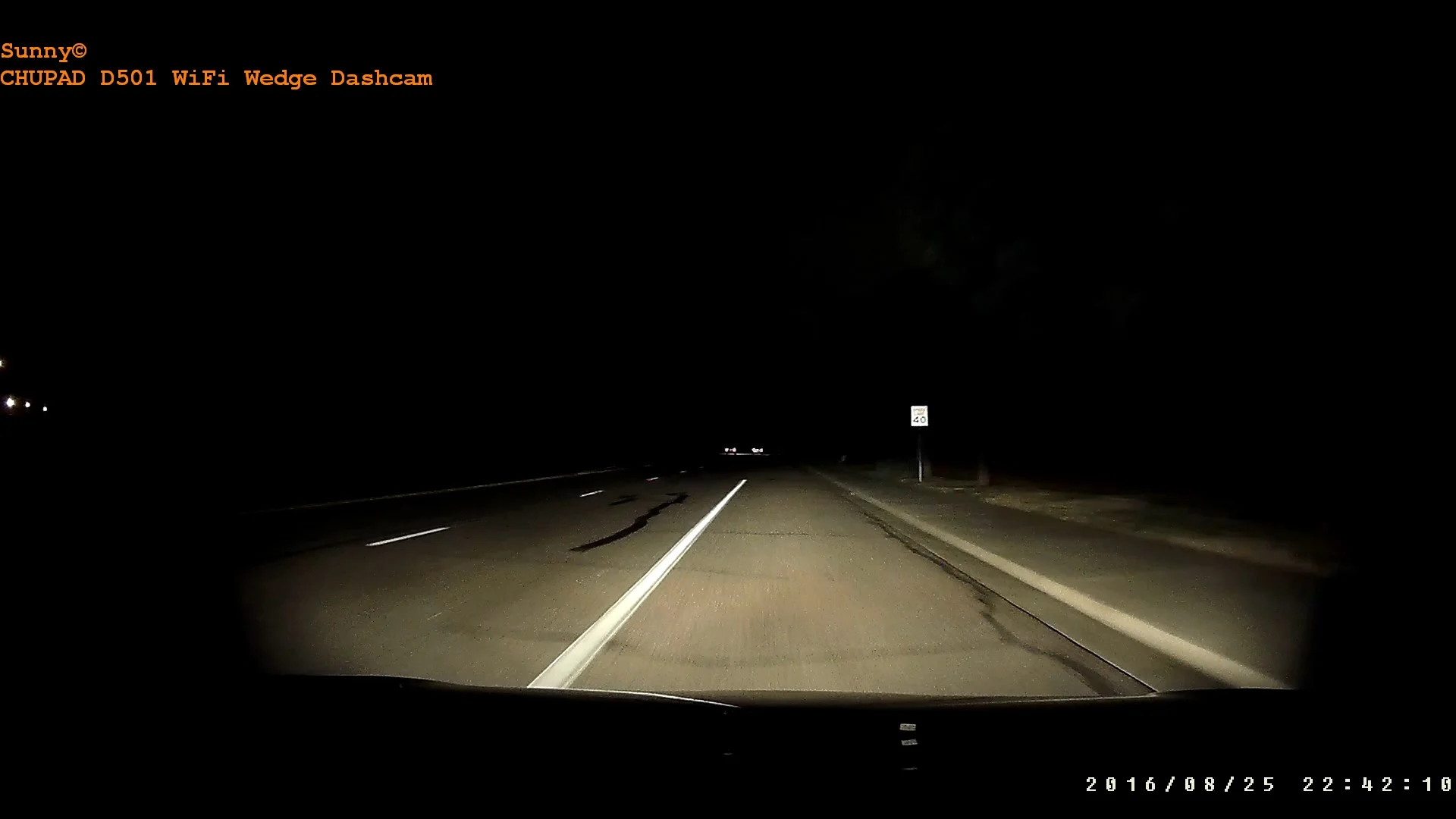

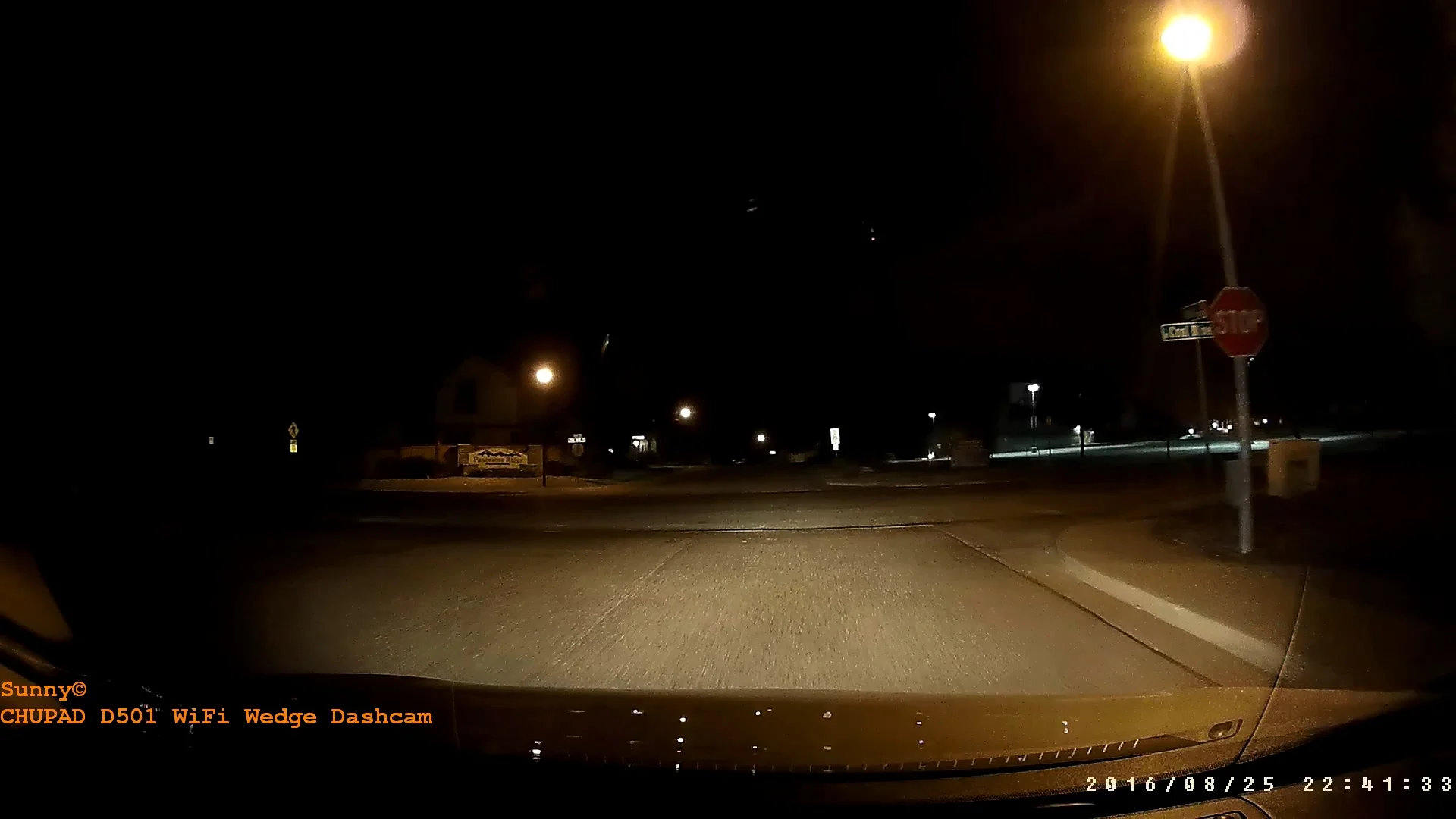

Night Video Screenshots: Night quality is very good and bright.







Last edited:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
reserved3


Yooshaw

Active Member
Joined
Feb 10, 2014
Messages
426
Reaction score
236
Location
Texas
Country
United States
Dash Cam
2x Mobius, 2 x SG9665GC, 2 x A119S, 2 x A119V3
Wow great price, and samples videos look great. How come the Gearbest link only says 1080P? Don't like the battery and chrome ring around the lens.


niko

Well-Known Member
Retailer
Joined
May 1, 2013
Messages
10,572
Reaction score
6,444
Location
Dublin
Country
Ireland
Dash Cam
Street Guardian UK / EU / EEA Distributor
How come the Gearbest link only says 1080P?
In many cases specs are just copy-paste from other listings or in this particular case it might be typo ?


niko

Well-Known Member
Retailer
Joined
May 1, 2013
Messages
10,572
Reaction score
6,444
Location
Dublin
Country
Ireland
Dash Cam
Street Guardian UK / EU / EEA Distributor
Don't like the battery and chrome ring around the lens.
I still don't get the logic of so called "designers" of this unit. They made relatively hidden ( stealthy ) looking dascham, but left lens housing / ring shiny chrome. Also main body side frame is silver chrome which attracts attention. Where is the logic ? :confused:

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
Wow great price, and samples videos look great. How come the Gearbest link only says 1080P? Don't like the battery and chrome ring around the lens.
You must be looking at the phone that redirects to mobile site.
Full site has more information but also a mistake that mentions it is a touch screen and it's not.
Oh, I had wrong resolution in the 1st post. I fixed it. It is 1080p only.


basjke

Member
Joined
Jul 25, 2016
Messages
47
Reaction score
2
Location
Thailand
Country
Belgium
Would be my choice of camera if only it had that capacitor. Picture quality for this price is unseen as far as I'm aware.

Can't believe that adding a capacitor instead of battery would add much to the cost.

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
Pictures from inside and outside the vehicle:





Better picture on cloudy day:

Last edited:

SawMaster

Well-Known Member
Joined
Apr 10, 2015
Messages
5,699
Reaction score
5,144
Location
SC
Country
United States
Dash Cam
G1W-S, G1W-HC, G1W clone, B1W, N2 Pro, K2S, B2W, (ex Mobius)
Astounding pic quality for the price day and night. Hard to best that at twice the price. Are you going to do any long term testing Sunny? This could quickly become "King of the Economy Cams" if it holds up in constant use.

Phil


GearBest

Well-Known Member
Retailer
Joined
Jul 7, 2014
Messages
1,069
Reaction score
168
Location
Shenzhen
Country
China
You must be looking at the phone that redirects to mobile site.
Full site has more information but also a mistake that mentions it is a touch screen and it's not.
Oh, I had wrong resolution in the 1st post. I fixed it. It is 1080p only.
Thanks for correct this mistake. I asked my colleague to edit it.

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
Astounding pic quality for the price day and night. Hard to best that at twice the price. Are you going to do any long term testing Sunny? This could quickly become "King of the Economy Cams" if it holds up in constant use.

Phil
Yes, dashcams with Sony IMX322 sensor that gives great night quality don't come in the $60 range.
On top of that, this is wedge shape for discrete install plus wifi.
Not sure how it'll hold in the long run. If it had capacitor, it'd give a run for brand name ones that cost few hundred.

This needs little bit higher VBR than 13.1 mbps and should have option to turn LCD off both of which could easily be added with FW update but not sure if there's any FW support for this model.

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
CHUPAD D501 Daytime Videos: As shown in the unboxing sample videos and screenshots above, daytime video is very good.
Here are few more clips:





jokiin

Well-Known Member
Manufacturer
Joined
Jan 27, 2013
Messages
47,684
Reaction score
26,162
Location
Sydney, Australia ~ Shenzhen, China
Country
Australia
Dash Cam
Too many ¯\_(ツ)_/¯
Firmware support for domestic market product is not too common, most is get what you get as the market moves too fast


kamkar1

Well-Known Member
Joined
Oct 11, 2013
Messages
22,461
Reaction score
12,549
Country
Denmark
Dash Cam
10 years, many dashcams
Ha ha CHUPAD :) that sound like some accessory to some extreme sport.

But all in all it don't look so bad i must say, if it can last and make good footage for a couple of years then it would be a excellent entry level dashcam.

The use of the crome is unfortunate, but there is easy fixes for that.


Module 79L

Well-Known Member
Joined
May 17, 2015
Messages
3,793
Reaction score
1,503
Country
Portugal
Dash Cam
AT11DA, SG9665XS, G1W-H
it has some but not too severe, it's just the lens that is responsible, there is no dewarp being used
To me it looks like the normal fish-eye effect for the width of the lens' angle. Even if it's less than normal, it's very different from saying no fish-eye effect at all.
The dewarp function is good if one doesn't like to see everything bending inwards at the edges of the picture but it "bloats" the road (for a lack of a better word). ;)

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,036
Reaction score
1,691
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
Okay okay you win. ;)
It has much less fisheye effect compared to other novatek based cameras.
You can see it on the poles at edges but still not that much.
