Thank you @GearBest for providing mini 0805p dashcam for review.
Mini 0805p is available at Gearbest here: http://www.gearbest.com/car-dvr/pp_595418.htmlIt's based upon MSC8328P chipset and Ominivision OV4689 CMOS image sensor.
***************************************************
PROS: Very small size, all black, discrete, built in GPS mount, 1296p resolution, daytime video is great.
CONS: Night video is average quality, audio recording is at very low volume.
LDWS, FCWS, SAGS are useless. The warning chime is very low volume and hard to notice.
***************************************************
Mini 0805p Features: 1296P super HD resolution, built-in GPS module, can remark time stamp.
Parking guard with katallobar (hardwire) installation.
One-key lock, G-sensor function, in case of emergency.
Maximum support 64G micro SD card ( not included ).
Press OK button to take photos.
Chipset name: Mstar.
***************************************************
Mini 0805p Unboxing Video with day and night videos:
One dumbass passing me too close at 4:38.
***************************************************

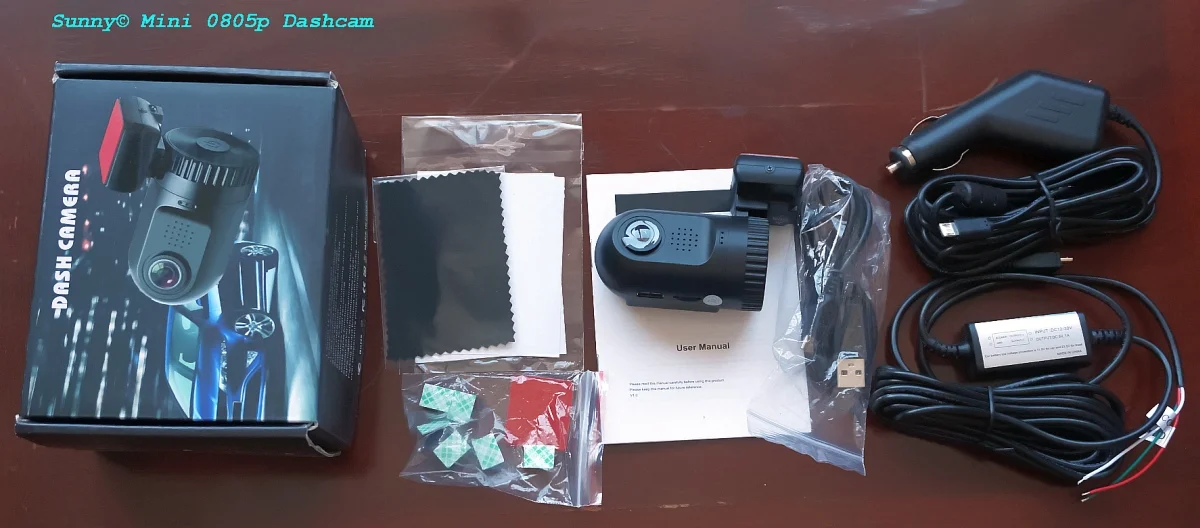

Package Contents: 1 x 0805P Car DVR, 1 x Car Charger, 1 x USB Cable, 1 x GPS Antenna, 1 x Clean Cloth, 1 x Sticker, 2 x Silicone Glue, 6 x Installation Gadget, 1 x Katallobar, 1 x English User Manual

***************************************************
***************************************************

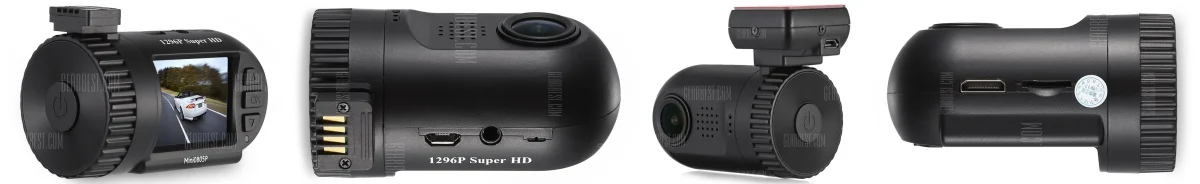

Mini 0805 images:
Mini 0805p-small.jpg

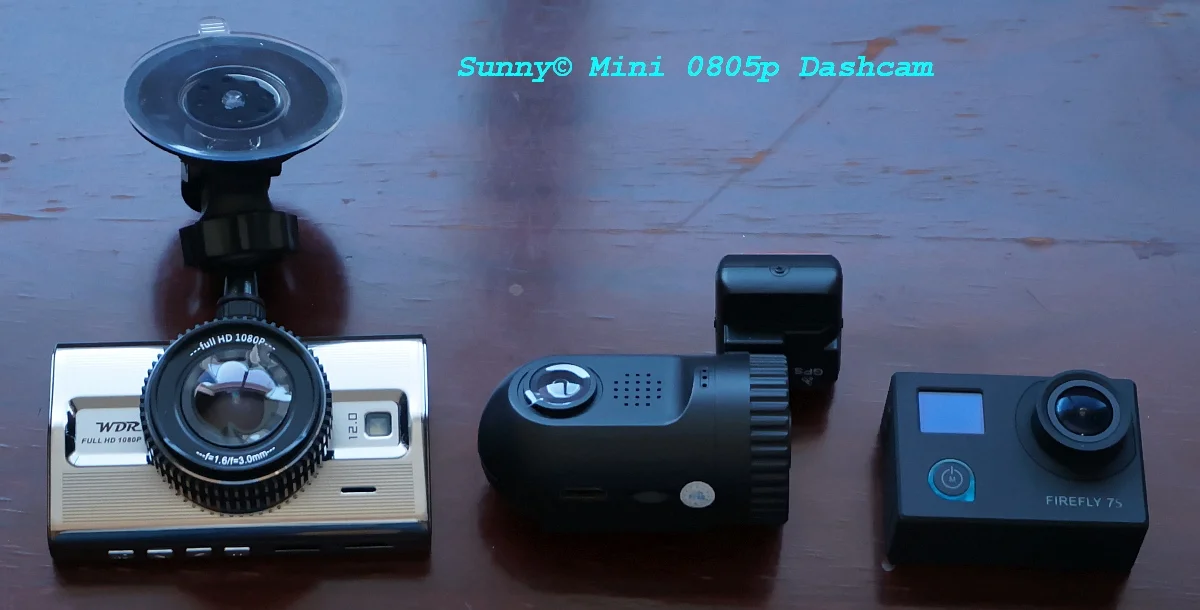

Mini 0805p side-by-side with M9S and Firefly 7S:


***************************************************

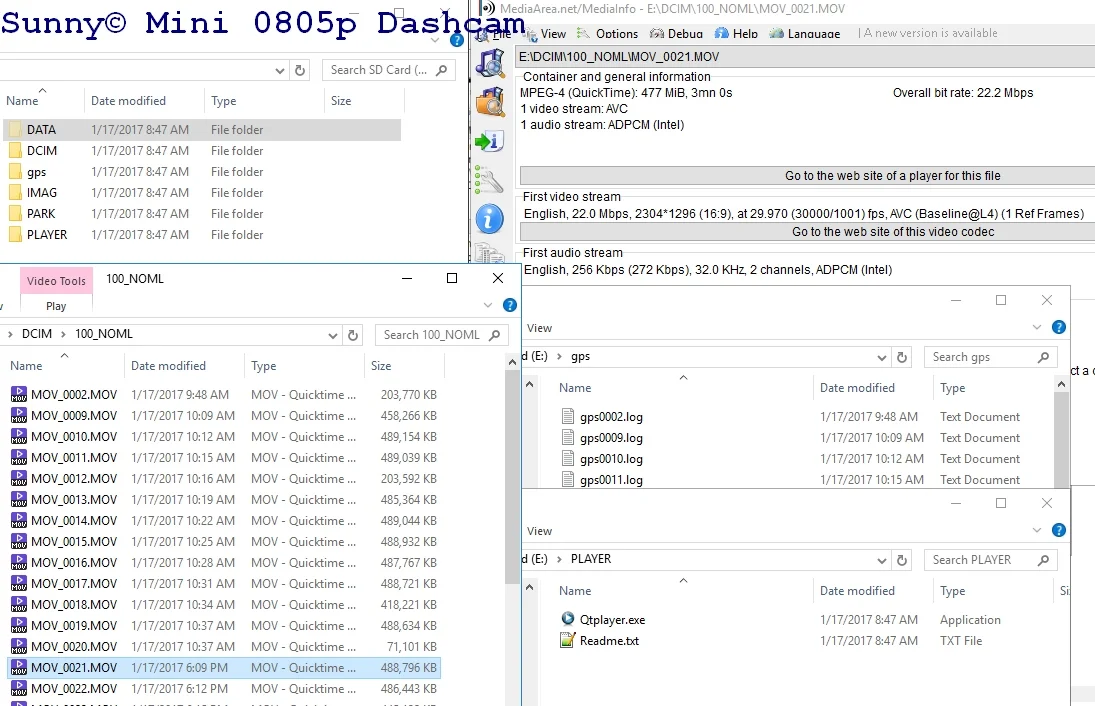

Mini 0805p Folders, Files and Bit Rate:
There are dedicated folders for different modes as shown below in the screenshot.
File names do not have date and time.
Normal videos are saved under DCIM folder and GPS files are saved under gps folder.
Triggered files are also in DCIM folder but with RA attributes. It seems like triggered videos are clipped at 1 minutes and 15 seconds.
Overall bit rate is 22.2 mbps at 1296p resolution with video @ 22 mbps and audio @ 256 kbps.
Mini 0805p Folders and Files.jpg
***************************************************
Continued...

Last edited:
OP
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
4,989
Likes
1,663
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
#2

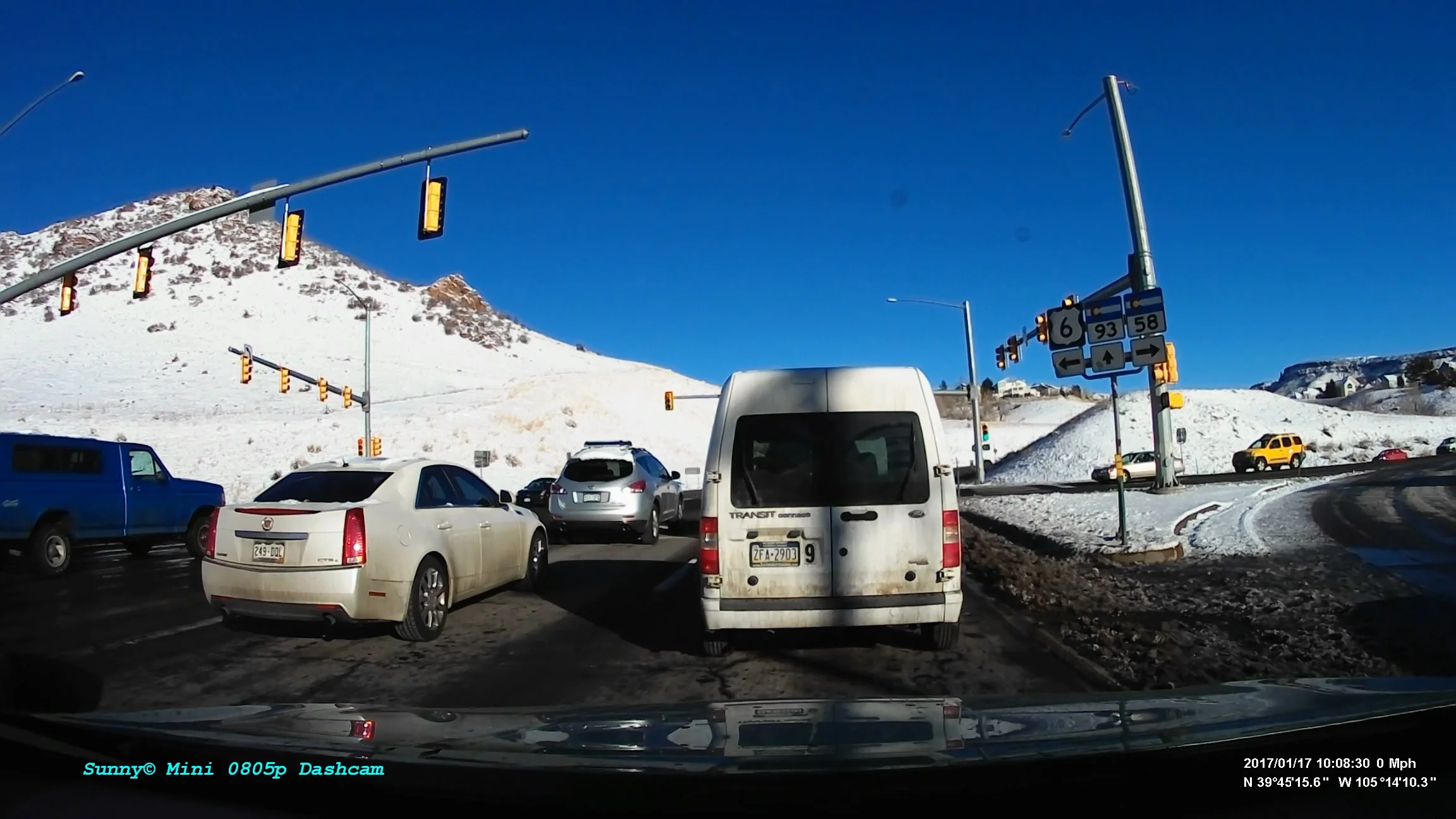

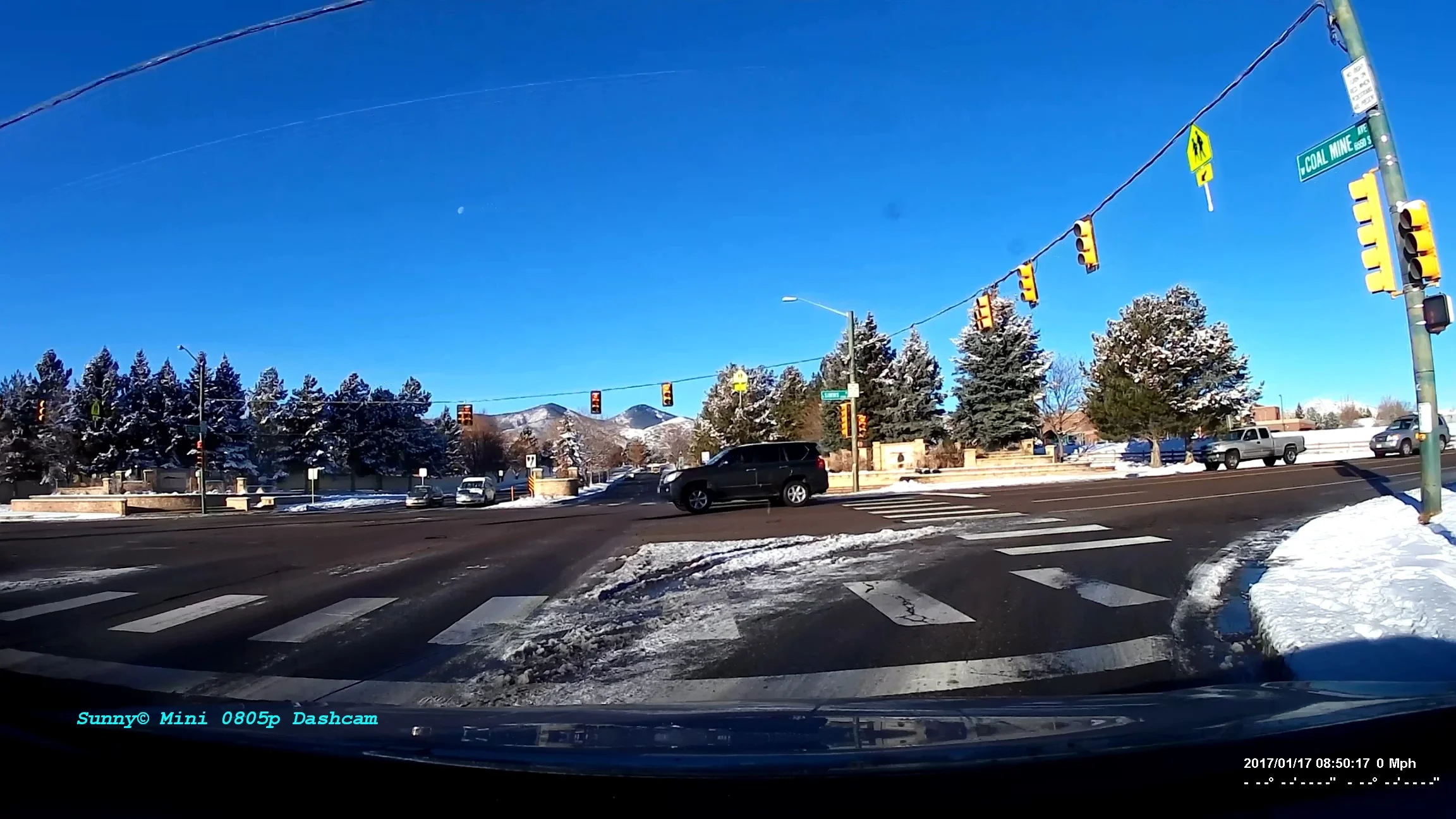

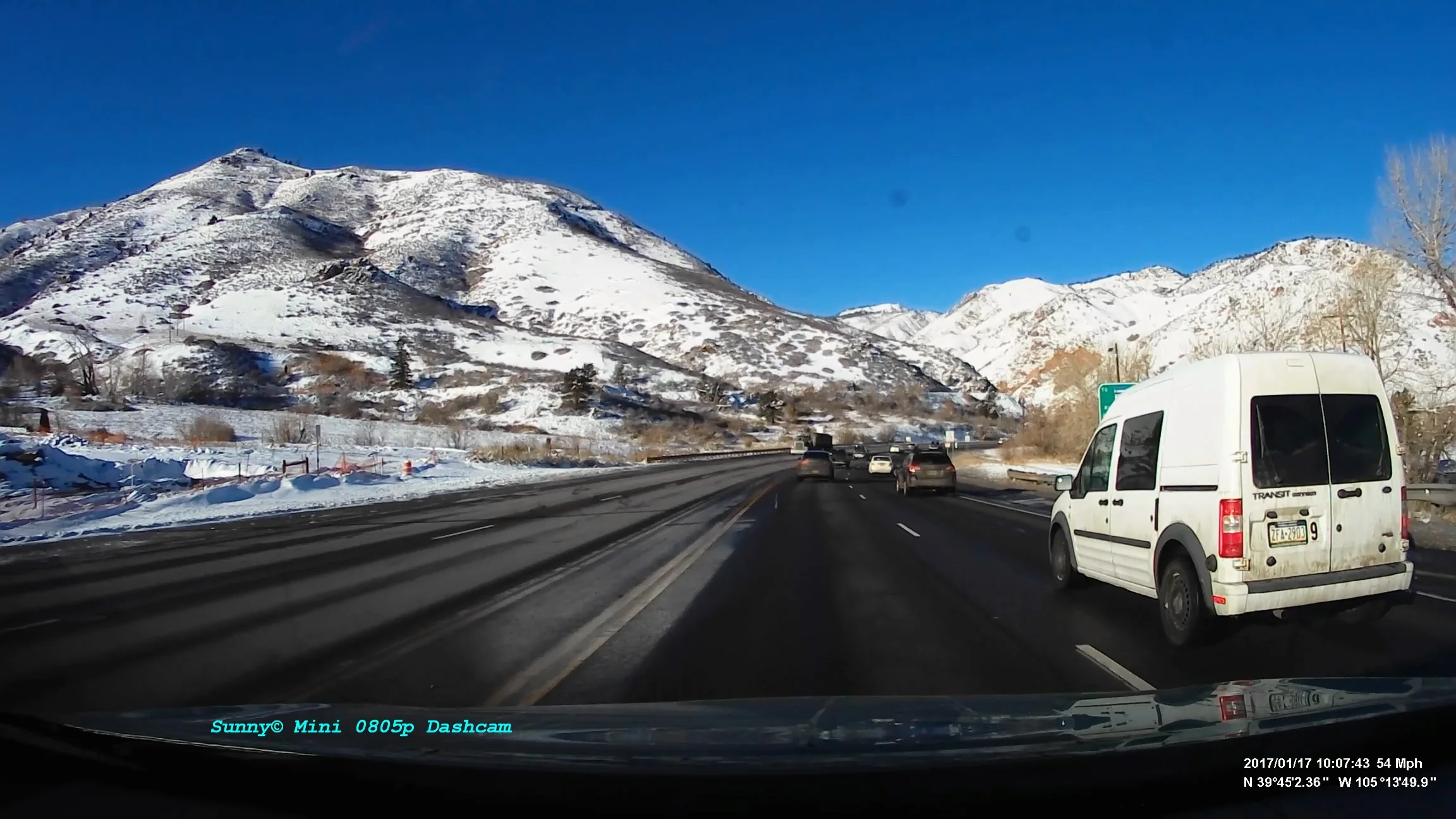

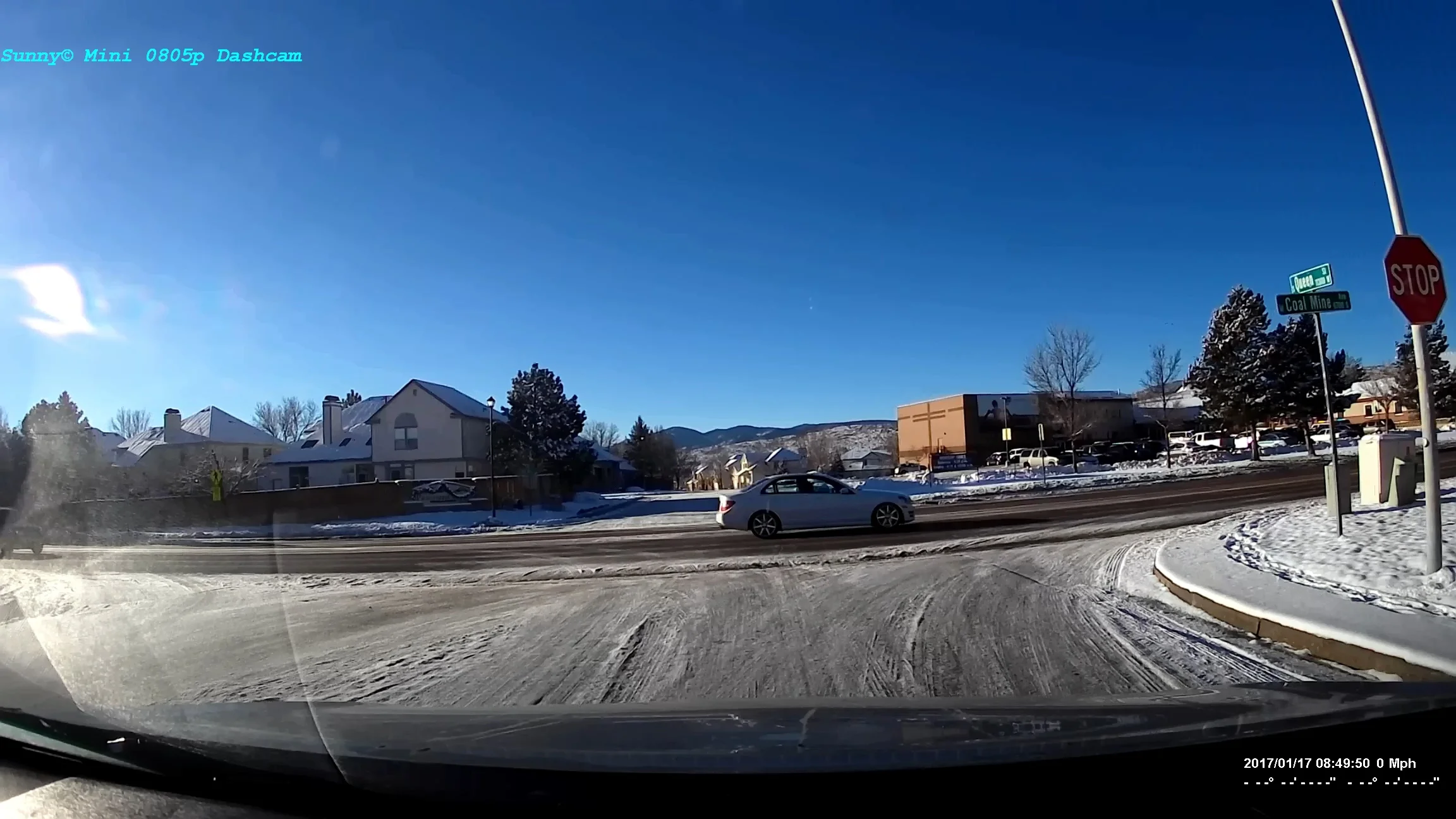

Mini 0805p Daytime Video Screenshots:

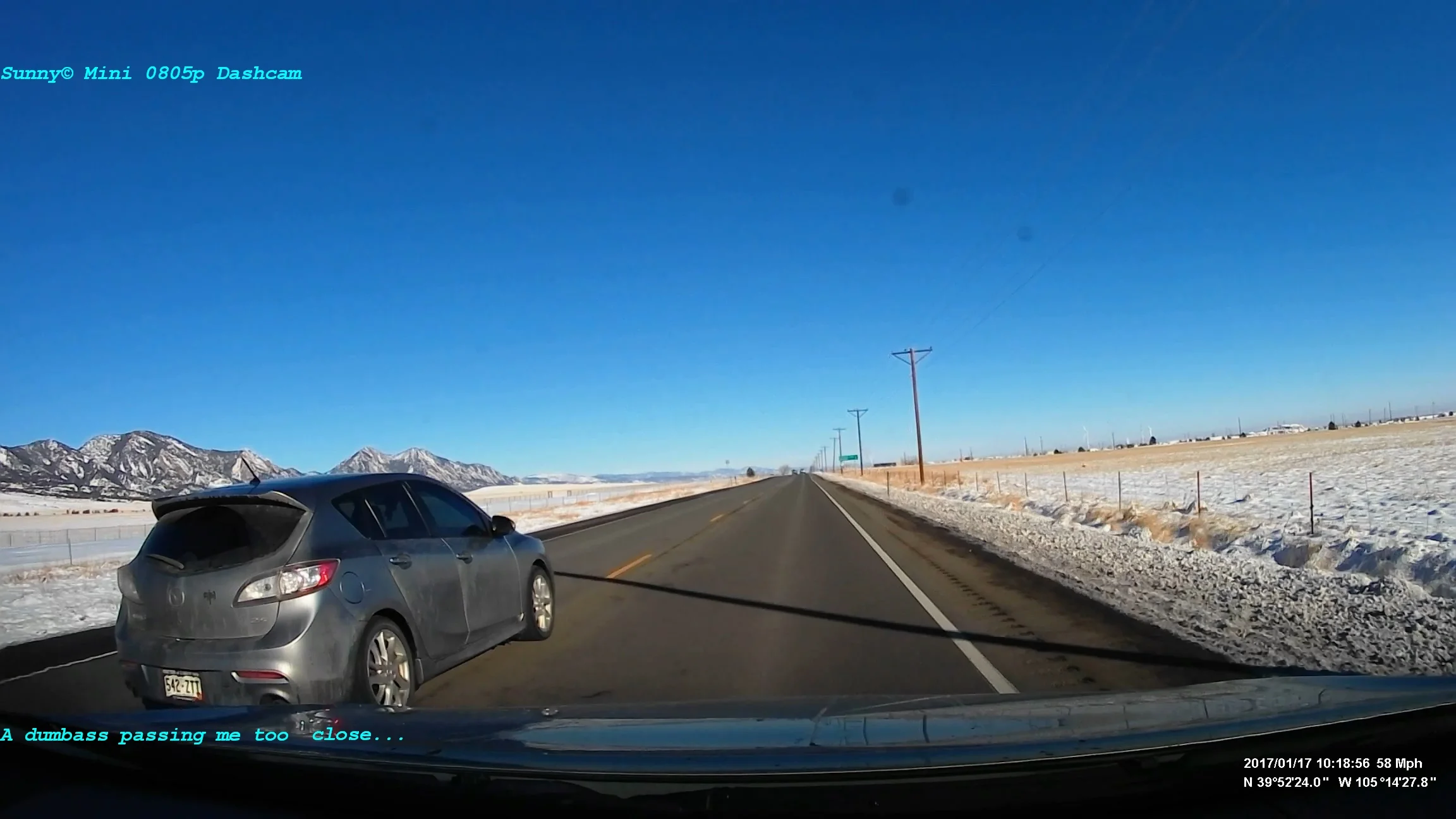

One dumbass passing me too close...

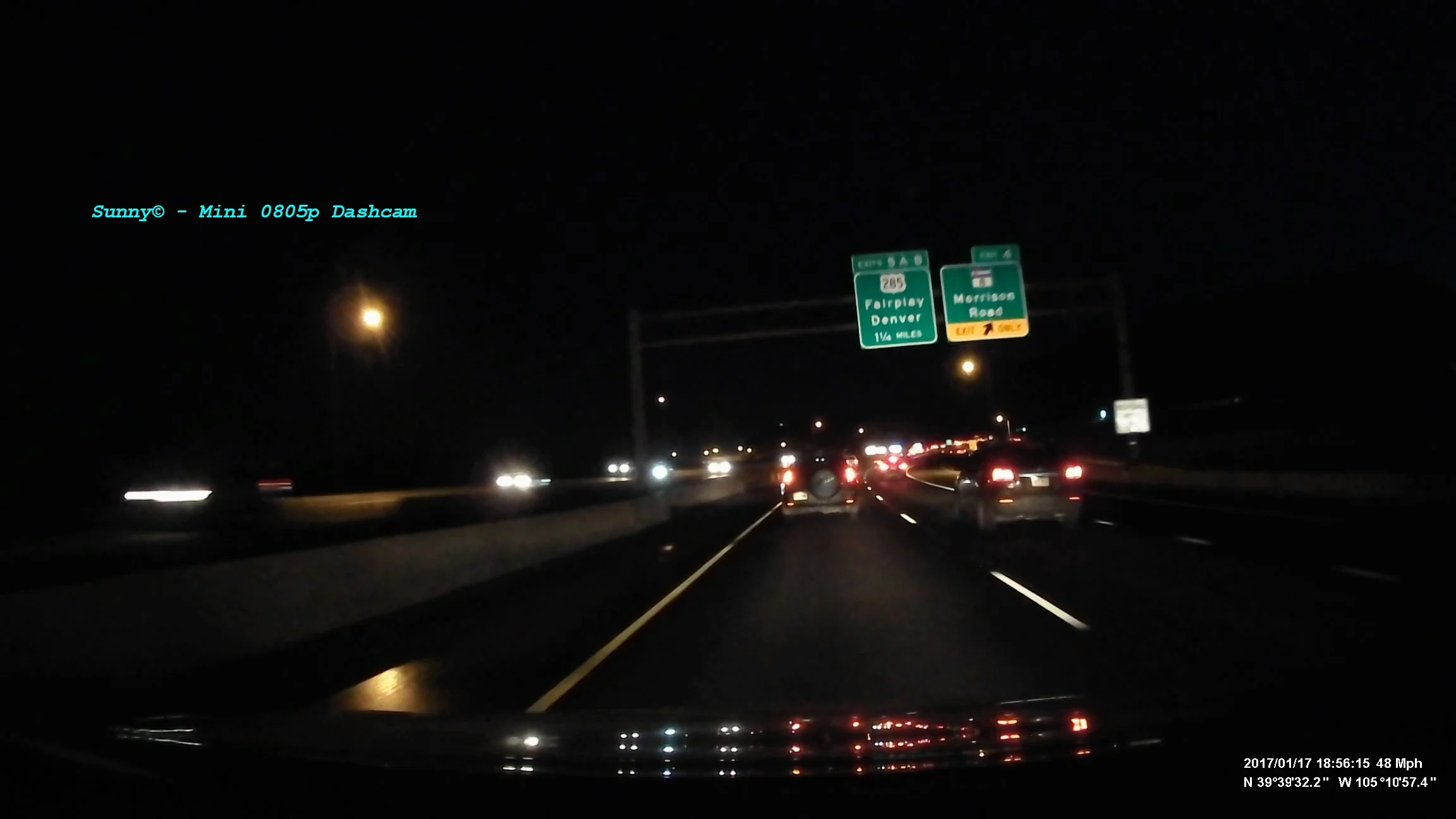

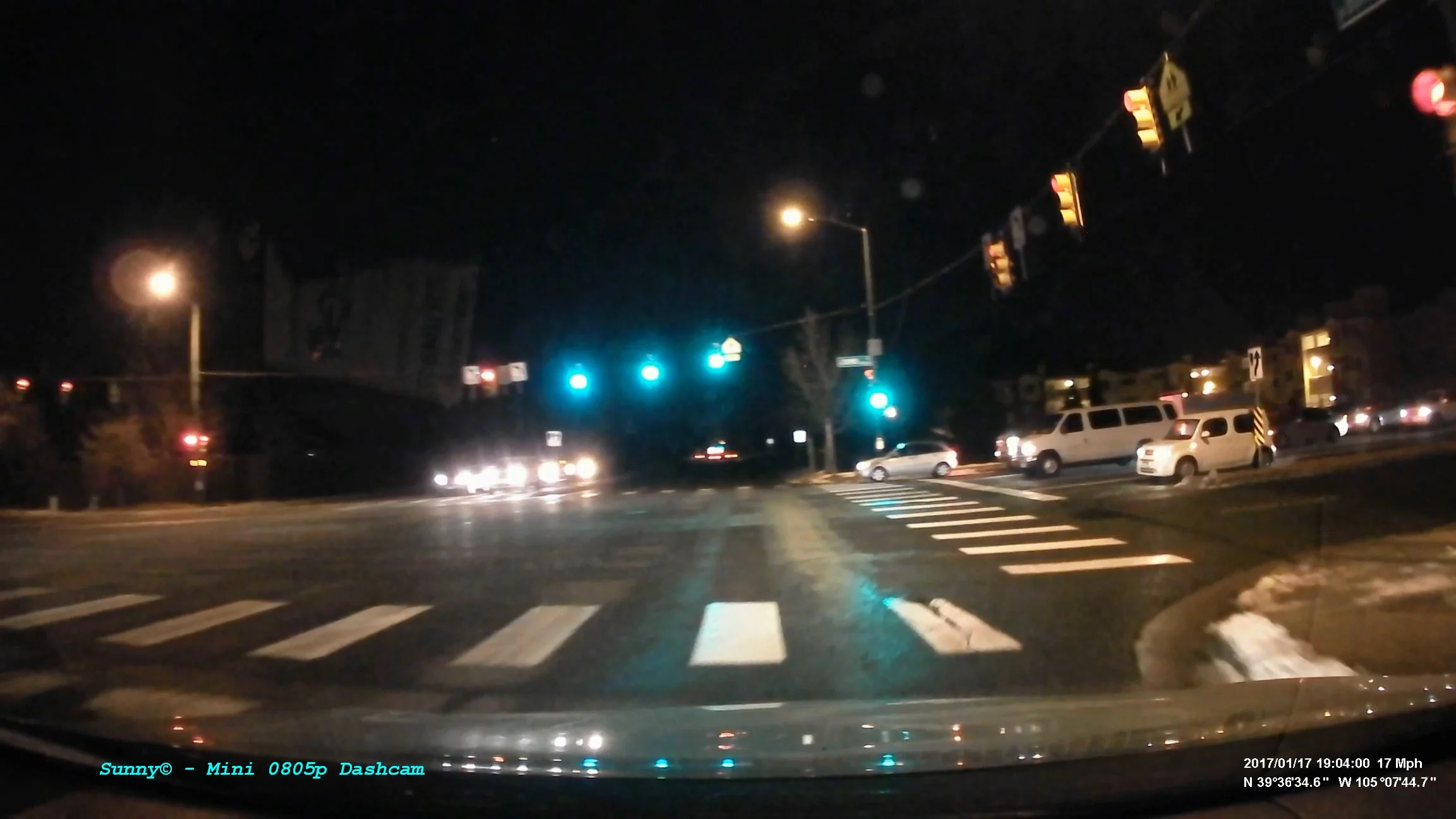

Mini 0805p Night Video Screenshots:


OP
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
4,989
Likes
1,663
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
#4
Mini 0805p Videos:



OP
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
4,989
Likes
1,663
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
#5
GPS file sample: GPS files are inside gps folder.
A,190117,152533.000,3944.7664,N,10513.4199,W,27,+00.00,+00.00,+00.00;
A,190117,152534.000,3944.7721,N,10513.4269,W,29,+00.00,+00.00,+00.00;
A,190117,152535.000,3944.7779,N,10513.4349,W,30,+00.00,+00.00,+00.00;
A,190117,152536.000,3944.7838,N,10513.4436,W,32,+00.00,+00.00,+00.00;
A,190117,152537.000,3944.7902,N,10513.4526,W,34,+00.00,+00.00,+00.00;
A,190117,152538.000,3944.7971,N,10513.4617,W,35,+00.00,+00.00,+00.00;
A,190117,152539.000,3944.8043,N,10513.4706,W,35,+00.00,+00.00,+00.00;
A,190117,152540.000,3944.8118,N,10513.4791,W,35,+00.00,+00.00,+00.00;
A,190117,152541.000,3944.8196,N,10513.4873,W,36,+00.00,+00.00,+00.00;
A,190117,152542.000,3944.8277,N,10513.4951,W,36,+00.00,+00.00,+00.00;
A,190117,152543.000,3944.8362,N,10513.5029,W,37,+00.00,+00.00,+00.00;
A,190117,152544.000,3944.8448,N,10513.5108,W,37,+00.00,+00.00,+00.00;
A,190117,152545.000,3944.8534,N,10513.5186,W,37,+00.00,+00.00,+00.00;
A,190117,152546.000,3944.8618,N,10513.5264,W,37,+00.00,+00.00,+00.00;
A,190117,152547.000,3944.8701,N,10513.5342,W,36,+00.00,+00.00,+00.00;
A,190117,152548.000,3944.8784,N,10513.5419,W,36,+00.00,+00.00,+00.00;
A,190117,152549.000,3944.8868,N,10513.5496,W,37,+00.00,+00.00,+00.00;
A,190117,152550.000,3944.8952,N,10513.5576,W,37,+00.00,+00.00,+00.00;
A,190117,152551.000,3944.9038,N,10513.5658,W,38,+00.00,+00.00,+00.00;

OP
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
4,989
Likes
1,663
Location
Denver
Country
United States
Dash Cam
More than I can review. ;)
#6
Few more Mini 0805p videos on a sunny day:




Night:


TonyHC

New Member
Joined
Feb 27, 2017
Messages
11
Likes
2
Location
MN
Country
United States
Dash Cam
Mini 0805, Mini 0807
#8
I noticed the 0805P has the SAGS feature. What is that? I tried googling it with no success. The manual explains what WNR is, but not SAGS.
