Review: Vantrue E360 5.2K 360° Panoramic Dash Cam, WiFi GPS, Voice Control Touchscreen Buffered Parking Triple Dashcam

[Sunny]

Thank you Vantrue for sending Vantrue E360 3-channel dashcam for review.
For more details, visit product link: https://www.amazon.com/gp/B0DK6KY6FFThey have currently $100 off coupon promotion.
****************************************
Summary:

• [ Revolutionary 5.2K 360° Panoramic View ] Integrated with the latest quad-core CPU,
  dual 210° view angle lenses and Vantrue’s unique image dynamic stitching tech,
  It's a
  E360 dash cam delivers smooth 5.2K (5184x1944P) 360° panoramic recording, ensuring all details from all around the vehicle captured clearly with no blind spots.
  Besides Panoramic View and general 1440P+1440P, this industry first panoramic dashcam also features Fisheye+Fisheye and Dual Fisheye, recording memorable moments in new forms!
• 5GHz WiFi&GPS, Dual STARVIS 2, HDR,8 IR Night Vision, Front and Inside Dash Camera,
  Voice Control, Touchscreen, 24/7 Buffered Parking Mode, Support 512GB Max

  E360 is a dual-lens panoramic dash cam, with which people can safeguard the vehicle with no blind spot and see everything around in one picture.
  It features panoramic view, so you can get a full image with all details around in one picture.
  And furthermore, the handheld stick tripod (comes with the ACE bundle) and the unique handheld mode, people can also easily remove the camera from the car and take it out and record the joy time with friends or family out of the car.
  It kinds of replaces GoPro or Insta360 for those who rarely use it but still have some use here and there like camping with family or going for a hike, party with friends, business meetings.
  It's easy to take the E360 off the vehicle and use it for short time so it serves dual purpose.

****************************************

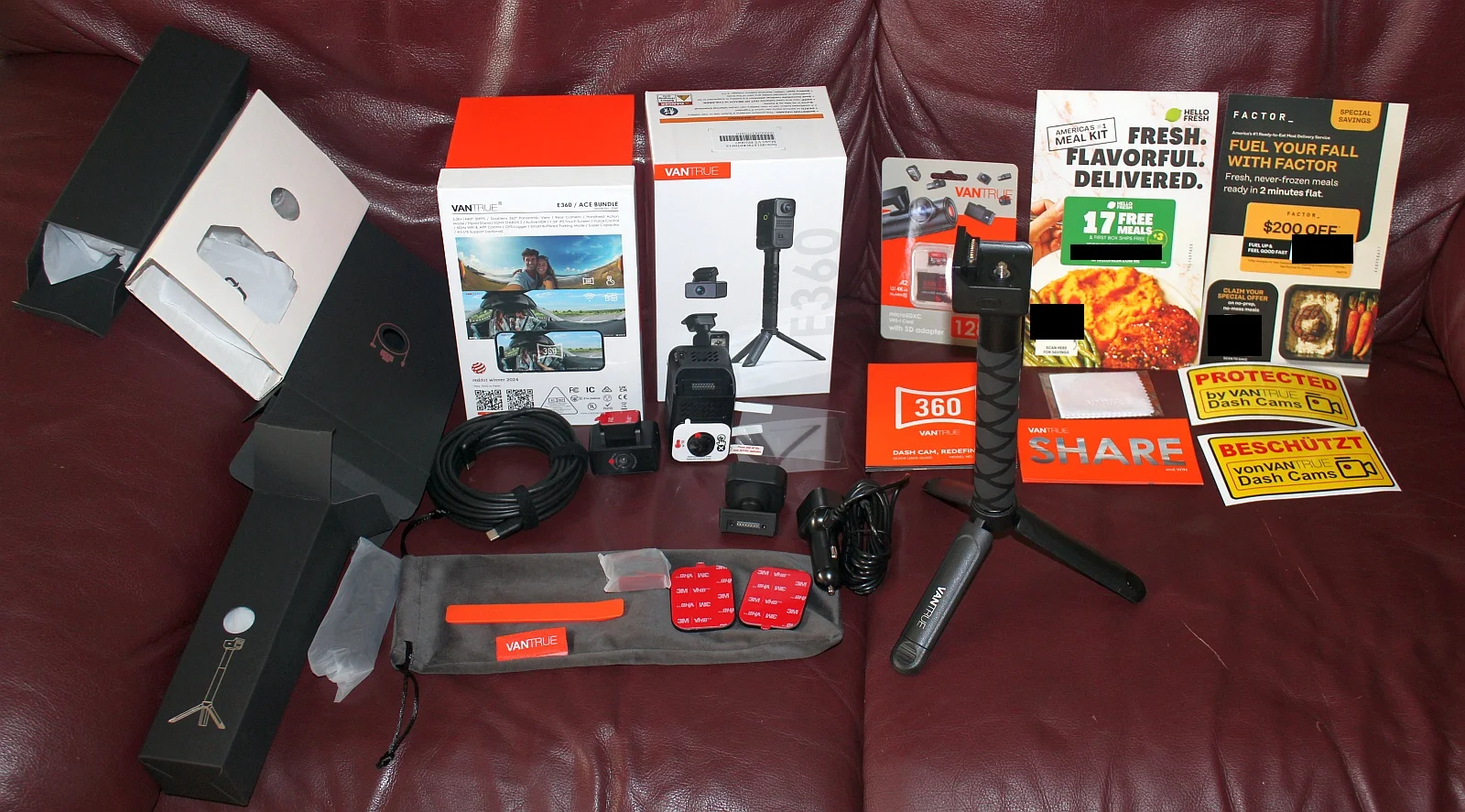

Package contents:
Adhesive Stickers for Mount*2, Electrostatic Stickers*2, Crowbar*1, Warning Stickers*2, Dust-free Cloth*1.
Quick User Guide*1, Vantrue E360 Dash Cam*1, Rear Camera*1, Rear Camera cable*1, USB Data Cable*1.
Car Charger*1, GPS Mount*1, Wire management tabs, Instruction Manual.
128 MicroSD card with full size adapter.
Hello Fresh and Factor75 fresh meal coupons.
Tripod (Optional with ACE bundle) - This screw on tripod makes it easy to take this camera from car to outdoors activities.
--> The handheld tripod has two Panasonic 18650 6600mAh li-batteries that can support the cameras for approximately 4 hours.

Lots of things packed neatly in this package. Kudos to Vantrue!

****************************************
Vantrue E360 Pictures:

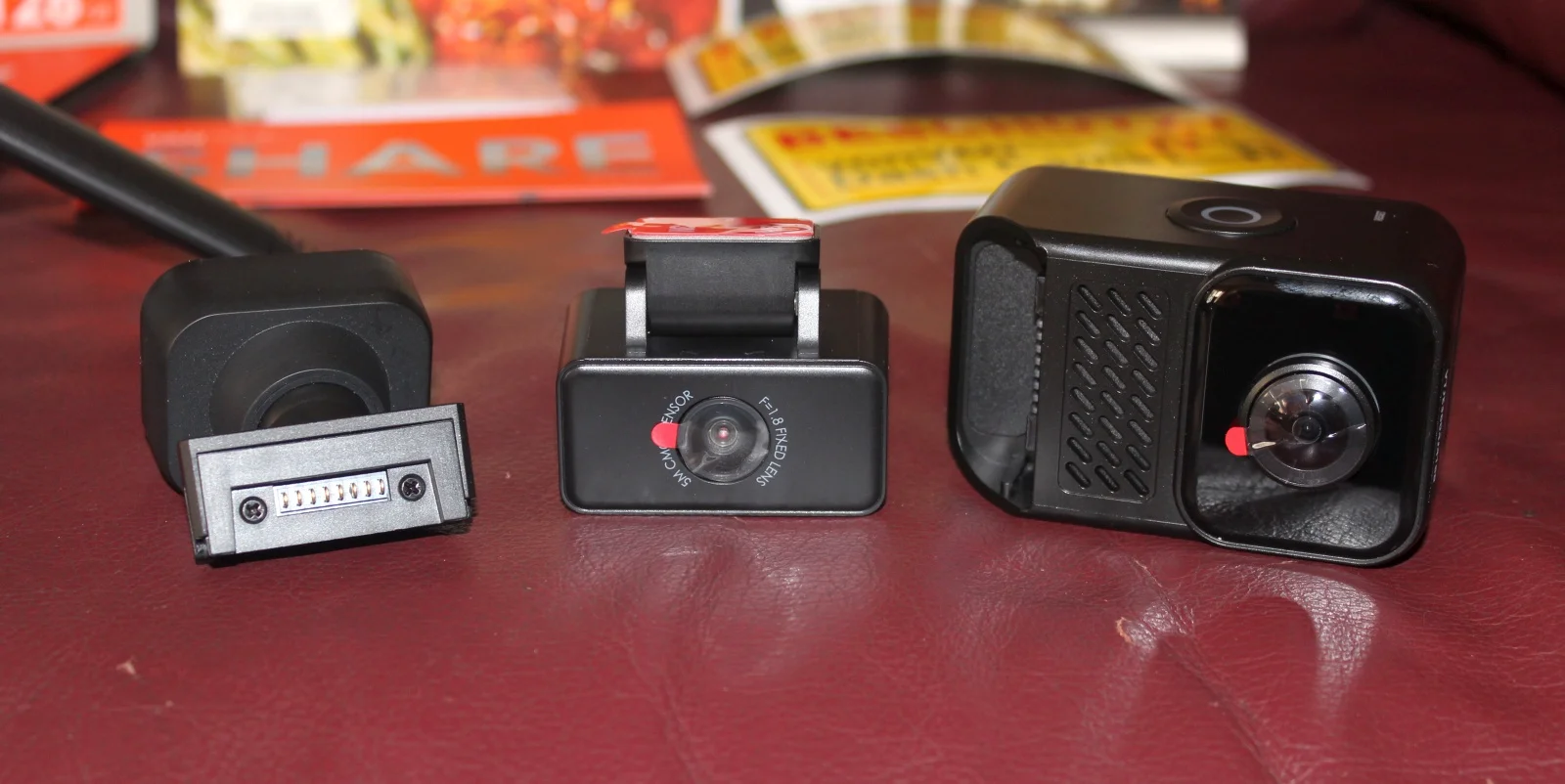

The main camera has two cameras for the front and inside cabin recording and the rear camera is separate.




****************************************
Handheld tripod mount:
There is a small rubber piece covering the screw mount.
To use the tripod, align the camera with the screw and twist until it locks in.


Picture from outside next to Vantrue N4 PRO:

Picture from inside next to Vantrue N4 PRO:



[kamkar]

Just realized, the thing is not too big i feel.
I do have the mirror issue with mine coming off the roof, so any 1 - 2 dashcams mounted in front of it, well interior cameras would see a lot of mirror, then again should not be a problem having this 360 camera offset a little.



[Sunny]

Just realized, the thing is not too big i feel.
I do have the mirror issue with mine coming off the roof, so any 1 - 2 dashcams mounted in front of it, well interior cameras would see a lot of mirror, then again should not be a problem having this 360 camera offset a little.

What do you mean by interior cameras would see a lot of mirror?
You mean rear view mirror is on the way?



[Augustus]

Thank you Vantrue for sending Vantrue E360 3-channel dashcam for review.
For more details, visit product link: https://www.amazon.com/gp/B0DK6KY6FFThey have currently $100 off coupon promotion.
****************************************
Summary:

• [ Revolutionary 5.2K 360° Panoramic View ] Integrated with the latest quad-core CPU,
  dual 210° view angle lenses and Vantrue’s unique image dynamic stitching tech,
  It's a
  E360 dash cam delivers smooth 5.2K (5184x1944P) 360° panoramic recording, ensuring all details from all around the vehicle captured clearly with no blind spots.
  Besides Panoramic View and general 1440P+1440P, this industry first panoramic dashcam also features Fisheye+Fisheye and Dual Fisheye, recording memorable moments in new forms!
• 5GHz WiFi&GPS, Dual STARVIS 2, HDR,8 IR Night Vision, Front and Inside Dash Camera,
  Voice Control, Touchscreen, 24/7 Buffered Parking Mode, Support 512GB Max

  E360 is a dual-lens panoramic dash cam, with which people can safeguard the vehicle with no blind spot and see everything around in one picture.
  It features panoramic view, so you can get a full image with all details around in one picture.
  And furthermore, the handheld stick tripod (comes with the ACE bundle) and the unique handheld mode, people can also easily remove the camera from the car and take it out and record the joy time with friends or family out of the car.
  It kinds of replaces GoPro or Insta360 for those who rarely use it but still have some use here and there like camping with family or going for a hike, party with friends, business meetings.
  It's easy to take the E360 off the vehicle and use it for short time so it serves dual purpose.

****************************************
Package contents:
Adhesive Stickers for Mount*2, Electrostatic Stickers*2, Crowbar*1, Warning Stickers*2, Dust-free Cloth*1.
Quick User Guide*1, Vantrue E360 Dash Cam*1, Rear Camera*1, Rear Camera cable*1, USB Data Cable*1.
Car Charger*1, GPS Mount*1, Wire management tabs, Instruction Manual.
128 MicroSD card with full size adapter.
Hello Fresh and Factor75 fresh meal coupons.
Tripod (Optional with ACE bundle) - This screw on tripod makes it easy to take this camera from car to outdoors activities.

Lots of things packed neatly in this package. Kudos to Vantrue!
View attachment 75732
****************************************
Vantrue E360 Pictures:
The main camera has two cameras for the front and inside cabin recording and the rear camera is separate.
View attachment 75733 View attachment 75734 View attachment 75735

View attachment 75736 View attachment 75737

****************************************
Handheld tripod mount:
There is a small rubber piece covering the screw mount.
To use the tripod, align the camera with the screw and twist until it locks in.
View attachment 75738 View attachment 75739

Will add videos soon...

Where have you been all these years Sunny haha



[kamkar]

You mean rear view mirror is on the way

Yes, though there are quite a bit of room in front of the mirror i have always tested systems with interior cameras with my mirror removed ( which is fortunately legal )
I cant get myself to compromise and put a system lower on the windscreen even if i ignored it being illegal, and also not a law police seem very keen on policing judging from Local TV COP programs.

Just a thin short line of fishing line dangling from your mirror, it is actually illegal here, and still many have all manner of garbage dangling there.

Looking forward to see what you come up with Sunny



[Sunny]

Where have you been all these years Sunny haha

Lot of live events happened after covid so was trying to fix life back slowly.



[Sunny]

The tripod has a mount with built in battery that's charged via a USB-C cable.



[Sunny]

Handheld mode folders and bit rate:
Root folder has Normal and Photo folders for videos and photos respectively.
To start video, press the side button or use touch screen and press the record button.
If you use the side ring button, it also takes a photo and starts recording video.
Video frame size is 5184 x 1944 and bit rate of combined video is around 29 mbps at 30 fps.

Dashcam mode folders:
Event
GPS
Normal
Parking

Front and in-cabin cameras have file name ending with _A and the rear camera files end with _C.



[Sunny]

Tried handheld mode and it merges both front and back videos together.
Now, how do I hide myself from the videos? 😀
These are Photo files from the camera. Left half is from front facing camera and right half is from the back (touchscreen side) camera.
Picture quality is good and clear and the merge seems seamless at least for the videos I took as I didn't notice much separation from front and back videos.

If you notice kid playing in snow on shorts and flip flops, yes that is real. I'd too but still recovering from cold so not taking chances. 😉
Colorado is really weird in weather. You can have snow and it'll be warm and nice to walk in t-shirts wearing flip flops.



[Nigel]

Tried handheld mode and it merges both front and back videos together.

That looks pretty good, although it looks like the ground gets a bit warped if you don't hold the camera horizontal...

Video frame size is 5184 x 1944 and bit rate of combined video is around 29 mbps at 30 fps.

That bitrate is a bit low for dashcam use, if you like detail.



[Augustus]

That looks pretty good, although it looks like the ground gets a bit warped if you don't hold the camera horizontal...


That bitrate is a bit low for dashcam use, if you like detail.

I was thinking the bitrate is on par or bit higher than the average for Starvis 2 IMX675-wise. But yeah if you like detail you'll likely want more.



[Nigel]

I was thinking the bitrate is on par or bit higher than the average for Starvis 2 IMX675-wise.

But there are two IMX675 recording that image, so you want twice the bitrate for "average" image quality!
Or you can look at it as a 5K image, so you want more bitrate than the average 4K camera.



[Augustus]

But there are two IMX675 recording that image, so you want twice the bitrate for "average" image quality!
Or you can look at it as a 5K image, so you want more bitrate than the average 4K camera.

Well now that you put it that way...



[TonyM]

Tried handheld mode and it merges both front and back videos together.

It seems to handle the exposure well, even with the sun in the frame



[EmailPJC]

.........
****************************************
Package contents:
Adhesive Stickers for Mount*2, Electrostatic Stickers*2, Crowbar*1, Warning Stickers*2, Dust-free Cloth*1.
Quick User Guide*1, Vantrue E360 Dash Cam*1, Rear Camera*1, Rear Camera cable*1, USB Data Cable*1.
Car Charger*1, GPS Mount*1, Wire management tabs, Instruction Manual.
128 MicroSD card with full size adapter.
Hello Fresh and Factor75 fresh meal coupons.
Tripod (Optional with ACE.........

What are electrostatic adhesives used for and how are they used? What function do they have?
--------
¿Para que sirven y como se utilizan los adhesivos electrostáticos, que función tienen?



[Nigel]

What are electrostatic adhesives used for and how are they used? What function do they have?
--------
¿Para que sirven y como se utilizan los adhesivos electrostáticos, que función tienen?

Normally, you stick them to the windscreen, and then stick a dashcam to them. When you want to remove the dashcam, the electrostatic film will just peal off in seconds, while if you stick the dashcam direct to the glass, it will take you ten minutes to get the 3M adhesive off the glass. You don't need to use them, but if you don't want a permanent install then they save a lot of effort, and make the camera easier to steal!



[EmailPJC]

Normally, you stick them to the windscreen, and then stick a dashcam to them. When you want to remove the dashcam, the electrostatic film will just peal off in seconds, while if you stick the dashcam direct to the glass, it will take you ten minutes to get the 3M adhesive off the glass. You don't need to use them, but if you don't want a permanent install then they save a lot of effort, and make the camera easier to steal!

Thank you,

Good idea, but are they able to withstand the weight of the camera and the movements of removing and putting the camera and GPS module?
-----------
Gracias,

Buenas idea, pero son capaces de soportar el peso de la cámara y los movimientos de quitar y poner la cámara y el módulo GPS?



[Julian23]

Good idea, but are they able to withstand the weight of the camera and the movements of removing and putting the camera and GPS module?

Yes, this works just fine.
I have mounted every dashcam with the static sticker. Removing the camera, plugging in cables at high temperatures of about 40°C or even in the cold winter at -5°C is no issue.
Just clean the windshield properly before applying it and you are good to go.



[Nigel]

but are they able to withstand the weight of the camera and the movements of removing and putting the camera and GPS module?

Yes, they will hold about 1Kg weight per cm² of dashcam mount, so at least 4Kg, or 1Kg in a 4g impact, which is enough for any dashcam!

As Julian23 says, clean the glass properly before using them, and don't use a polish that leaves wax on the glass.

They are not reusable.



[EmailPJC]

Yes, they will hold about 1Kg weight per cm² of dashcam mount, so at least 4Kg, or 1Kg in a 4g impact, which is enough for any dashcam!

As Julian23 says, clean the glass properly before using them, and don't use a polish that leaves wax on the glass.

They are not reusable.

If the glass has a silkscreened design like the one in the photo, with a little relief to the touch, which is my case, and I have to apply the electrostatic adhesive in such a way that almost half of it remains in that area, I suppose that there will be bubbles and it will no longer be effective, that it cannot be used due to the risk of detachment... Is this so or would it work well? ?
_-----------------_
Si el cristal tiene un dibujo serigrafiado como el de la foto, con un poco de relieve al tacto, que es mi caso, y tengo que poner el adhesivo electrostático de forma que casi la mitad queda en esa zona, supongo que quedarán burbujas y ya no será efectivo, que no se podrá utilizar por peligro de desprendimiento... ¿Es así o funcionaria bien?
