Xiaomi Yi: Disassembling to add external power and trigger wires

sHINE

New Member
Joined
Nov 12, 2015
Messages
3
Likes
9
Country
Germany
#1
Hi!

First post here to show some pics on how to connect wires to the pcb of the xiaomi yi to power or trigger it externally. Mine's revision Z23L.

I'm from Germany so excuse my poor English grammar, hope u will understand it anyway :)

Got this tiny beauty to put it under my copter, using a small gimbal to take photos/videos while flying. Also, I wanted a FPV, so Video-Out should also be wired to my transmitter in the copter.

Below are some pics showing the disassembly and the main connections made on the pcb. Next step is to buld some micro-connector into the case of the cam but the one I ordered isn't delivered yet.

Then a small AVR (Tiny45/85) is necessary to simulate the button presses in time and right order to be able to power-on and start recording or taking a photo with one short impulse.

More pics will follow as progress continues.

Regards,
Jan

IMG_5087.JPG IMG_5088.JPG IMG_5089.JPG IMG_5093.JPG IMG_5100.JPG IMG_5101.jpg IMG_5103.JPG IMG_5106.JPG IMG_5108.JPG IMG_5109.JPG


petepete

Well-Known Member
Joined
Aug 16, 2014
Messages
1,170
Likes
448
Country
United Kingdom
#2
should be interesting..

but the yi as a drone camera ???

Pretty coloured pictures but Its blurry at distance and has a massive field of view that will give the dreaded barrel distortion and theres probably other reasons the drone community chose other cameras ...

welcome and good luck !

OP
OP
S

sHINE

New Member
Joined
Nov 12, 2015
Messages
3
Likes
9
Country
Germany
#3
I'll try it. I don't want it to do FPV-Racing or something. Just to take some photos/video from the sky. There better cams, but hey, I've paid 58 EUR for it...


lwahono

New Member
Joined
Jul 9, 2016
Messages
1
Likes
0
Country
Indonesia
#6
Hi sHINE
Very nice project. Thank you for sharing this. I want to do the same thing with yours. Does yours work well?


baroya10

New Member
Joined
Jul 26, 2016
Messages
5
Likes
0
Country
Indonesia
#7
Hi Shine !
Finally found this method from You.
Thanks for sharing.

Is there any videos for this project ?

and how does it work ?

Thanks,


Gimp Slave

New Member
Joined
Aug 12, 2016
Messages
16
Likes
10
Country
United States
#8
My heart skips a beat everytime I see an exposed sensor. :)

Looking good! And considering you cut the port with a utility knife? Beautiful surgery.

Q: any interference with those tiny, unshielded wires becoming antennas, when the uC pulls the pin up/down to simulate button presses?


duke_vah

New Member
Joined
Jul 11, 2017
Messages
5
Likes
0
Country
Canada
#9
Good picture.
I wonder if you know how I can buy the sensor board behind the lens. I connected it directly to 5+ I don't know what happened and now it gets too hot in a few second and when I record the video, the quality is gone. blue tiny lines.


kenji2108

New Member
Joined
Jan 3, 2018
Messages
1
Likes
0
Country
Viet Nam
#10
Hi, I read the article

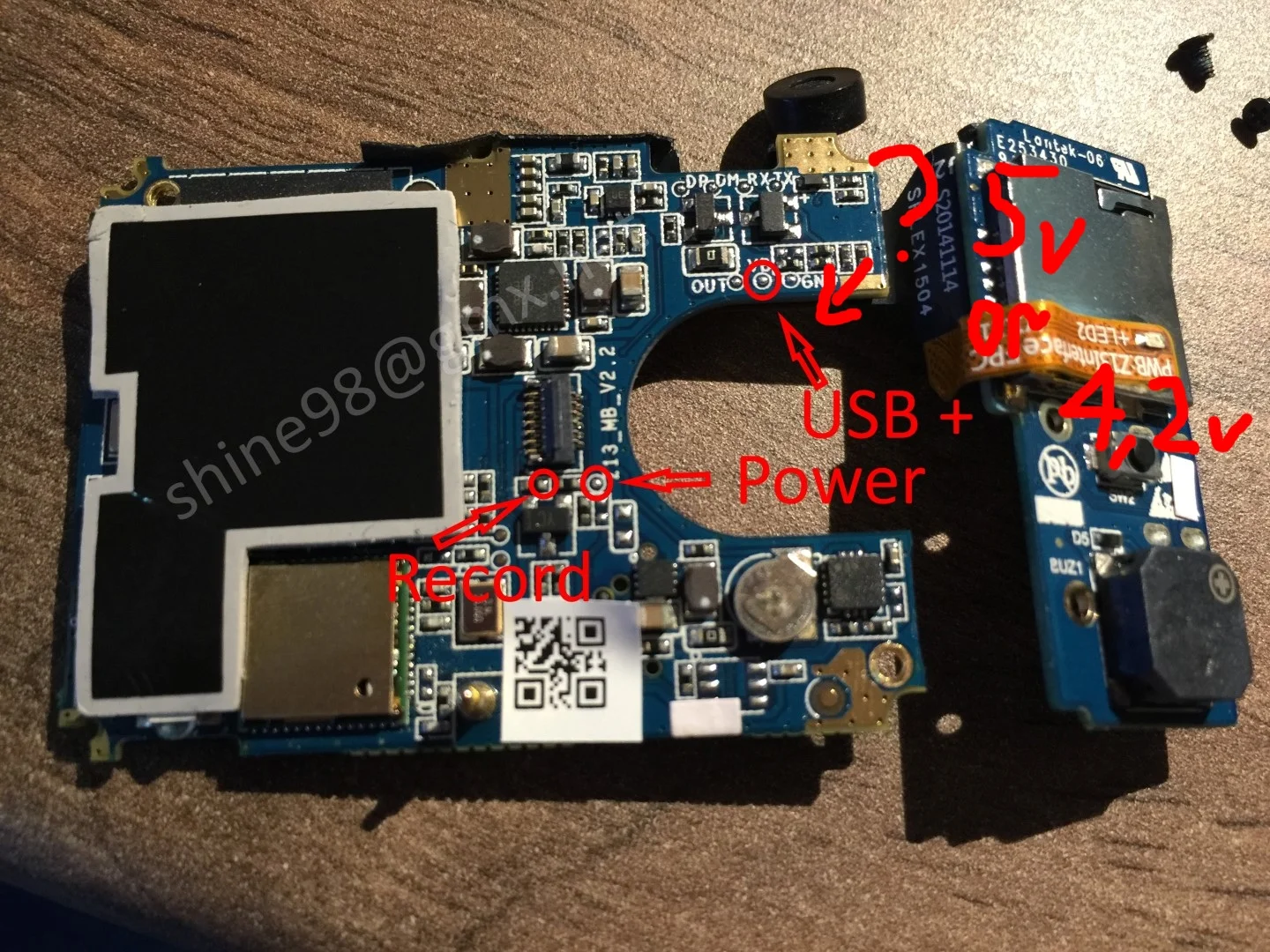

You tell me, the power input to your camera Xiaomi Yi is 5V or 4.2V



duke_vah

New Member
Joined
Jul 11, 2017
Messages
5
Likes
0
Country
Canada
#11
I have connected 5V to it and there was no issue at all.
However, I fed it from back part which is close to the battery connector.


smurfbal

New Member
Joined
Feb 16, 2018
Messages
3
Likes
0
Country
Germany
#12
Hi,
great Project and thanks for the Pictures! Finaly someone who may can help me with my problem. I accidently cut the band that connects the record button.

So I plan to install an extra record button.

Can I simply solder a push-button between ground and record Pin to replace record button? Or is more complex than that?
I have the first revision 22, but hope layout didnt change that much..


Greetings
Smurfbal


TwoBlues

Well-Known Member
Joined
Feb 24, 2016
Messages
1,364
Likes
206
Location
Eastern Shore, Md.
Country
United States
#13
The most fragile part of the Original Yi-the ribbon circuit-shutter/LED/ring light/power button to ZIF connector, and Yi does not sell parts! It's toast! Disassemble too many times and it's guaranteed to break


smurfbal

New Member
Joined
Feb 16, 2018
Messages
3
Likes
0
Country
Germany
#14
currently it's not "Toast". BT and WIFI Remote works for Recording. Unfortuantly in crowd situation Wireless connection is very unstable.. thats why I want back to a wired button for recording.
