Smallest HD 720p

Smallest HD 720p

The Smallest HD 720p in car dash cam DVR is an interesting camera due to its small size and low price.  Many people are looking for this combination when looking for a dash cam.  The initial version of this dash cam had poor video quality and many reliability issues.

However, recent versions of this camera appear to be better, although reliability is still a concern.  You should look for a camera using the H264 video codec.  The newer camera also has a setting menu when connected to an external monitor / TV.  The newer camera has the date and time  in white letters in the lower left corner.

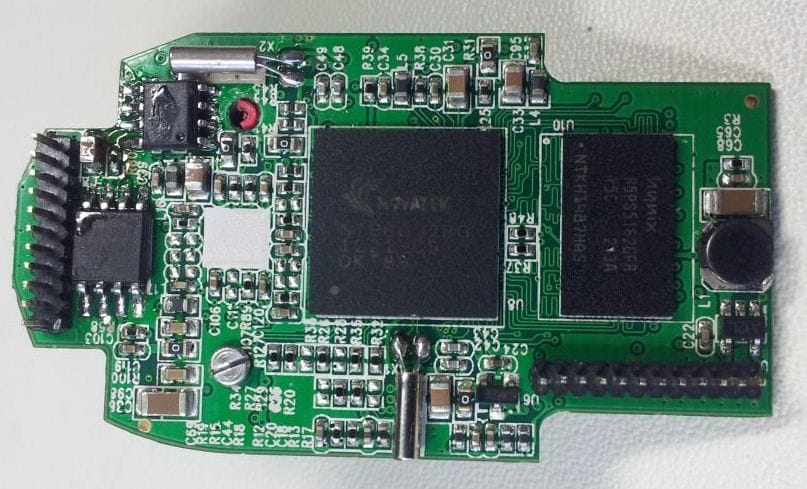

The cam records in 720p at 30fps and the image quality during the day is average while the night video is below average.  Most of these models do not come with a cigarette lighter adapter so you will need to hardwire into your vehicle.  The camera is uses the Novatek processor as pictured below (click to enlarge).

Smallest HD 720p Processor

Smallest HD720p Models

Like many Chinese cameras, this model comes in a variety of names:

  1. Smallest HD 720p In Car Dash Cam
  2. Black Hero
  3. A8 (the A8 model costs a little bit more money)
  4. Recordeye DC750 (Russian Version)
  5. K9M HD 720P

Known Problems

The original version of this camera was plagued with problems.  The newer version now on sale appears to have corrected many of the issues originally experienced.

The original version had the following problems:

Out of focus

Many of these cameras have poor focus brand new.  Some people have disassembled the camera and rotated the lens to improve focus.

Date / time reset

When power is lost or reset button is pressed, the date and time is reset to 03/11/11.  The battery in this camera is very small and dies quickly.

Freezes / Hangs

Many people have complained about this dash cam frequently freezing or hanging.  To get it functioning again, you must reset it.  Reset causes the date / time to be lost.

Loss of last video file

Some users claim that when the power is turned off,  the last file recorded is lost.  In the case of an accident, the loss of power may result in no video footage being saved.  This is perhaps due to the quality of the memory card used.

Gaps between video clips

Users have complained about a noticeable gap between video clips.  There is no known solution for this problem, other than using a high quality SD card.  The new version appears not to have this problem even though the sellers indicate it still exists.

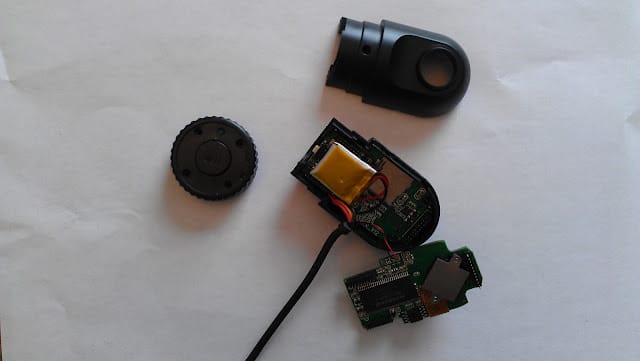

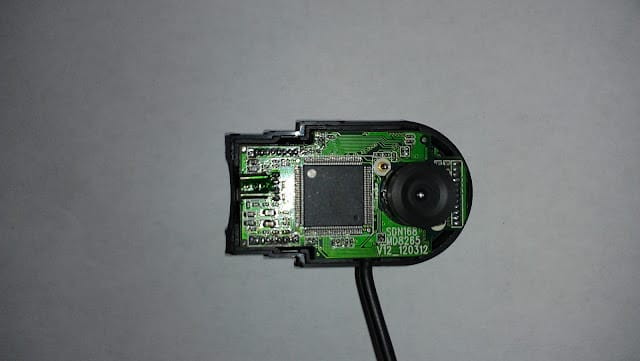

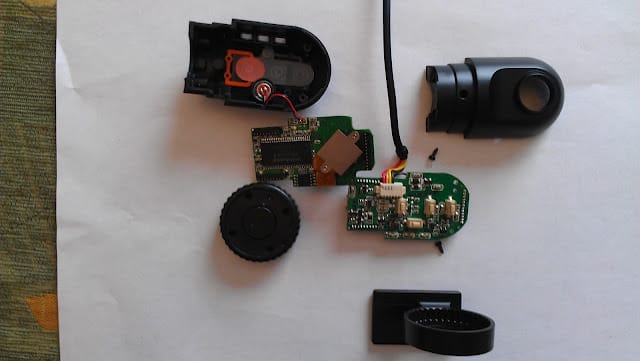

Disassembling the dash cam

Smallest HD 720p Internal
Smallest HD 720p Internal
Smallest HD 720p Internal

Sample Videos

Day

Night

Should I Purchase?

This camera is small and inexpensive which makes it an interesting camera to consider.  The video quality is average but still quite acceptable particularly during the day.  Since some of the issues appeared to have been rectified with the newer model, consider this camera if you are ok with the video quality and are willing to take a gamble on reliability.

Firmware

Currently there is no publicly known way to extract or upgrade the firmware in these dash cams.

Specifications

Detailed Specifications

Read Review readreview
Camera Type Single Channel
Form Factor Cylindrical
Country China
Processor Novatek NT96220
CMOS Front Unknown
CMOS Rear N/A
Channels 1
Screen No
GPS No
G-Sensor Yes
Wi-Fi No
Parking Mode No
Lock Files Auto
Max Resolution Front 1280 x 720p
Front Frames Per Second 30
Max Bitrate Front (Mbps) 12
Max Resolution Rear N/A
Rear Frames Per Second N/A
Max Bitrate Rear (Mbps) N/A
Video Format AVI
Compression H.264
Diagonal Viewing Angle Front 120°
Diagonal Viewing Angle Rear N/A
SD Card Type MicroSD
Max Size (Spec) 32GB
Max Size (User) 32GB
Size Front (mm) 60 x 32
Size Rear (mm) N/A
Mount Adhesive
Power Supply 5V
Operating Temp 0°C to 60°C
Battery 80mAh
Error Notification No
Apps None
Cloud Connectivity No
Release Date Jul 2012
Unique Features None
Advantages Small
Disadvantages Disappointing video quality
Poor reliability
Final Word Small camera & cheap price with average video quality. Reliability / build quality is a concern.
