Vantrue E1 Pro / 4K / Novatek NT98528 + SONY STARVIS 2 IMX678 / HDR / Wi-Fi / GPS / PlatePix™ / Voice Control / Support LTE / Video and Screenshots

Karagandinez

Karagandinez

Well-Known Member
Joined
Nov 27, 2020
Messages
2,644
Reaction score
2,742
Location
Deutschland
Country
Germany
Dash Cam
Viofo A329S/T/WW/TC = The coolest model to date
I received the E1 Pro to test a couple of days ago, thanks to @Jeff_Vantrue.

You can buy E1 Pro on the official website of Vantrue:

www.vantrue.com

Vantrue Element 1 Pro (E1 Pro) - Mini and 4K Mighty - A Powerful Dash Cam for Your Safety on the Road

Introducing the E1 Pro, the leading ultra-compact 4K dash cam designed to enhance your safety while driving or parking. With crystal-clear 4K resolution, every detail on the road is captured with remarkable clarity. The advanced Sony STARVIS 2 IMX678 CMOS sensor provides enhanced night vision...
www.vantrue.com www.vantrue.com


1.webp 2.webp 3.webp

4.webp 5.webp VANTRUE-E1-Pro-Dash-Cam-04.webp

Last edited:

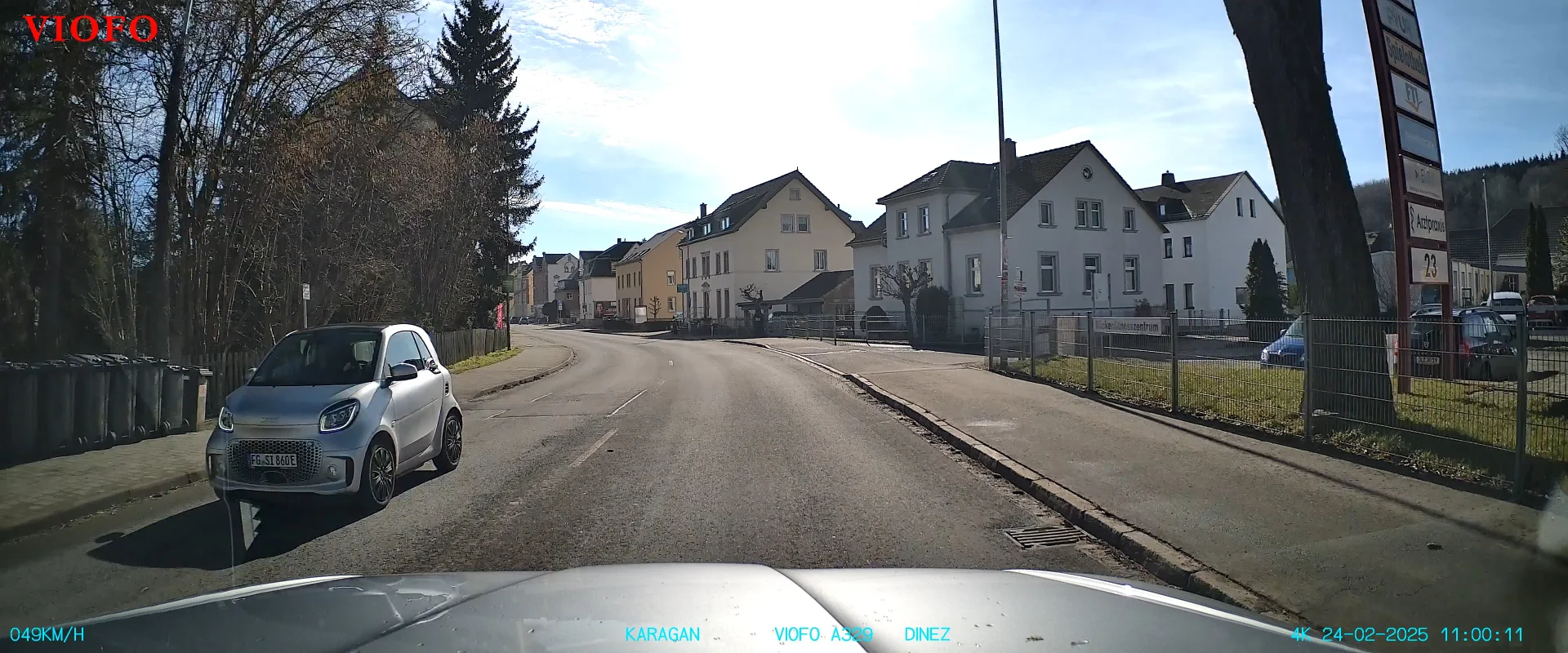

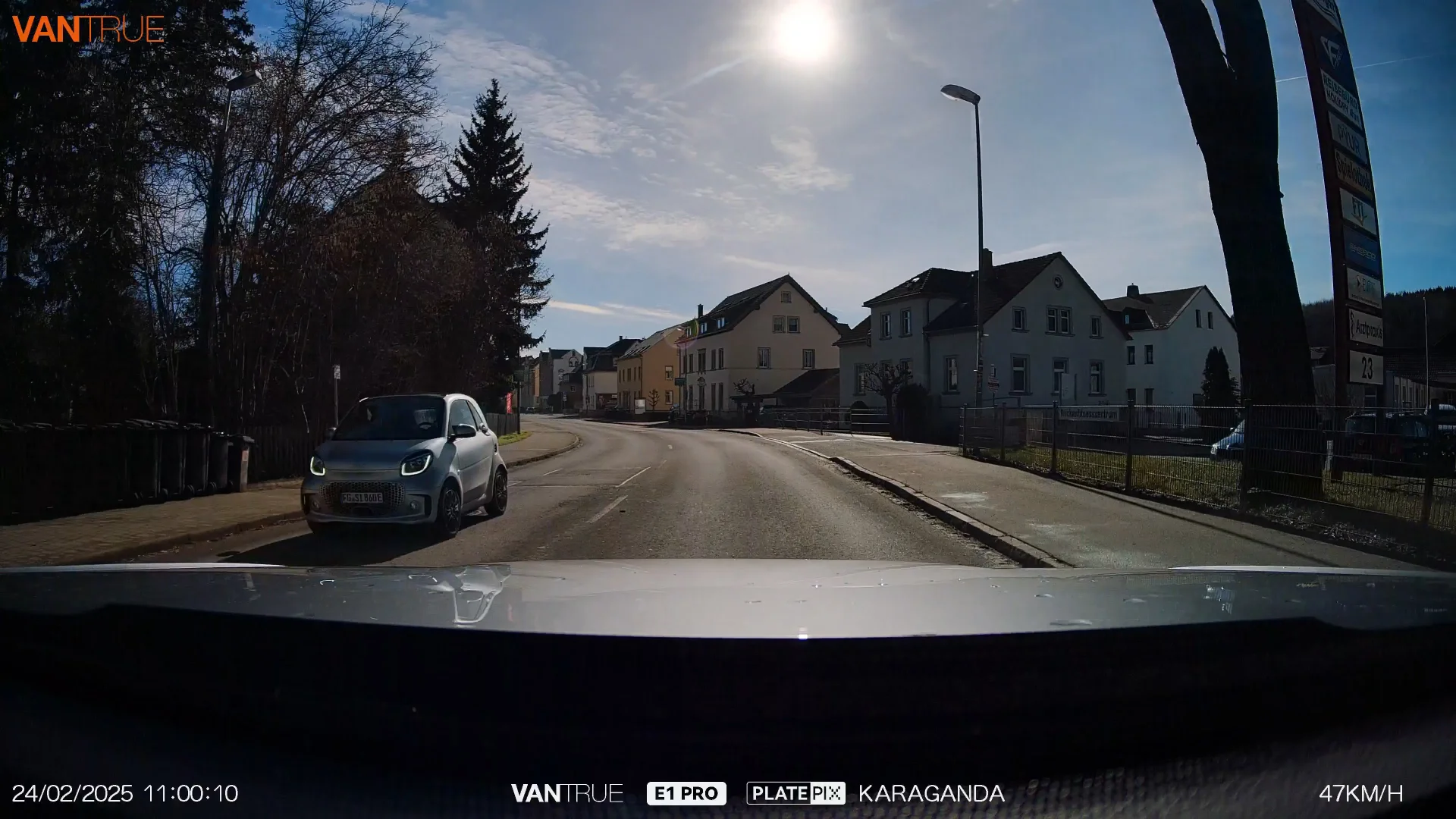

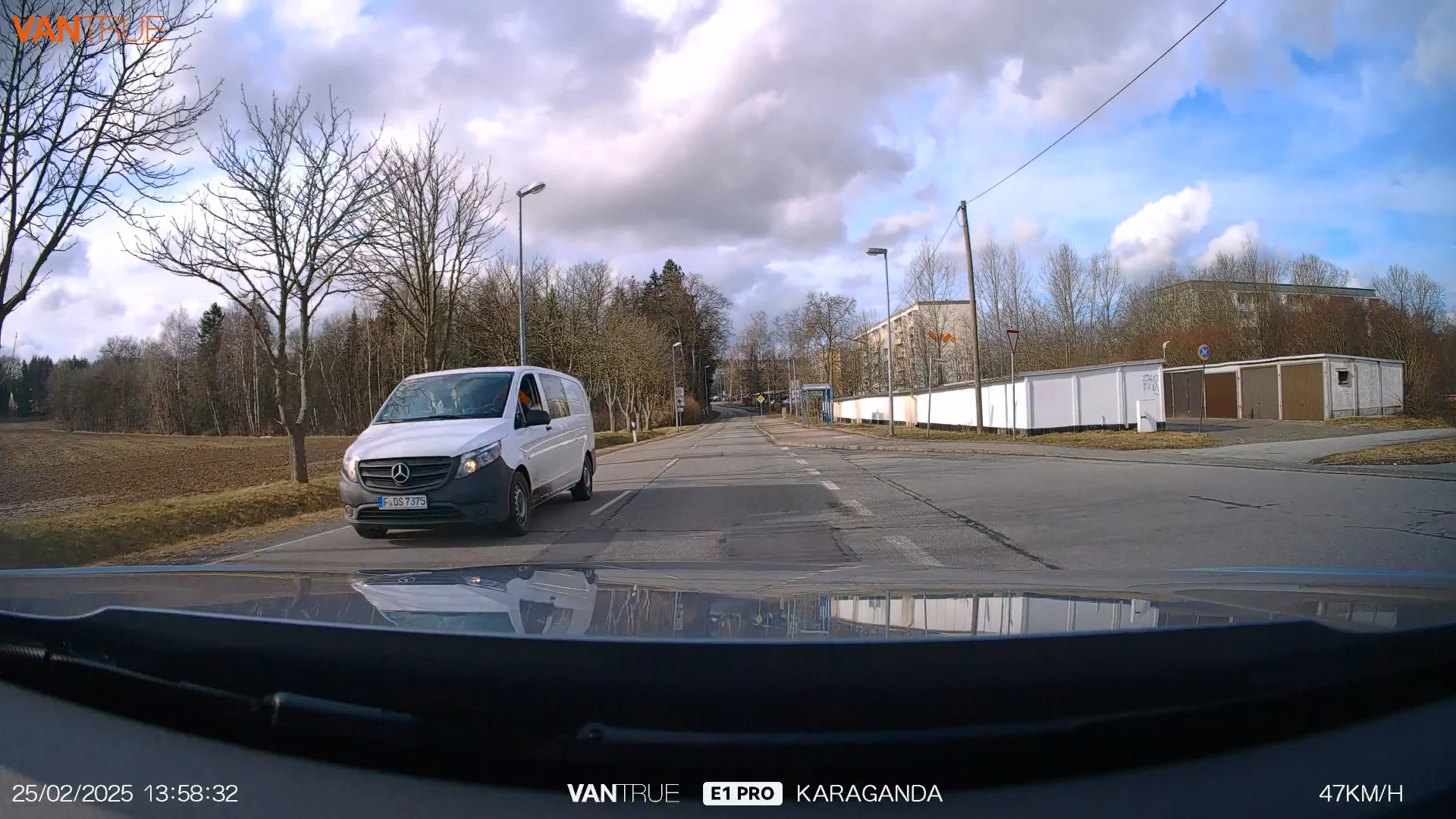

Кр_1.webp Кр_2.webp Кр_3.webp E1 Pro vs E360.webp E1 Pro_.webp

Since I have A229 Pro and A329 installed on the windshield, I installed E1 Pro on the dashboard.

There were no problems connecting the LTE module to the E1 Pro. Only the wire from the LTE module needs to be connected
to the USB-C connector on the E1 Pro itself, and not to the mount with the GPS module. And in the menu, enable the USB mode for LTE data transfer.
On the E360, the wire from the LTE module needed to be connected to the mount with the GPS module.

4K 1-minute file size = 232 MB
Bitrate = 32.4 Mb/s
Parking mode: Low Bitrate recording
3-minute file size 1920 x 1080 = 112 MB
Bitrate = 5220 kb/s

The data rates and files sizes that you are reporting match the ones that I'm getting as well.

It's challenging to compare your JPG files in terms of brightness/contrast because the E1 image has PlatePix (which appears to contain brightness/contrast tweaks), but it also has the sun present in the frame, which will further darken the image. I suspect images that don't feature a shining sun will look a bit more similar to one another.

My evaluation copy did not have the CPL in the box, so that might be another difference in your images. Do your two Viofo cameras have a CPL installed?

EricSan said:
It's challenging to compare your JPG files in terms of brightness/contrast because the E1 image has PlatePix (which appears to contain brightness/contrast tweaks), but it also has the sun present in the frame, which will further darken the image. I suspect images that don't feature a shining sun will look a bit more similar to one another.
Click to expand...
This was the first time the models were not set up the same. The following screenshots and videos will be with the same settings for all models.

EricSan said:
Do your two Viofo cameras have a CPL installed?
Click to expand...
Both Viofo and Vantrue have CPL filters installed.

Last edited:

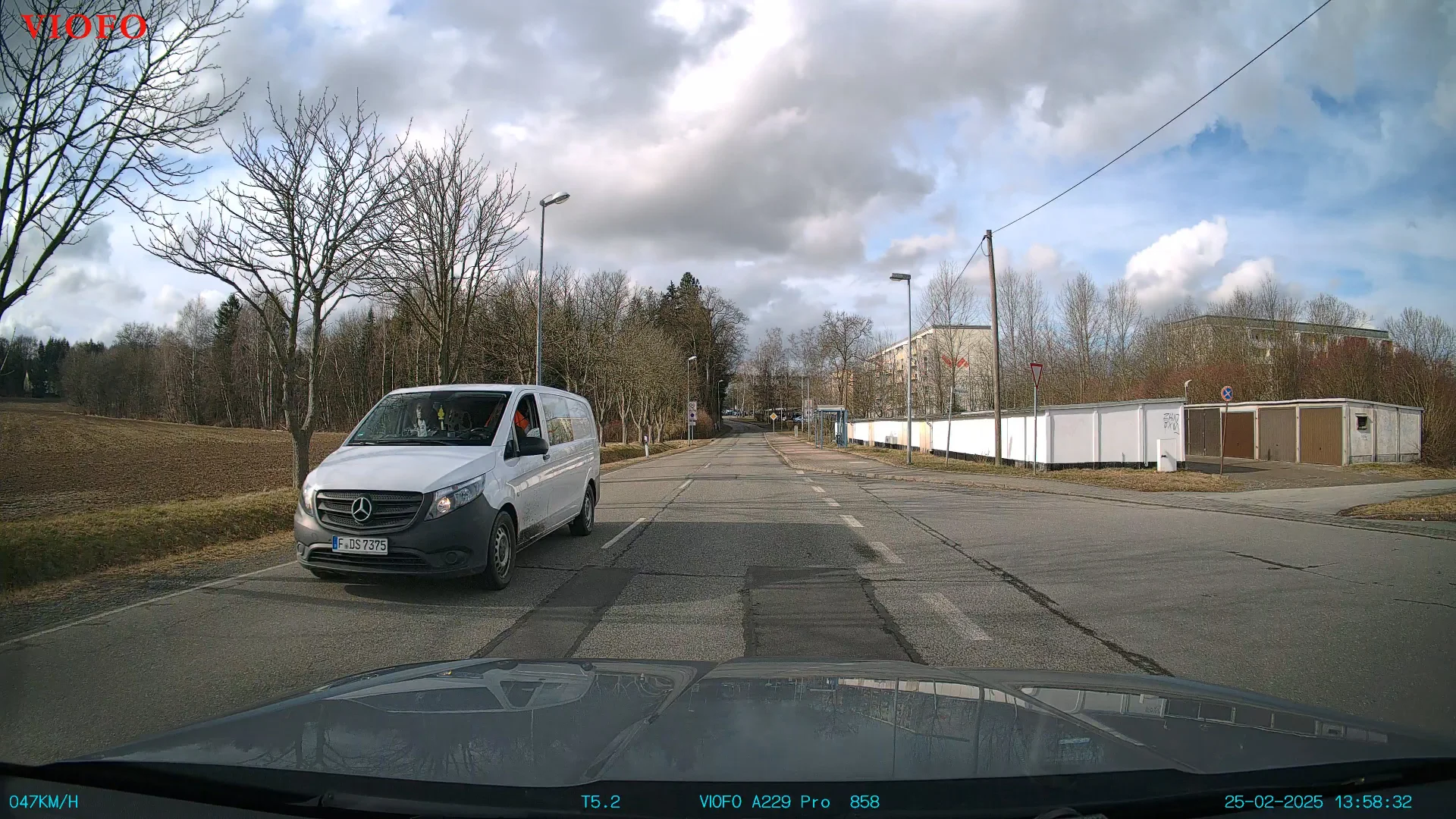

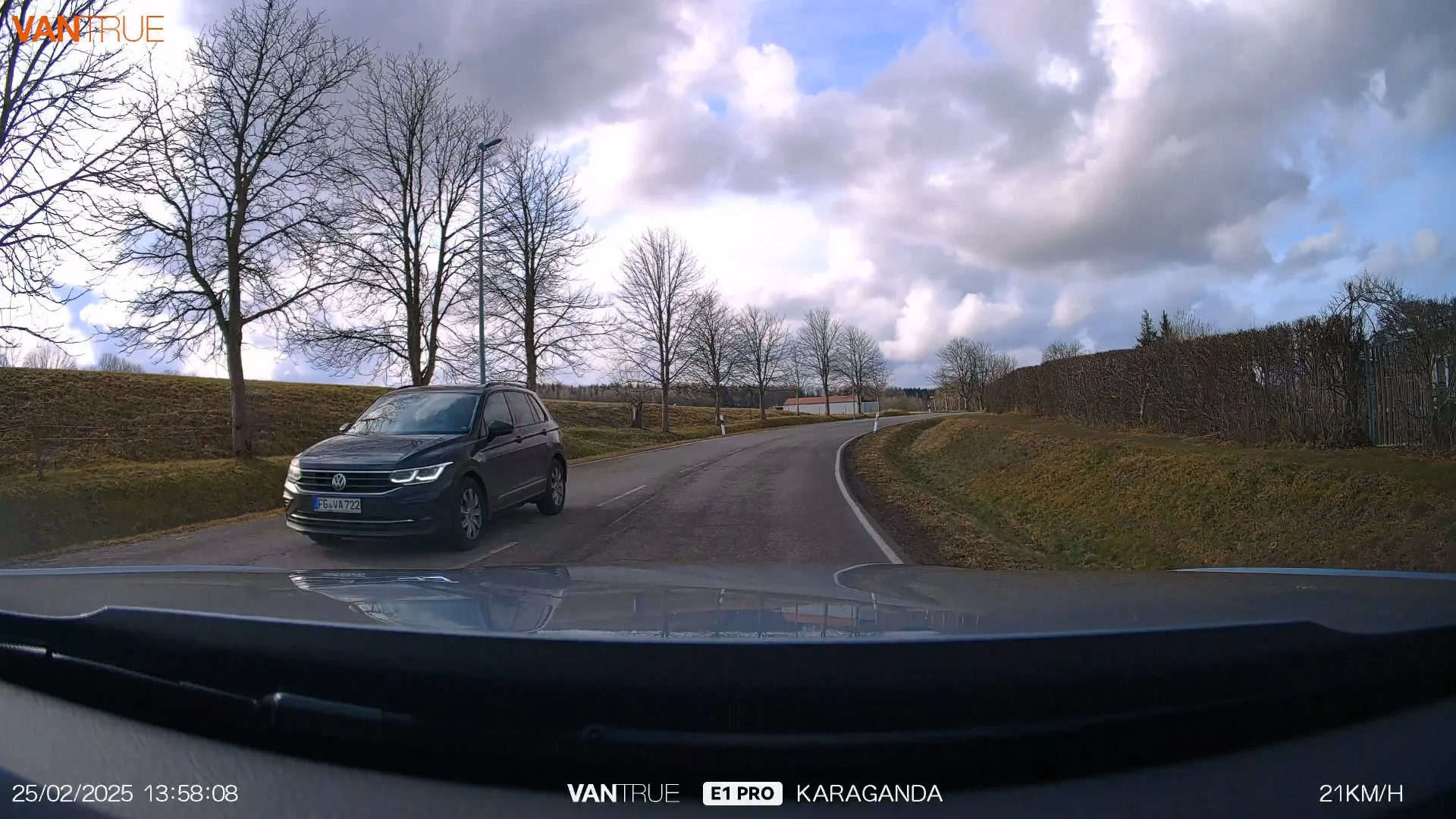

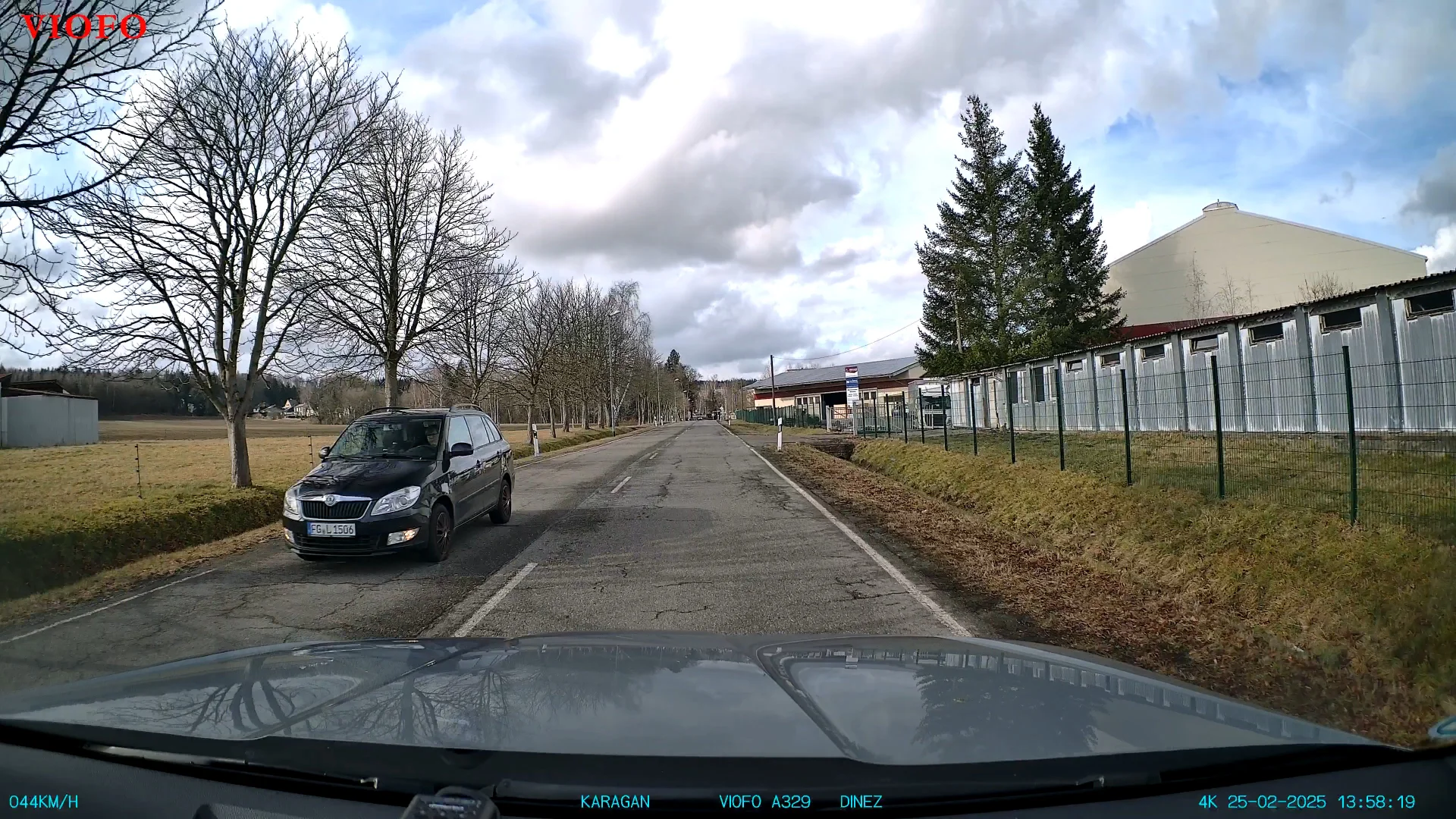

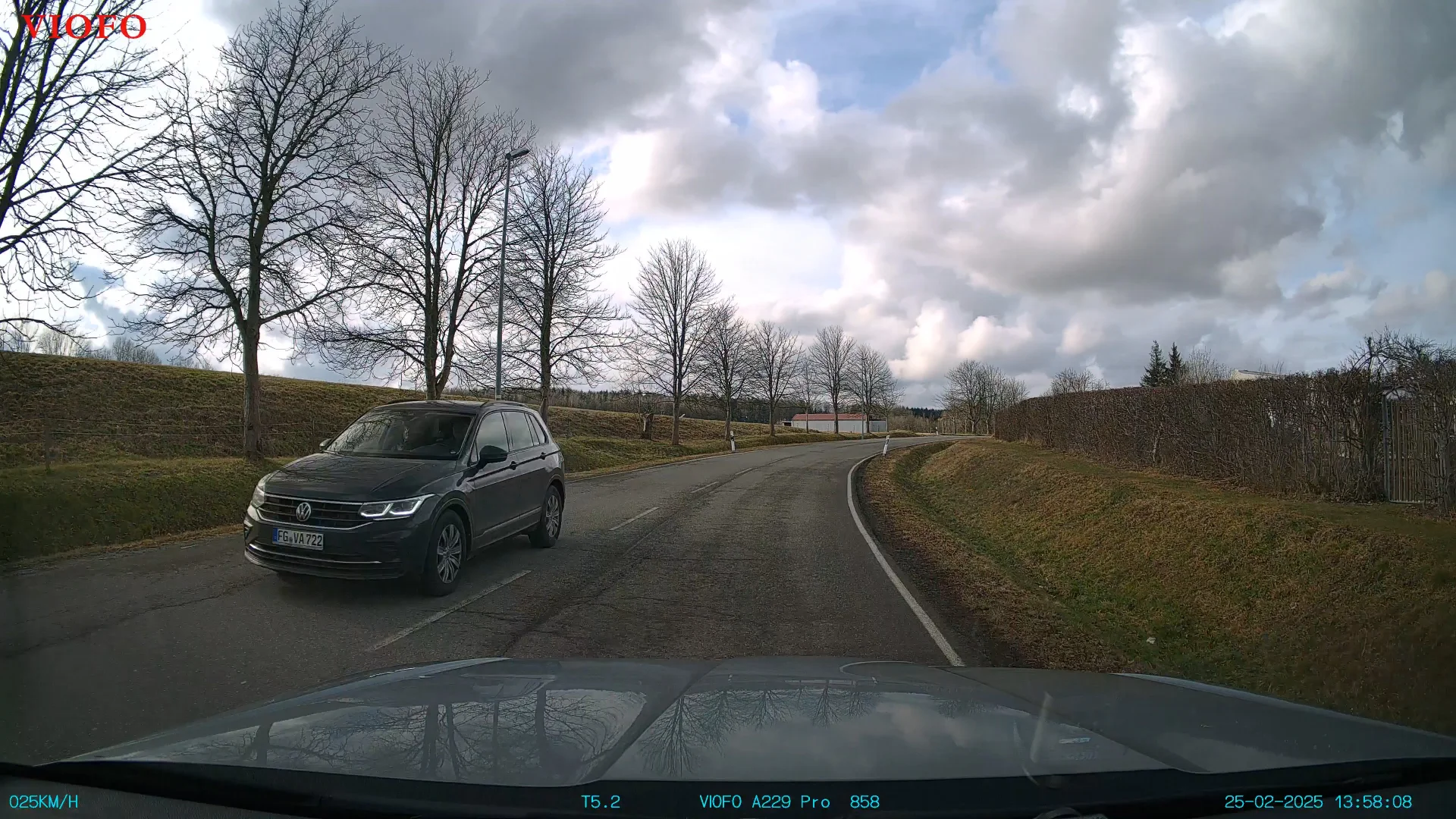

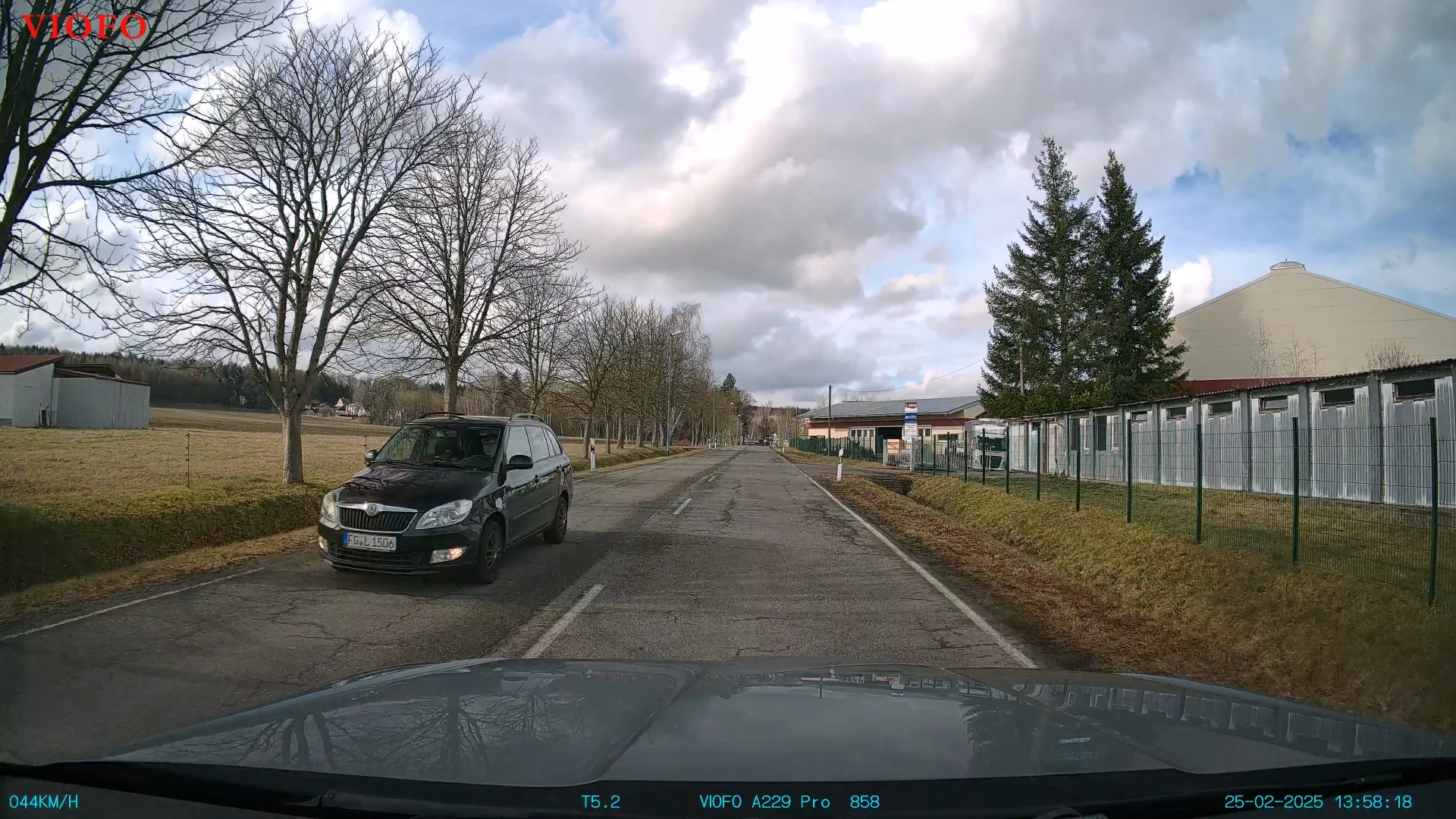

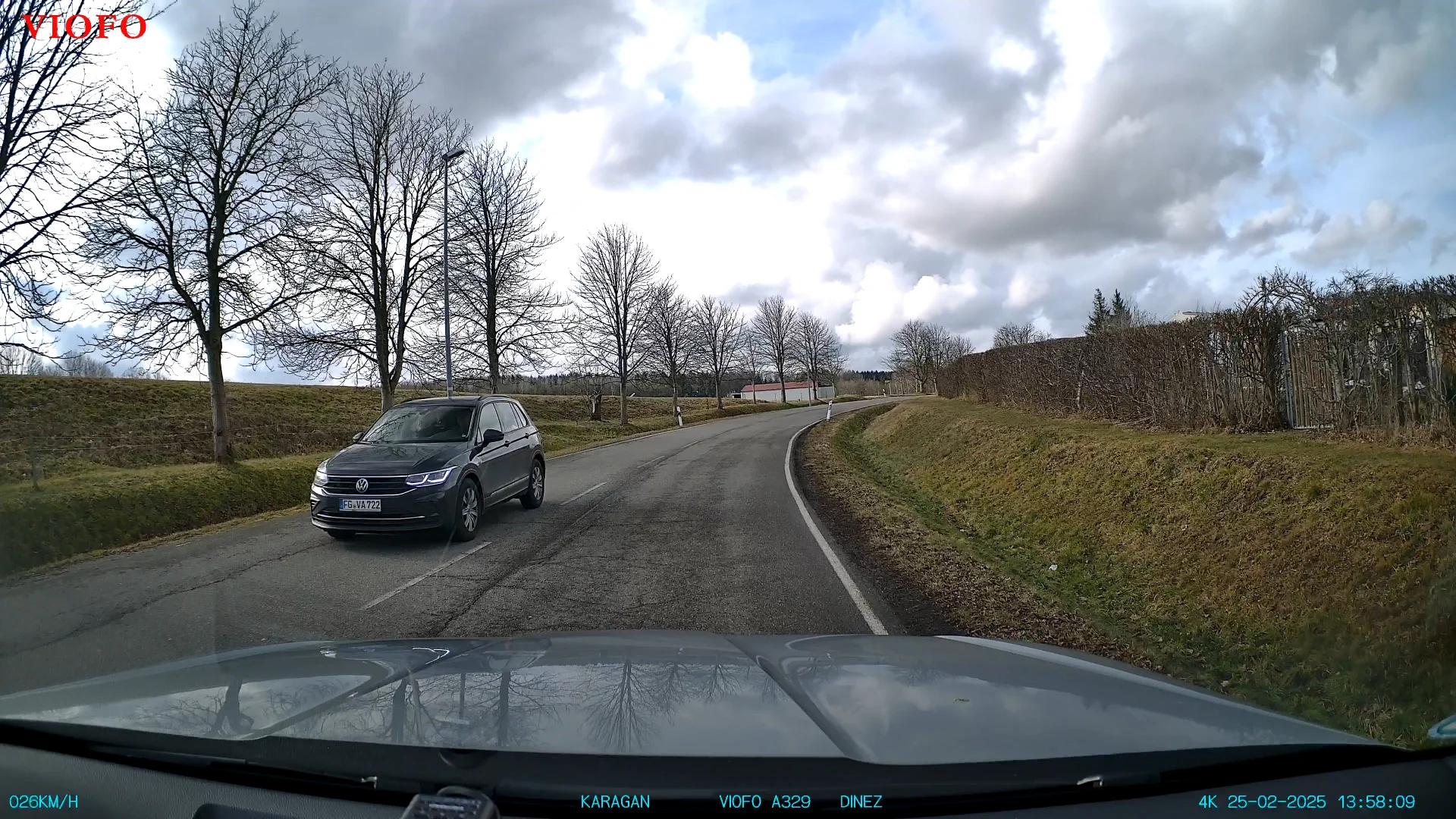

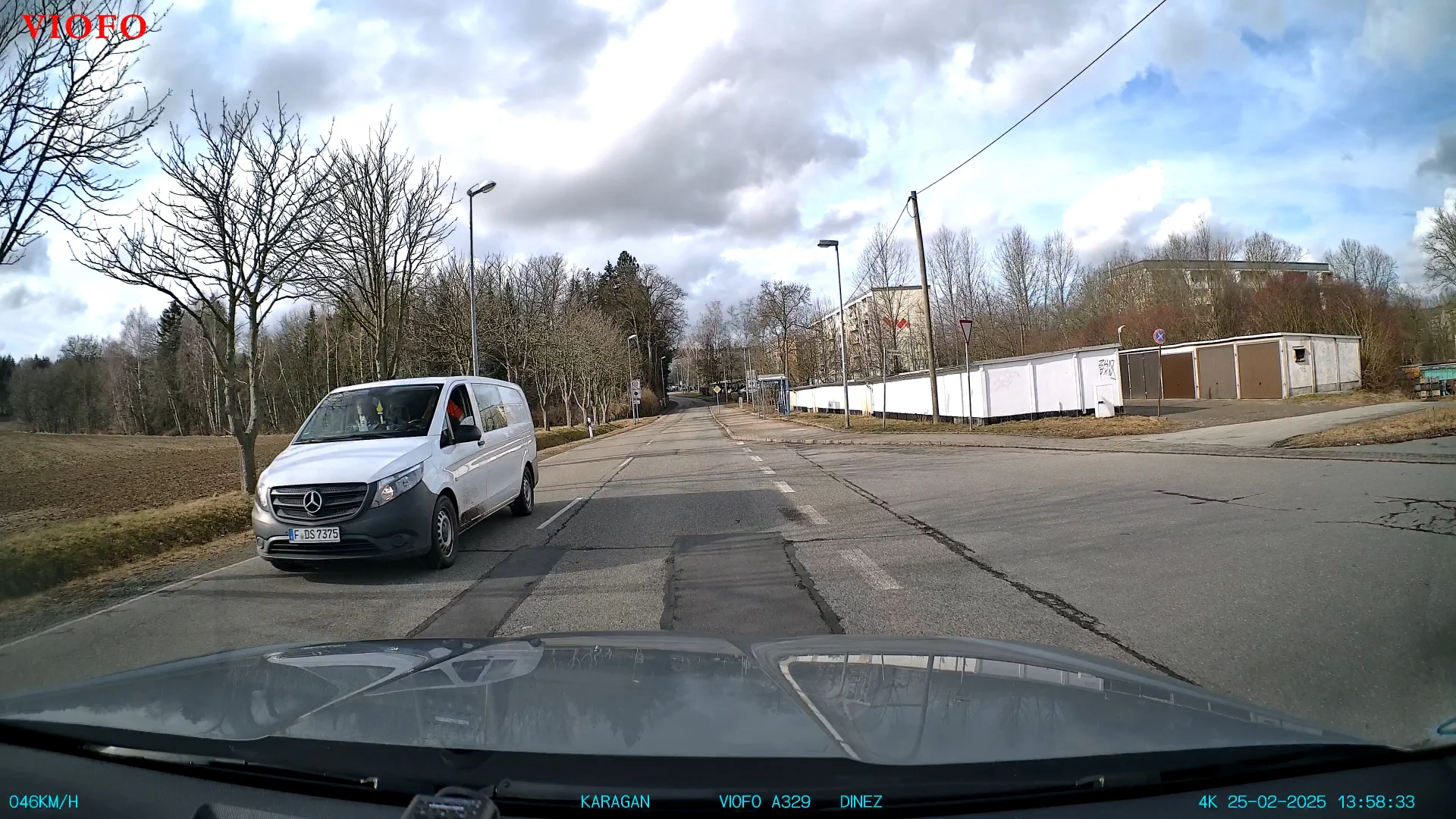

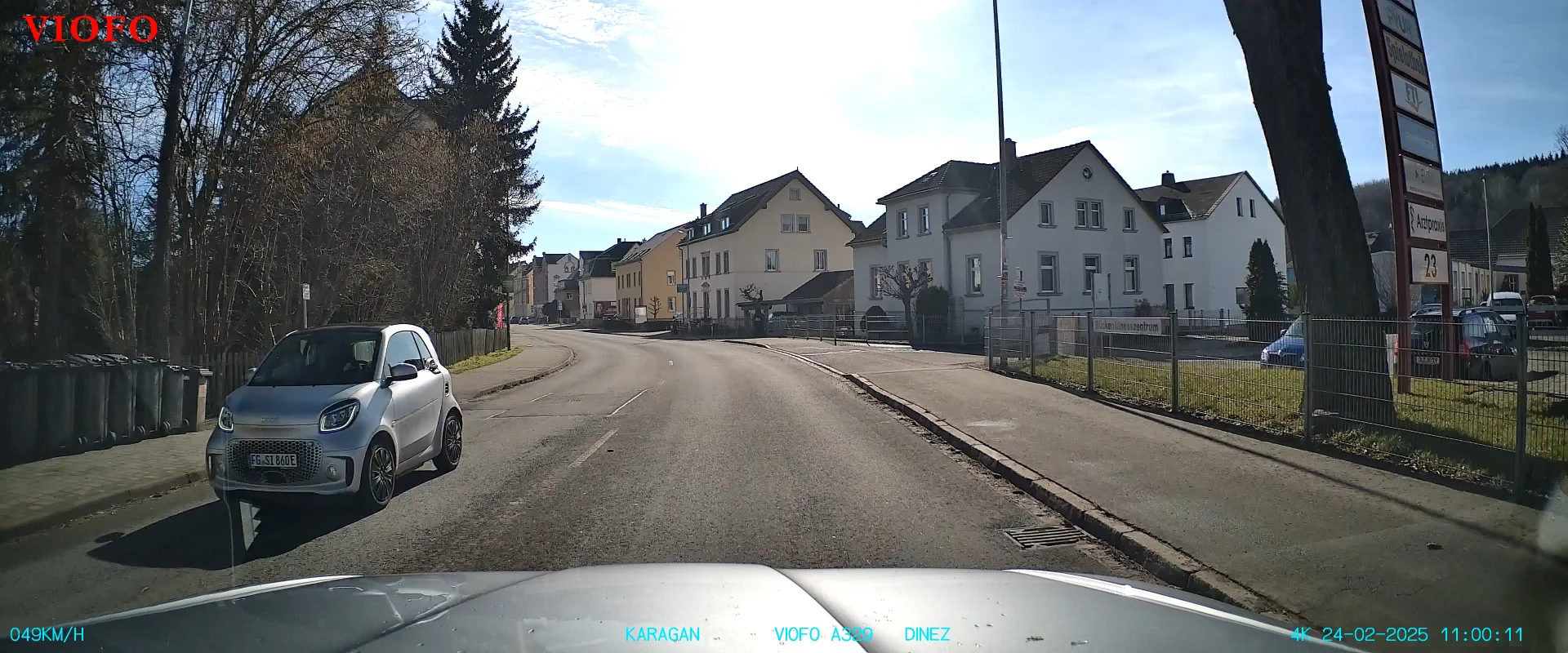

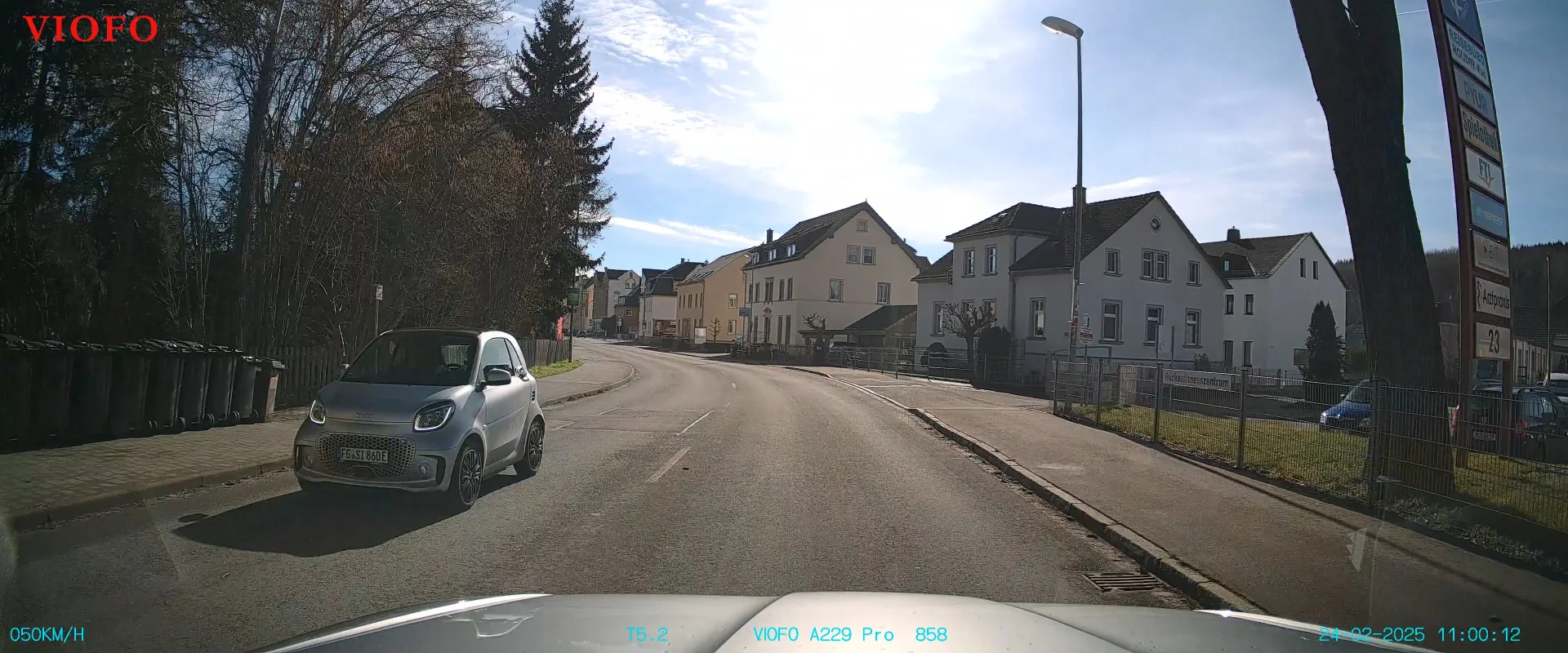

A couple of screenshots from A229 Pro, E1 Pro and A329_Day.

A229 Pro_1.webp E1 Pro_1.webp A329_1.webp

A229 Pro_2.webp E1 Pro_2.webp A329_2.webp

A229 Pro_3.webp E1 Pro_3.webp A329_3.webp

The settings are the same on all models:
3840x2160
EV=0,0
CPL=on

Last edited:

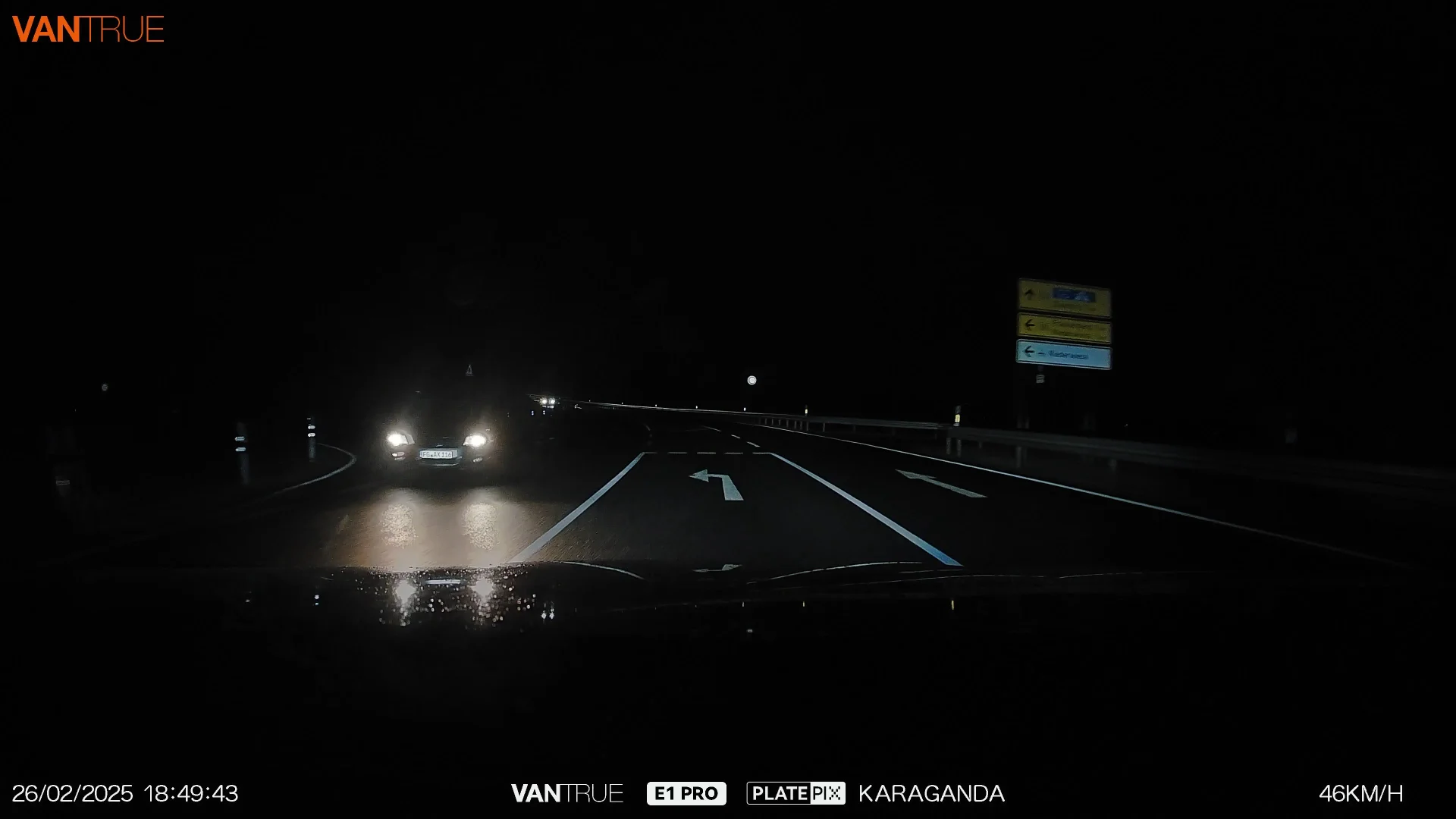

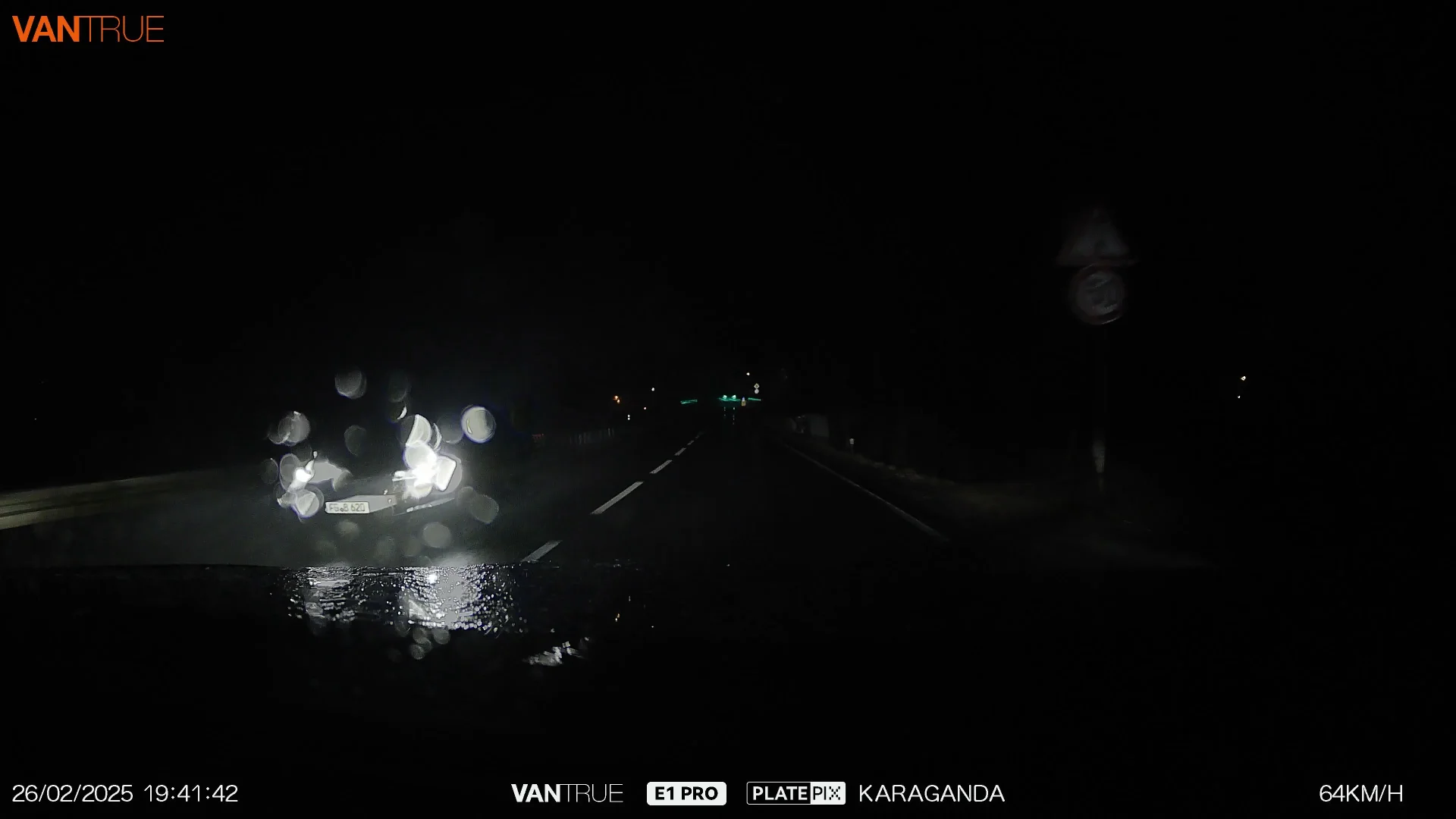

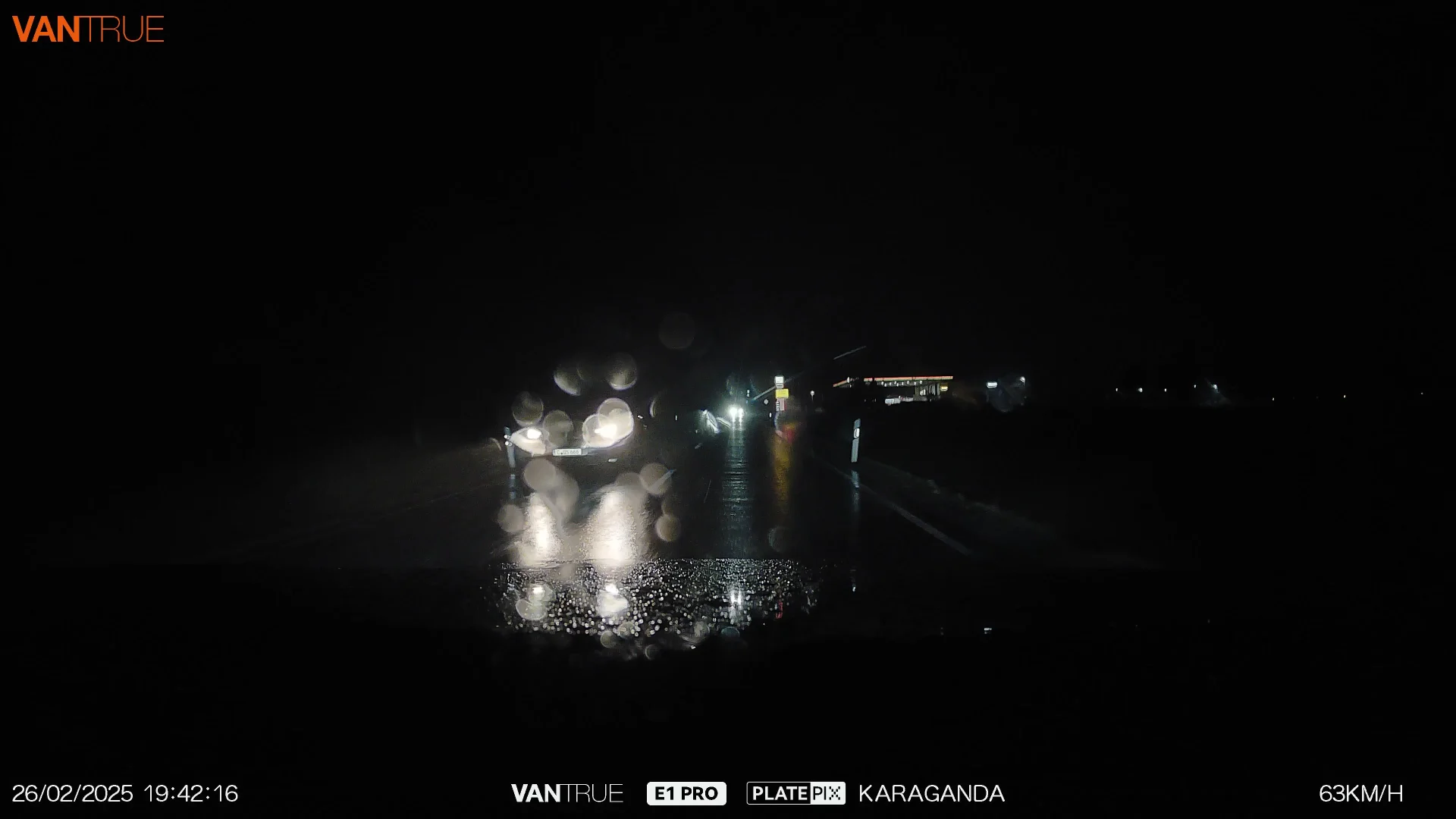

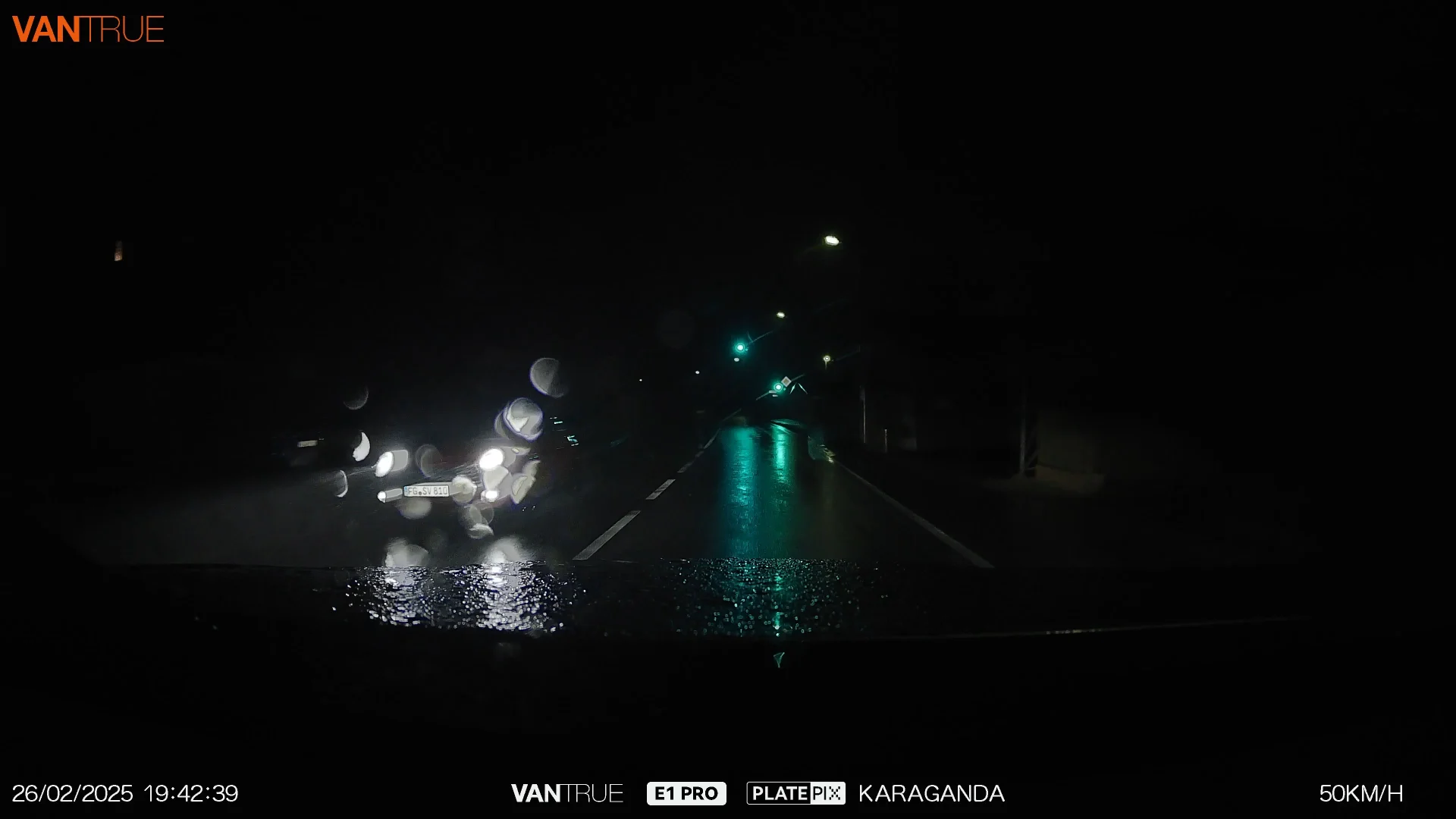

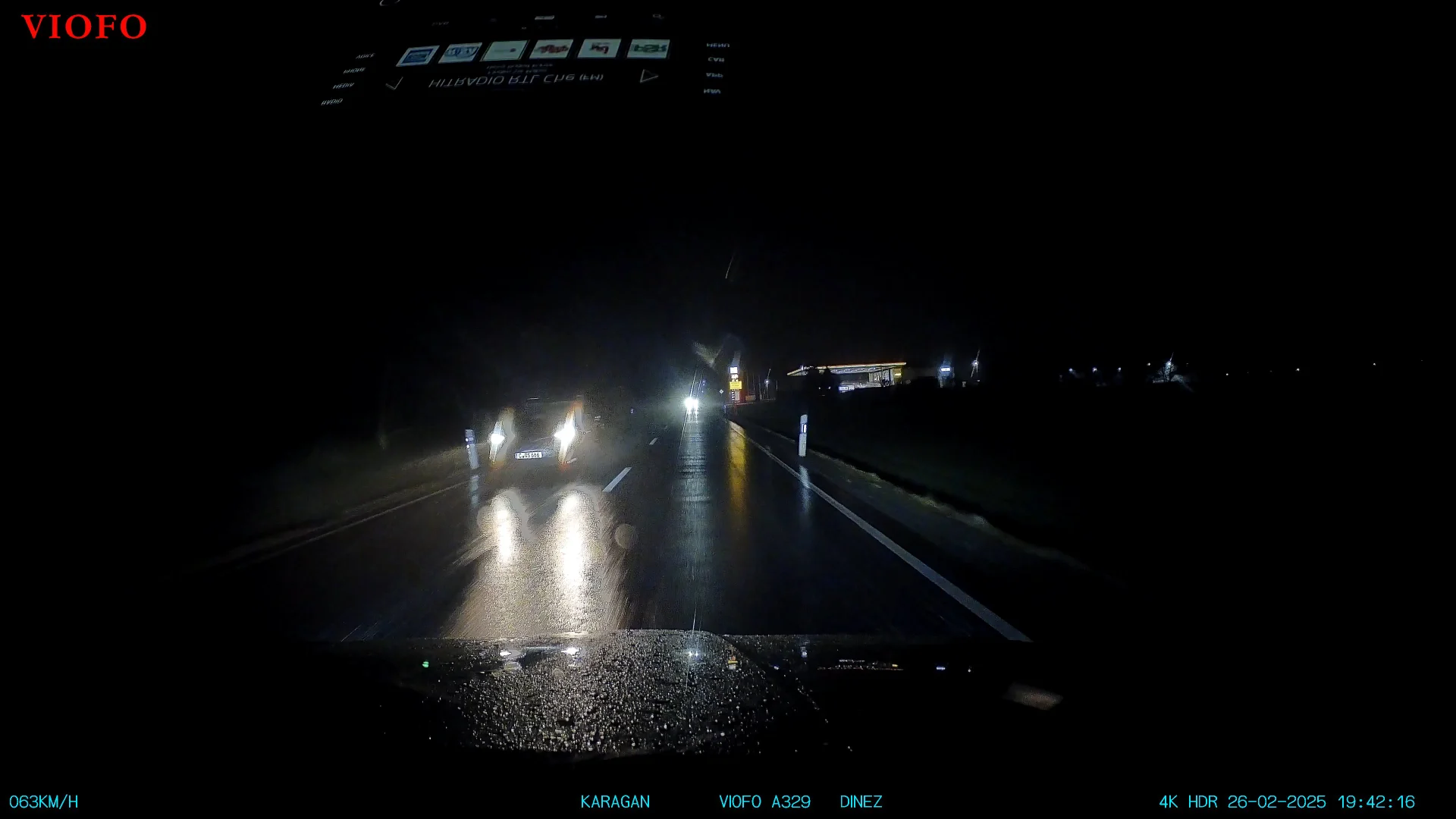

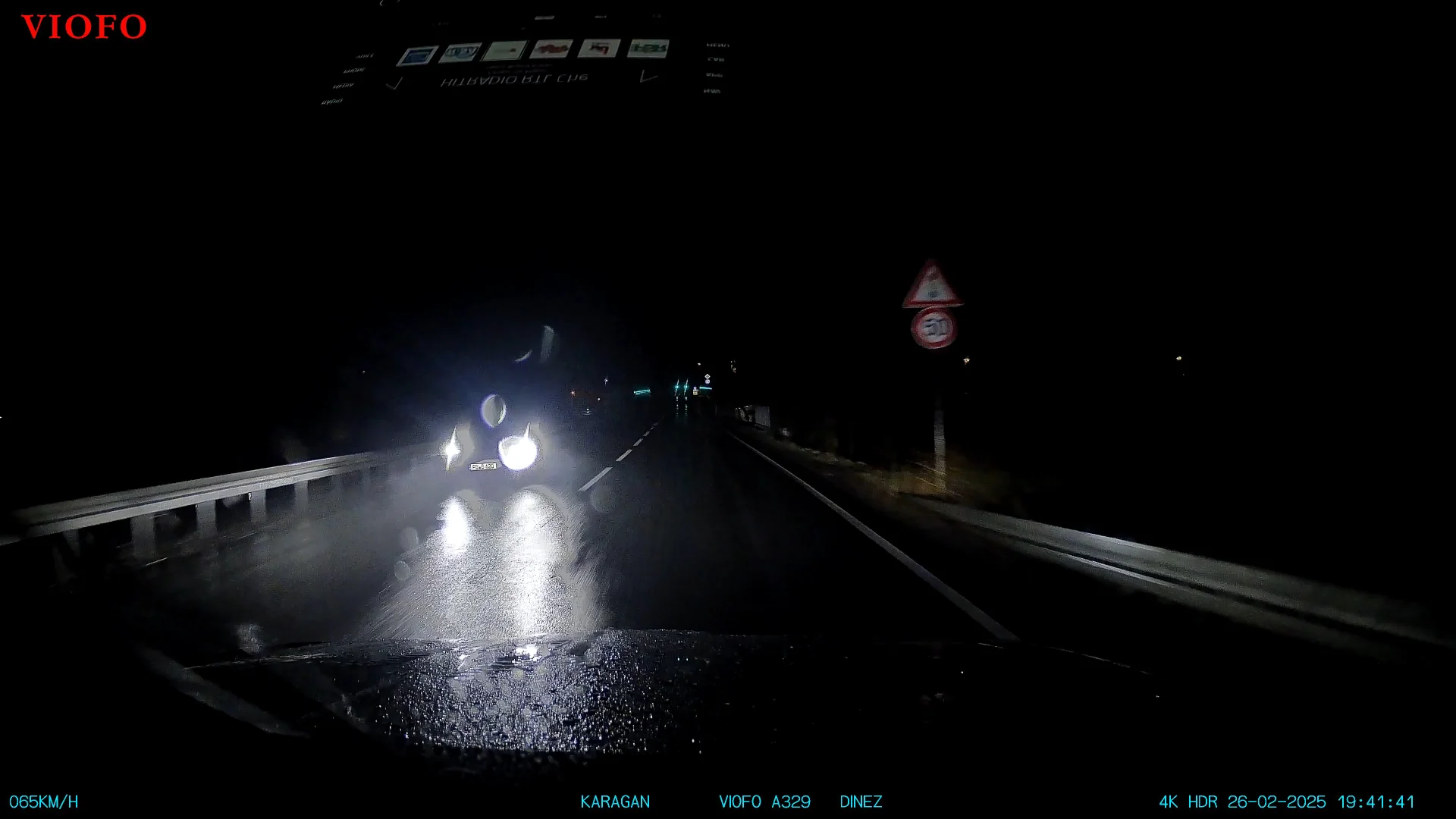

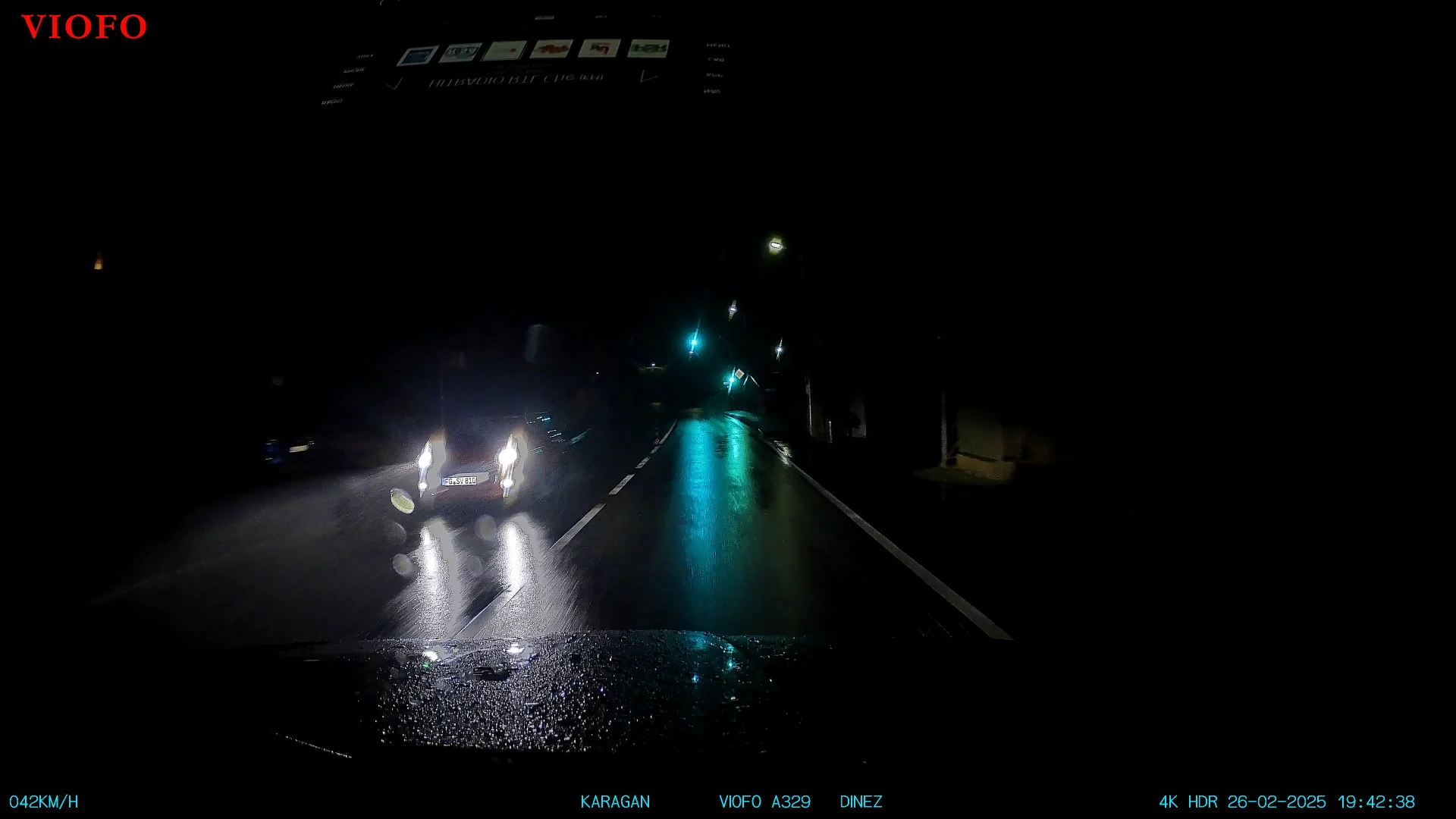

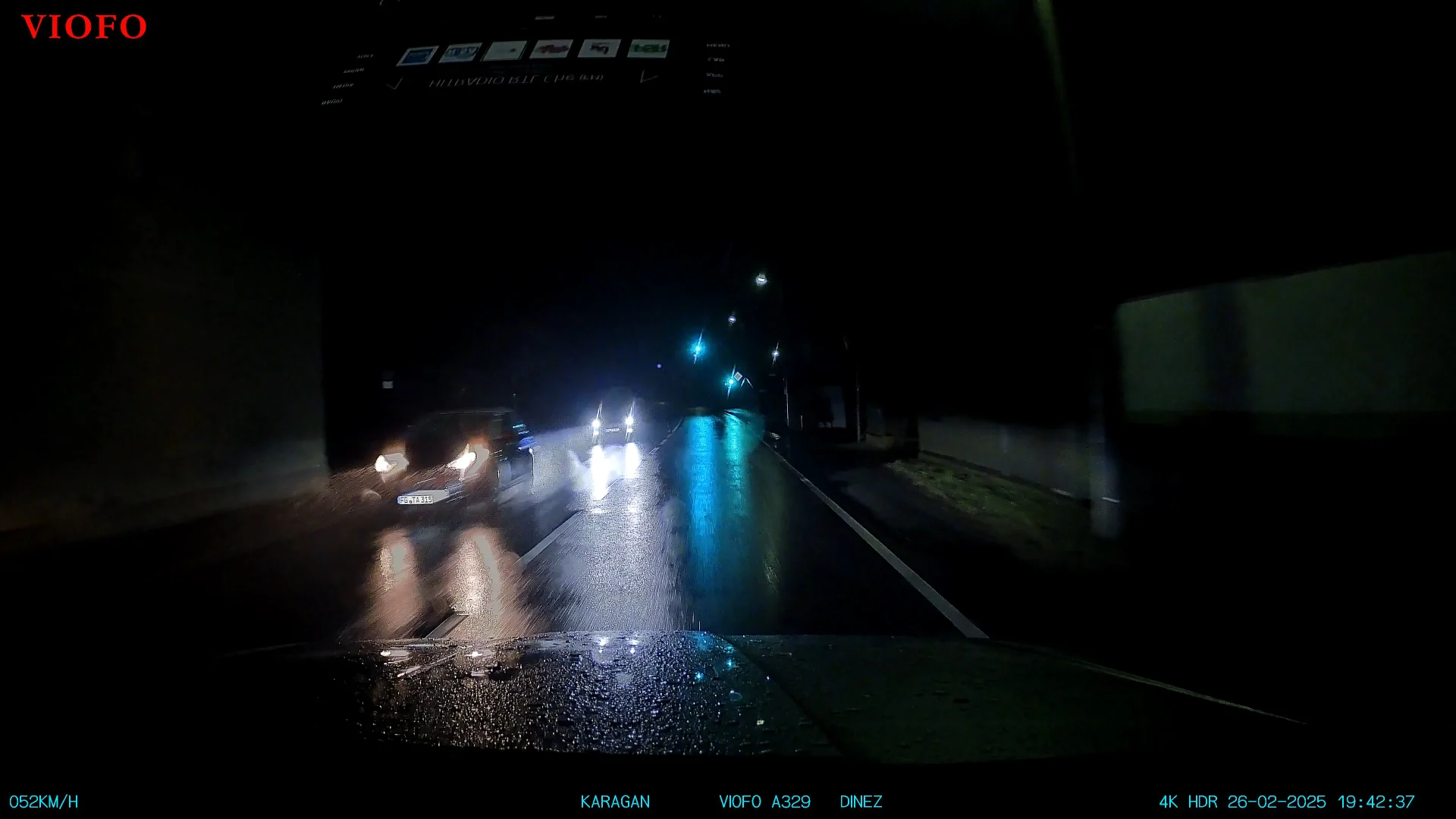

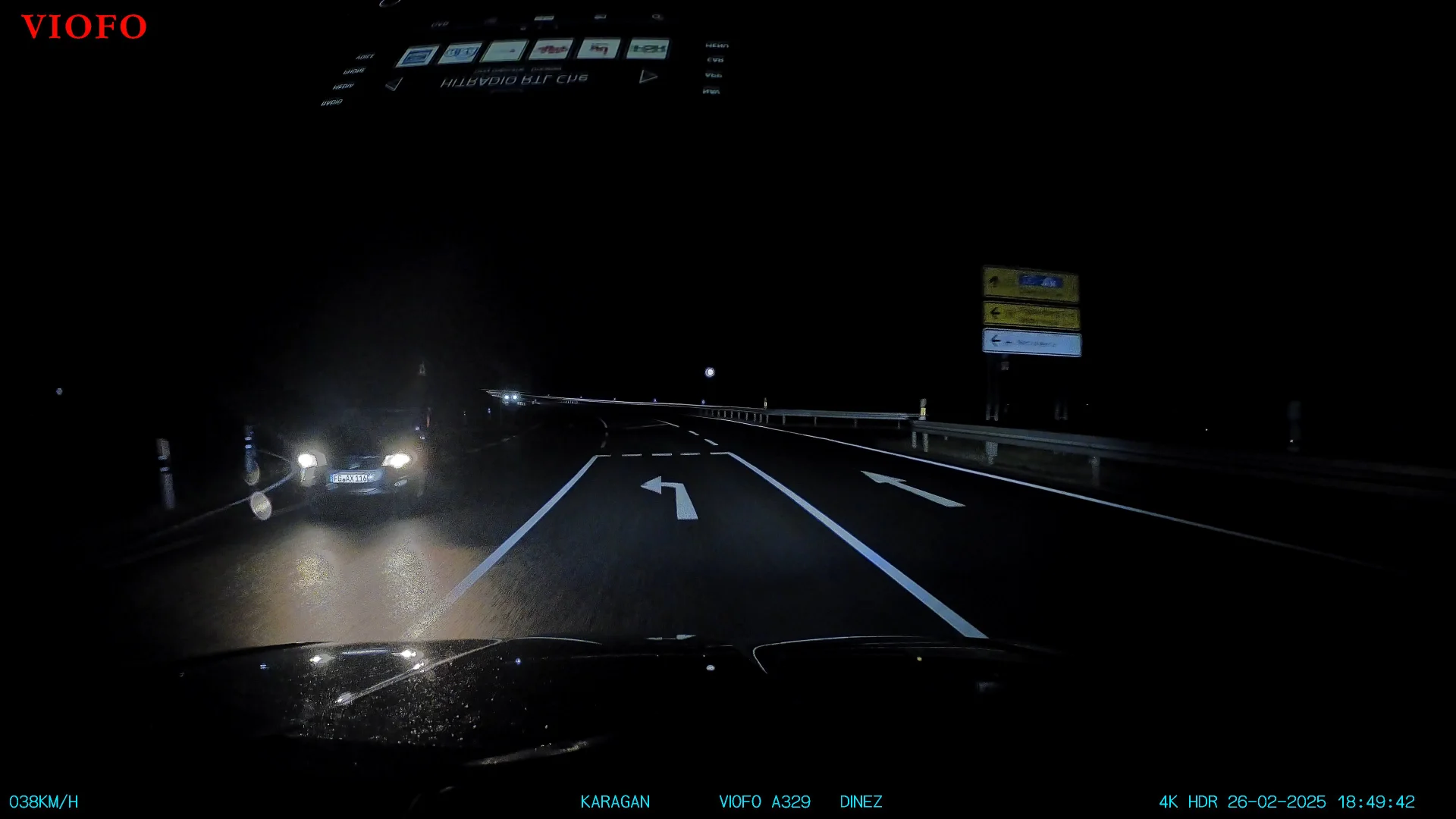

A couple of screenshots from E1 Pro and A329_Night_Rain.

E1 Pro_N_1.webp A329_N_1.webp E1 Pro_N_2.webp A329_N_2.webp

E1 Pro_N_3.webp A329_N_3.webp E1 Pro_N_4.webp A329_N_4.webp

E1 Pro_N_5.webp A329_N_5.webp

The settings are the same on both models:
3840x2160
EV=0.0
HDR=on
CPL=on
E1 Pro has PlatePix™ enabled.

Last edited:
Karagandinez said:
A couple of screenshots from E1 Pro and A329_Night.

View attachment 78066 View attachment 78067 View attachment 78068 View attachment 78069 View attachment 78070

View attachment 78061 View attachment 78062 View attachment 78063 View attachment 78064 View attachment 78065

The settings are the same on both models:
3840x2160
EV=0.0
HDR=on
CPL=on
E1 Pro has PlatePix™ enabled.
Click to expand...
That is really dark for the E1 Pro, a worst case scenario Alexander. Though it does still do well with plate capture nonetheless

indigo said:
It seem 229pro =e1pro
329 is best
Click to expand...
I only had the E1 Pro for one week but it seems like it.
The E1 Pro will the best 4k 1 channel camera. Especially considering it's price.
2 channel is obviously the A329.

Julian23 said:
I only had the E1 Pro for one week but it seems like it.
The E1 Pro will the best 4k 1 channel camera. Especially considering it's price.
2 channel is obviously the A329.
Click to expand...
if e1pro dot use platepix. What will happen？

indigo said:
if e1pro dot use platepix. What will happen？
Click to expand...
If PlatePix is not used, then the image will be slightly brighter. I made a static comparison in a parking garage. Check my thread on page 4.

I observed PlatePix is using some kind of HDR during the daytime, even when I have HDR turned off.

This series of frames was recorded at midday in a parking garage, with different number plates illuminated by my headlights in each frame as I turned a corner.







I have also seen this double-exposure effect in bright sunlight without headlights (PlatePix ON, HDR OFF):
