Review: M9S Dual 1080p Backup Camera Dashcam - NT96663 (Gearbest)

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
Thank you @GearBest for providing M9S Dual 1080p Dashcam for review.
It is available at Gearbest here: *****************************************
PROS: Dual 1080p cameras. Rear camera video quality is very good.
LDWS, FCWS work good. The warning chime is very loud volume.
FCWS has a red cross in the center of LCD that tracks vehicles in the front.
LDWS has a green cross on the side that tracks lane markings.
These warnings work even when the LCD screen goes off, unlike Lukas that only works when LCD is on.
CONS: Night video is average quality, audio recording is at very low volume.
FCWS is little over sensitive.
Gun Metal housing and big size is very noticeable.
*****************************************
Description & Features:
The M9S is based upon Novatek 96663.
It has front and rear cameras, both 1080p.
The rear camera is designed to be mounted externally by the license plate.
[Note: I used it inside on the back window as installing outside needs a lot of work.]
3.0" LCD screen is pretty big and can show rear camera easily.
It displays backup lines as well when only rear camera is displayed.
LCD has option to display front camera only, both cameras and rear camera only.
Rear camera needs its own power.

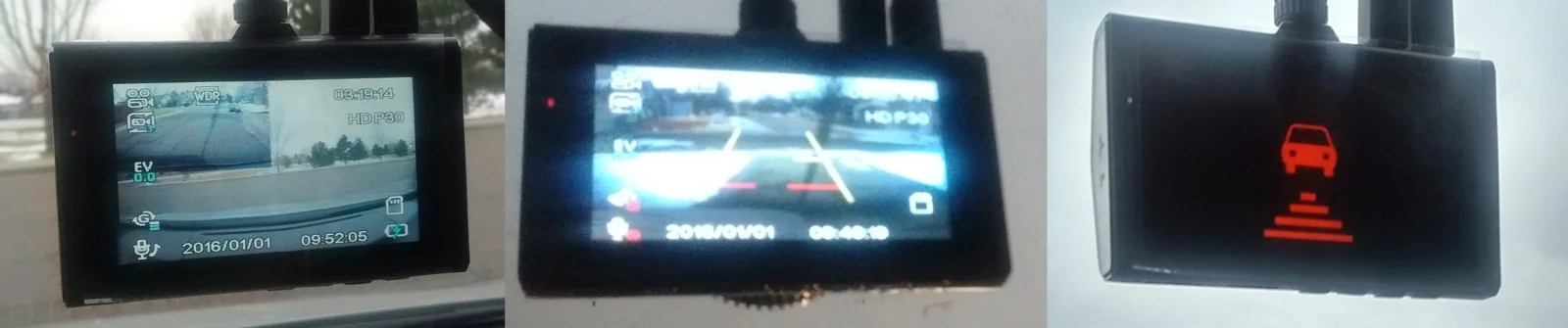

M9S LCD fcws.jpg
*****************************************
M9S Unboxing Video with daytime and night videos from both front and rear cameras:
*****************************************
Package Contents: 1 x Car DVR, 1 x Rearview Camera, 1 x Suction Cup Mount, 1 x USB Cable, 1 x Car Charger, 1 x Bracket, 1 x Sticker, 2 x Screw, 1 x Cable, 1 x User Manual ( English and Chinese )
*****************************************

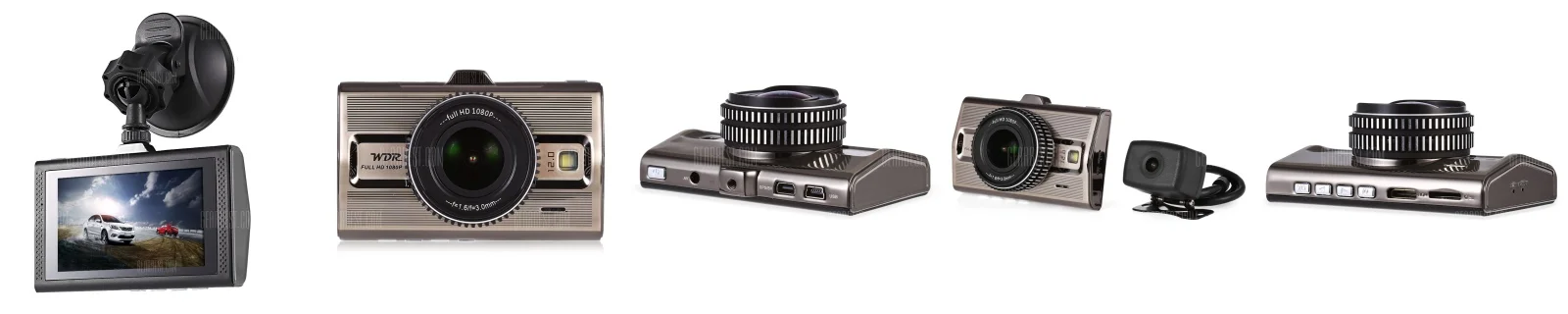

M9S Dual 1080p Dashcam Images:
M9S-dual camera.jpg
*****************************************
M9S Dashcam side-by-side with Mini 0805p and Firefly 7S:

*****************************************
M9S Folders, Files and Bit Rate:
There are dedicated folders for different modes as shown below in the screenshot.
File names have date and time so easy to find particular file.
When both front and rear videos are being recorded, front files have A and rear files have B at the end of file names.
Normal videos are saved under Movie folder and pictures are saved under Photo folder.
Triggered files are in EMR and RO sub-folders.
Entire video clip is saved when triggered.
Overall bit rate is 12.1 mbps at 1080p resolution with video @ 11.9 mbps and audio @ 96 kbps.
M9S Dual 1080p Camera Folders and files.jpg
*****************************************
continued...

Last edited:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
M9S Video Screenshots:
Front Camera:

M9S Day.mp4_20170123_204125.024.jpg
M9S Day.mp4_20170123_204138.939.jpg

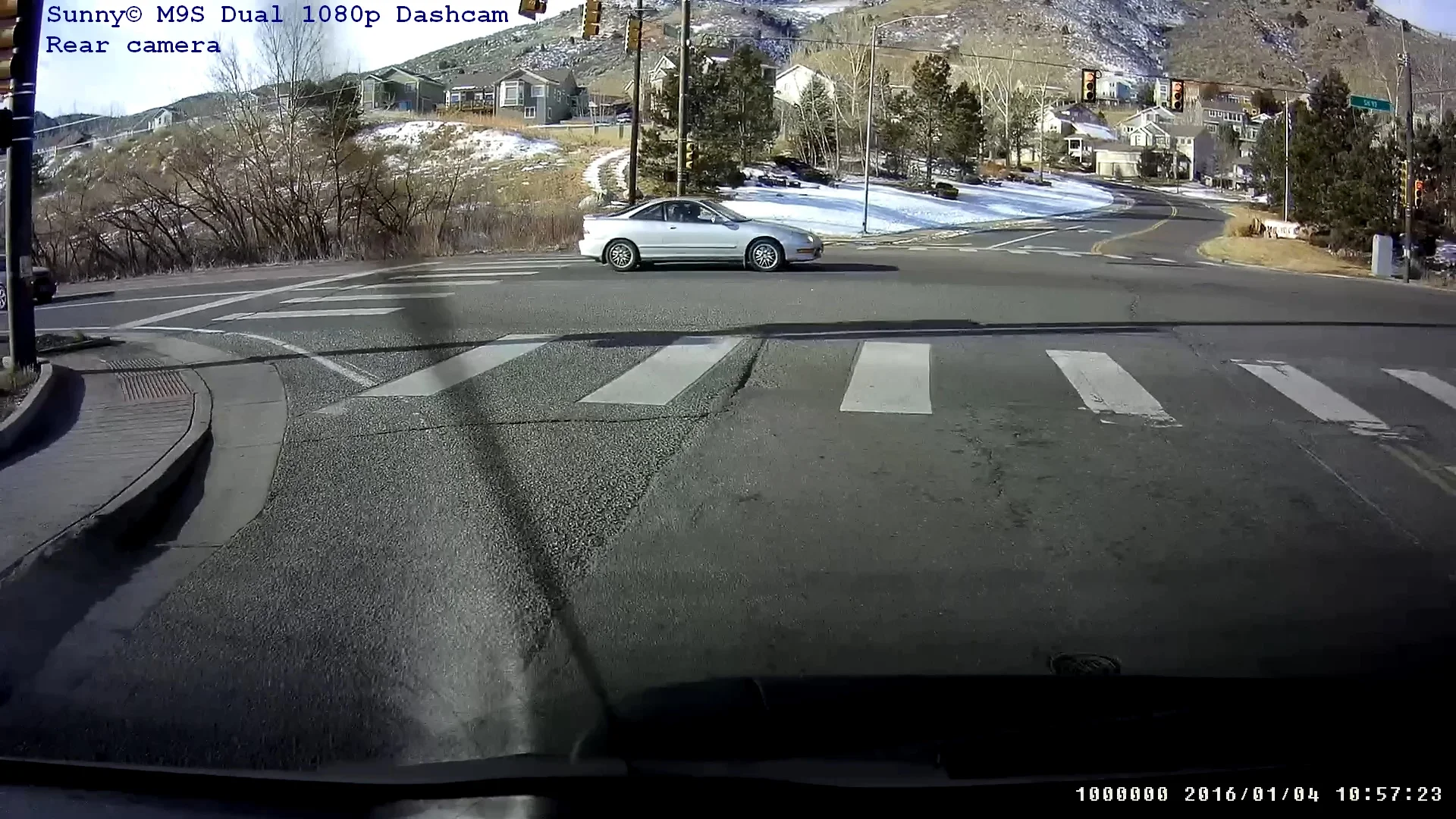

Rear Camera:

M9S Day.mp4_20170123_204228.300.jpg
M9S Day.mp4_20170123_204234.415.jpg
M9S Day.mp4_20170123_205310.219.jpg

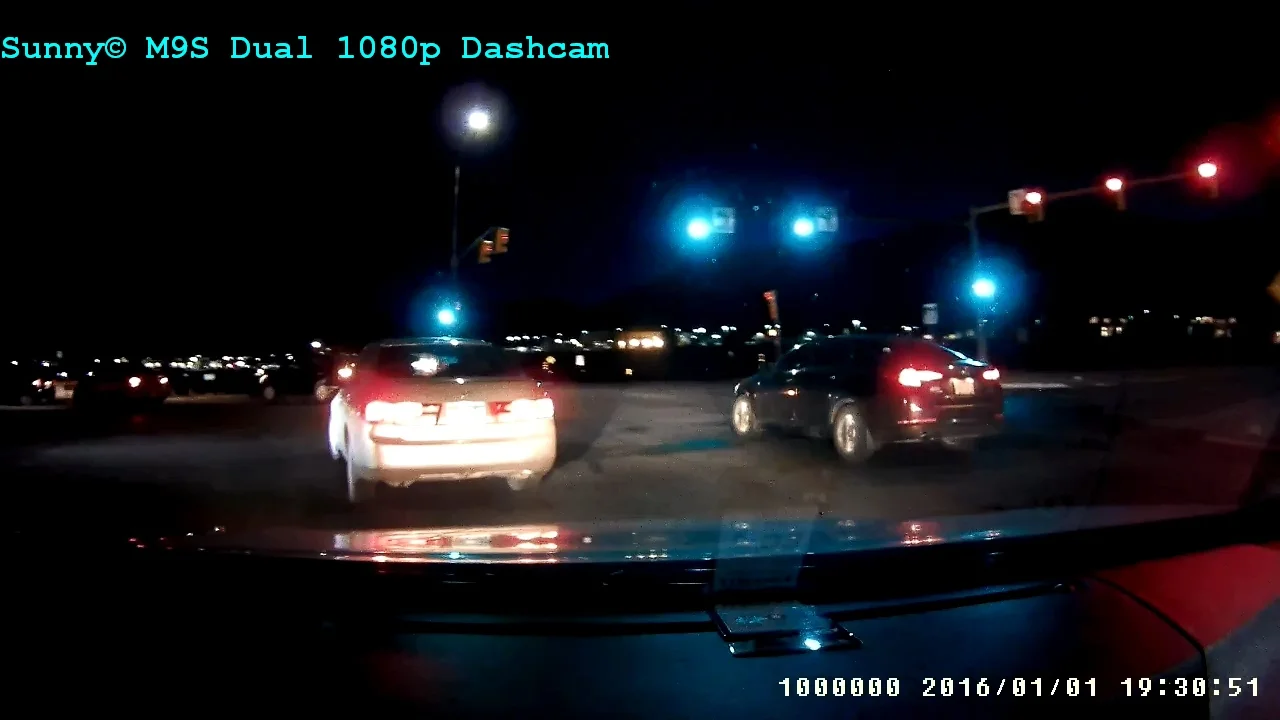

Night Screenshots:
M9S night.mp4_20170123_204303.639.jpg
M9S night.mp4_20170123_204314.925.jpg

Last edited:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
M9S from outside the vehicle:
Very noticeable...
DSC05986-M9S from outside.jpg

Rear camera on rear window:
DSC05987-M9S rear camera.jpg


SawMaster

Well-Known Member
Joined
Apr 10, 2015
Messages
7,945
Reaction score
6,890
Location
SC
Country
United States
Dash Cam
Numerous and ever-changing
I wonder which sensor is used? I can't find that info on the sales page. Nice to see a decent rear cam; much better there than the CF100 with it's 720P :D And the price was a pleasant surprise; I expected to see about 50% higher. I think the low price will gain this one some success but "brick on a stick" is sadly too true for the front unit- that thing is huge :eek:

Thanks for the review!
Phil

OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
I wonder which sensor is used? I can't find that info on the sales page. Nice to see a decent rear cam; much better there than the CF100 with it's 720P :D And the price was a pleasant surprise; I expected to see about 50% higher. I think the low price will gain this one some success but "brick on a stick" is sadly too true for the front unit- that thing is huge :eek:

Thanks for the review!
Phil
Not sure about the sensor. All it says is CMOS.
Yes, the rear video quality is very good. I think it's even better than the front or maybe my rear window is cleaner than the front. ;)
It got warm but video didn't seem to go OOF but it's winter so can't say how it'll do in hot summer.
Here are few rear camera videos:




FCWS warning continuously on when driving on highway. It's too sensitive.

Last edited:
OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
M9S front camera videos: If you hear beeps, it's FCWS. If you hear jingles, it's LDWS.
1080p:



720p:




OP
Sunny

Sunny

Well-Known Member
Joined
May 31, 2014
Messages
5,082
Reaction score
1,731
Location
Colorado
Country
United States
Dash Cam
More than I can review. ;)
M9S Night videos: 1080p. Night video is not that great but enough to see what goes on.




Agie

Active Member
Joined
Aug 19, 2016
Messages
449
Reaction score
231
Location
Perth, Australia
Country
Australia
Dash Cam
Too many to list here (psst, Viofo, Chupad, Xiaomi, Mini )
Thanks for review mate, was wondering if there were any improvements due to the chipset. This is first time I've seen the 96663


Agie

Active Member
Joined
Aug 19, 2016
Messages
449
Reaction score
231
Location
Perth, Australia
Country
Australia
Dash Cam
Too many to list here (psst, Viofo, Chupad, Xiaomi, Mini )
basically the same capability as 96660 but can do 2 channel also
Thanks for this mate. Anyone know if there's anything newer or any 4K capable stuff around / coming soon?
