Review: Mini 0826 1296p Dashcam from Gearbest

Discussion in 'Mini 0826' started by Sunny, Jan 2, 2016.

  1. Sunny

    Sunny Well-Known Member

    Messages:
    4,793
    Likes Received:
    1,542
    Location:
    Denver
    Country:
    United States
    Dash Cam:
    More than I can review. ;)
    Thank you @GearBest for providing mini 0826 for review.
    Mini 0826 is available for $77.38 at Gearbest here: http://www.gearbest.com/car-dvr/pp_275913.html
    ***************************************************
    Review Summary: Will update after review is complete.
    Quick Links:
    Daytime video screenshots
    Daytime videos
    Night video screenshots
    Night videos

    ***************************************************
    Specifications:
    1296P Super HD
    Display: 1.5 inches TFT LCD
    Lens: Wide angle 135 degree
    GPS tracker: GPS tracker
    Image sensor: 3.2M pixel CMOS
    CPU / processor: Ambarella A7LA50
    Audio: Built-in microphone / speaker
    Exposure compensation: -2.0EV to +2.0EV
    Video resolution: 2560 x 1080 at 30fps / 2304 x 1296 at 30fps / 1920 x 1080 at 45fps and 30fps / HDR 1920 x 1080 at 30fps / 1280 x 720 at 60fps and 30fps

    ***************************************************
    Description:
    This is supposedly improved version of mini 0806.
    The size of 0826 is bigger than 0806 even though it looks similar.
    0826 is much longer, thicker and overall feels heftier.
    For side by side shots of those two, refer to @Chris Hunt's THIS post.

    Features wise, not much difference as both use Ambarella A7LA50 chipset.
    It also has GPS in the mount and ADAS features as expected.
    0826 is priced much lower than what 0806 initially sold for.
    ***************************************************
    Mini 0826 quick unboxing video:



    ***************************************************
    Package contents:
    The product box is much smaller than previous versions and is specifically printed for this model with its image and specifications on the box.
    1. Mini 0826 dashcam.
    2. Sticky mount with GPS.
    3. Micro USB car charger.
    4. Micro USB PC cable.
    5. CPL filter in a cute small box.
    6. 3M sticky tapes.
    7. Wire management sticky tabs.
    8. Lens cleaning cloth.
    9. Two white films. Not sure what they are for.
    10. Product manual.
    [​IMG]

    Gearbest image of camera parts and buttons:
    [​IMG]

    ***************************************************
    Mini 0826 product box side by side with Amkov 7000S: IMG_0016-mini0826-Amkov7000S.jpg

    ***************************************************

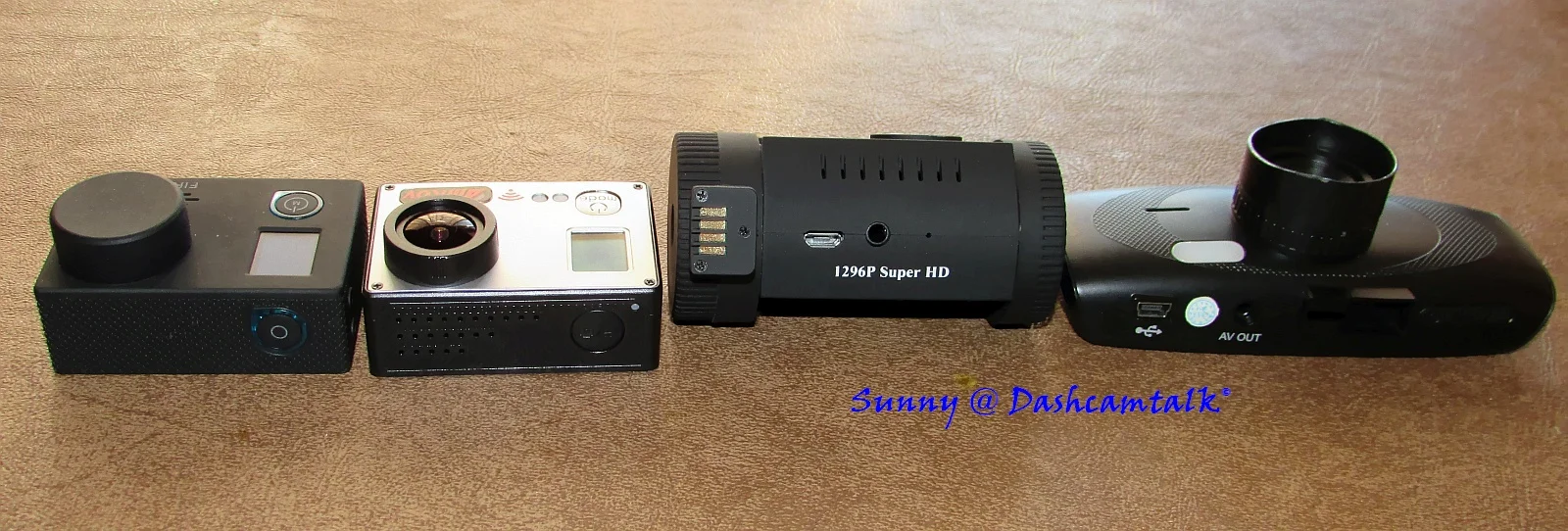

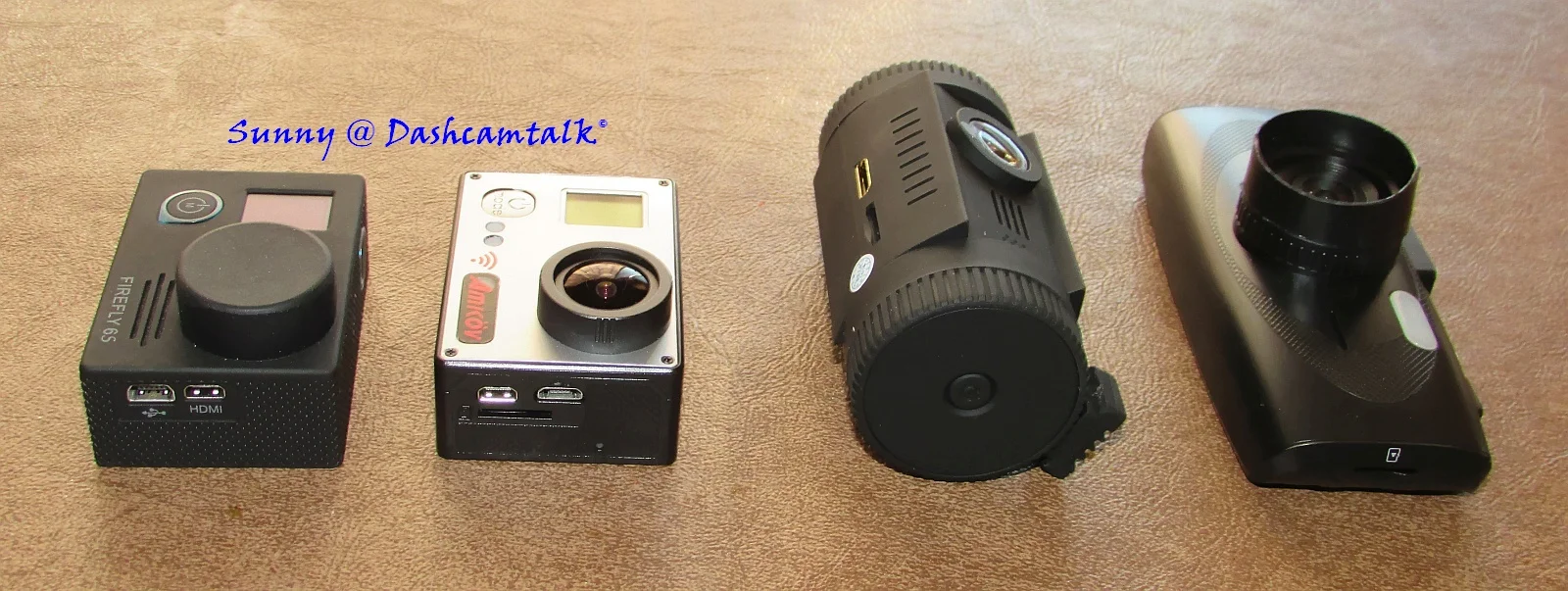

    Mini 0826 side by side with Firefly 6S, Amkov 7000S, G1WH.
    The rotating ring is very stiff so need to give it some force.
    Front view:
    Bottom view:

    Side has power button:

    Top view:


    Back view:

    ***************************************************
    Tests to follow soon...


    Attached Files:

    Olgu likes this.
  2. Nigel

    Nigel Well-Known Member

    Messages:
    5,055
    Likes Received:
    2,127
    Location:
    Devon
    Country:
    United Kingdom
    Dash Cam:
    Gitup Git3, Mini 0806
    In your images, it looks a little large for a side mounting. Can you check for vibration of the image while the car is idling with air con turned on, or just above idle? A few people had a vibration issue with the 0806 so hopefully this is not worse...

    And check the record time on internal battery please...

    Mtz likes this.
  3. Mtz

    Mtz Well-Known Member

    Messages:
    3,064
    Likes Received:
    1,408
    Location:
    Nice place
    Country:
    Romania
    Dash Cam:
    A119S. SG9665GC. GitUp. ITB-250HD. Mini 0805, 0806
    Looking at the pictures comparison seems that Mini will not remain so Mini regarding size.

    enjoy,
    Mtz

  4. russ331

    russ331 Well-Known Member

    Messages:
    2,403
    Likes Received:
    2,210
    Location:
    Kingston on Thames
    Country:
    United Kingdom
    Dash Cam:
    SGZC12RC, Mobius B(x2), Mini 0805
    Dashcam size should be considered in conjunction with the mounts. Once the other cameras have suction or adhesive mounts attached, they'll look far more conspicuous, i.e. less discreet than the Mini 0826.

    Mtz likes this.
  5. Mtz

    Mtz Well-Known Member

    Messages:
    3,064
    Likes Received:
    1,408
    Location:
    Nice place
    Country:
    Romania
    Dash Cam:
    A119S. SG9665GC. GitUp. ITB-250HD. Mini 0805, 0806
    Yes, I know that. Too many times the mount was destroying a camera small size concept.

    enjoy,
    Mtz

  6. Nigel

    Nigel Well-Known Member

    Messages:
    5,055
    Likes Received:
    2,127
    Location:
    Devon
    Country:
    United Kingdom
    Dash Cam:
    Gitup Git3, Mini 0806
    Especially when the mount is as big as the camera like with the 0903!

    [​IMG]

    CheckYourLights, jokiin and Mtz like this.
  7. CheckYourLights

    CheckYourLights Well-Known Member

    Messages:
    2,820
    Likes Received:
    955
    Country:
    United States
    Dash Cam:
    Front&Rear-SH800/ Front 2nd Vico-Opia 2
    I also noted them in my box and had no idea what they were for.

  8. Chris Hunt

    Chris Hunt Active Member Retailer

    Messages:
    259
    Likes Received:
    183
    Location:
    Sydney
    Country:
    Australia
    Dash Cam:
    VIOFO..DOD..VicoVation.... Mini Series...
    Hi CYL,

    The idea of the 2 clear films is to make it easier to remove your whole camera including mount from your car.

    You attach the clear film to your windscreen (basic instructions to do that are in the manual). Then attach the mount to the clear film, instead of your glass windscreen. Then you can easily remove the whole lot from your windscreen. Not sure if it adds any real benefit though as you still have the clear film stuck to your double sided tape.

    CheckYourLights and Mtz like this.
  9. Sunny

    Sunny Well-Known Member

    Messages:
    4,793
    Likes Received:
    1,542
    Location:
    Denver
    Country:
    United States
    Dash Cam:
    More than I can review. ;)
    Will do.

    I wonder if the mini 0806 mount can be used with this.
    I still have that one attached in one of the cars but don't want to fry it without knowing they are the same.

  10. Mtz

    Mtz Well-Known Member

    Messages:
    3,064
    Likes Received:
    1,408
    Location:
    Nice place
    Country:
    Romania
    Dash Cam:
    A119S. SG9665GC. GitUp. ITB-250HD. Mini 0805, 0806
    Usually the cameras are protected but you can check each pin of each mount which have Power and Ground.

    enjoy,
    Mtz

  11. Olgu

    Olgu Active Member

    Messages:
    274
    Likes Received:
    104
    Location:
    ─░zmir, Turkey
    Country:
    Turkey
    Dash Cam:
    Panorama X2
    My Mini 0826 video sample :




  12. Sunny

    Sunny Well-Known Member

    Messages:
    4,793
    Likes Received:
    1,542
    Location:
    Denver
    Country:
    United States
    Dash Cam:
    More than I can review. ;)
    Hehe... so we have to clean even more area instead of the small mount?
    How does it make it easy to remove?
    Does the film just peels off or it also needs the same scrubbing like VHB tape?

  13. CheckYourLights

    CheckYourLights Well-Known Member

    Messages:
    2,820
    Likes Received:
    955
    Country:
    United States
    Dash Cam:
    Front&Rear-SH800/ Front 2nd Vico-Opia 2
    Thanks for explaining.

  14. Rajagra

    Rajagra Well-Known Member

    Messages:
    2,308
    Likes Received:
    1,692
    Country:
    United Kingdom
    Dash Cam:
    Mini0806
    I'm guessing that the clear film is less sticky than VHB but because of the large surface area the total holding force is still high enough.
    But when it's time to take it off it can peel off more easily than VHB.
    Possibly most relevant to people with a tinted layer on the windscreen?

  15. frazzeld

    frazzeld Member

    Messages:
    41
    Likes Received:
    8
    Country:
    United Kingdom
    Does the 0826 work with the 0805 GPS mount?

  16. Chris Hunt

    Chris Hunt Active Member Retailer

    Messages:
    259
    Likes Received:
    183
    Location:
    Sydney
    Country:
    Australia
    Dash Cam:
    VIOFO..DOD..VicoVation.... Mini Series...
    0806 and 0826 mounts are compatible...it's the same mount.

  17. Chris Hunt

    Chris Hunt Active Member Retailer

    Messages:
    259
    Likes Received:
    183
    Location:
    Sydney
    Country:
    Australia
    Dash Cam:
    VIOFO..DOD..VicoVation.... Mini Series...
    Just peels off. It uses water to vacuum seal to the windscreen. No adhesive on the film at all.

  18. Chris Hunt

    Chris Hunt Active Member Retailer

    Messages:
    259
    Likes Received:
    183
    Location:
    Sydney
    Country:
    Australia
    Dash Cam:
    VIOFO..DOD..VicoVation.... Mini Series...
    No..they are not compatible.

    jokiin likes this.
  19. Sunny

    Sunny Well-Known Member

    Messages:
    4,793
    Likes Received:
    1,542
    Location:
    Denver
    Country:
    United States
    Dash Cam:
    More than I can review. ;)
    Folders and files:
    Root folder has DCIM, gps and Player folders.
    DCIM has 100MEDIA folder with video files.
    gps has gps text files.
    Player has video player software named QtPlayer.

    Mini 0826 Folders and files.jpg

    File size and VBR:
    2560x1080p: Overall VBR is 16.8mbps with video 15.4mbps and audio 128kbps.
    File size for 1 minute is around 120mb.
    Mini 0826 files properties-2580.jpg

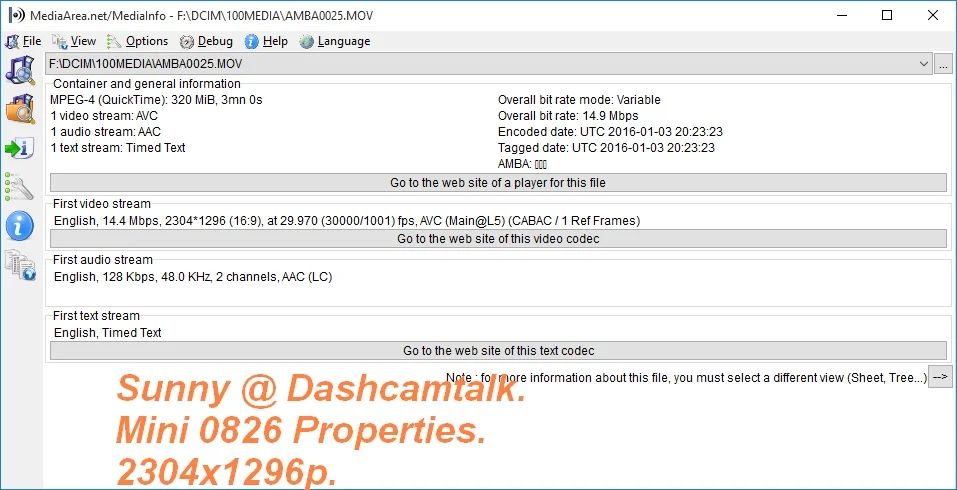

    2304x1296p: Overall VBR is 14.9mbps with video 14.4mbps and audio 128kbps.
    File size for 3 minute is around 320mb.
    Mini 0826 files properties.jpg



    gps file sample:
    Code:
    A,030116,193946.000,3936.5895,N,10506.9106,W, 0.0,1739.3M,-01.84,-09.19,+00.61;
    A,030116,193948.000,3936.5893,N,10506.9370,W, 0.0,1739.0M,-01.23,-09.80,+00.61;
    A,030116,193949.000,3936.5892,N,10506.9501,W, 0.0,1738.5M,-01.84,-11.03,+00.00;
    A,030116,193949.000,3936.5892,N,10506.9501,W, 0.0,1737.7M,-02.45,-11.64,+00.61;
    A,030116,193951.000,3936.5893,N,10506.9768,W, 0.0,1737.7M,-01.23,-11.64,+00.61;

    Another difference is that the 0826 only has one microSD slot vs two in 0806.

  20. Sunny

    Sunny Well-Known Member

    Messages:
    4,793
    Likes Received:
    1,542
    Location:
    Denver
    Country:
    United States
    Dash Cam:
    More than I can review. ;)

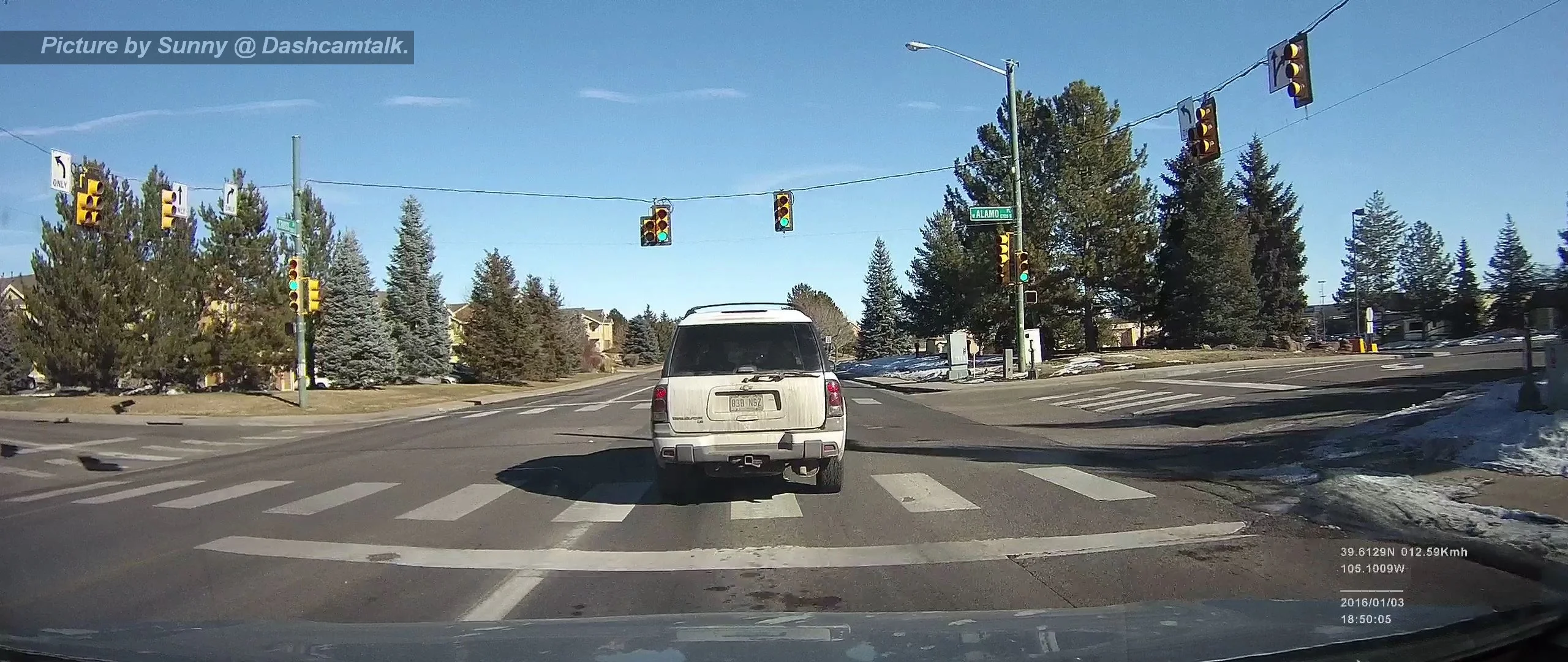

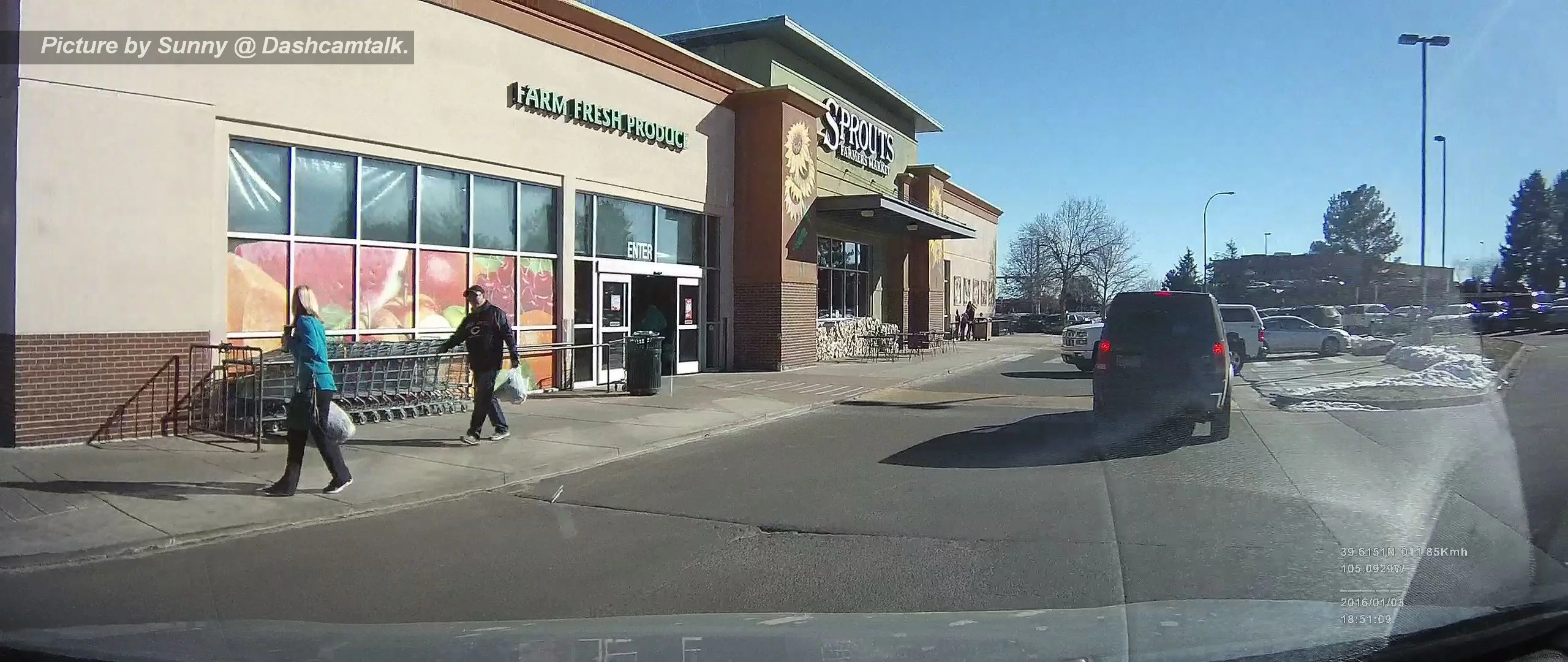

    Daytime video screenshots:
    Video is good and all areas are in focus.
    Colors are slightly washed out.

    2580x1080p screenshots:




    Great sharpness all over the FOV:

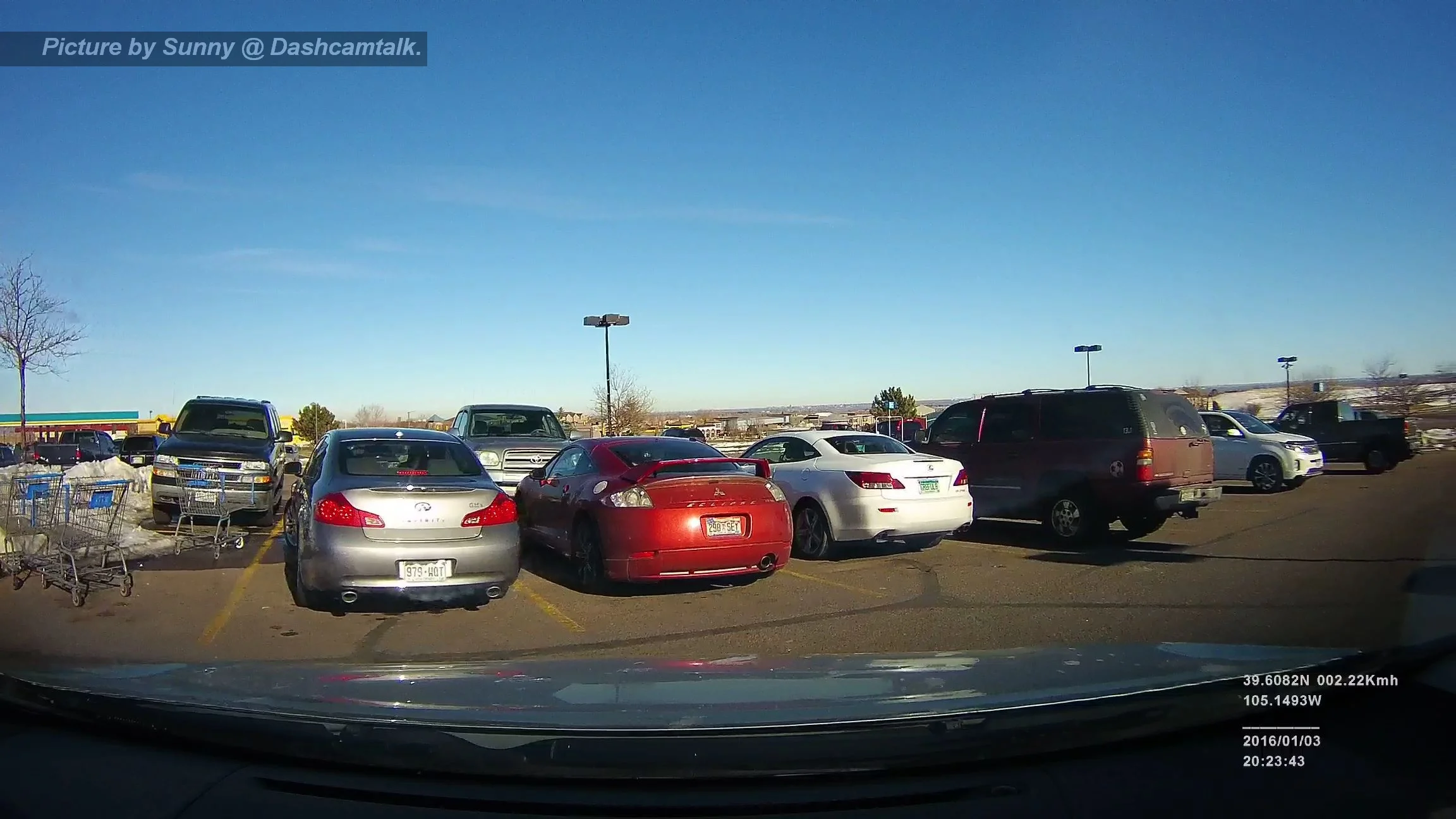

    2304x1296p screenshots:

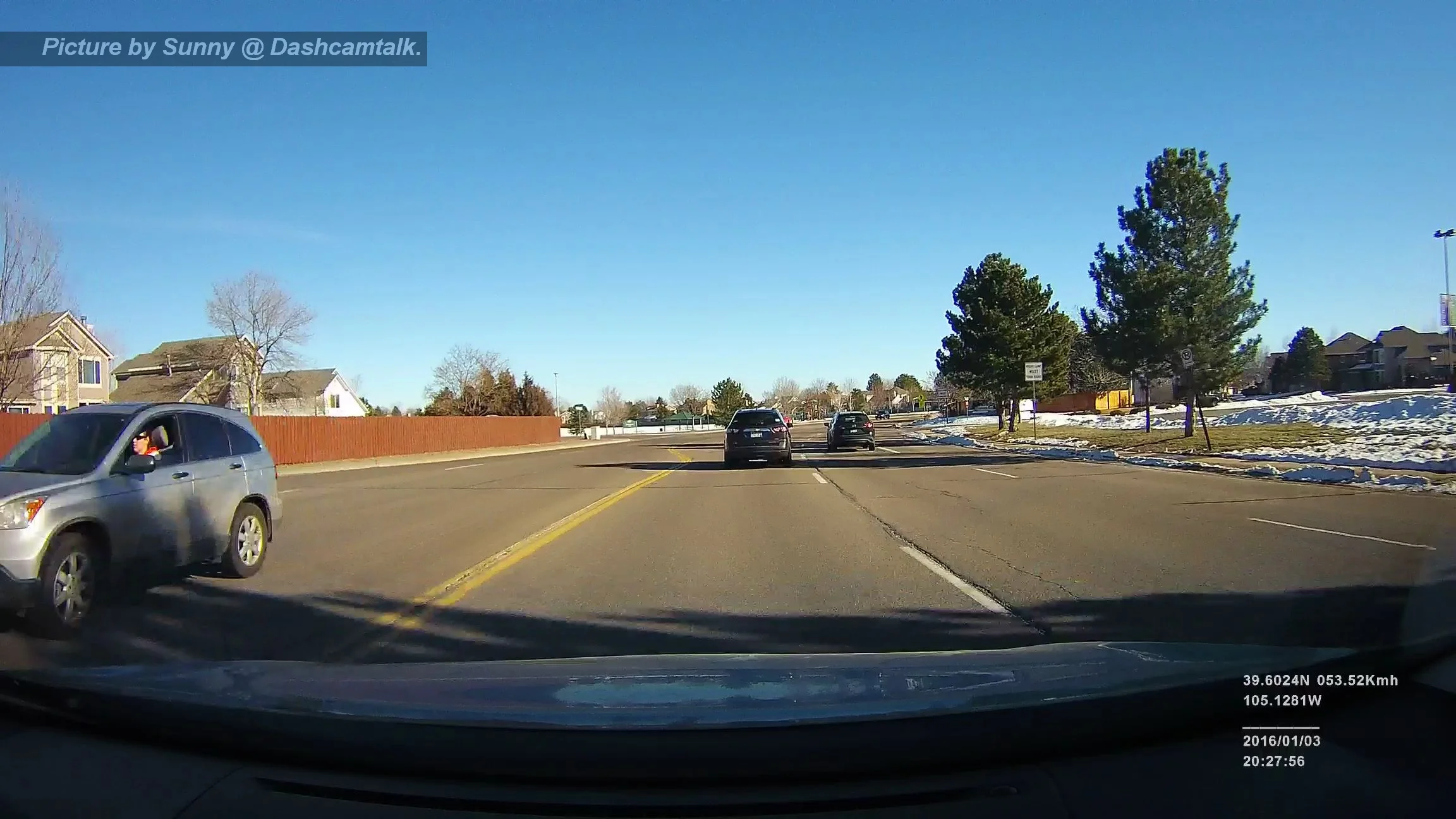

    AMBA0026.MOV_000045552.jpg AMBA0026.MOV_000092971.jpg
