Thank you @Veckle DashCam for providing mini 0906 dual dash cam for testing.
This camera is based on Novatek NT96663 chipset and Sony Exmor sensor (Front IMX290/291 and Rear IMX 322/323.
Both front and rear cameras record at 1080p resolution.
Front camera can record at higher resolutions if rear camera is not used.
It is available at Veckle's Amazon store here:
https://www.amazon.com/gp/B0746BCFBF***************************************************
Note: So far it hasn't shut down on me so probably the heat issue is resolved.
Temperature reading on the screen has gone up to around 153 degrees Fahrenheit.
Will update after more tests.
***************************************************

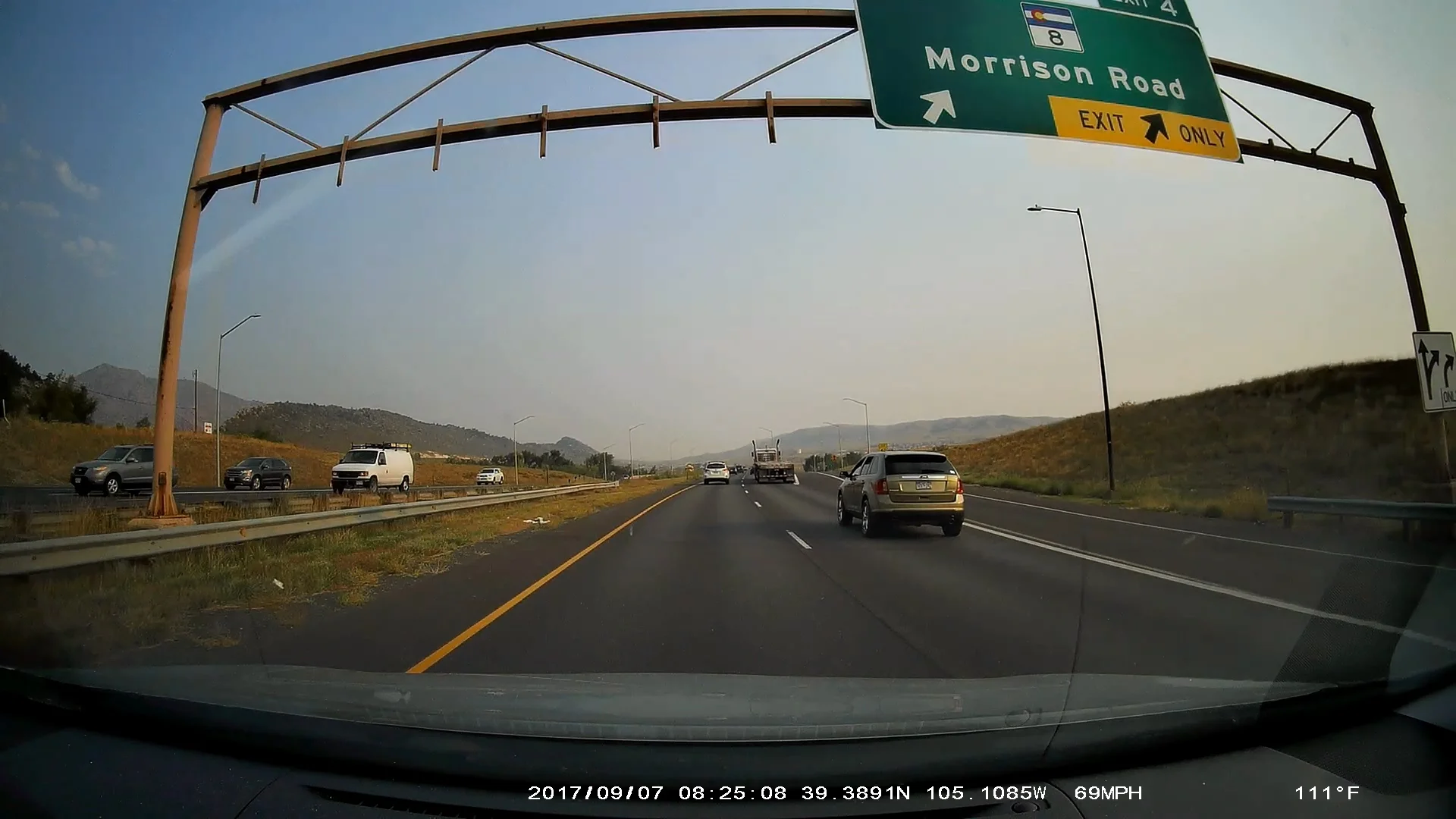

Unboxing mini 0906 dual dashcam with day front and rear videos:
***************************************************
Package contents:
Dash cam body (front and rear); 6M (19ft) extend cable for rear camera; remote button;
2 degree and 4 degree mounting wedges; KB1.4*6mm screws; 5V 2A cigar lighter charger
Micro USB cable; Cable clips; VHB sticker pads; VHB sticker removing cord; Cloth; User manual
![DSC07605_mini_0906_dual_camera_dashcam_veckle-s.jpg DSC07605_mini_0906_dual_camera_dashcam_veckle-s.jpg](https://dashcamtalk.com/forum/data/attachments/32/32886-ce45f5d583367ee0d22a850730fbfc22.jpg?hash=zkX11YM2fu)
>>Besides the contents inside the main dashcam package, it also came with a CPL filter and a hardwiring kit.
![DSC07604_mini_0906_dual_camera_dashcam_veckle-s.jpg DSC07604_mini_0906_dual_camera_dashcam_veckle-s.jpg](https://dashcamtalk.com/forum/data/attachments/32/32891-1366fe17e1768d0330983f869cb03687.jpg?hash=E2b-F-F2jQ)
***************************************************
Product Images:
![DSC07606_mini_0906_dual_camera_dashcam_veckle.jpg DSC07606_mini_0906_dual_camera_dashcam_veckle.jpg](https://dashcamtalk.com/forum/data/attachments/32/32887-412a8b0733af56758f147cb378251bf8.jpg?hash=QSqLBzOvVn)
![DSC07607_mini_0906_dual_camera_dashcam_veckle.jpg DSC07607_mini_0906_dual_camera_dashcam_veckle.jpg](https://dashcamtalk.com/forum/data/attachments/32/32888-b1f26fc98ecc676549936ab7239984b1.jpg?hash=sfJvyY7MZ2)
![DSC07608_mini_0906_dual_camera_dashcam_veckle.jpg DSC07608_mini_0906_dual_camera_dashcam_veckle.jpg](https://dashcamtalk.com/forum/data/attachments/32/32889-b3bd88614a84082b3aaa559cd83b1658.jpg?hash=s72IYUqECC)
***************************************************
mini 0906 folders, files and bit rate: Root has the following folders:
FRONT
GPS
Novatek
REAR
and a html file named 'service'.
FRONT and REAR folders have front and rear cameras' videos respectively.
File names have date time.
GPS folder has gps logs and there are dummy text files under Novatek.
Overall bit rate is 20.3 mbps for the front with 20.1 mbps video and 96 kbps audio and 16.6 mbps for the rear with 16.4 mbps video and 96 kbps audio.
***************************************************
GPS log file sample:
A,070917,142832,3942.1304,N,10511.6102,W,57.4,0.05,0.77,-0.05;
A,070917,142833,3942.1462,N,10511.6085,W,57.5,0.04,1.02,-0.13;
A,070917,142834,3942.1620,N,10511.6064,W,57.0,0.02,0.83,-0.20;
A,070917,142835,3942.1777,N,10511.6040,W,56.6,-0.09,1.00,-0.34;
A,070917,142836,3942.1931,N,10511.6012,W,56.2,-0.06,0.85,-0.03;
A,070917,142837,3942.2086,N,10511.5983,W,56.1,0.11,0.91,-0.23;
A,070917,142838,3942.2241,N,10511.5952,W,56.1,-0.06,0.91,-0.10;
A,070917,142839,3942.2396,N,10511.5919,W,55.8,-0.19,0.87,-0.27;
A,070917,142840,3942.2550,N,10511.5889,W,55.8,-0.03,0.91,-0.30;
A,070917,142841,3942.2702,N,10511.5860,W,55.2,-0.03,0.95,-0.20;
***************************************************
continued...
This camera is based on Novatek NT96663 chipset and Sony Exmor sensor (Front IMX290/291 and Rear IMX 322/323.
Both front and rear cameras record at 1080p resolution.
Front camera can record at higher resolutions if rear camera is not used.
It is available at Veckle's Amazon store here:
https://www.amazon.com/gp/B0746BCFBF***************************************************
Note: So far it hasn't shut down on me so probably the heat issue is resolved.
Temperature reading on the screen has gone up to around 153 degrees Fahrenheit.
Will update after more tests.
***************************************************
Unboxing mini 0906 dual dashcam with day front and rear videos:
Package contents:
Dash cam body (front and rear); 6M (19ft) extend cable for rear camera; remote button;
2 degree and 4 degree mounting wedges; KB1.4*6mm screws; 5V 2A cigar lighter charger
Micro USB cable; Cable clips; VHB sticker pads; VHB sticker removing cord; Cloth; User manual
![DSC07605_mini_0906_dual_camera_dashcam_veckle-s.jpg DSC07605_mini_0906_dual_camera_dashcam_veckle-s.jpg](https://dashcamtalk.com/forum/data/attachments/32/32886-ce45f5d583367ee0d22a850730fbfc22.jpg?hash=zkX11YM2fu)
>>Besides the contents inside the main dashcam package, it also came with a CPL filter and a hardwiring kit.
![DSC07604_mini_0906_dual_camera_dashcam_veckle-s.jpg DSC07604_mini_0906_dual_camera_dashcam_veckle-s.jpg](https://dashcamtalk.com/forum/data/attachments/32/32891-1366fe17e1768d0330983f869cb03687.jpg?hash=E2b-F-F2jQ)
***************************************************
Product Images:
![DSC07606_mini_0906_dual_camera_dashcam_veckle.jpg DSC07606_mini_0906_dual_camera_dashcam_veckle.jpg](https://dashcamtalk.com/forum/data/attachments/32/32887-412a8b0733af56758f147cb378251bf8.jpg?hash=QSqLBzOvVn)
![DSC07607_mini_0906_dual_camera_dashcam_veckle.jpg DSC07607_mini_0906_dual_camera_dashcam_veckle.jpg](https://dashcamtalk.com/forum/data/attachments/32/32888-b1f26fc98ecc676549936ab7239984b1.jpg?hash=sfJvyY7MZ2)
![DSC07608_mini_0906_dual_camera_dashcam_veckle.jpg DSC07608_mini_0906_dual_camera_dashcam_veckle.jpg](https://dashcamtalk.com/forum/data/attachments/32/32889-b3bd88614a84082b3aaa559cd83b1658.jpg?hash=s72IYUqECC)
***************************************************

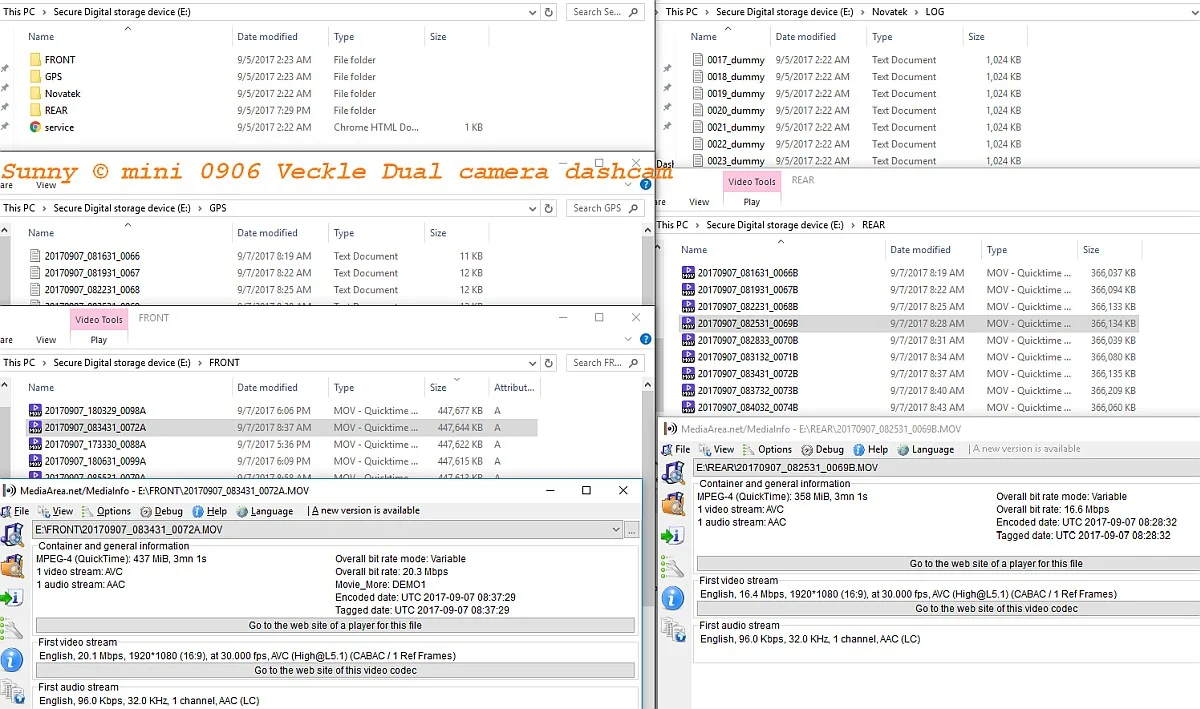

mini 0906 folders, files and bit rate: Root has the following folders:
FRONT
GPS
Novatek
REAR
and a html file named 'service'.
FRONT and REAR folders have front and rear cameras' videos respectively.
File names have date time.
GPS folder has gps logs and there are dummy text files under Novatek.
Overall bit rate is 20.3 mbps for the front with 20.1 mbps video and 96 kbps audio and 16.6 mbps for the rear with 16.4 mbps video and 96 kbps audio.
![mini 0906 dual camera veckle Folders Files Bit Rate.jpg mini 0906 dual camera veckle Folders Files Bit Rate.jpg](https://dashcamtalk.com/forum/data/attachments/32/32890-3d20d9cfccc30416c796963afbd06e3b.jpg?hash=PSDZz8zDBB)
***************************************************
GPS log file sample:
A,070917,142832,3942.1304,N,10511.6102,W,57.4,0.05,0.77,-0.05;
A,070917,142833,3942.1462,N,10511.6085,W,57.5,0.04,1.02,-0.13;
A,070917,142834,3942.1620,N,10511.6064,W,57.0,0.02,0.83,-0.20;
A,070917,142835,3942.1777,N,10511.6040,W,56.6,-0.09,1.00,-0.34;
A,070917,142836,3942.1931,N,10511.6012,W,56.2,-0.06,0.85,-0.03;
A,070917,142837,3942.2086,N,10511.5983,W,56.1,0.11,0.91,-0.23;
A,070917,142838,3942.2241,N,10511.5952,W,56.1,-0.06,0.91,-0.10;
A,070917,142839,3942.2396,N,10511.5919,W,55.8,-0.19,0.87,-0.27;
A,070917,142840,3942.2550,N,10511.5889,W,55.8,-0.03,0.91,-0.30;
A,070917,142841,3942.2702,N,10511.5860,W,55.2,-0.03,0.95,-0.20;
***************************************************
continued...
