Thinkware F790 review

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc
Author's Note: The full review can be found here. My review blog for my other reviews: jwtechreviews.com


Here comes the new F790 from Thinkware.



Technical Specs:
• Processor: Ambarella Quad-core CPU
• Sensor: Front: 2.1M CMOS Sensor; Rear: 2.12M Image Sensor
• Viewing angle: Front: 140º; Rear: 160º Wide Viewing Angle
• 3-Axis Accelerometer G-Sensor (3D, ±3G)
• Resolution: front & rear: FHD (1920 x 1080) 30fps
• Support up to 128GB microSD card
• Built-in GPS in Plugin Mount
• Built-in Wi-Fi (2.4GHz / 5GHz)
• Built-in supercapacitor
• Safety Camera Alert
• Dewarping Video Technology
• Road Safety Warning System (LDWS, FCWS, uFCWS, FVDW)
• Time-lapse & motion detection parking mode
• Super Night Vision 3.0
• High Dynamic Range (HDR)
• Energy Saving Parking Recording 2.0

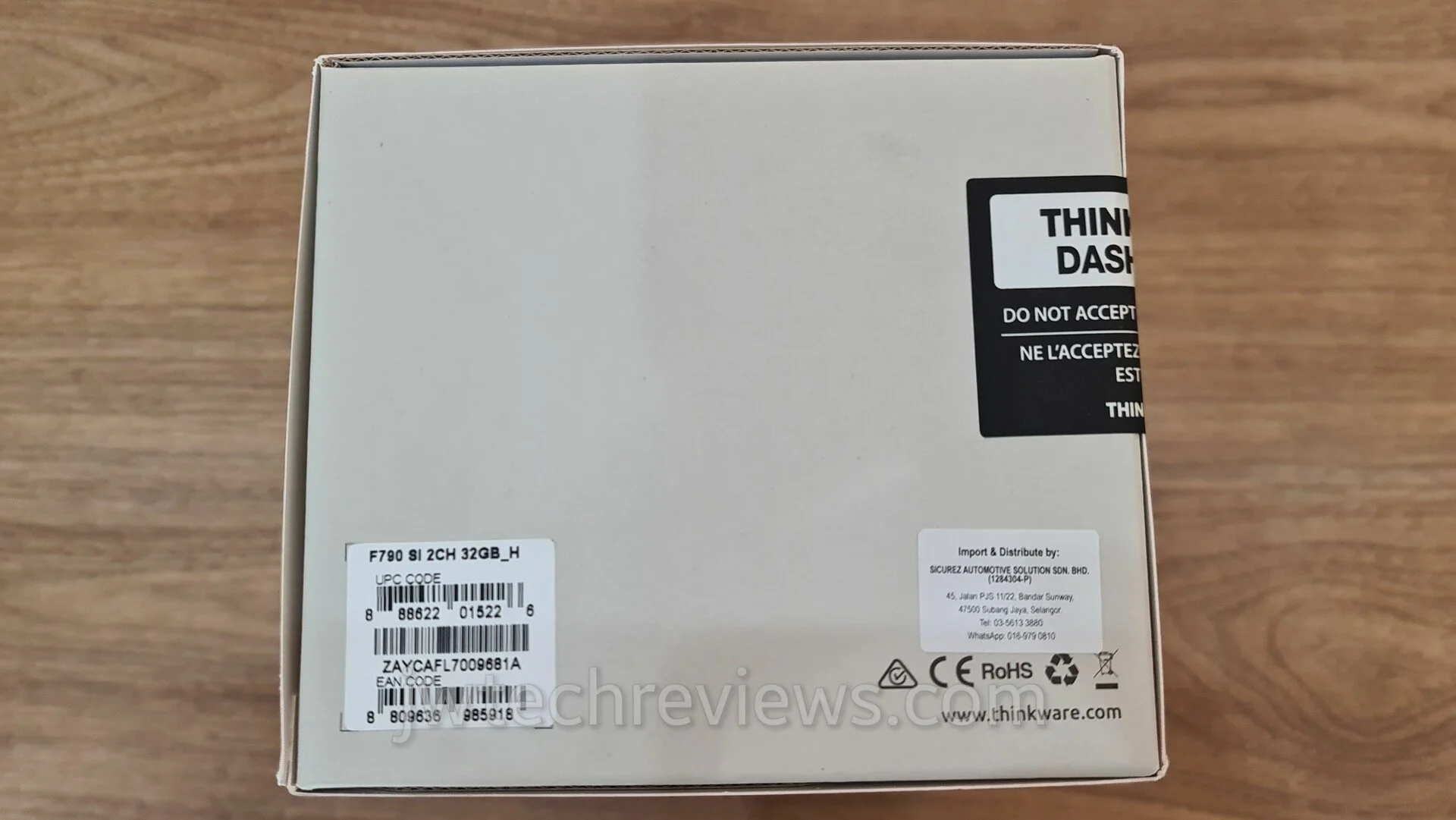

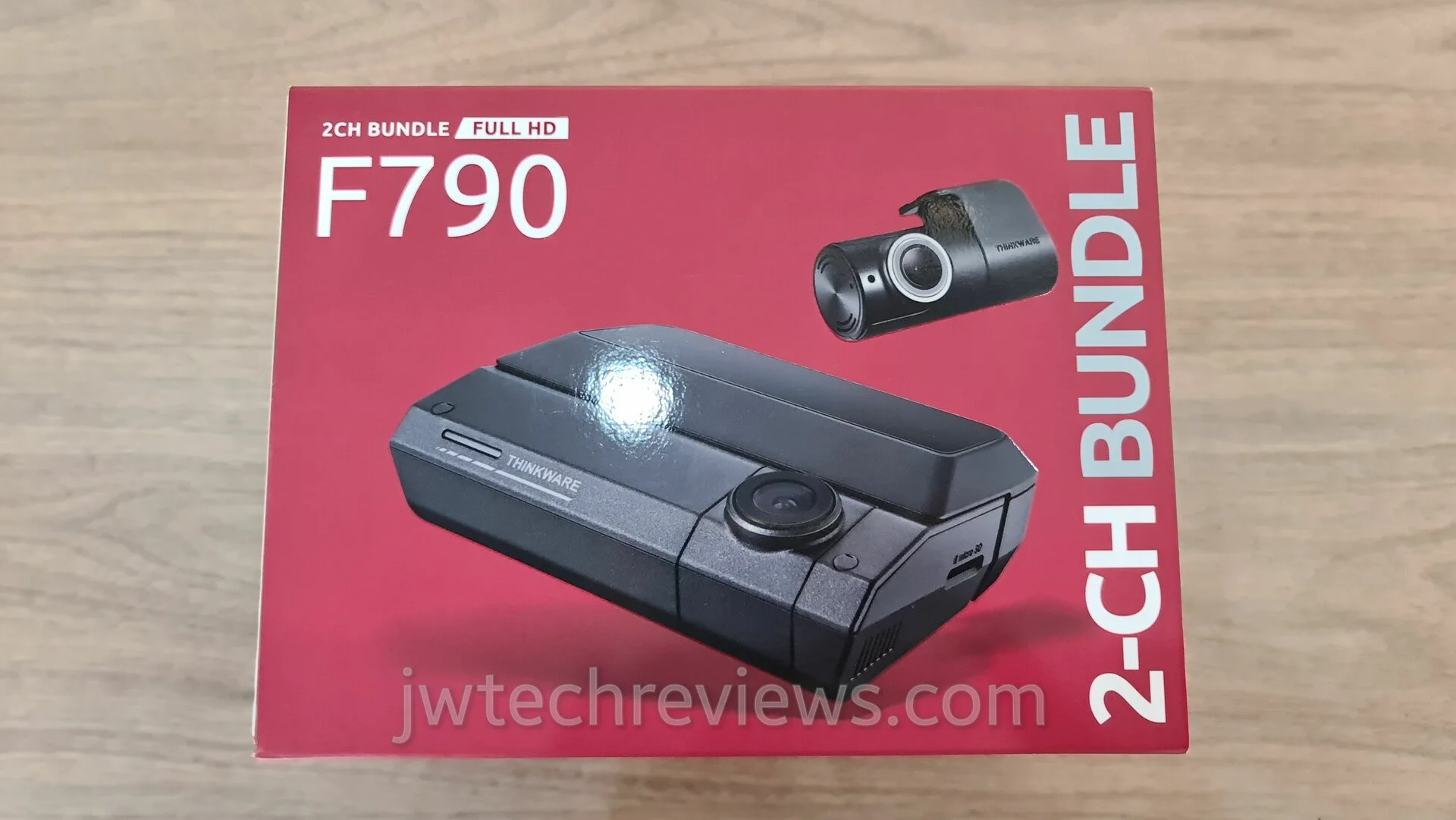

The box
20211009_152401_wm.jpg20211009_152418_wm.jpg20211009_152434_wm.jpg20211009_152444_wm.jpg20211009_152500_wm.jpg20211009_152510_wm.jpg20211009_152608_wm.jpg

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc

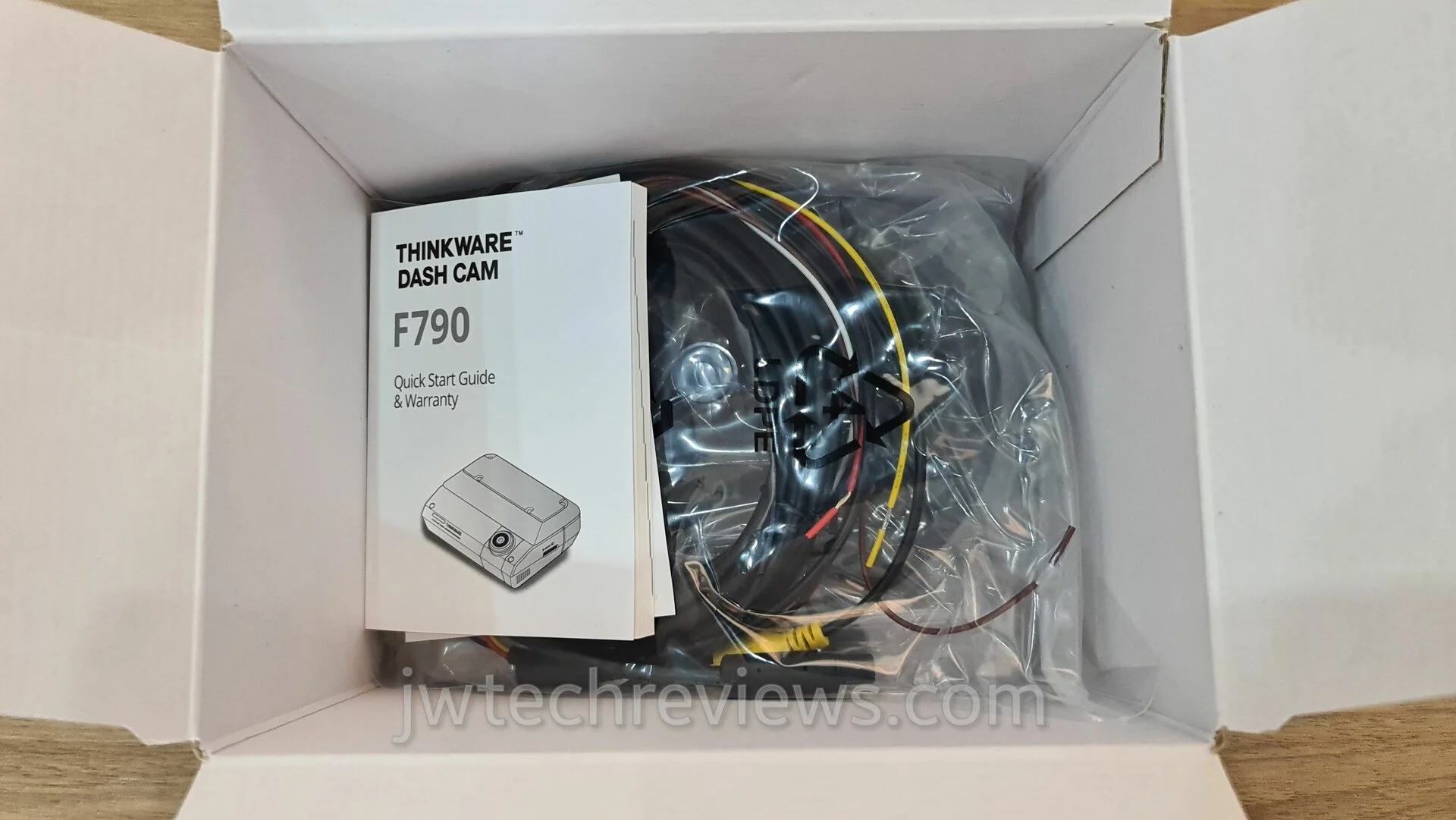

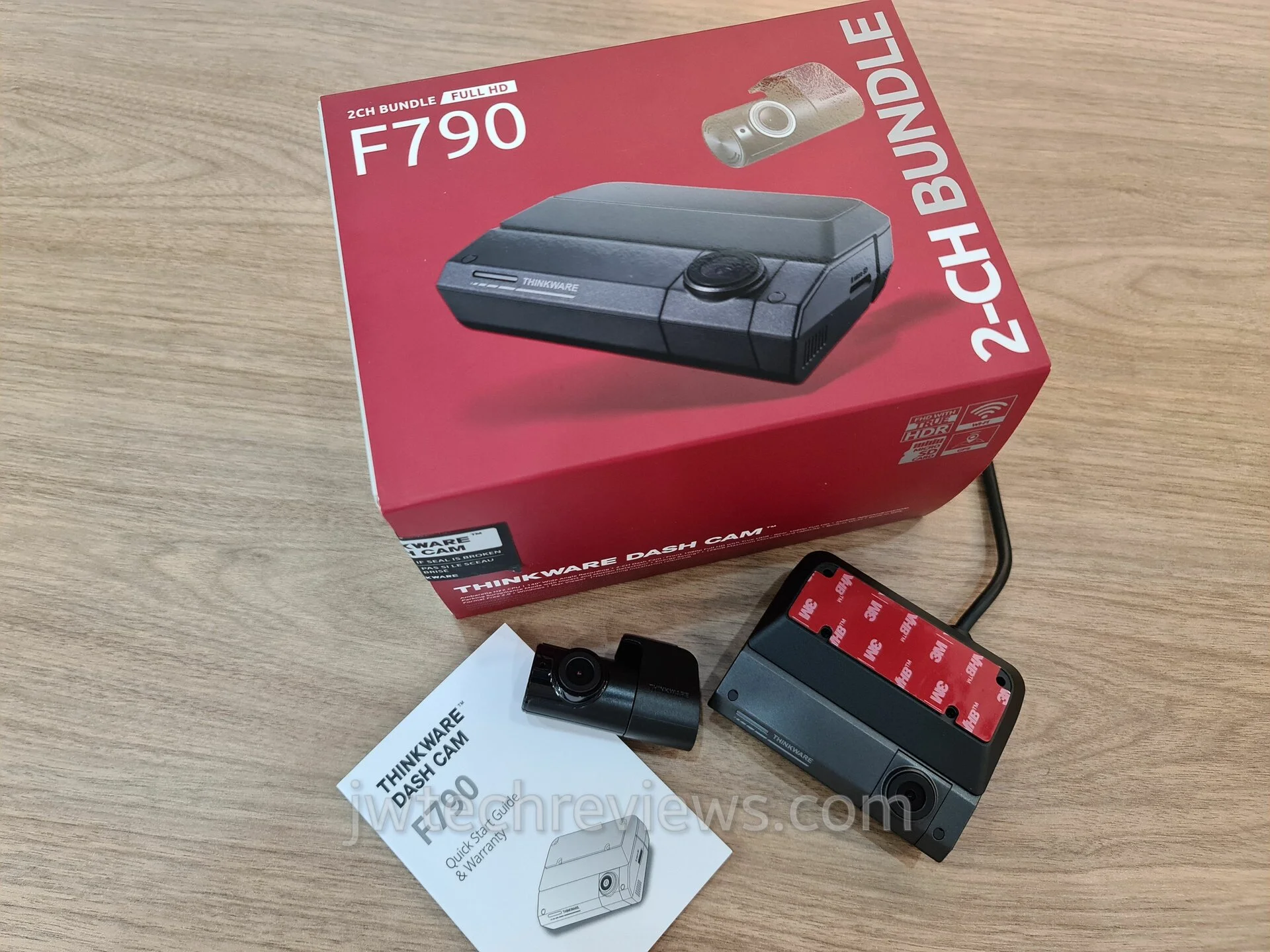

Open box


Contents
• F790
• Cradle mount

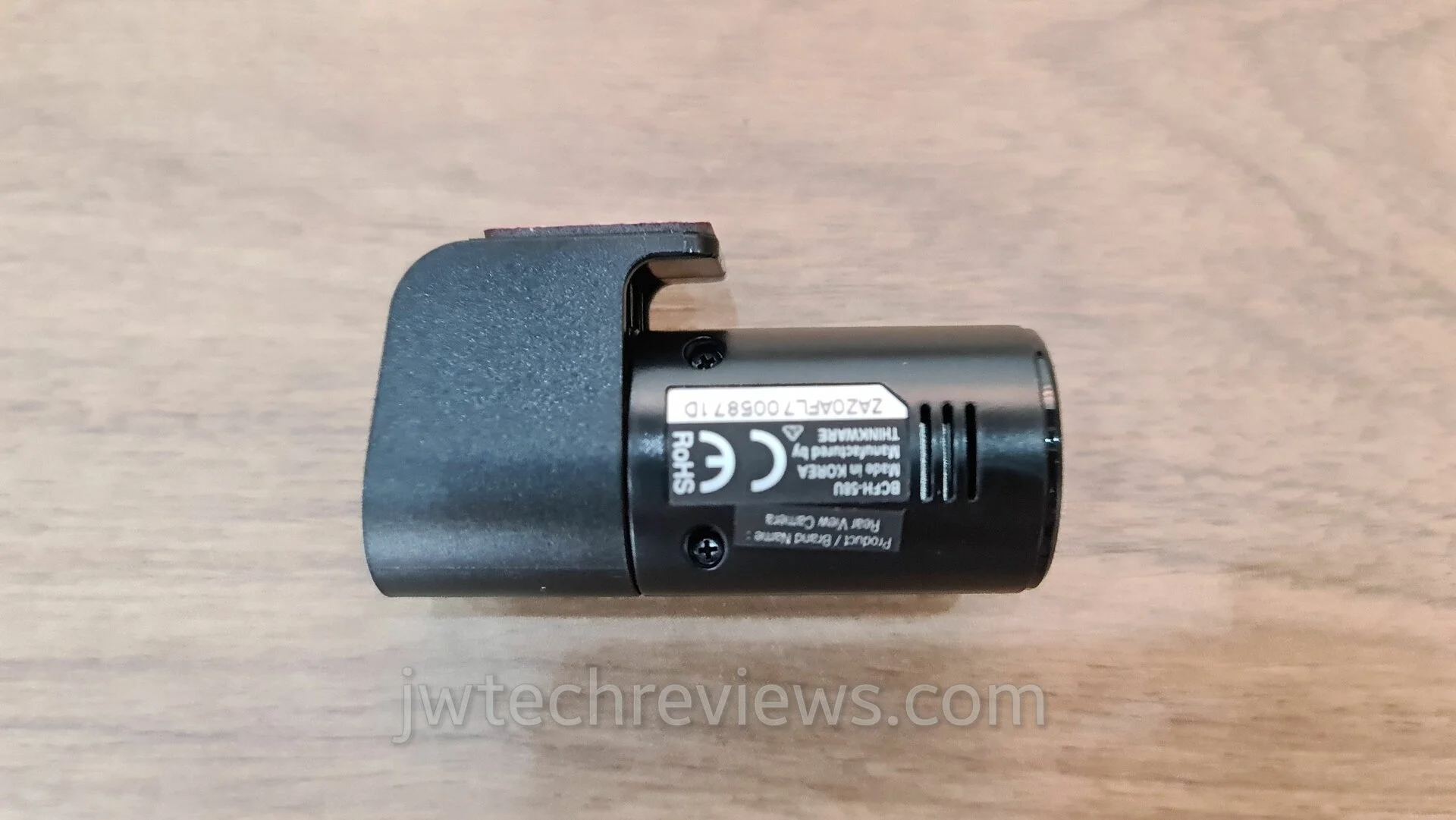

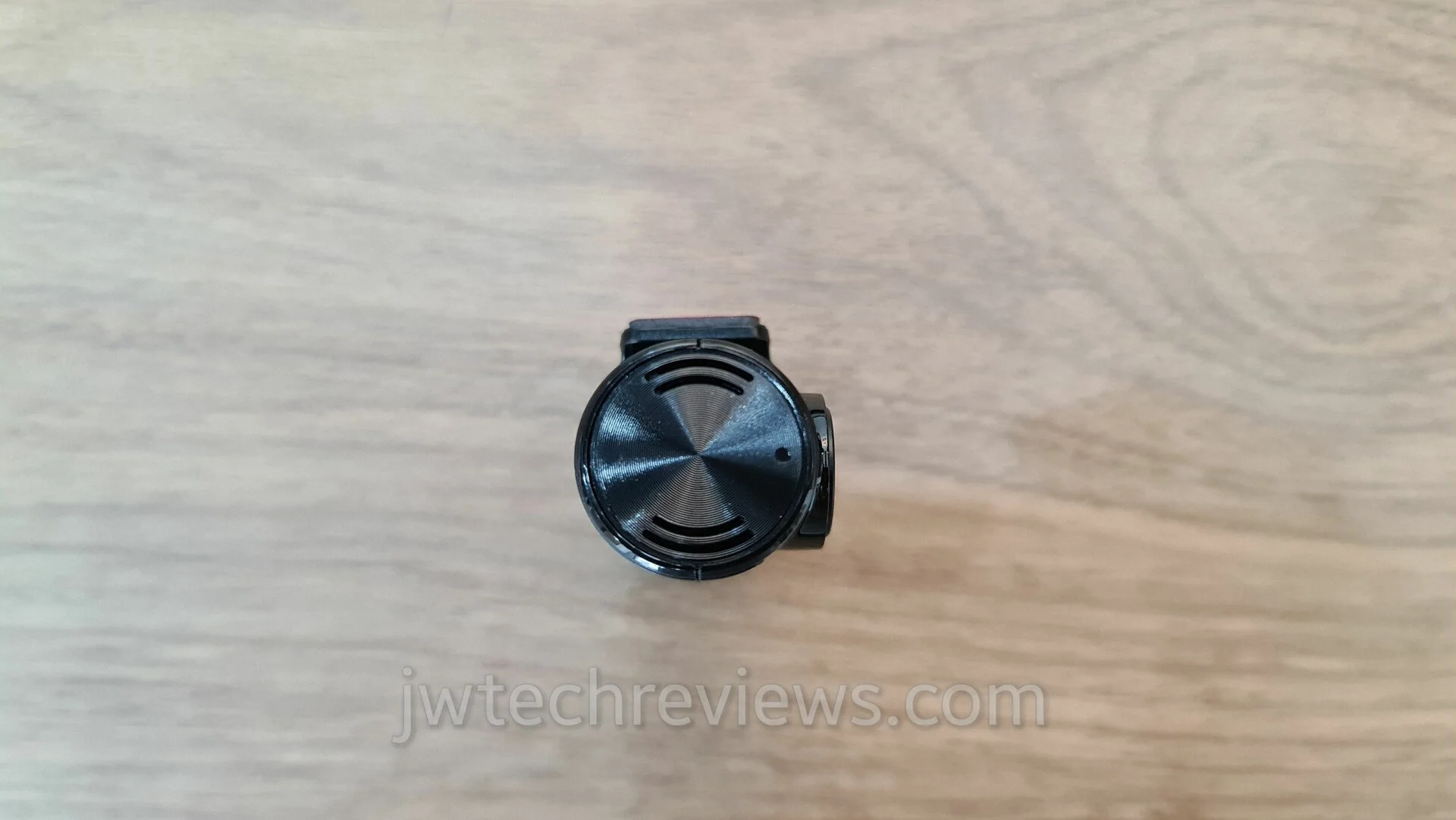

• Rear cam
• Rear cam cable
• 32GB Thinkware micro SD card
• Hardwire kit
• Spare mounting tape
• Quick start guide & warranty
• Installation guide

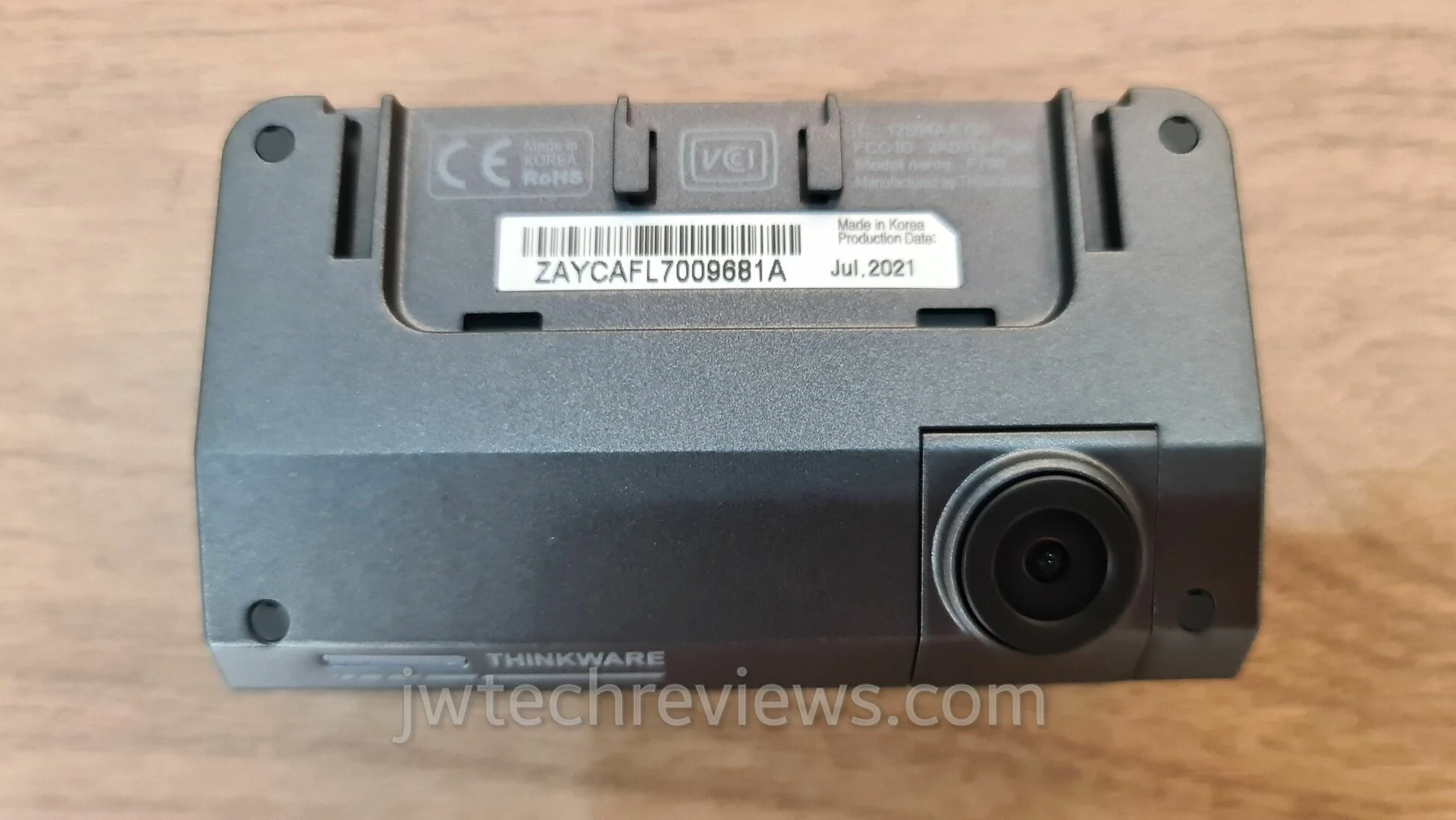

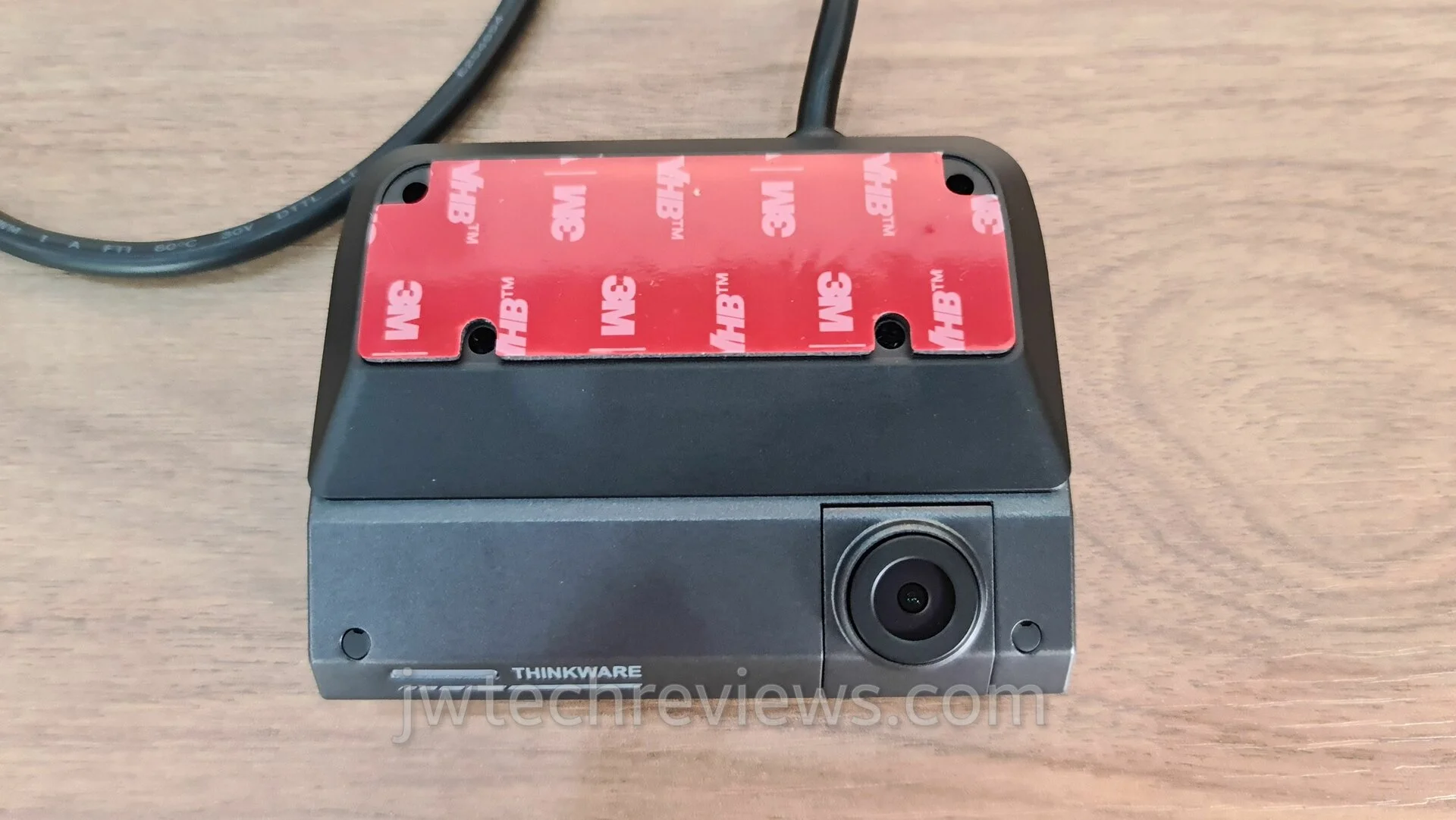

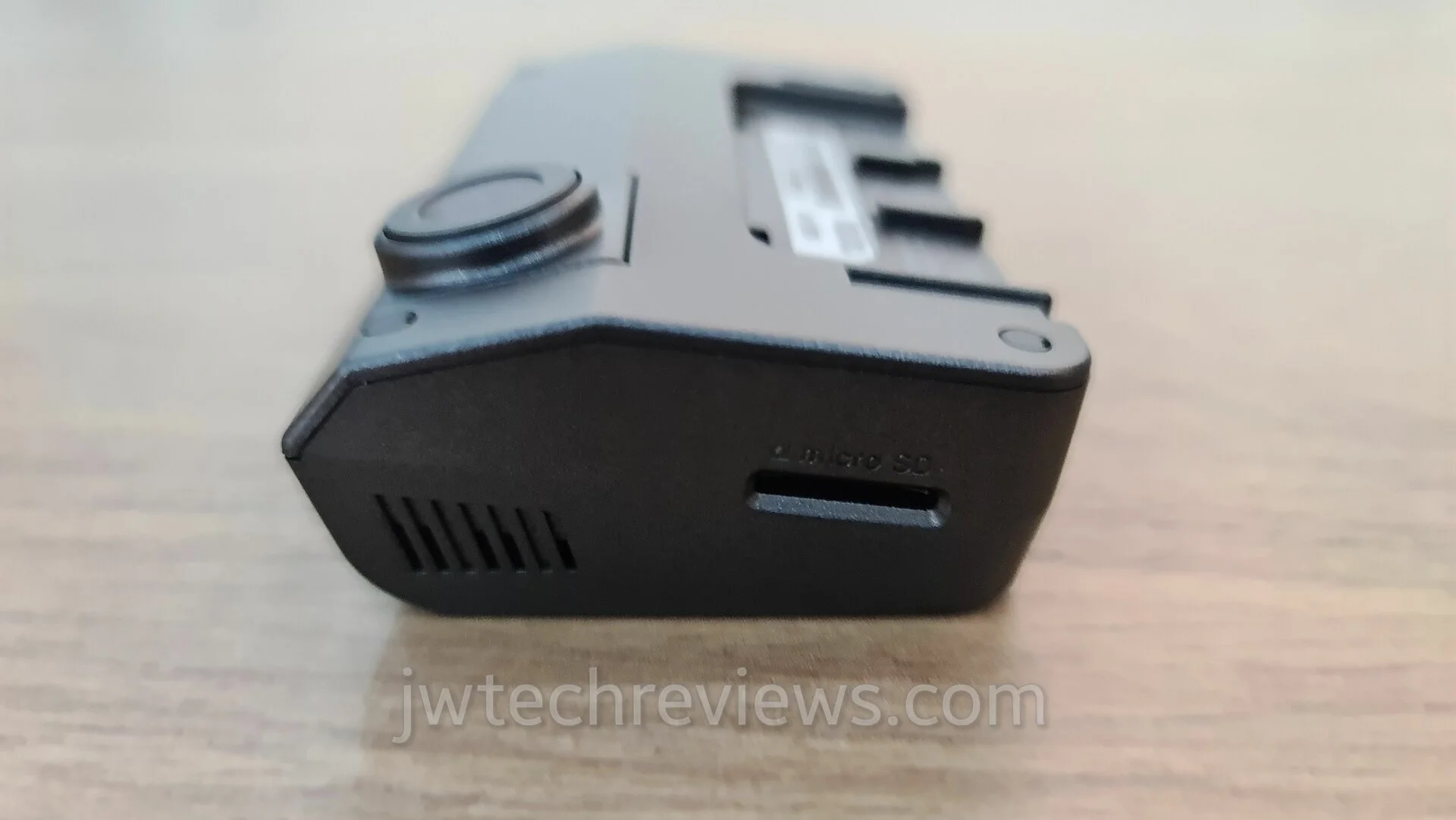

F790
20211009_153752_wm.jpg20211009_153759_wm.jpg20211009_153846_wm.jpg20211009_153857_wm.jpg20211009_153919_wm.jpg20211009_153941_wm.jpg

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc

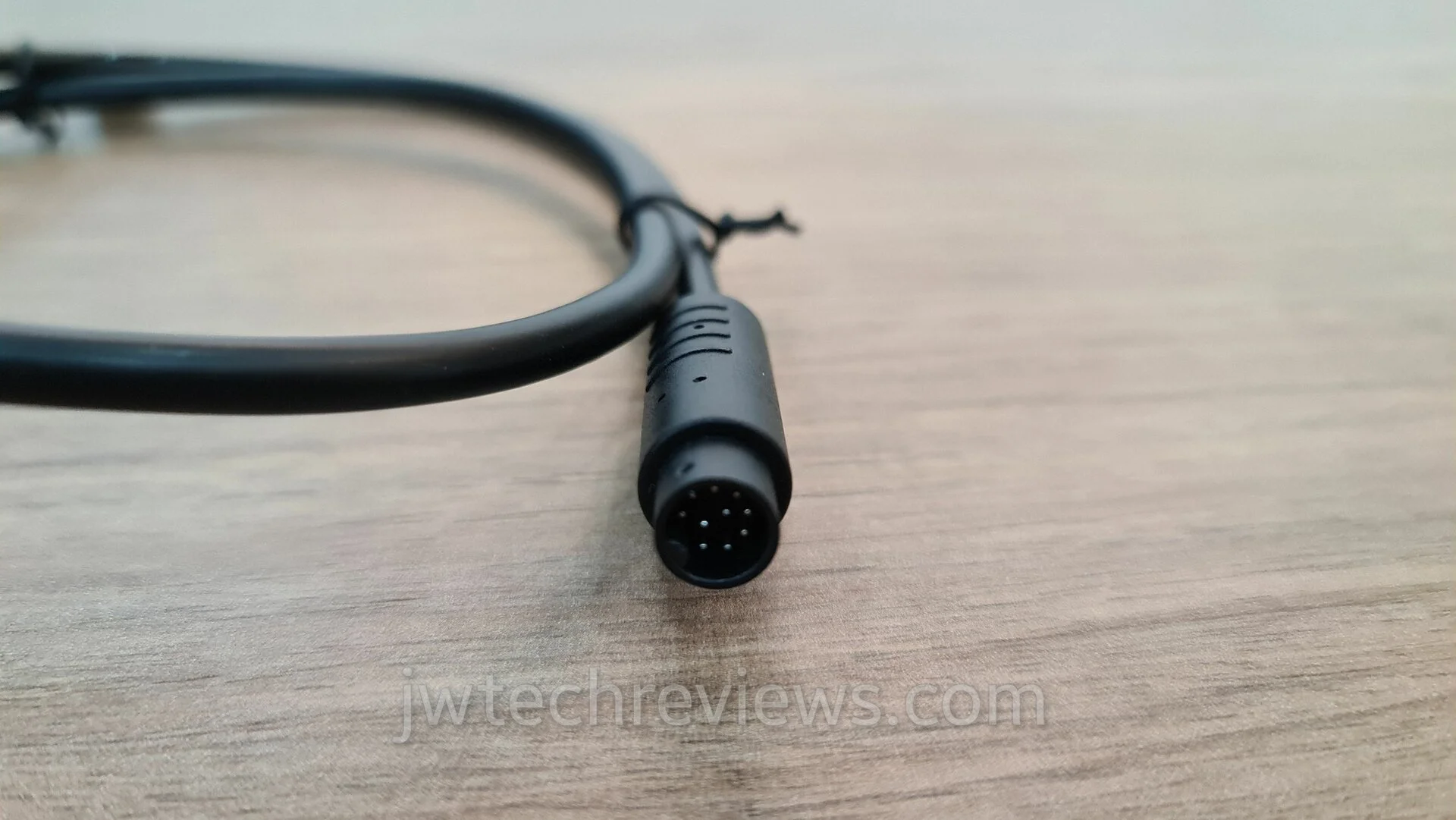

Rear cam cable

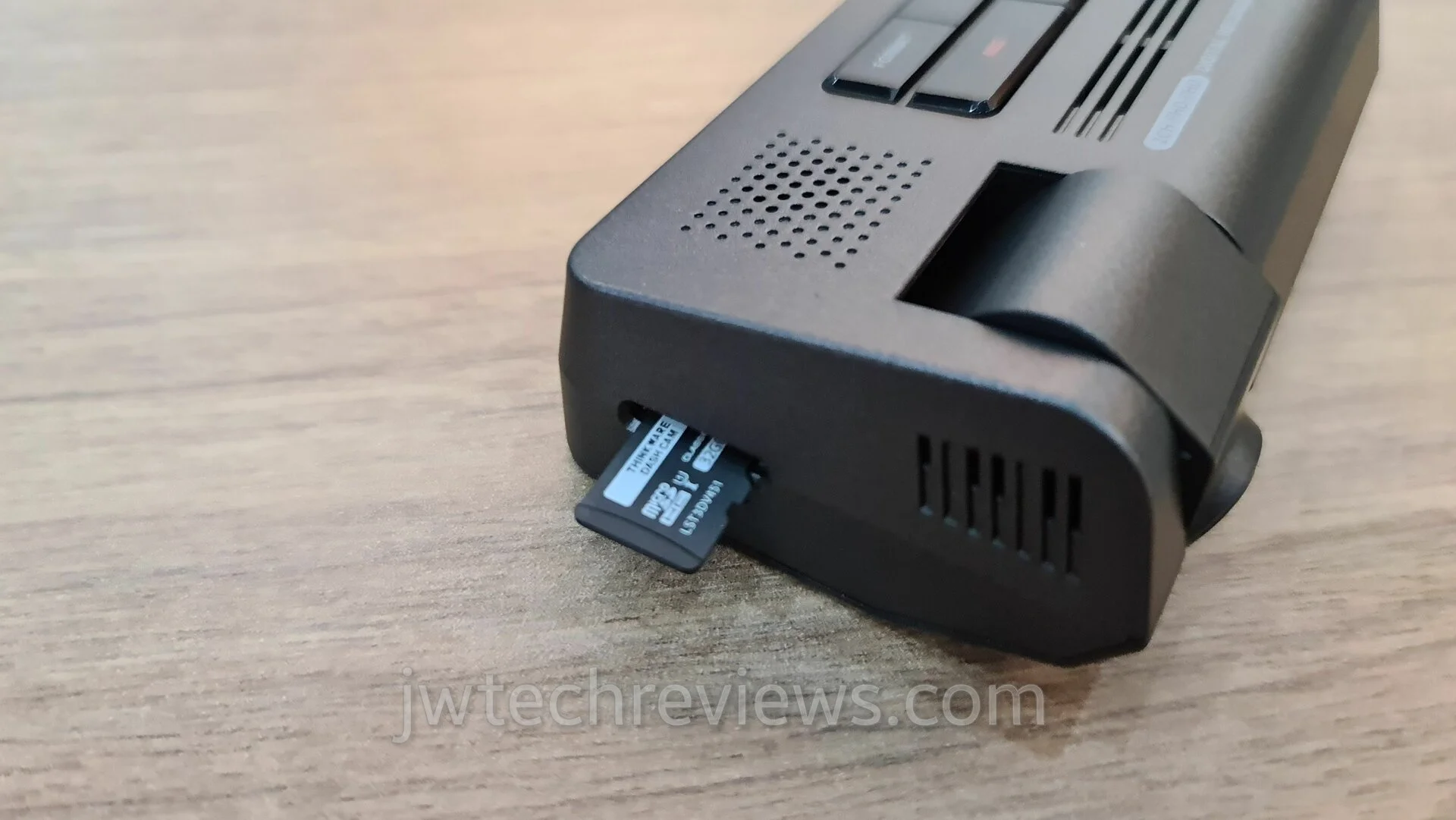

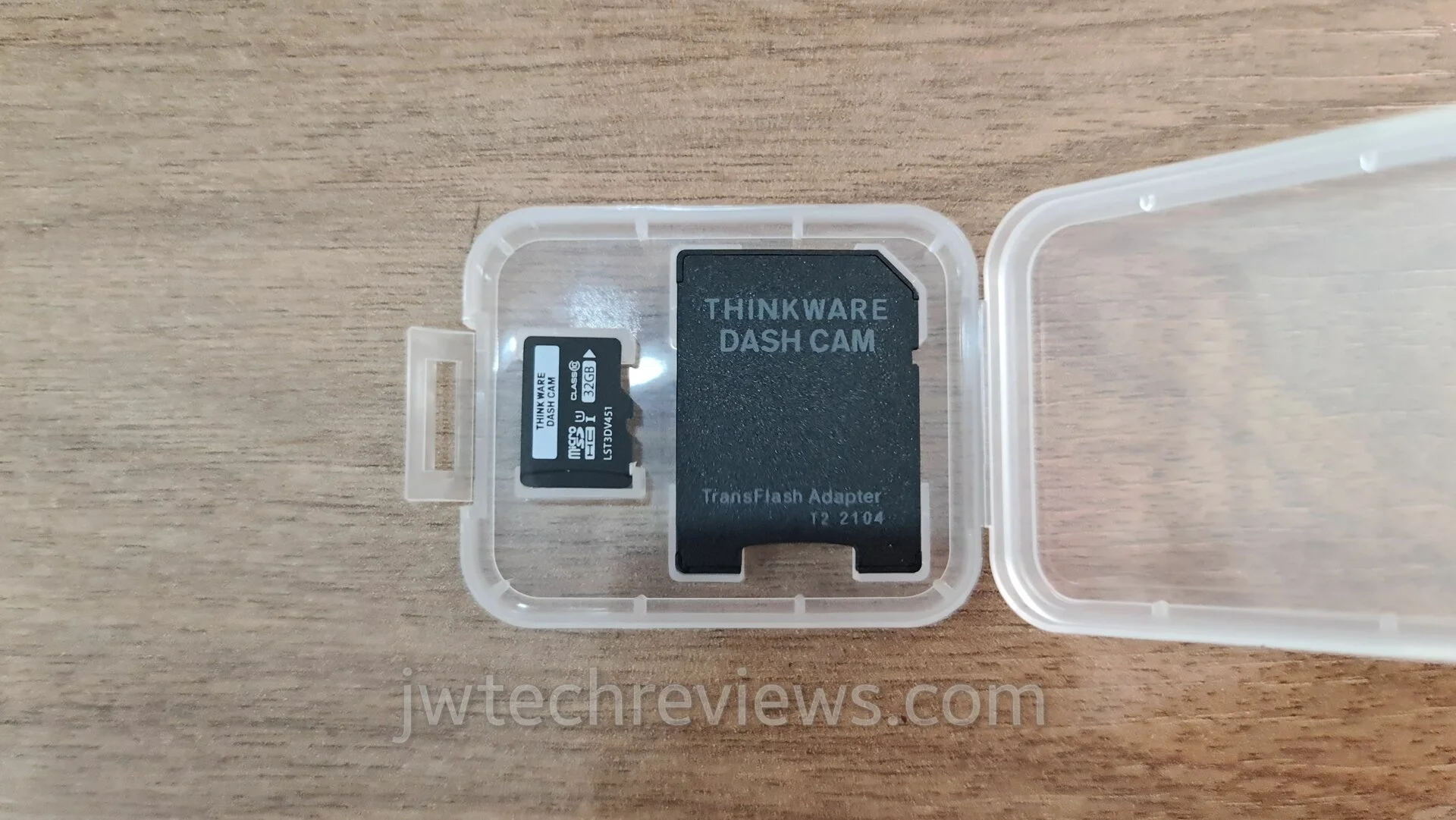

32GB Thinkware micro SD card

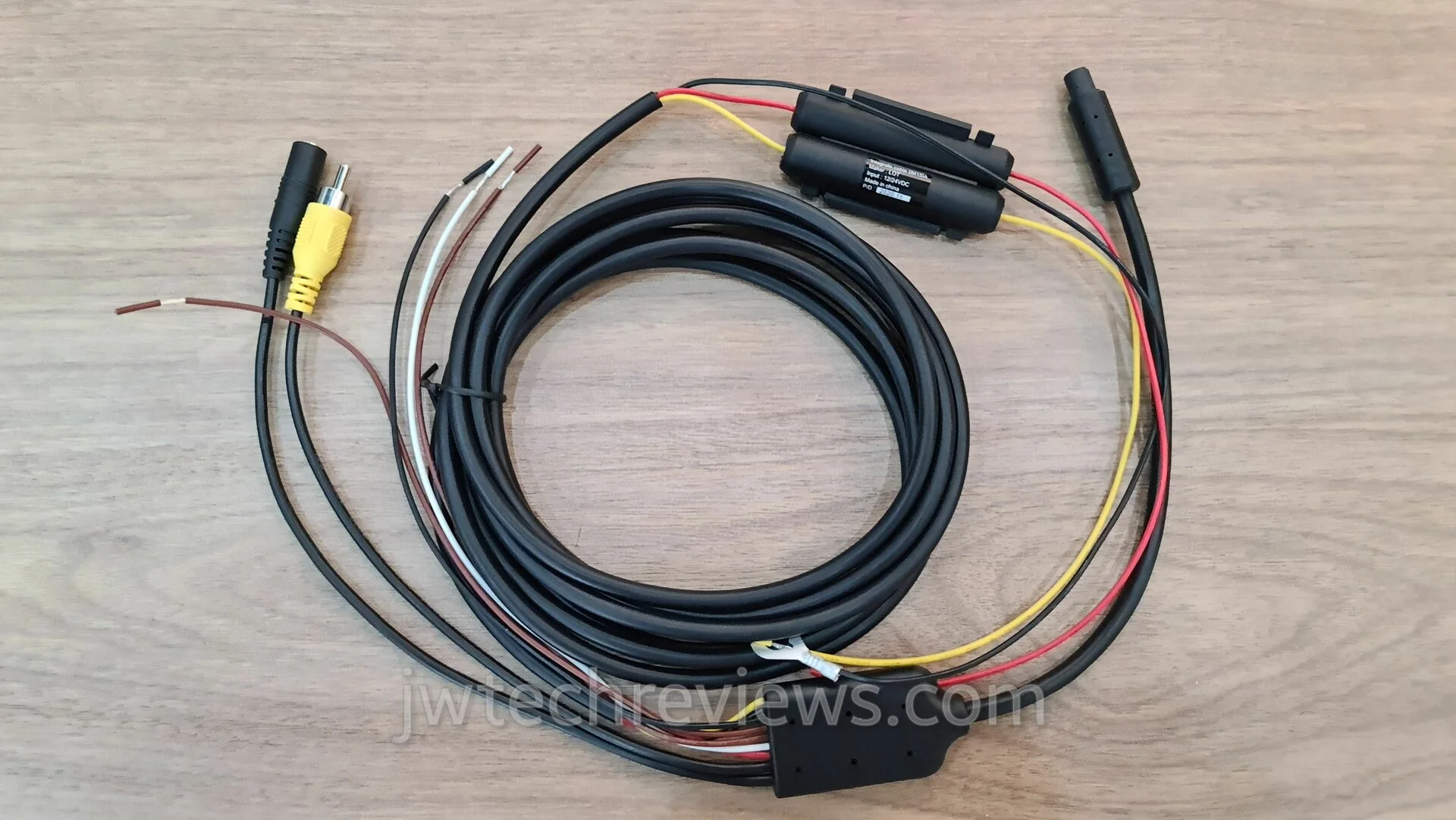

Hardwire kit
20211009_154203_wm.jpg20211009_154354_wm.jpg20211009_154409_wm.jpg20211009_154433_wm.jpg20211009_155245_wm.jpg

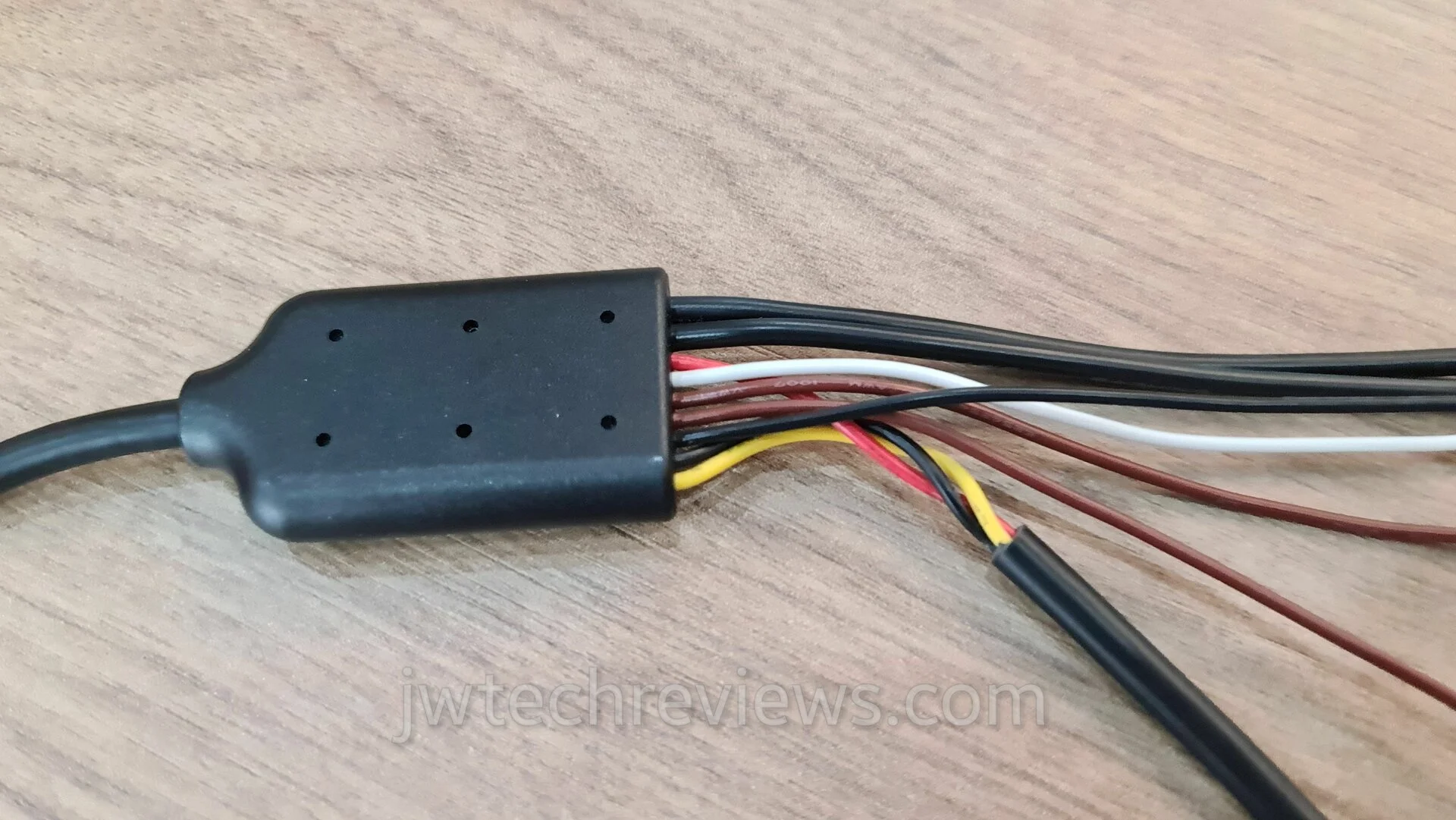

This hardwire kit also connects the rear cam cable, CVBS-Out, U-Art & Lin Cable

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc

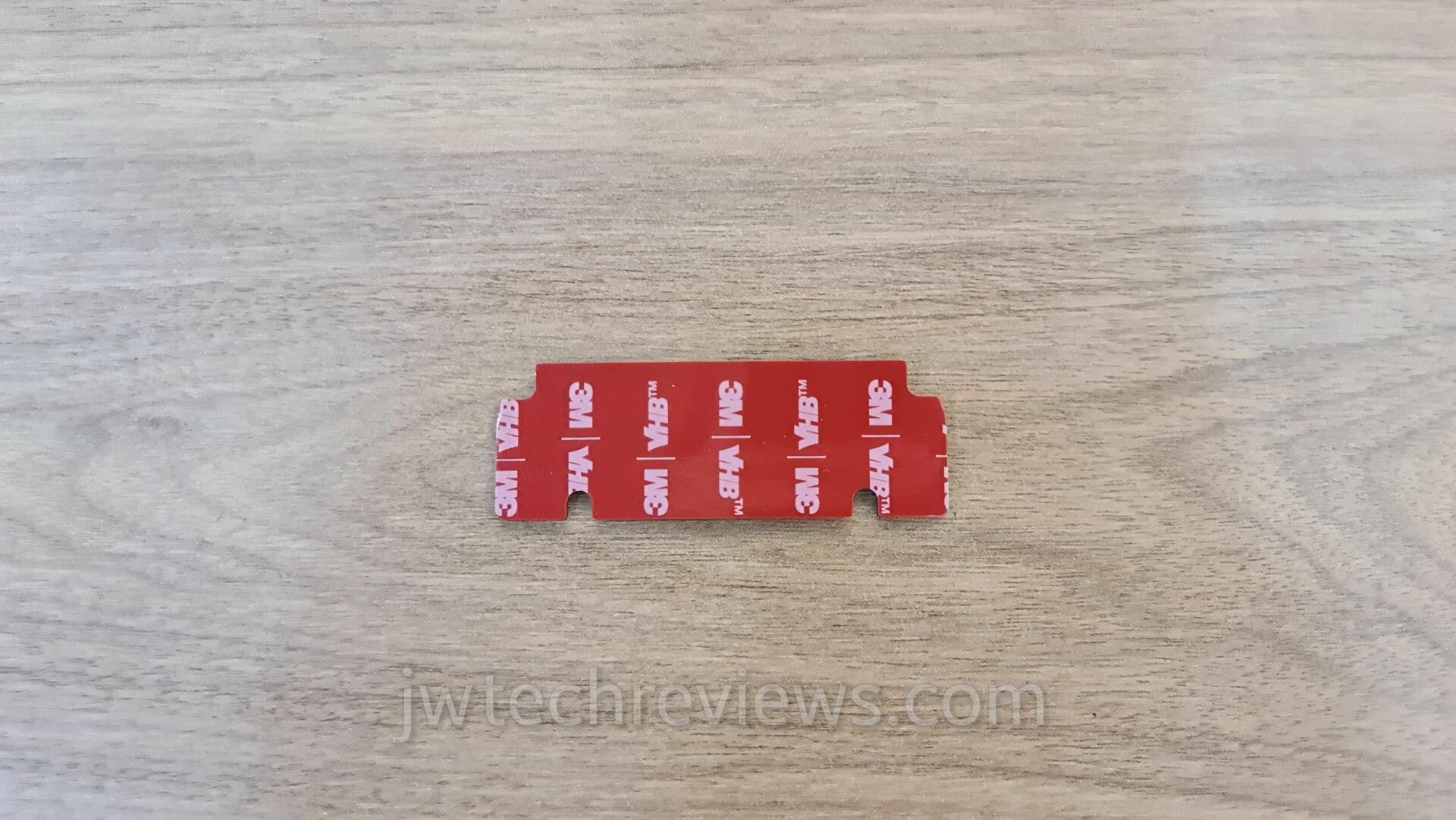

Spare mounting tape


Installation guide

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc

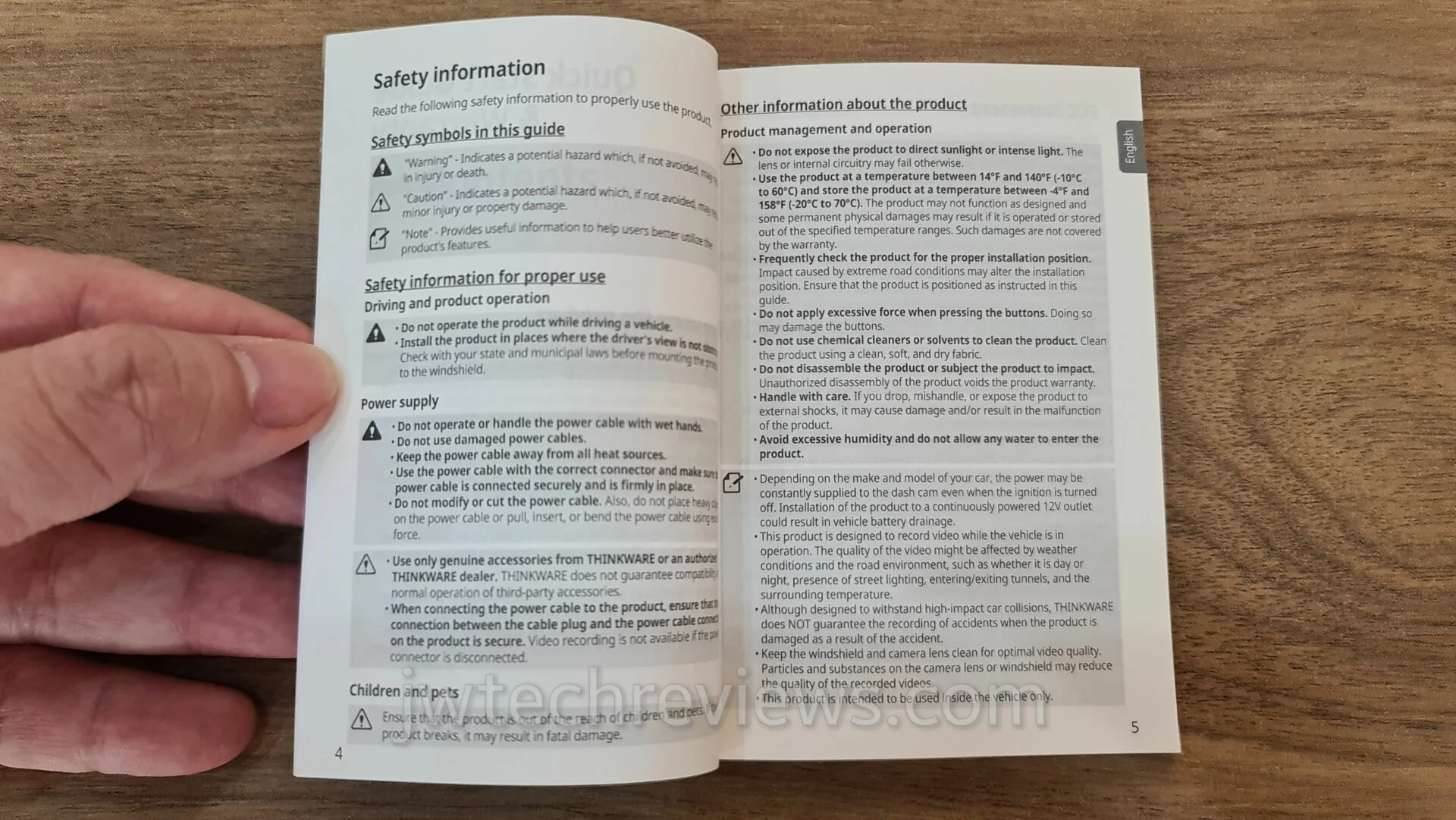

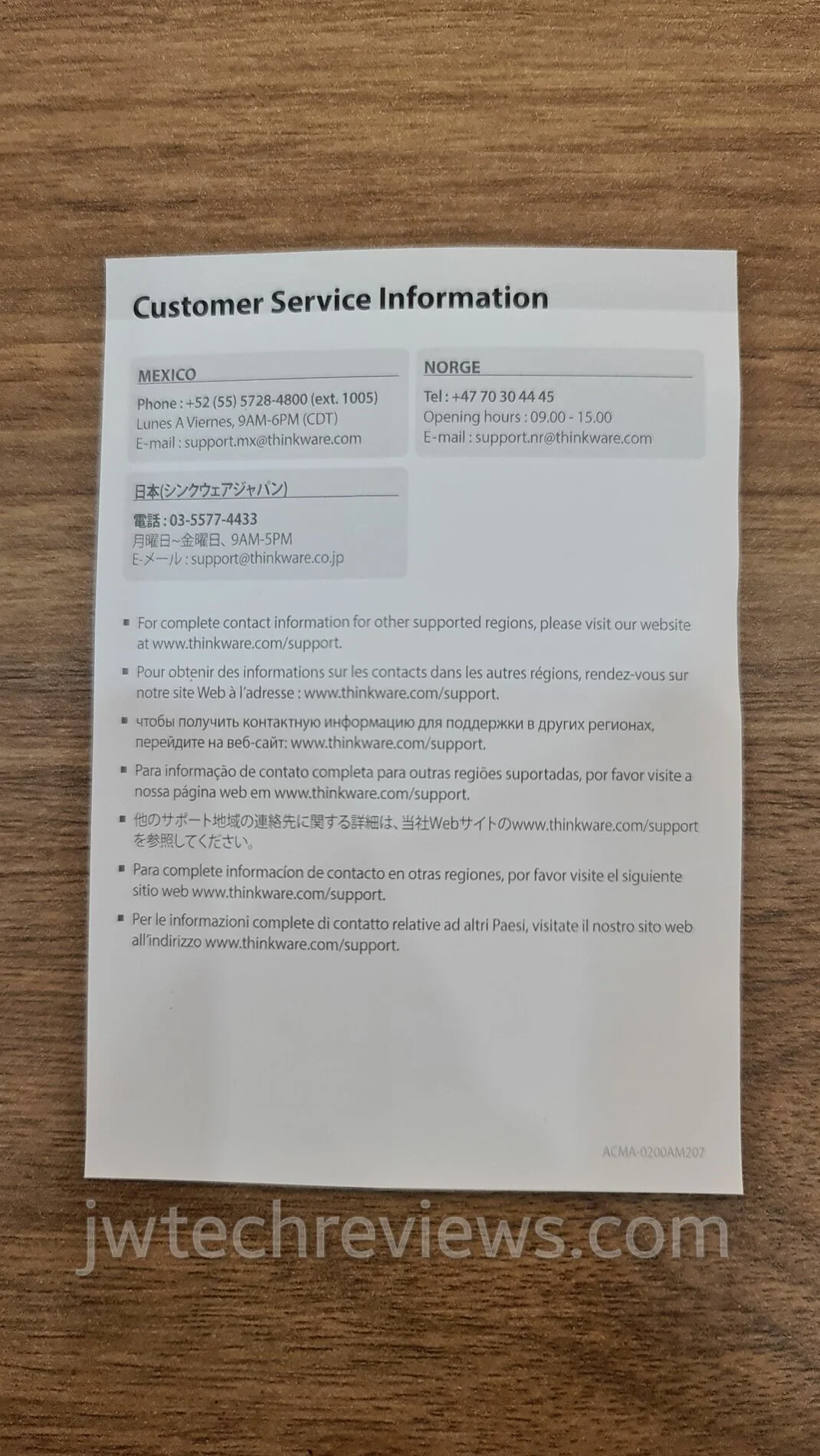

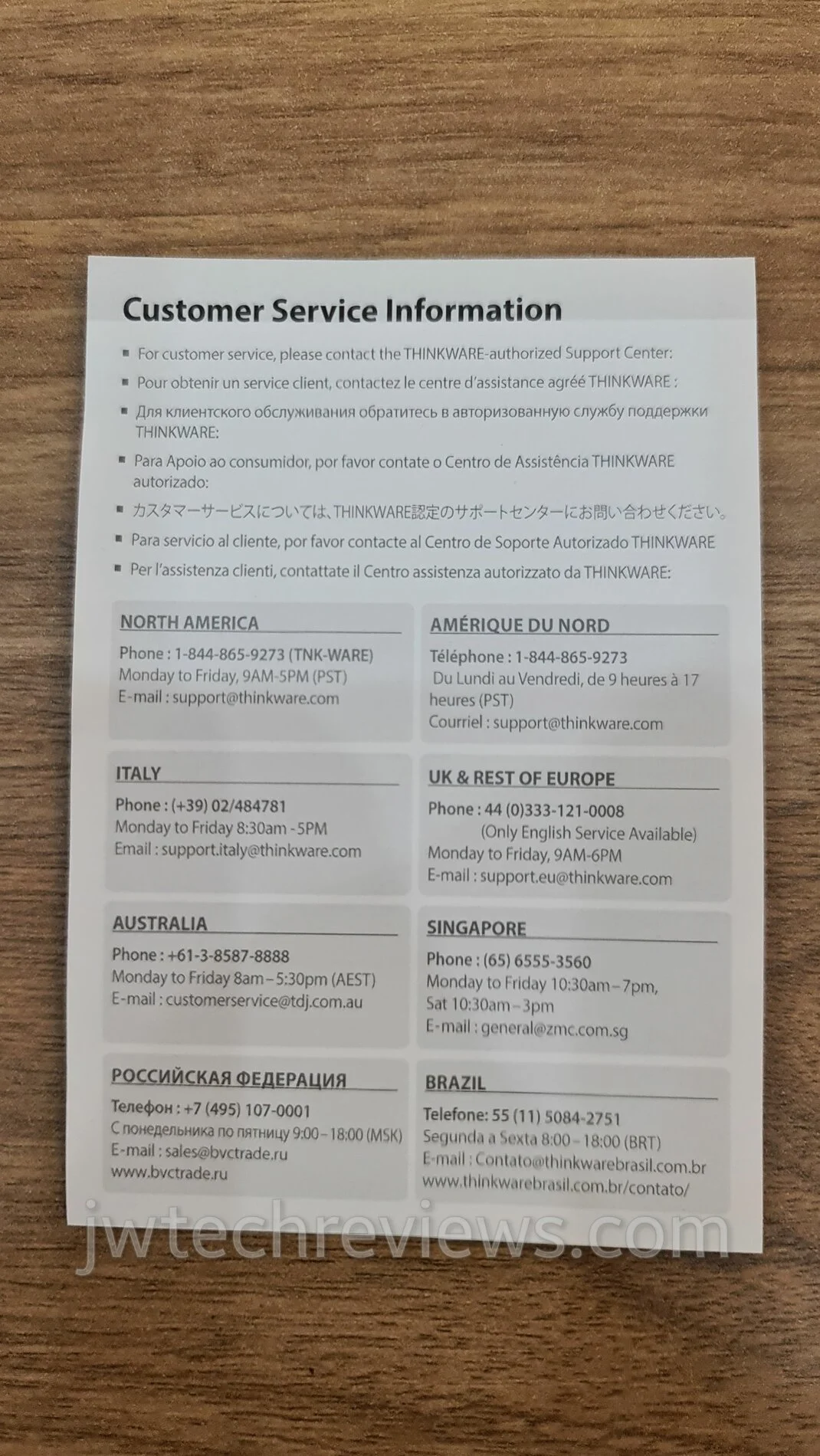

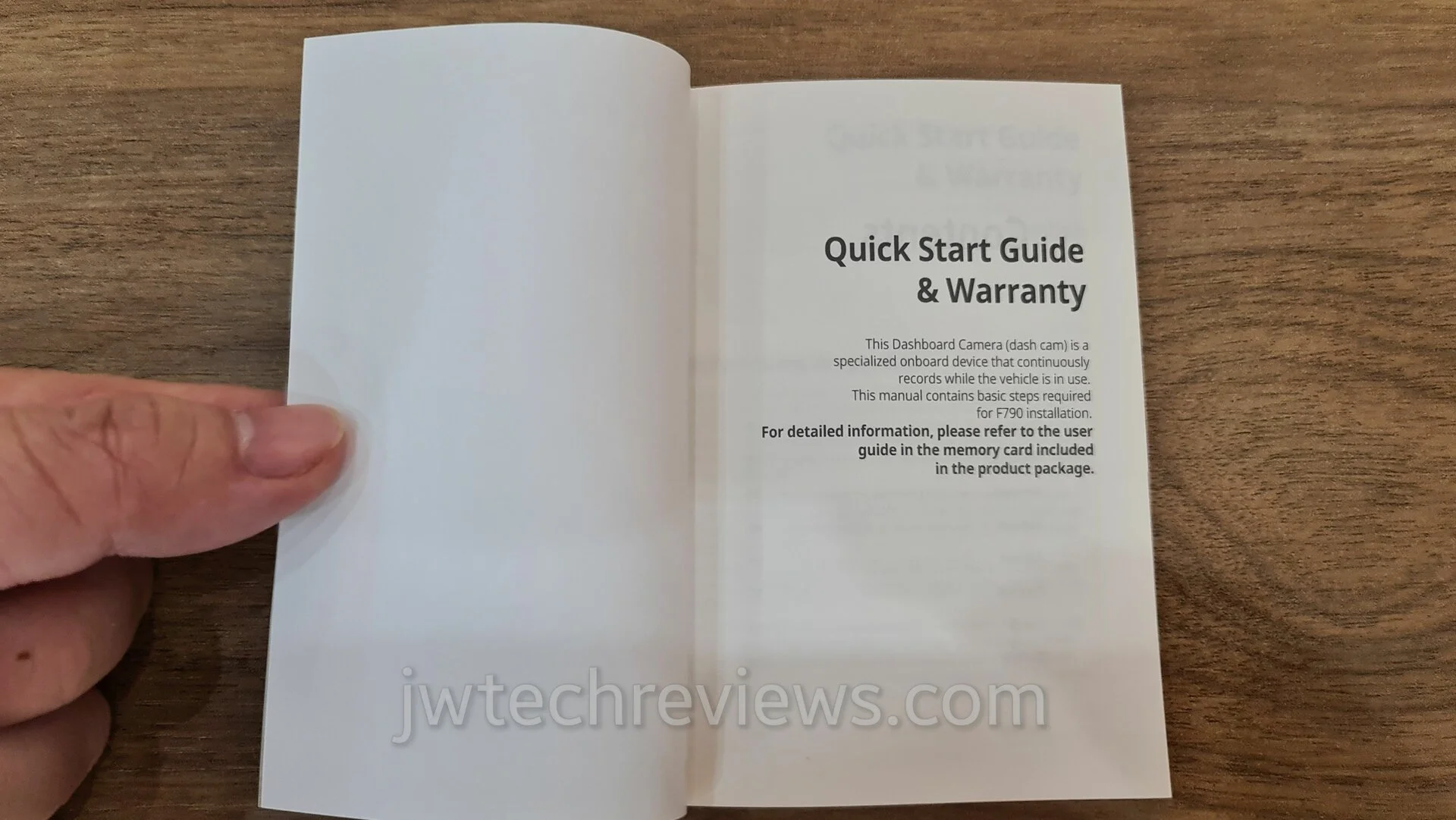

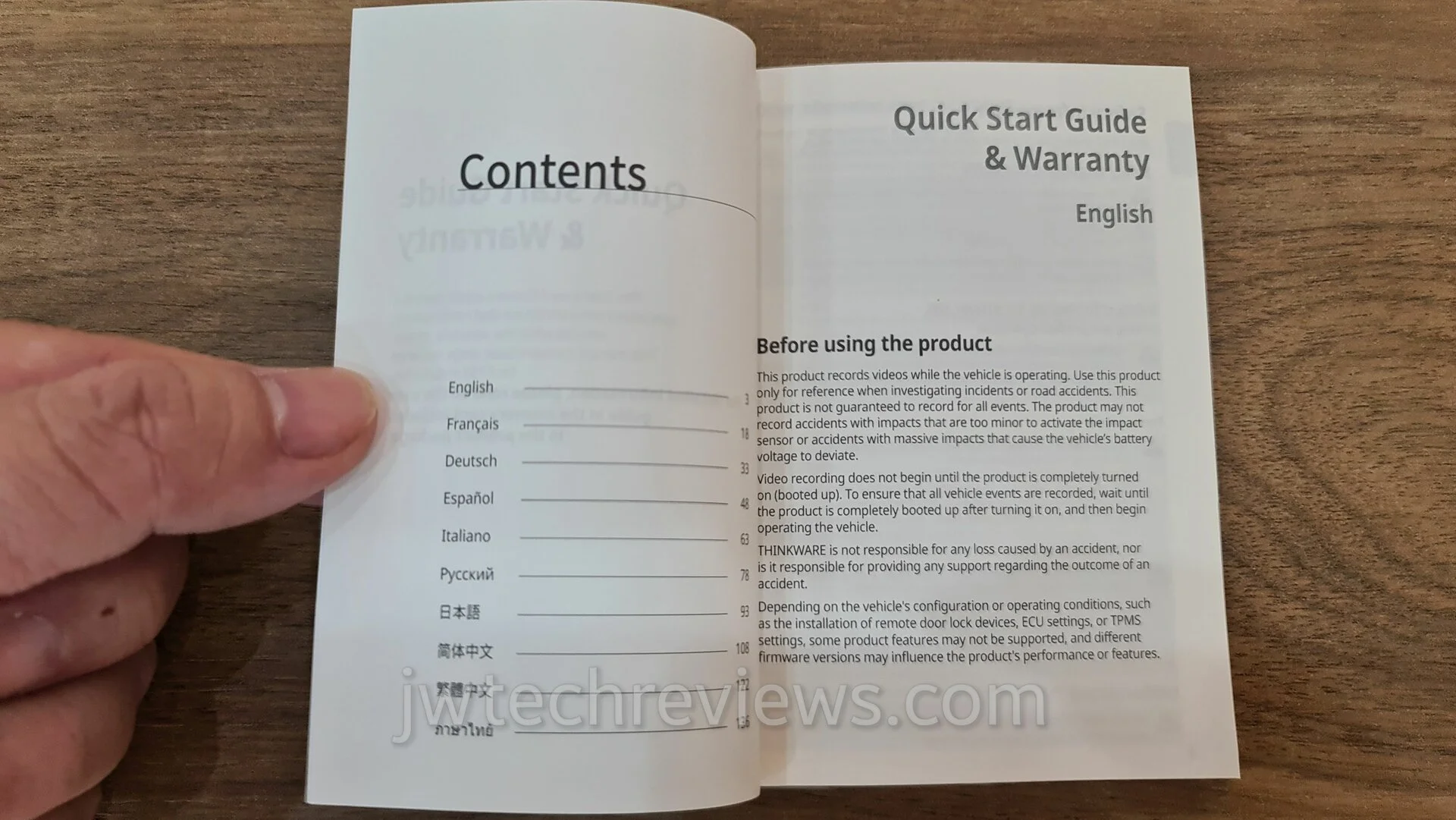

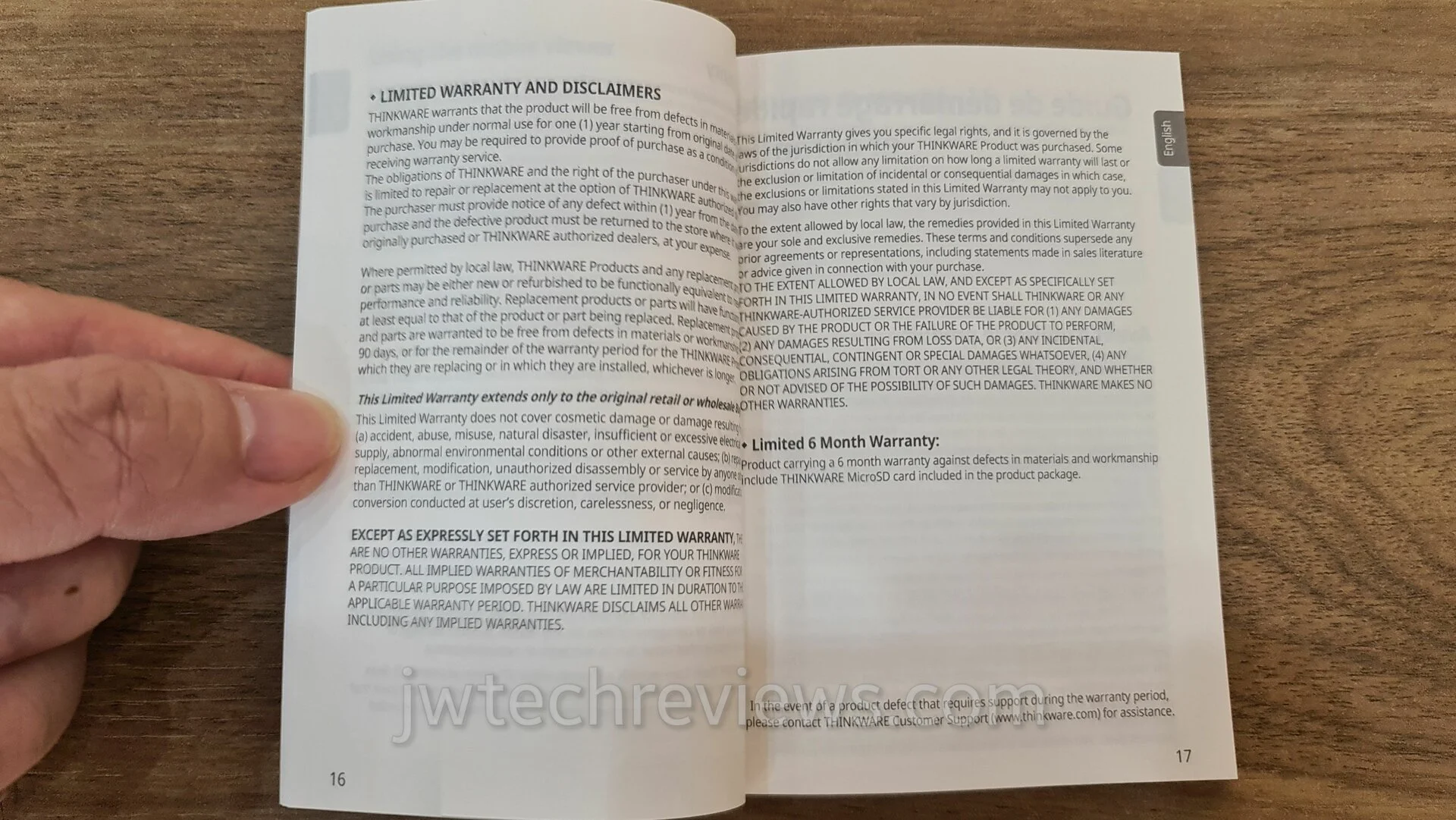

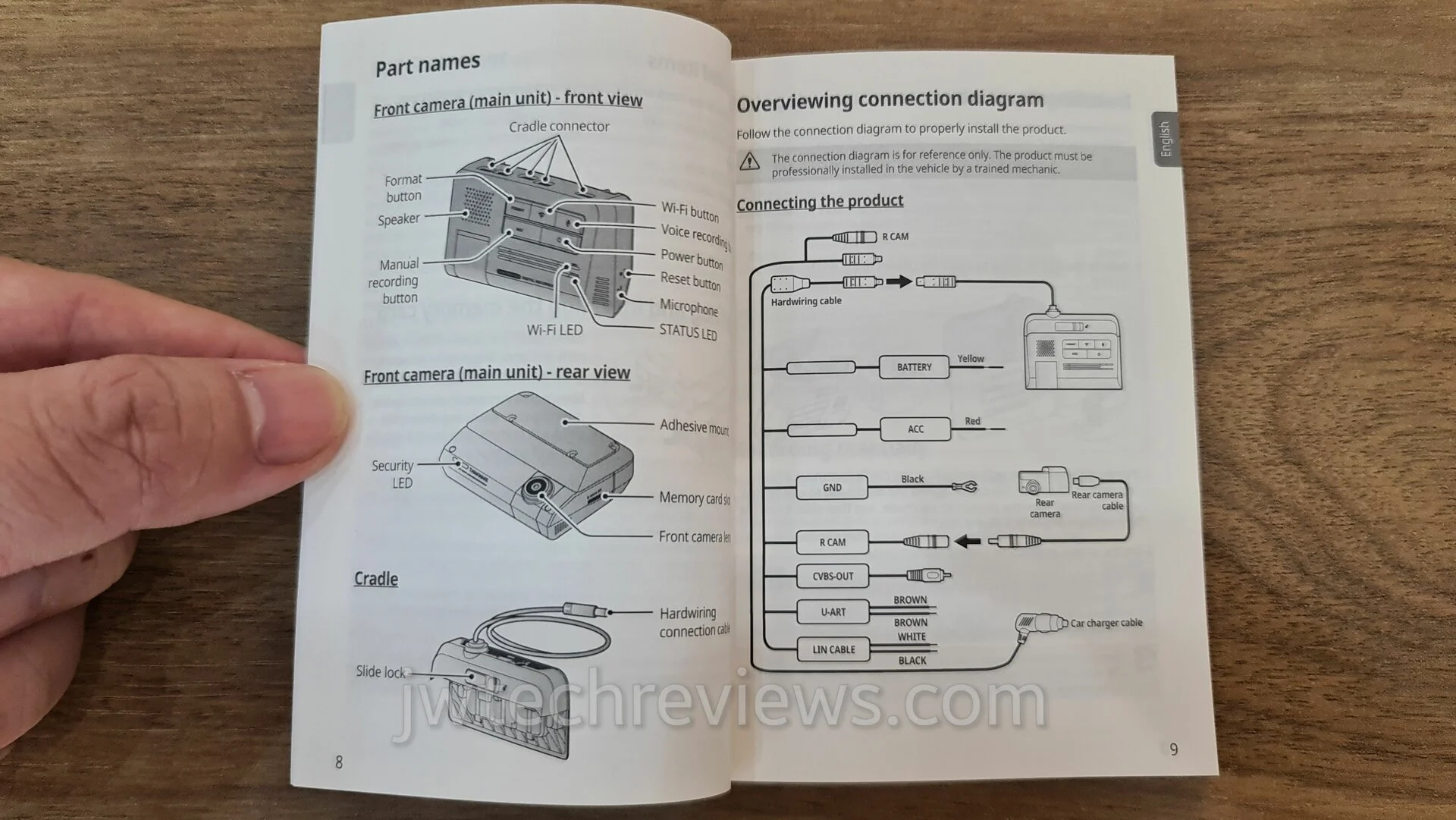

Quick start guide & warranty
20211009_155041_wm.jpg20211009_155053_wm.jpg20211009_155103_wm.jpg20211009_155115_wm.jpg20211009_155126_wm.jpg20211009_155140_wm.jpg20211009_155154_wm.jpg20211009_155205_wm.jpg20211009_155215_wm.jpg20211009_155224_wm.jpg

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc

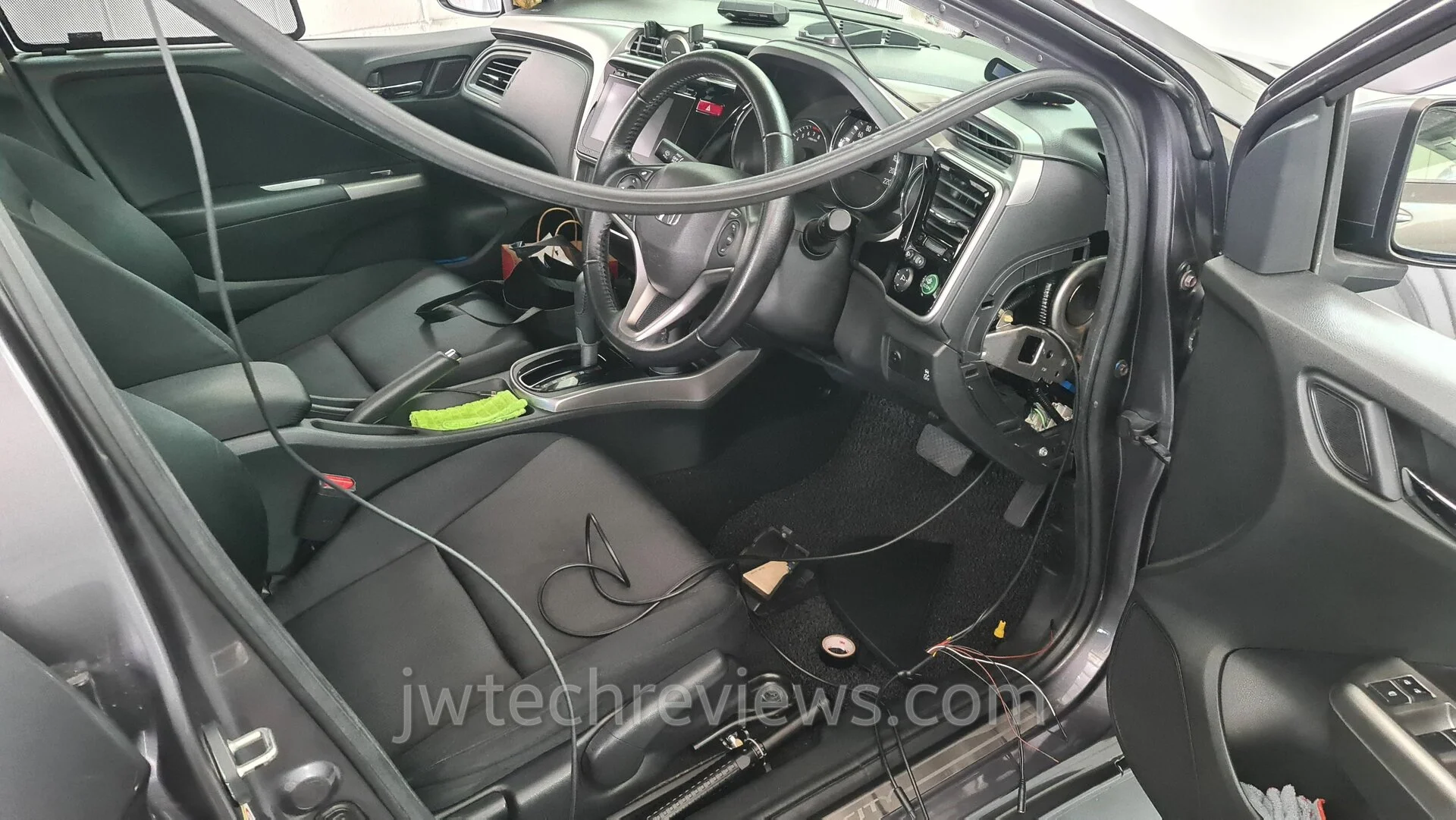

Test setup

For this installation, it’s a bit too complicated for me. So I got Sicurez to install for me.

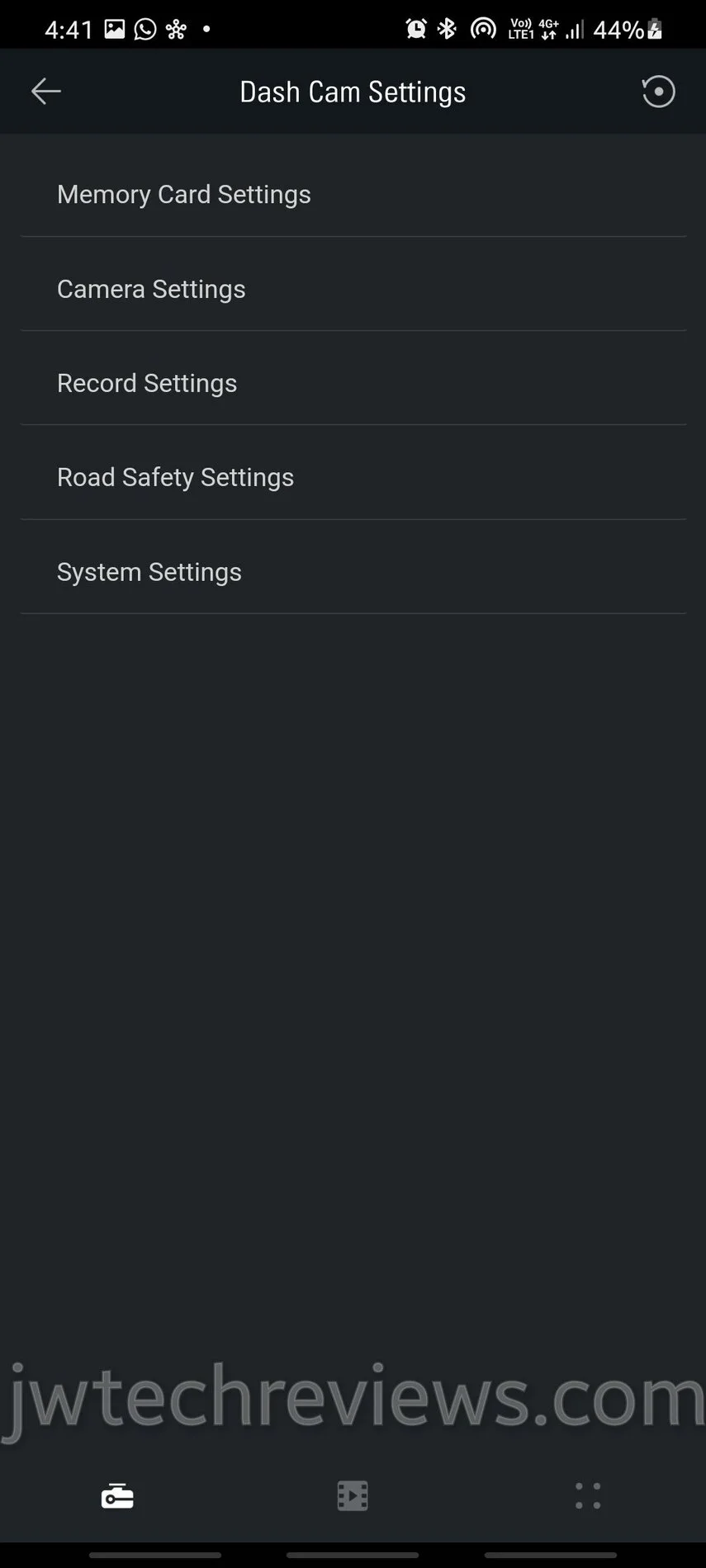

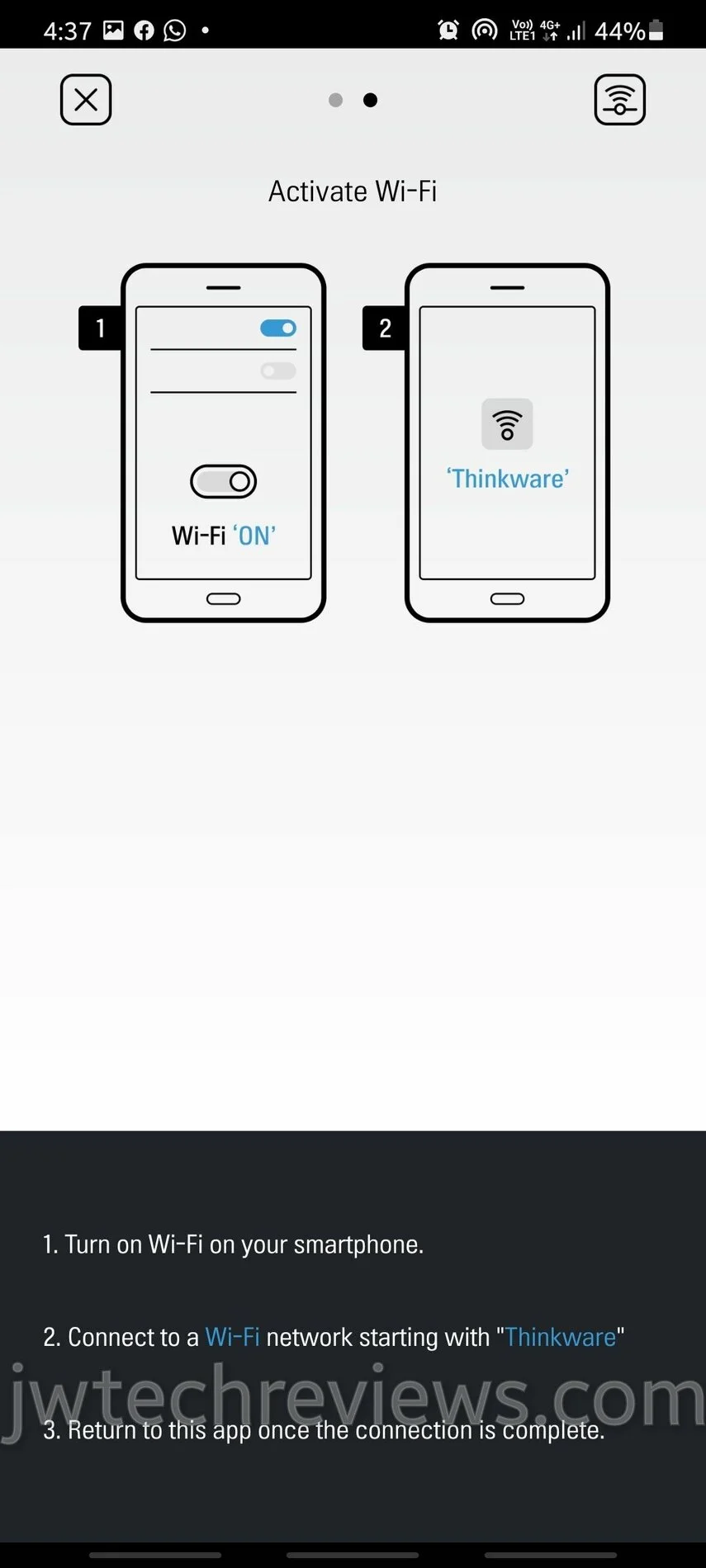

Thinkware Dash Cam Link app
Screenshot_20211009-163734_DASH CAM LINK_wm.jpgScreenshot_20211009-163742_DASH CAM LINK_wm.jpgScreenshot_20211009-163748_DASH CAM LINK_wm.jpgScreenshot_20211009-164028_DASH CAM LINK_wm.jpgScreenshot_20211009-164039_DASH CAM LINK_wm.jpgScreenshot_20211009-164050_DASH CAM LINK_wm.jpgScreenshot_20211009-164102_DASH CAM LINK_wm.jpg

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc

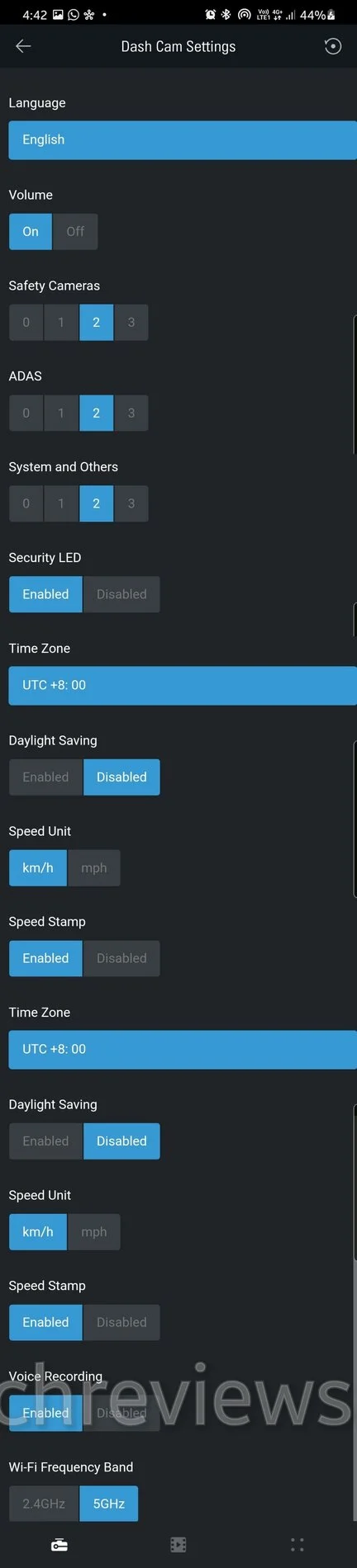

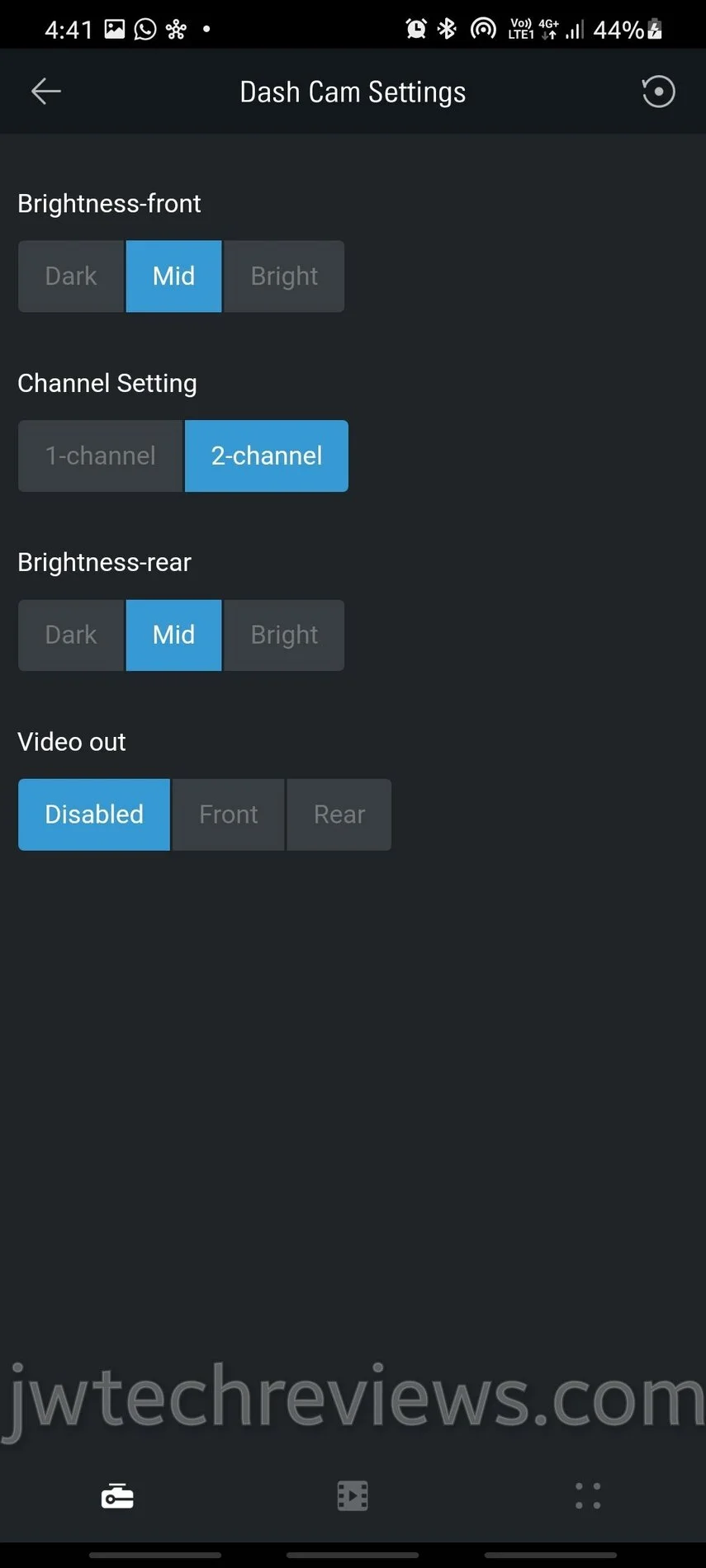

Thinkware Dash Cam Link app... cont
Screenshot_20211009-164110_DASH CAM LINK_wm.jpgScreenshot_20211009-164118_DASH CAM LINK_wm.jpgScreenshot_20211009-164135_DASH CAM LINK_wm.jpgScreenshot_20211009-164154_DASH CAM LINK_wm.jpgScreenshot_20211009-164208_DASH CAM LINK_wm.jpgScreenshot_20211009-164228_DASH CAM LINK_wm.jpgScreenshot_20211009-164246_DASH CAM LINK_wm.jpg

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc
Videos
Below is recorded in HEVC 1920×1080 30fps with an overall bit rate of 6,991kb/s with HDR On for the front and rear cam.










Final thoughts

With the new plugin mount, the installation looks very neat with only a cable going to the F790. But the new hardwire kit was a bit bulky as it needs to accommodate the rear cam and other new connectors.

The F790 has some new functions like video out to a vehicle media player, privacy recording, HDR, and Super Night Vision 3.0. But you can only use either HDR or SNV3.0, not both enabled together.

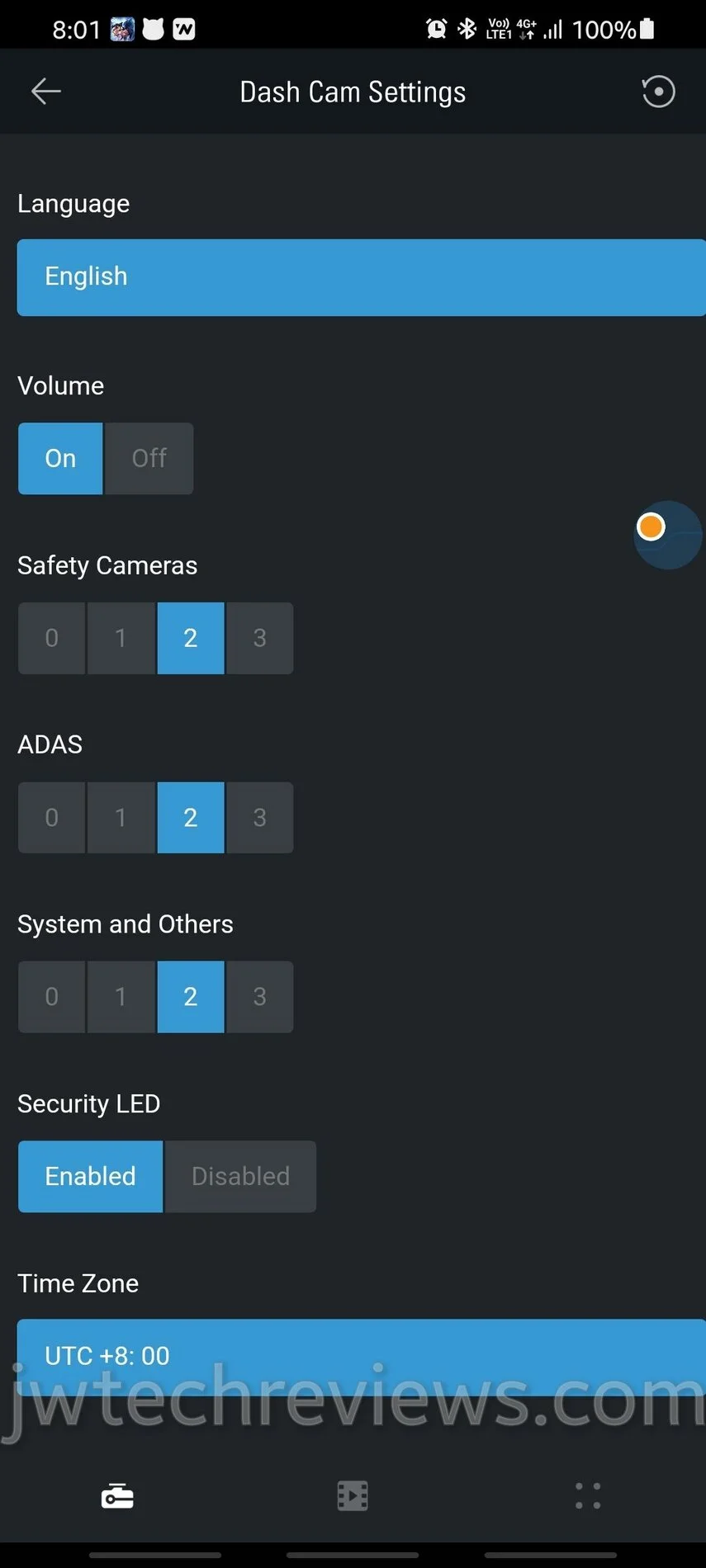

You can now set the volume for individual notifications.
Screenshot_20211011-080154_DASH CAM LINK_wm.jpg

The F790 looks like a good successor to its famous sibling, the F770.


alexsoll

Well-Known Member
Retailer
Joined
Apr 14, 2013
Messages
1,792
Reaction score
1,527
Location
Minsk
Country
Belarus
Dash Cam
Street Guardian, BlackVue, Thinkware
which sensor (name and number) has a front-facing camera?
Sensor: Front: 2.1M CMOS Sensor; Rear: 2.12M Image Sensor - this is not enough, this is the characteristics, need the exact name

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc
which sensor (name and number) has a front-facing camera?
Sensor: Front: 2.1M CMOS Sensor; Rear: 2.12M Image Sensor - this is not enough, this is the characteristics, need the exact name
Ambarella H22 for the front cam

Sent from my SM-G988B using Tapatalk


kamkar

Well-Known Member
Joined
Oct 11, 2013
Messages
30,939
Reaction score
17,362
Country
Denmark
Dash Cam
10 years, many dashcams
I think he mean if is is Sony IMX 291 or maybe IMX 327 ASO


alexsoll

Well-Known Member
Retailer
Joined
Apr 14, 2013
Messages
1,792
Reaction score
1,527
Location
Minsk
Country
Belarus
Dash Cam
Street Guardian, BlackVue, Thinkware

alexsoll

Well-Known Member
Retailer
Joined
Apr 14, 2013
Messages
1,792
Reaction score
1,527
Location
Minsk
Country
Belarus
Dash Cam
Street Guardian, BlackVue, Thinkware
I think he mean if is is Sony IMX 291 or maybe IMX 327 ASO
I'm thinking something similar, but I need accurate information.

OP
J

Jeremy Wong

Well-Known Member
Joined
Apr 14, 2015
Messages
704
Reaction score
646
Location
Kuala Lumpur
Country
Malaysia
Dash Cam
Viofo A119, Viofo A119S, Xiaomi Mijia, 360 J511C, etc
This is the processor, I know, it is indicated everywhere. I'm asking about the sensor
Sorry about that as I thought about something else.

Regarding the image sensor. Sorry I've no idea as it's not stated anywhere.

Maybe someone from Thinkware in here would know?

Sent from my SM-G988B using Tapatalk
