Xiaomi Xiaoyi Yi Ant Wifi Cam focus problem?

unruly1

New Member
Joined
Dec 30, 2015
Messages
3
Reaction score
1
Country
United States
Just got this camera and have upgraded the firmware to 1.8.5.1M from this page http://xiaoyi.querex.be

Here is a screenshot of the HD stream with a 2 liter of Sprite in the bottom center of the screenshot.
That bottle of sprite is approx 6 feet from the camera and is completely unreadable. Did I get a defective unit?
Thanks in advance.


Attachments

OP
unruly1

unruly1

New Member
Joined
Dec 30, 2015
Messages
3
Reaction score
1
Country
United States
I am super keen. how can it be done?
I searched everywhere and can only find focus adjustment instructions for the action cam.


jokiin

Well-Known Member
Manufacturer
Joined
Jan 27, 2013
Messages
46,001
Reaction score
24,780
Location
Sydney, Australia ~ Shenzhen, China
Country
Australia
Dash Cam
Too many ¯\_(ツ)_/¯
the process will be the same for the actual adjustment, how you open that model though I'm not sure, not sure anyone here has opened one up previously or not


DashCamMan

Administrator
Joined
Jun 30, 2012
Messages
1,993
Reaction score
969
Country
Canada
I have opened one but have not adjusted the focus but it follows the same procedure as other cameras.

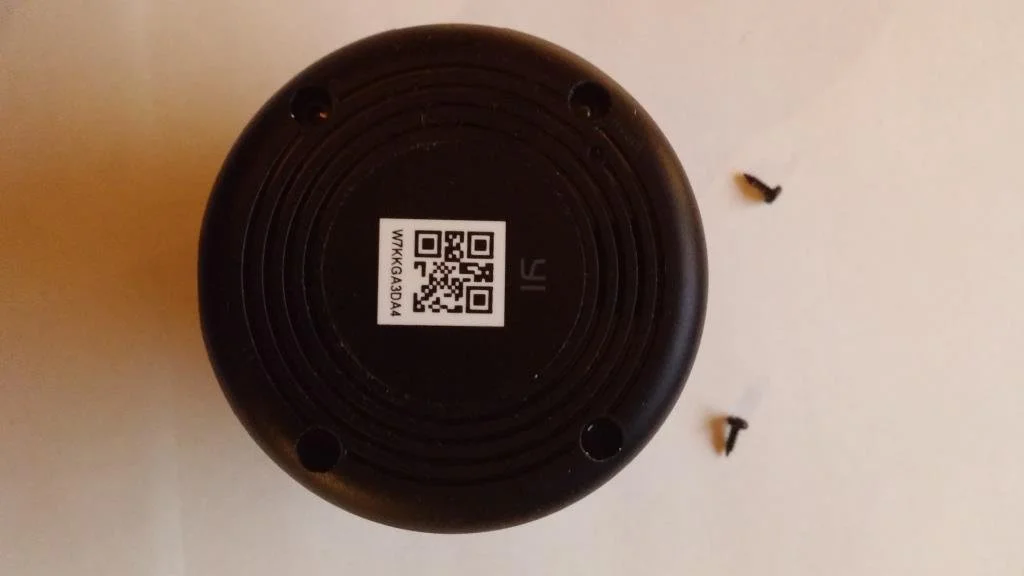

There are 4 screws on the back of the camera. Once you get those off you remove the back cover.

Using a very small flat head screwdriver you can pry the board out from the casing on the side. No need to remove the other 2 screws on the board, those attach the lens to the board.

Now you should see the lens with a small dab of glue on it. You can twist the lens or scrape off the glue. Then refocus manually. Once it is where you like it, need to glue it back in place.



Perform at your own risk.

OP
unruly1

unruly1

New Member
Joined
Dec 30, 2015
Messages
3
Reaction score
1
Country
United States
Thanks DashCamMan!
Those instructions were precisely what I was looking for!
way less fuzzy now!
