STEALTH Rear camera Street Guardian SGZC12RC, Panorama X2 Custom made set-up for VW Passat B6 / 3C

Discussion in 'DIY Projects' started by niko, Oct 15, 2014.

  1. niko

    niko Well-Known Member Retailer

    Messages:
    10,168
    Likes Received:
    6,172
    Location:
    Dublin
    Country:
    Ireland
    Dash Cam:
    Street Guardian UK / EU / EEA Distributor
    NB!
    ANY DIY MAY VOID WARRANTY OF THE PRODUCT !
    ACT ON YOUR OWN RISK !!!
    ....................................................................................


    Panorama X2 rear camera ( 1080p ) is small in size and with factory bracket / mount can be installed quite discretely.
    However, I wanted to get even more maximum stealth.

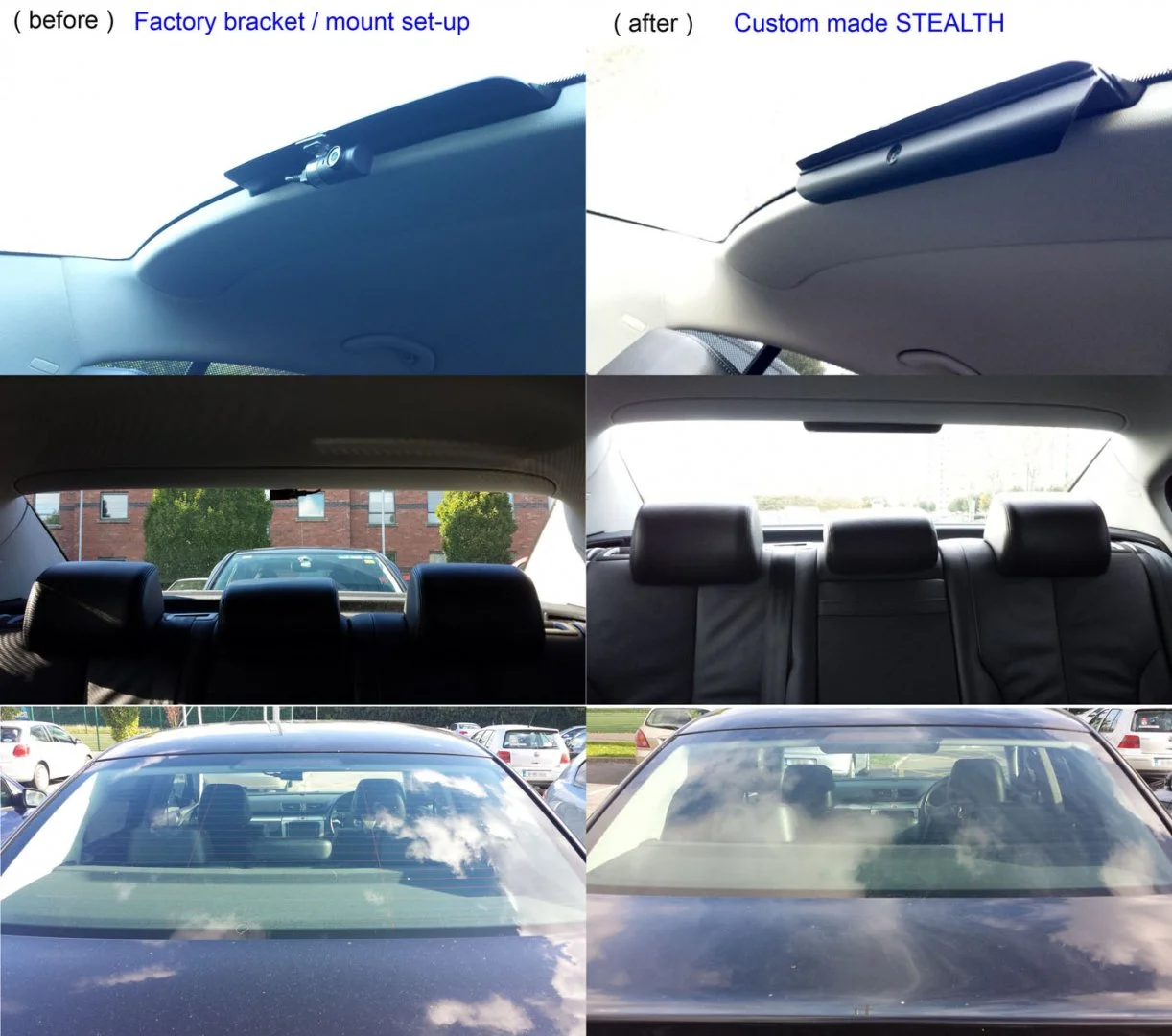

    You can see below "before and after" set-up in my Volkswagen Passat B6 ( 3C )
    P.S. - I am sure similar custom made set-up can be used on many other cars as well.

    VW B6 Custom made X2 setup (1).jpg


    This is step by step project.

    1.

    I took broken fridge freezer box flap and cut off "handle"-part which can "accommodate" 100% ( 1:1) Panorama X2 rear camera. It took me over 1 week to go trough test'n'try of different objects to find exact fit and shape what I needed, but finally found it and my project began :)

    - cut needed length, which is matching the length of my VW B6 rear brake light, so after installation it will blend in and will be maximum stealth.

    - filed down "ruff" edges.

    - used fine grade sandpaper to remove gloss.

    VW B6 Custom made X2 setup (2).jpg

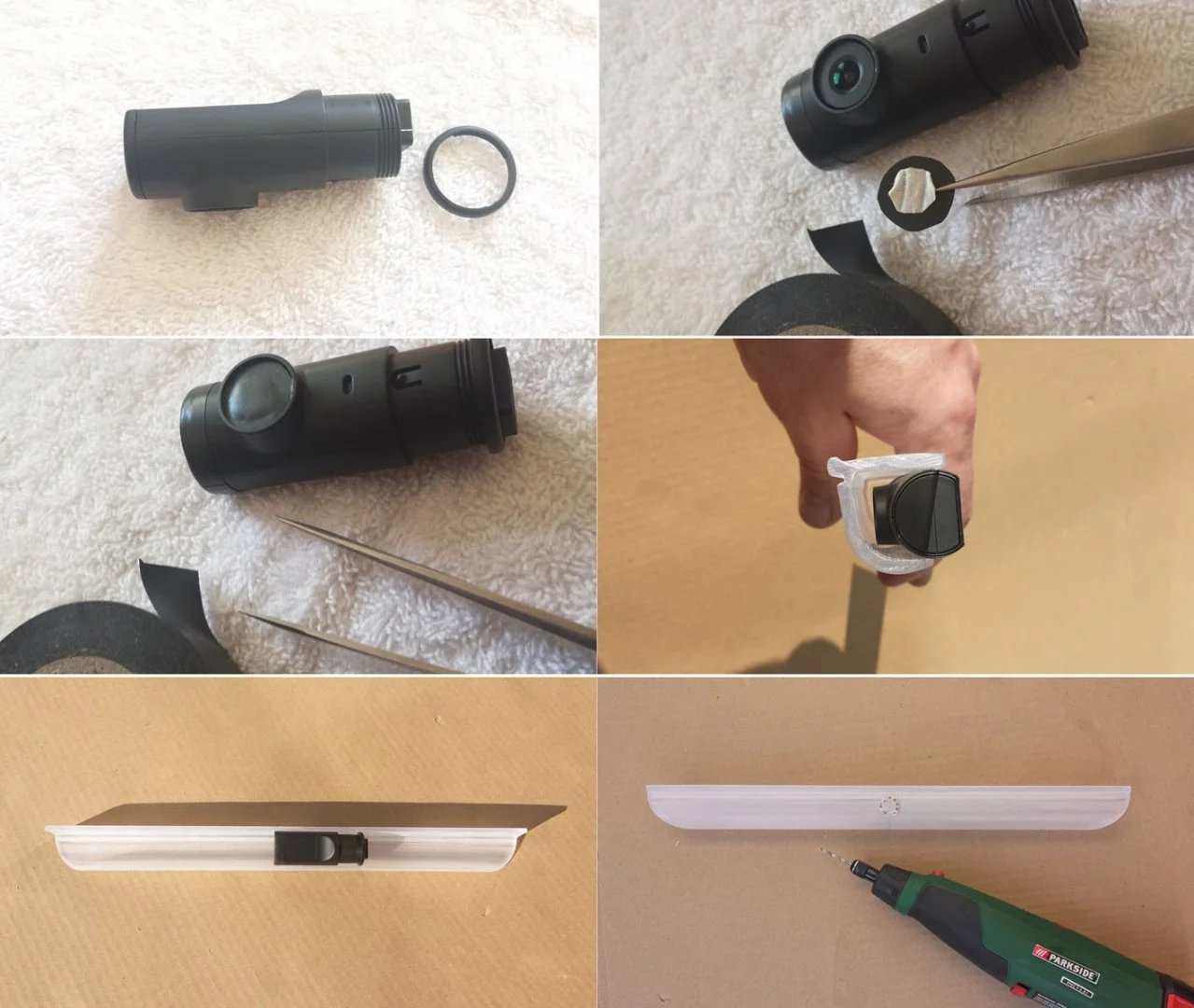

    2.

    - removed original factory clear bracket / mount from camera housing ( for this you need to unscrew plastic "nut" on the side of camera body ).

    - added small piece of paper hand-towel to the circle-cut electrical tape and "attached" it to the lens part to protect from scratches and other damage during rest steps of DIY.

    VW B6 Custom made X2 setup (3).jpg

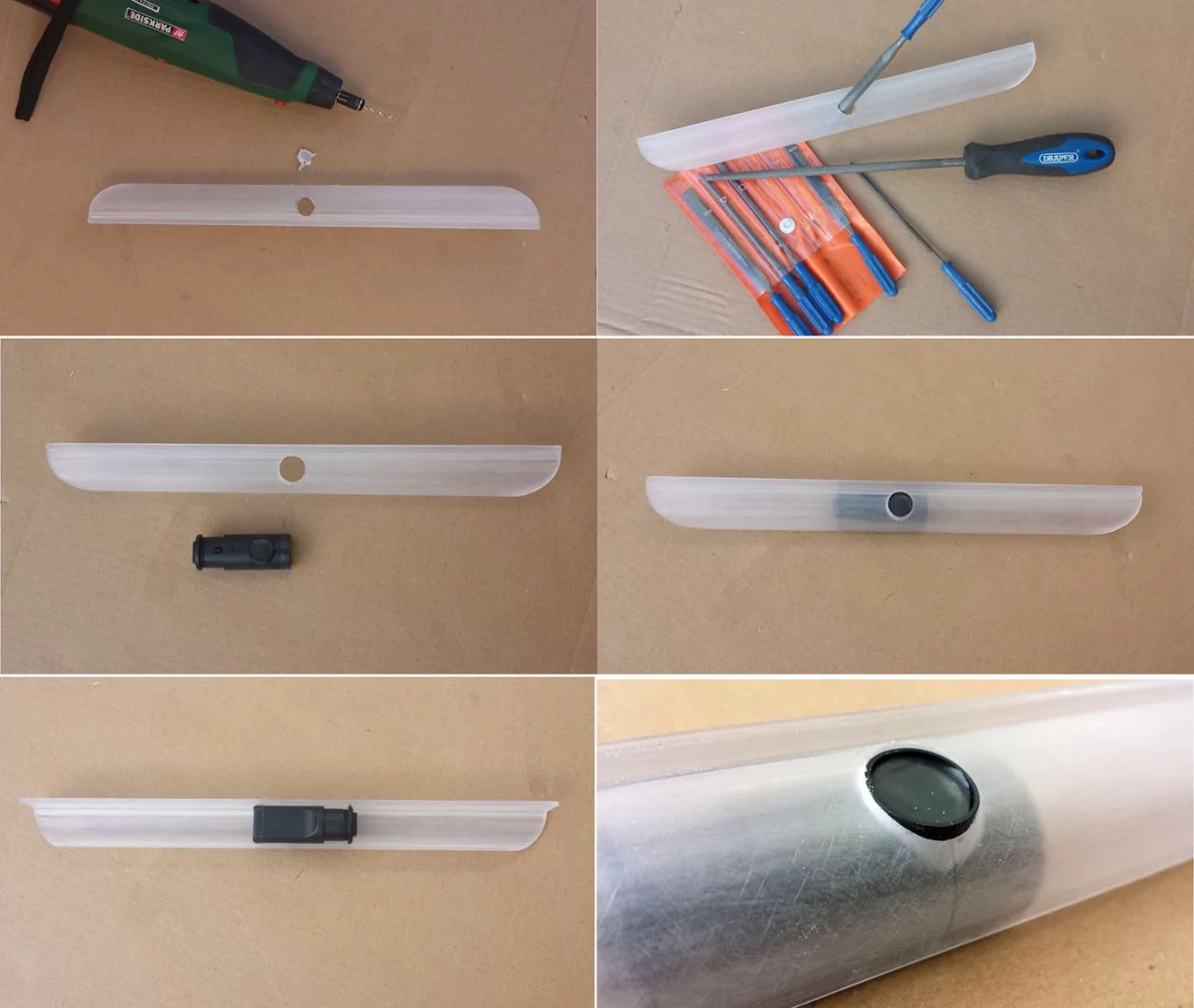

    3.

    - drilled centre hole
    - using different file sizes / types I have achieved perfect fit of X2 rear camera into stealth custom housing.

    VW B6 Custom made X2 setup (4).jpg


    4.

    - 1 layer of primer
    - 2 layers of black matte paint

    VW B6 Custom made X2 setup (5).jpg

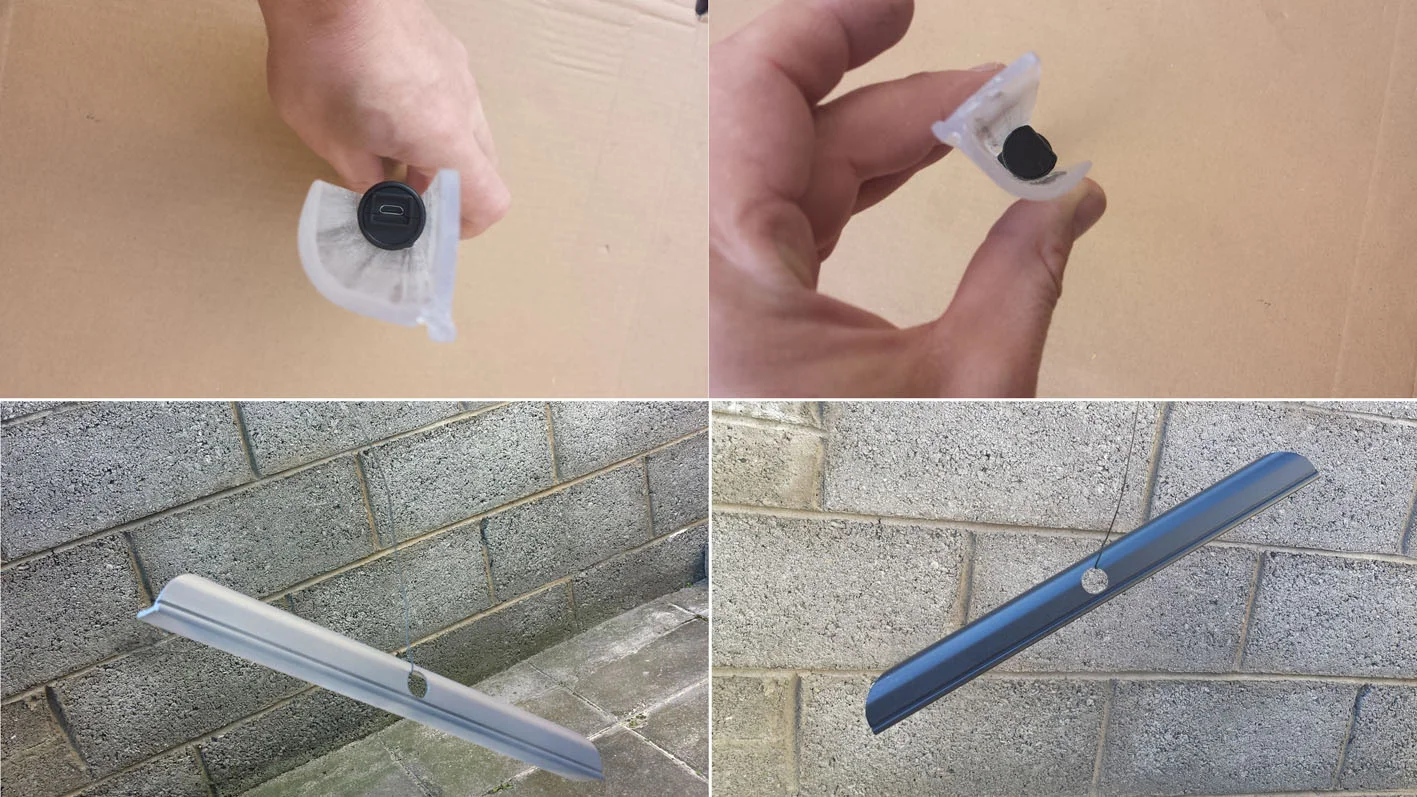

    5.

    - painted

    VW B6 Custom made X2 setup (6).jpg

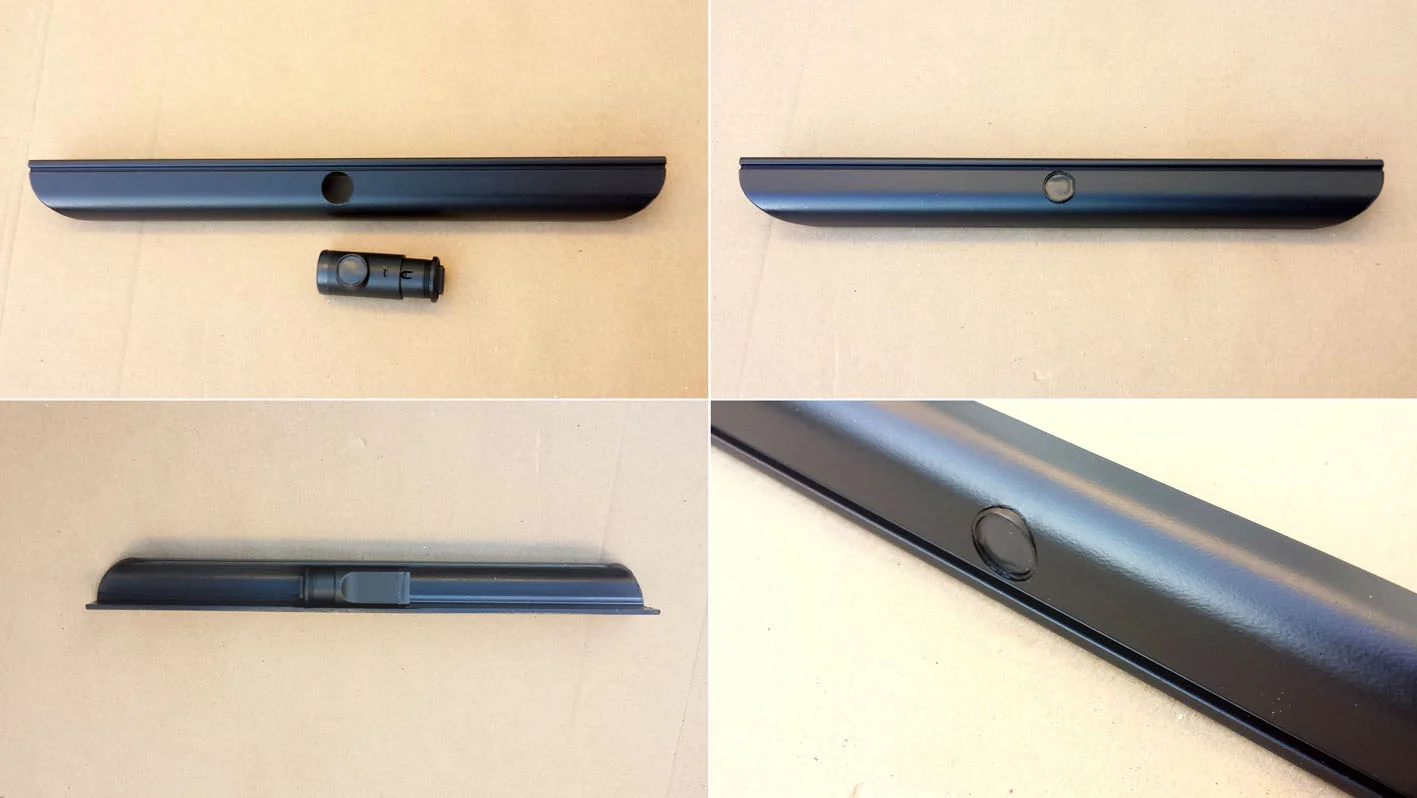

    6.

    - ready for in-car installation.

    VW B6 Custom made X2 setup (7).jpg


    7.

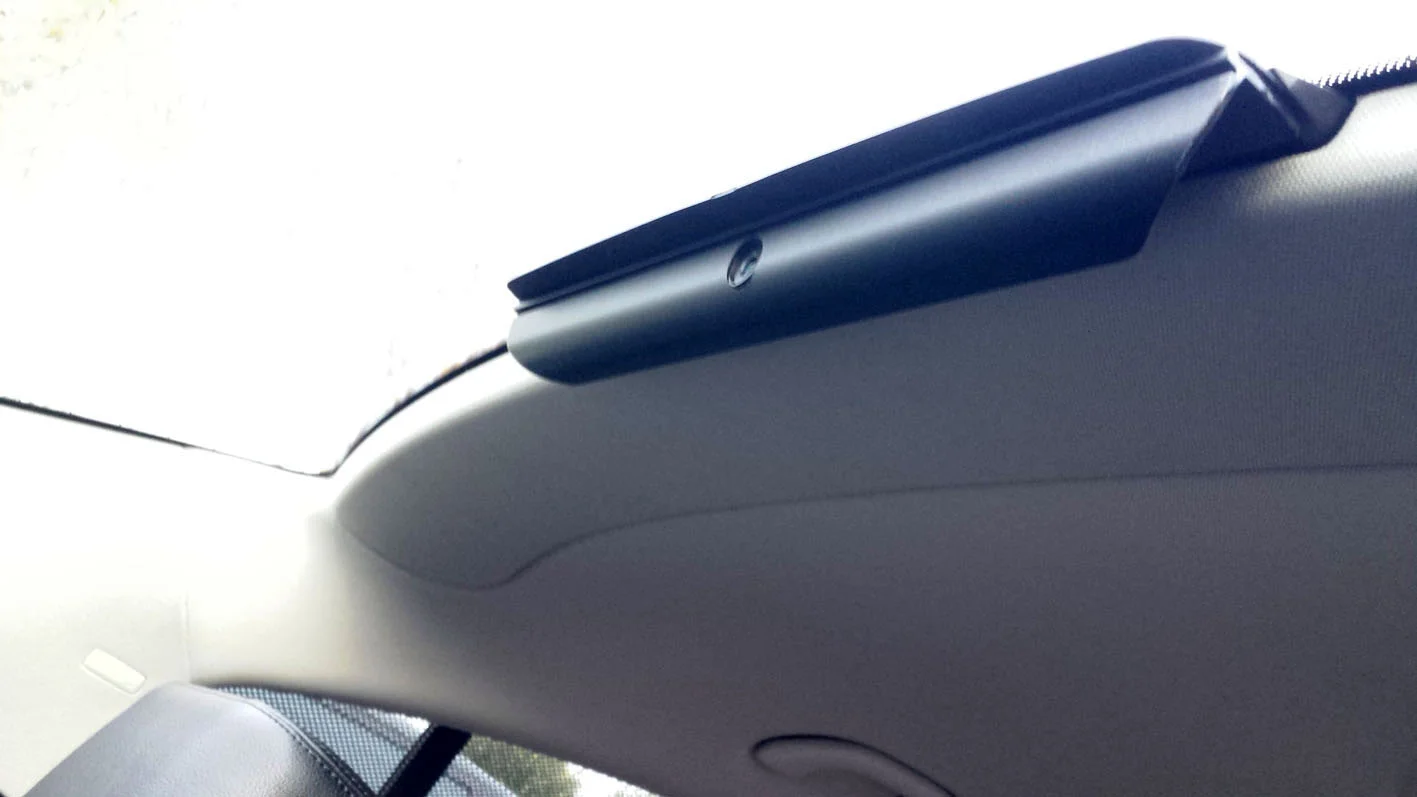

    Installed in-car

    VW B6 Custom made X2 setup (8).jpg


    VW B6 Custom made X2 setup (9).jpg


    VW B6 Custom made X2 setup (10).jpg

    Last edited: Feb 15, 2015
    Aph, kerg001, harsh and 31 others like this.
  2. Street Guardian USA

    Street Guardian USA Well-Known Member Retailer

    Messages:
    10,072
    Likes Received:
    6,637
    Location:
    Carson City, Nevada (USA)
    Country:
    United States
    Dash Cam:
    StreetGuardian.CAM Amazon.com Amazon.ca
    Wow that's fantastic @niko! You've outdone yourself once again.

    Zuntax and Dionic90 like this.
  3. nir

    nir Active Member

    Messages:
    206
    Likes Received:
    83
    Country:
    Israel
    Dash Cam:
    Mobius (B,C2)
    Like a pro!

  4. reverend

    reverend Well-Known Member

    Messages:
    5,393
    Likes Received:
    3,691
    Country:
    United Kingdom
    Dash Cam:
    Too many
    That looks absolutely superb - as if it came like that from the factory!

    Zuntax and Street Guardian USA like this.
  5. jokiin

    jokiin Well-Known Member Manufacturer

    Messages:
    36,117
    Likes Received:
    18,192
    Location:
    Shenzhen, China - Sydney, Australia
    Country:
    China
    Dash Cam:
    Too many ¯\_(ツ)_/¯
    very nice, although the piece across the back is obviously larger I would actually find that much less distracting when looking in the mirror than it is without any cover, it's all about perception, not sight, top job!

  6. Zuntax

    Zuntax Active Member

    Messages:
    313
    Likes Received:
    226
    Location:
    New York, NY
    Country:
    United States
    Dash Cam:
    Panorama G (Street Guardian), Vico-TF2+ Premium, DOD LS400W
    Wow!!! NICE

    Street Guardian USA and Dionic90 like this.
  7. USDashCamera

    USDashCamera Well-Known Member

    Messages:
    1,100
    Likes Received:
    559
    Location:
    Minneapolis, MN
    Country:
    United States
    Dash Cam:
    Blackvue 550/650, plus many others
    i need to start looking at every day objects through the eyes of niko. you always fine such perfect solutions with random objects.

  8. Dashmellow

    Dashmellow Well-Known Member

    Messages:
    9,303
    Likes Received:
    9,479
    Location:
    Uncanny Valley (●_●)
    Country:
    United States
    Dash Cam:
    SG9665GC, Mobius/M2 (x7), GT680W (modded), DR32, others
    Amazing Niko, it looks as if it came from the factory like that.

    Dionic90 and Street Guardian USA like this.
  9. Yooshaw

    Yooshaw Active Member

    Messages:
    378
    Likes Received:
    200
    Country:
    United States
    Dash Cam:
    2x Mobius, 2 x SG9665GC, 2 x A119S
    Amazing work! Love it!

  10. dino

    dino Active Member

    Messages:
    106
    Likes Received:
    79
    Country:
    Sweden
    Dash Cam:
    Mobius
    Brilliant!! You're amazing.
    Gives me ideas to do something similar to cover my mobius. I'm afraid the wife will hate me after I have scavenged our kitchen appliances though.

  11. al_x

    al_x Member

    Messages:
    33
    Likes Received:
    21
    Country:
    United States
    Dash Cam:
    B40, G1W
    Wow! That's very impressive. I love it. Very creative and resourceful.

    Dionic90 likes this.
  12. Street Guardian USA

    Street Guardian USA Well-Known Member Retailer

    Messages:
    10,072
    Likes Received:
    6,637
    Location:
    Carson City, Nevada (USA)
    Country:
    United States
    Dash Cam:
    StreetGuardian.CAM Amazon.com Amazon.ca
    Disclaimer:
    Any "DIY" permanent paint modification or assembly - disassembly will void the factory warranty.

    Dionic90 likes this.
  13. germany

    germany Active Member

    Messages:
    271
    Likes Received:
    33
    Country:
    Germany
    Wow this is stunning you should manufacture this mount :D

  14. niko

    niko Well-Known Member Retailer

    Messages:
    10,168
    Likes Received:
    6,172
    Location:
    Dublin
    Country:
    Ireland
    Dash Cam:
    Street Guardian UK / EU / EEA Distributor
    I can make exactly the same as pictured ( or shorter ) upon request ;)

  15. Gabacho

    Gabacho Well-Known Member

    Messages:
    5,005
    Likes Received:
    2,179
    Country:
    United States
    Dash Cam:
    SG9665GC
    Very nice

  16. nhirsch

    nhirsch New Member

    Messages:
    17
    Likes Received:
    1
    Country:
    United States
    very well done!

  17. snacksthecat

    snacksthecat Member

    Messages:
    42
    Likes Received:
    27
    Country:
    United States
    Dash Cam:
    SG9665GC (front), Mobius (rear)
    I would love to do this but I don't know where I'd get the weird little plastic piece you crafted. It looks great!

  18. niko

    niko Well-Known Member Retailer

    Messages:
    10,168
    Likes Received:
    6,172
    Location:
    Dublin
    Country:
    Ireland
    Dash Cam:
    Street Guardian UK / EU / EEA Distributor
    Thanks. Its from old broken fridge fruit box / freezer flap. I believe if go and look around in some garage-sale or flea-market, or check your attic you will be able to find some similar "raw material" which will suit this project.

  19. Elemental

    Elemental New Member

    Messages:
    6
    Likes Received:
    0
    Country:
    Canada
    First, thank you for allowing me to join. I would love to do the same thing but have a problem. The camera can't see through the limo tint on the back window. Can I trim out just enough for the camera lens to "see" out the back?
    I have a 2006 Honda Element, Pioneer AVH 4100NEX and Clarion CC520 camera. The camera does not allow for adjustments. Any ideas appreciated.

  20. Street Guardian USA

    Street Guardian USA Well-Known Member Retailer

    Messages:
    10,072
    Likes Received:
    6,637
    Location:
    Carson City, Nevada (USA)
    Country:
    United States
    Dash Cam:
    StreetGuardian.CAM Amazon.com Amazon.ca
    There is no EV adjustment on this model (Zoran chipset SDK limitation) but the Sony IMX322 sensor does ok with light tint. (but not through heavy dark limo tint)
