First, thank you for allowing me to join. I would love to do the same thing but have a problem. The camera can't see through the limo tint on the back window. Can I trim out just enough for the camera lens to "see" out the back?
I have a 2006 Honda Element, Pioneer AVH 4100NEX and Clarion CC520 camera. The camera does not allow for adjustments. Any ideas appreciated.
Welcome to forum.
Just to clarify, what exactly are you plan to trim out, tint or something else?


Elemental

New Member
Joined
Sep 20, 2017
Messages
6
Likes
0
Country
Canada
#22
Maaaaaan. I just finished installing the Clarion and have the broken nails and scrapes to prove it. I pulled the trim panels in the rear, fished the cable through the rear gate, into the rubber electrical tube, then along the roof liner. Then put everything back. It looks factory. Nice and clean. I was thinking of gluing an o-ring around the lens and cutting a suitable hole in the tint. Mine looks like the photo but the tint is darker.


Attachments

jeez123

Active Member
Joined
Aug 4, 2017
Messages
171
Likes
36
Country
Denmark
Dash Cam
Blackvue DR650S-2CH
#25
First, thank you for allowing me to join. I would love to do the same thing but have a problem. The camera can't see through the limo tint on the back window. Can I trim out just enough for the camera lens to "see" out the back?

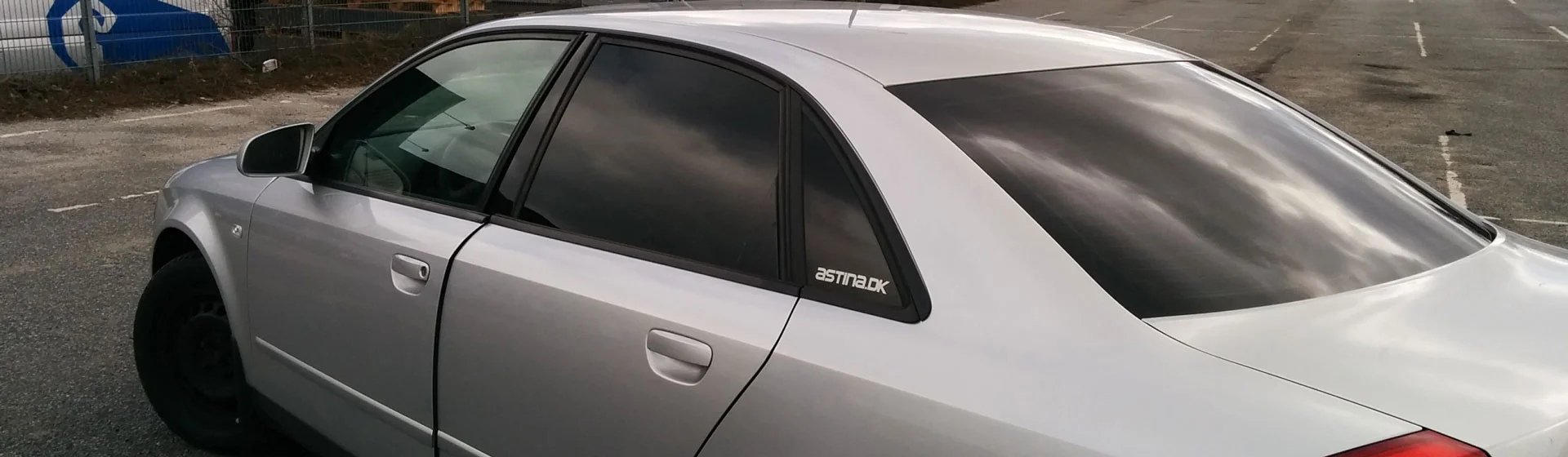

That has to be some of the most hardcore tint i've heard of in a while. You're sure the glass isn't painted, then?

Take a look of a 5% LLumar ATC film, in 5am in the morning..

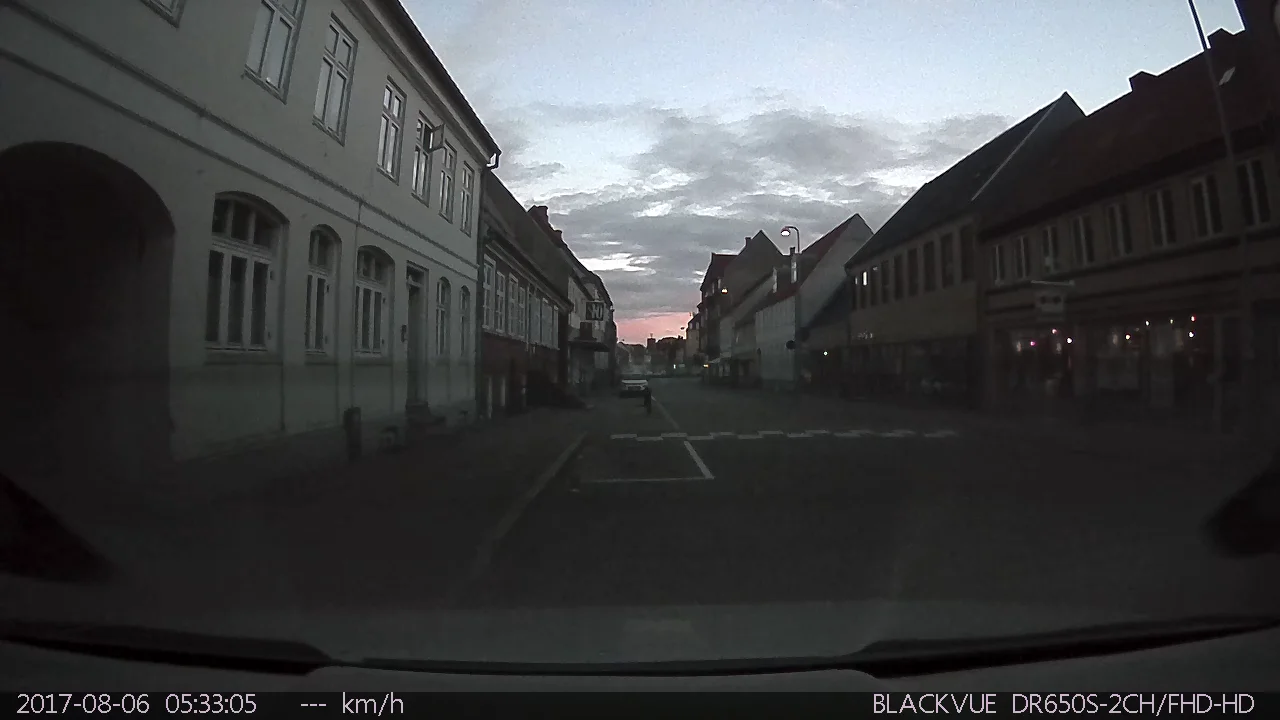

It's easy to see through from the inside, even by the RV-cam, but totally black on the outside.

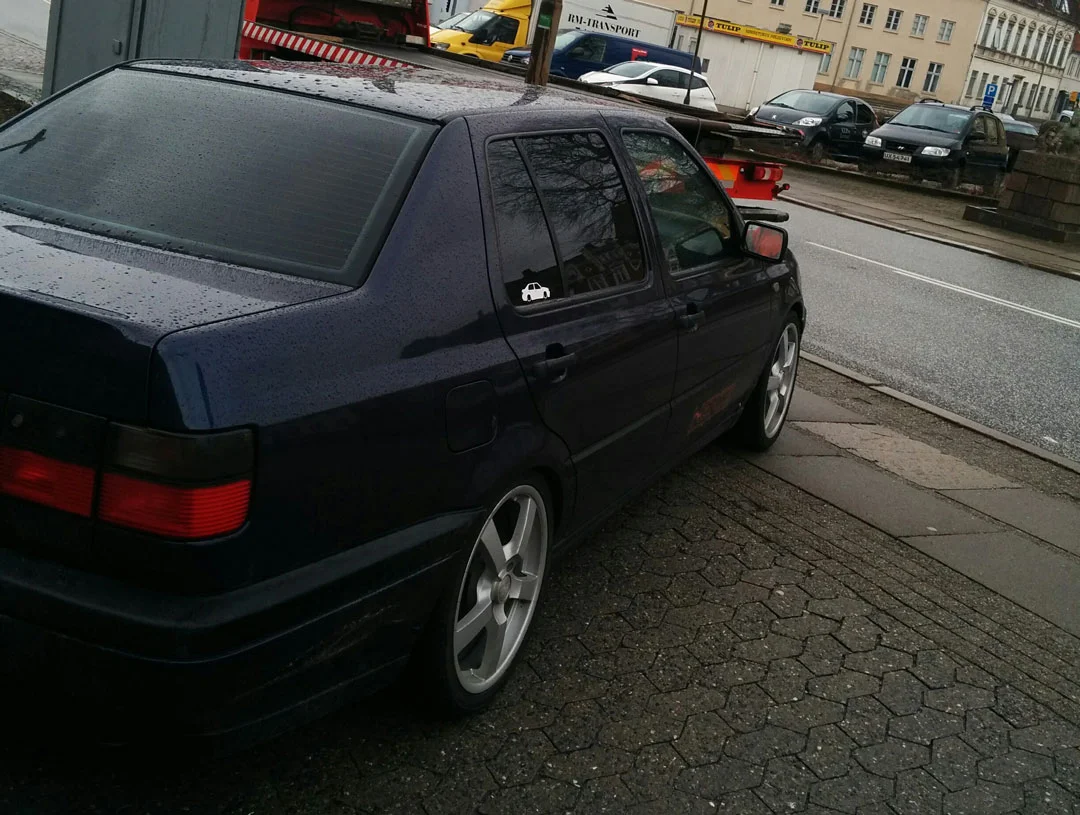

Btw the Llumar ATC5 is by far the darkest film i've run with in all my cars.


Even the 3M CS5 (That's also a 5% tint) i did on my Vento, isn't as black as the Llumar on the inside, but equally as black from the outside.


Elemental

New Member
Joined
Sep 20, 2017
Messages
6
Likes
0
Country
Canada
#26
OK. I'm and idiot. The grainy image was because it was dark in the garage and outside. Here is a daylight image.
Still going to modify the 3rd brake light like the photo below. I have ordered an LED strip.
Will cut it in half and mount the camera in the middle. If I fab a plexi U channel and put the LED strip on the bottom of the U, it will be very stealthy.
The U channel will be 1 1/2" id at the back so the camera can tilt down and the top and bottom will be cut to the curve of the back window.
I will ask my tint guy to remove the tint under the new light after I have finished
fabricating the light. If I use the old clip in plug from the current brake light, it will be plug and play.


Attachments

OP
OP
niko

niko

Well-Known Member
Retailer
Joined
May 1, 2013
Messages
10,411
Likes
6,293
Location
Dublin
Country
Ireland
Dash Cam
Street Guardian UK / EU / EEA Distributor
#27
Hi Niko.
Just the tint.
As I understand your Honda rear glass is almost 90 degree ?



in this case if you mount RC camera the way it lens will be as close to the glass as possible (1-2mm away) they I assume you need to cut out only about 1.5 (max 2) cm. diameter hole in your tint.


Elemental

New Member
Joined
Sep 20, 2017
Messages
6
Likes
0
Country
Canada
#29
Yes, almost 90 degrees. They don't call them boxy for 'nuthin.
I thought about an external camera but, I intend to have a cargo box on the rear hitch and, there really is no place to mount a camera and have it look factory. The angle of the camera, as it is now, will be ideal. I will adjust as needed.

OP
OP
niko

niko

Well-Known Member
Retailer
Joined
May 1, 2013
Messages
10,411
Likes
6,293
Location
Dublin
Country
Ireland
Dash Cam
Street Guardian UK / EU / EEA Distributor
#31
Thanks for going green niko. (;
Superb job!
Any Ideas for a hidden install for the front cam?
Depends on the car make/model/year, type of inside rearview mirror housing where would be one the options to DIY install front camera.


Gazwould

Active Member
Joined
Jan 10, 2018
Messages
199
Likes
56
Country
United Kingdom
#32
It's nice work and all that but you could of had the rear 3/4 tinted or even retro fitted privacy glass and remained stealth and enjoyed the darker glass benefits .


xPosTech

New Member
Joined
Feb 3, 2015
Messages
9
Likes
4
Location
East Texas
Country
United States
Dash Cam
A119S
#34
Yes, almost 90 degrees. They don't call them boxy for 'nuthin.
I thought about an external camera but, I intend to have a cargo box on the rear hitch and, there really is no place to mount a camera and have it look factory. The angle of the camera, as it is now, will be ideal. I will adjust as needed.
If you're gonna put a receiver hitch on your car it's pretty easy to use a 2" square cover that fits the hitch as the camera mount. Then fab up an extension cable and move it to the back of the cargo box when you have that attached. If your camera has wifi it's easy to use an external camera for reversing and parking.

I'll see if I can find an image or two when I get some time. Right now I'm about to walk out the door for a trip to the VA.

Ted


xPosTech

New Member
Joined
Feb 3, 2015
Messages
9
Likes
4
Location
East Texas
Country
United States
Dash Cam
A119S
#35
This camera was made for just backing and parking so it doesn't have the resolution you would want. I just want you to grasp what I'm talking about. Forget the camera and look at the mount. This would work but it's too exposed to damage from other vehicles backing and parking. Recessed into the hitch would be much better. Another 2" X 2" piece on the cargo box would allow you to use it with or without the cargo box. You would just need to fab a plug in extension cable the depth of the cargo box.
Ted
