A229 Pro - Side Cameras
@viofo @VIOFO-Support @Vortex Radar

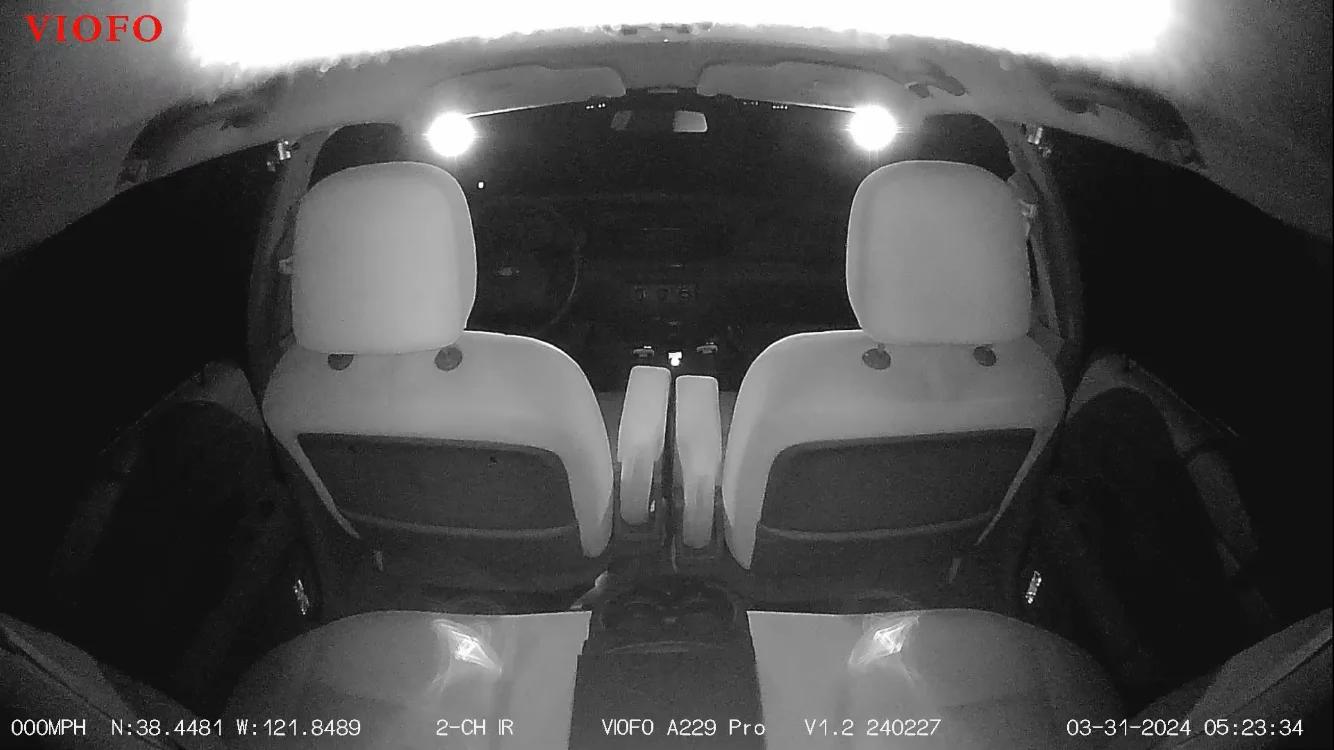

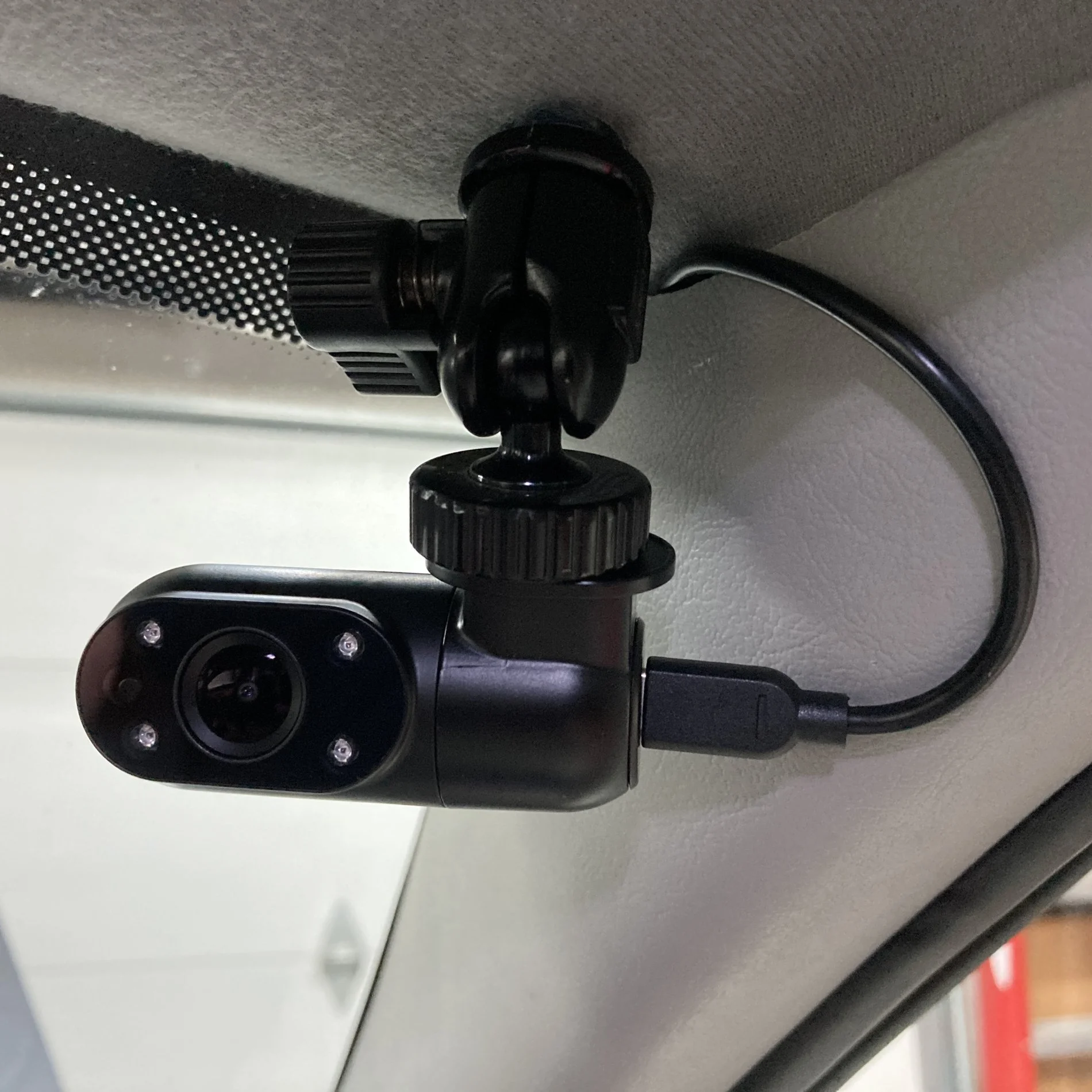

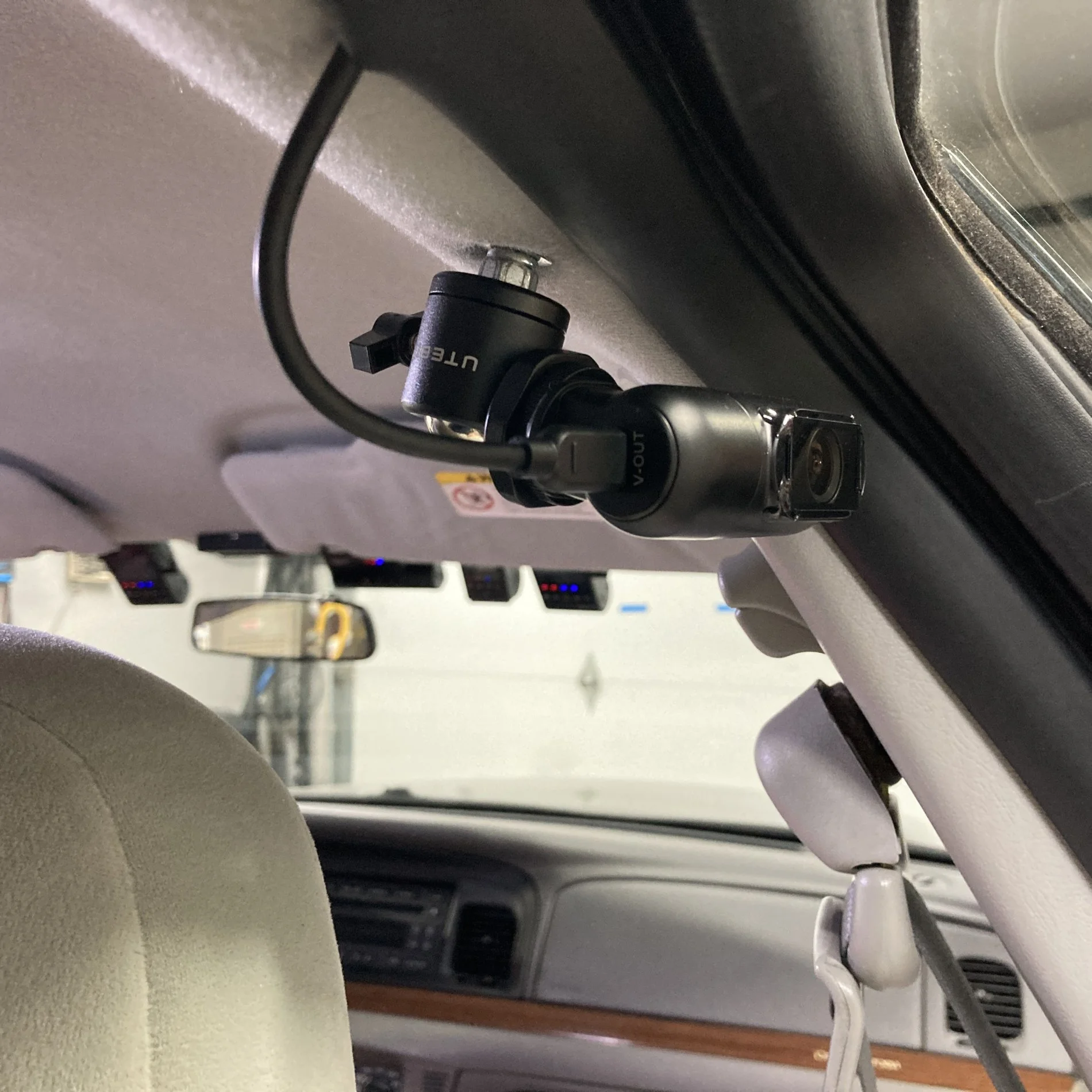

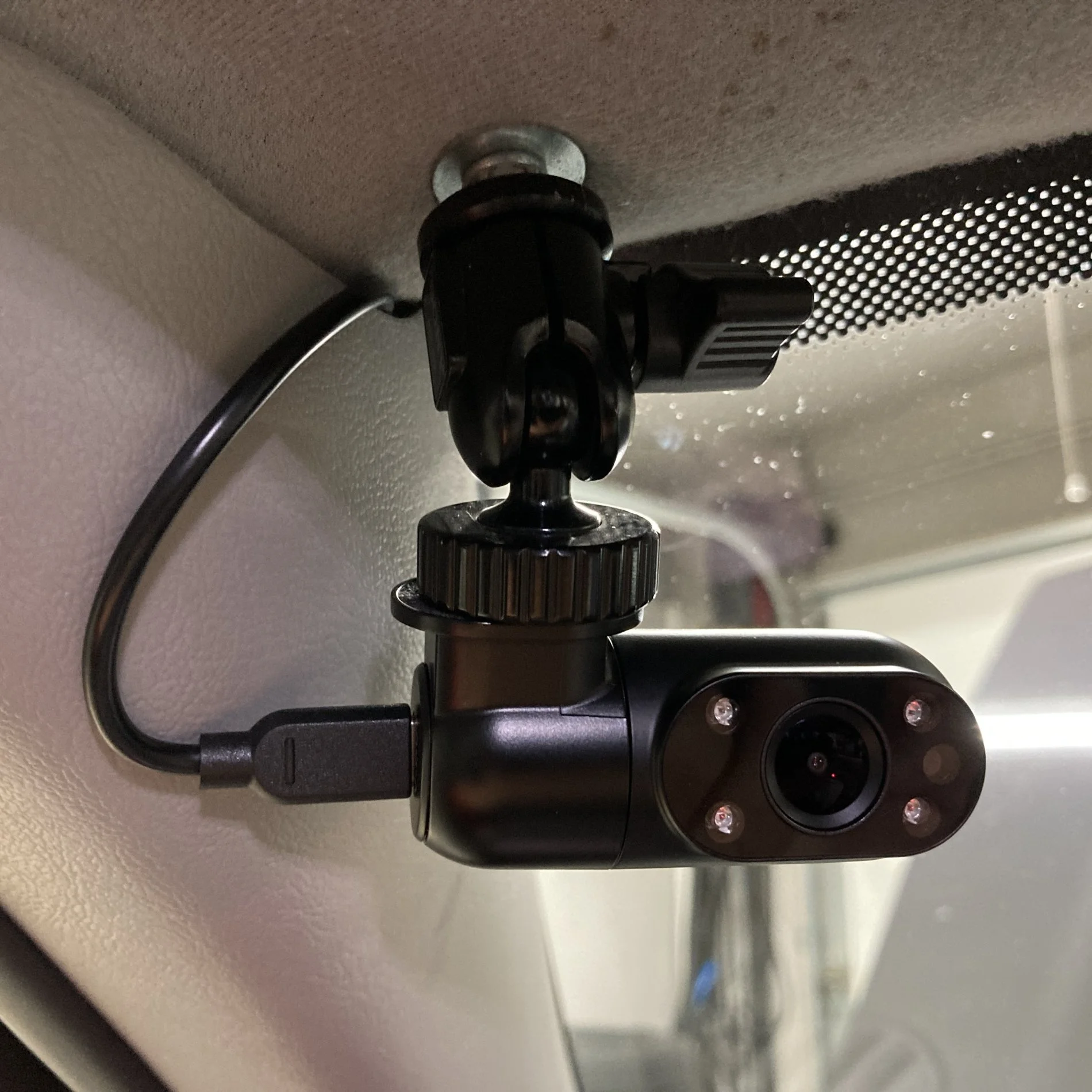

In my last post I experimented by installing two IR Interior cameras mounted at the top of my A-Pillars for “traffic stop configuration”.
https://dashcamtalk.com/forum/threads/a229-pro-test-review-pp.49779/post-615623
I like ‘em so much, I’m going to leave them “permanently”.
Q: What should I do with the two REAR cameras?

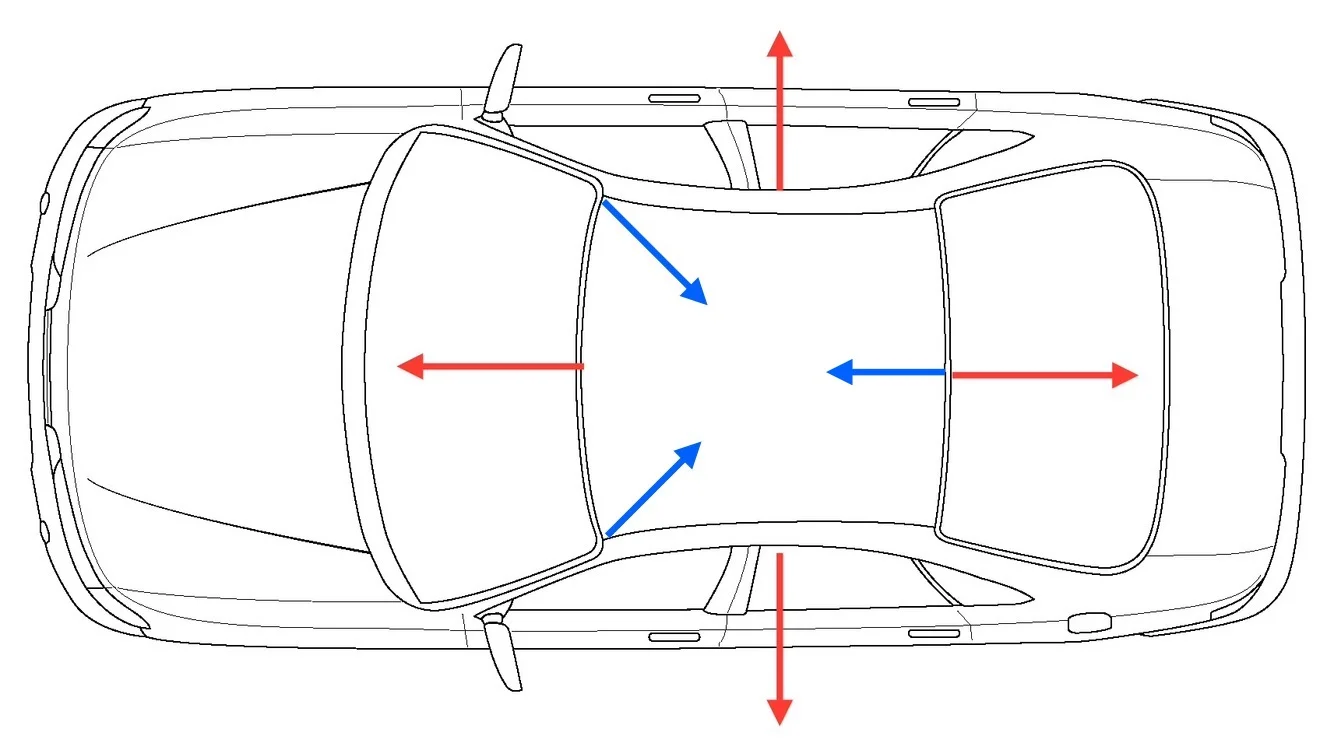

A: How about Left & Right side cameras.
Side cameras are nothing new, people have been doing it for many years.
October 2020 I made my first 4-CH system with two units of Viofo A129 Plus Duo’s.
I didn’t plan on making a 4-CH system at the beginning.
I only wanted the two main / front units for front & rear because they were 2K60fps capable.
And, after seeing the 1080p 30fps image quality from the rear cameras they were disappointing.
I let both rear cameras sit in the box in my closet doing nothing, when I realized why don’t I put them to use as side cameras.
So, I installed the rear cameras as side cameras on the fixed window in my rear passenger doors.
Installation was a pain in the rear because I had to remove the door panels, and run the cabling through the waterproof rubber ducting in the door jam along with the factory wiring for the power windows, and locks.
But it was worth the extra labor because it turn out pretty clean with no visible wires.
I quickly realized the benefit of side cameras.
When the main cameras on the front & rear windows failed to capture a license plate 9 times out of 10 one of the side cameras would get a good read.
This time around I was not willing to do the same labor intensive wiring install.
I also did not like the 90° angle (perpendicular) POV of the rear cameras because objects seem to zip past faster than I’d like.

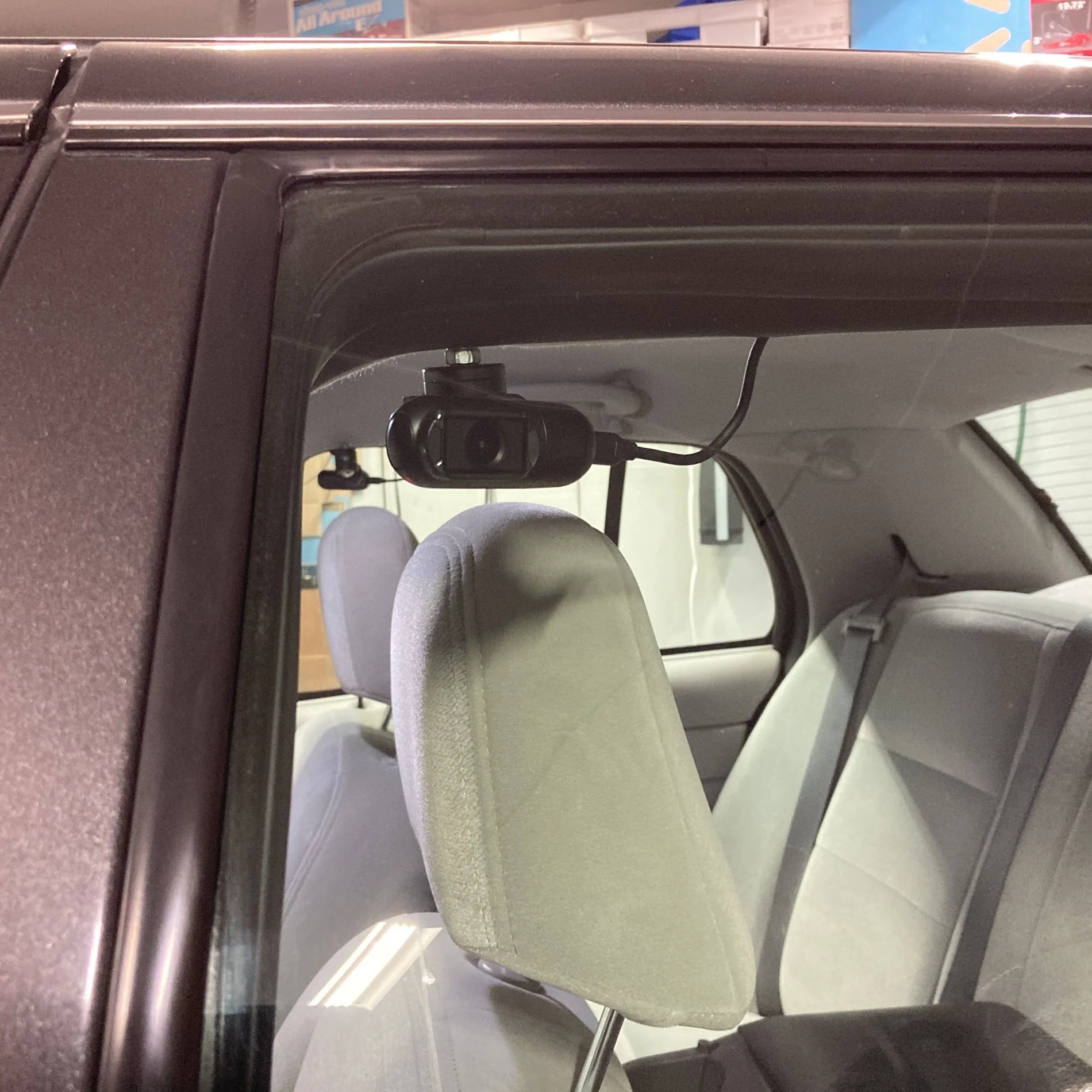

This time I would prefer an angled cant to point the cameras rearward towards the blindspot.
This should “slow down” passing cars.
Well after reviewing some test footage I really like these side camera POV’s much more than my first install in 2020.
I’m not proud of the exposed ugly AF wiring, and this is just temporary until I figure out how to make in cleaner.

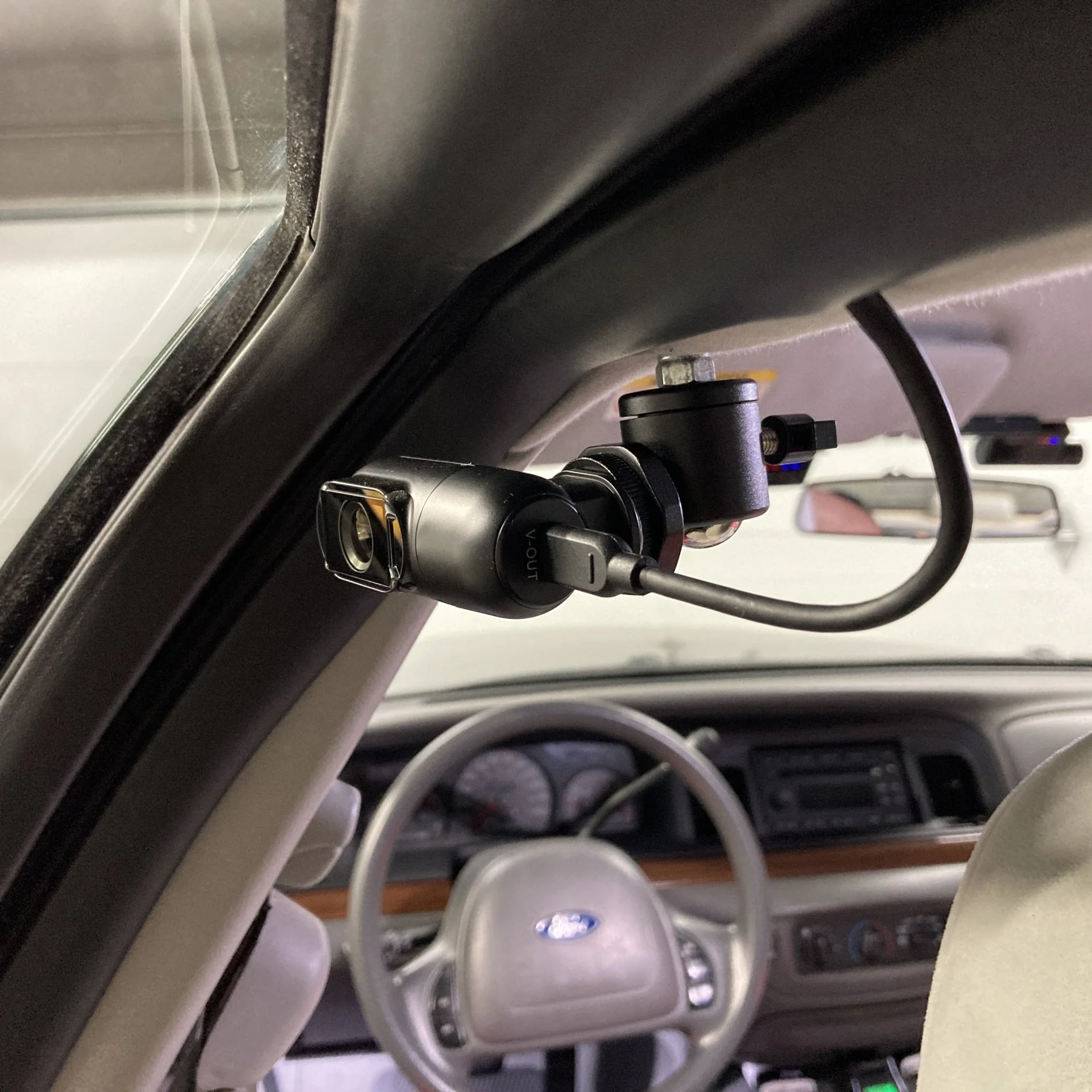

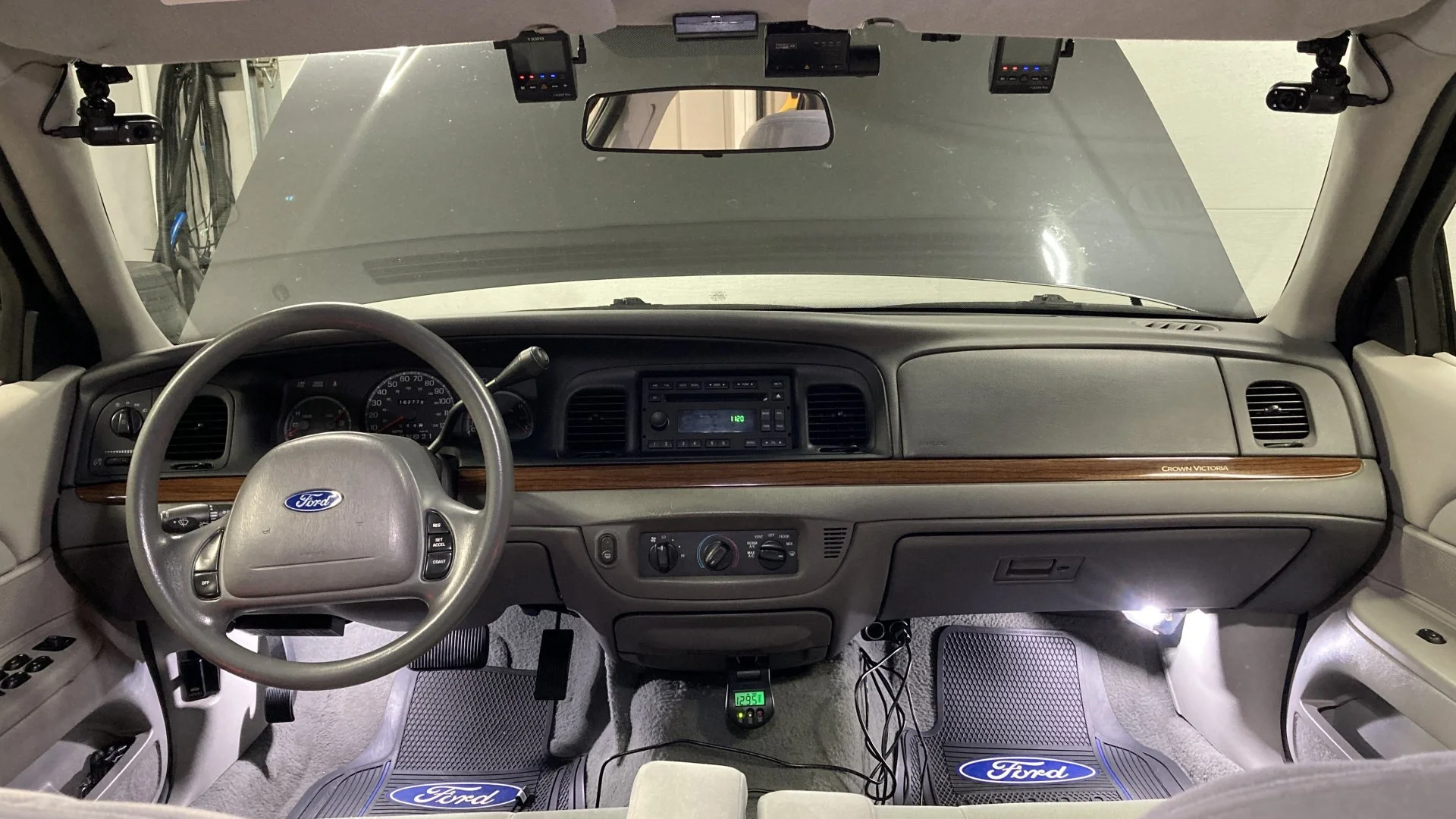

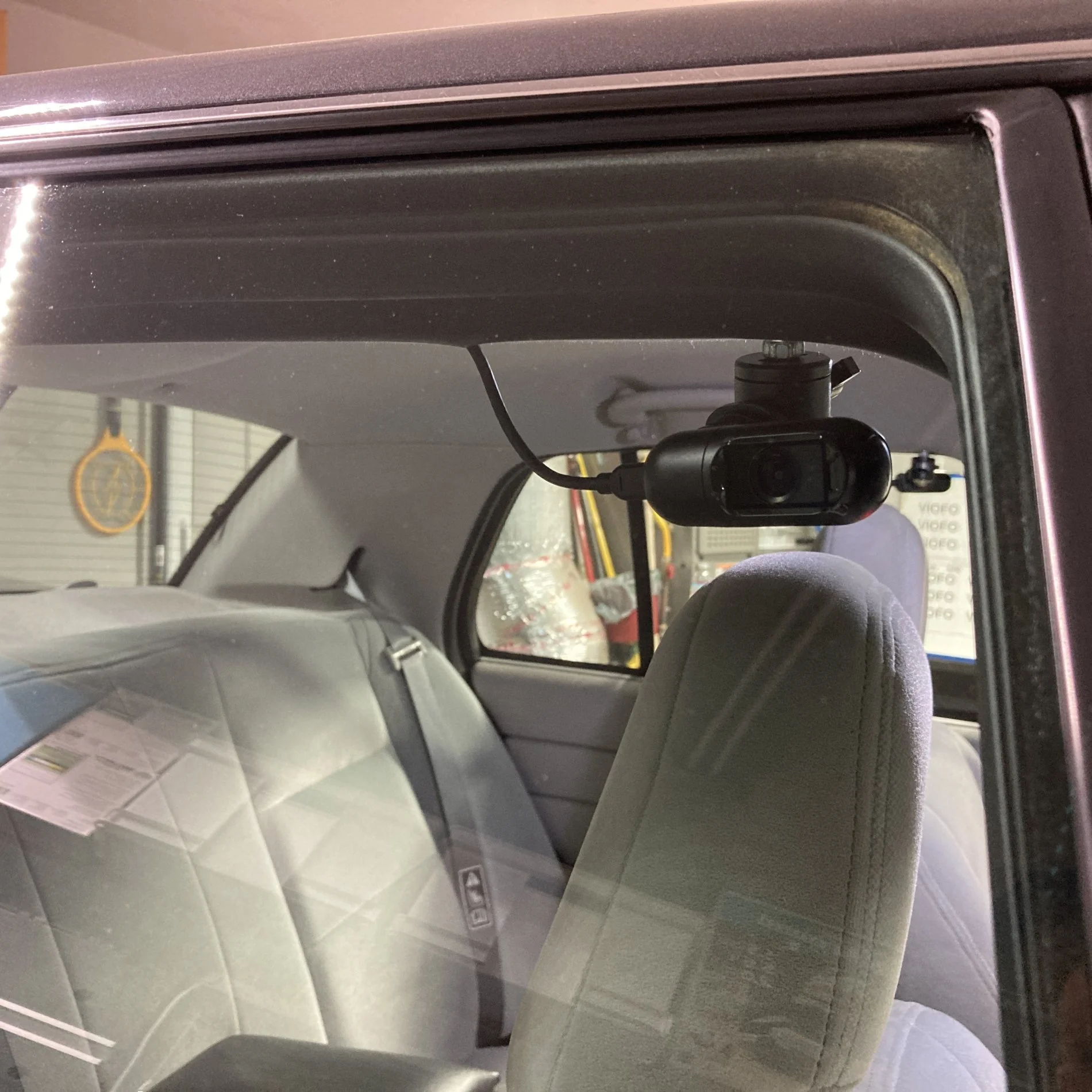

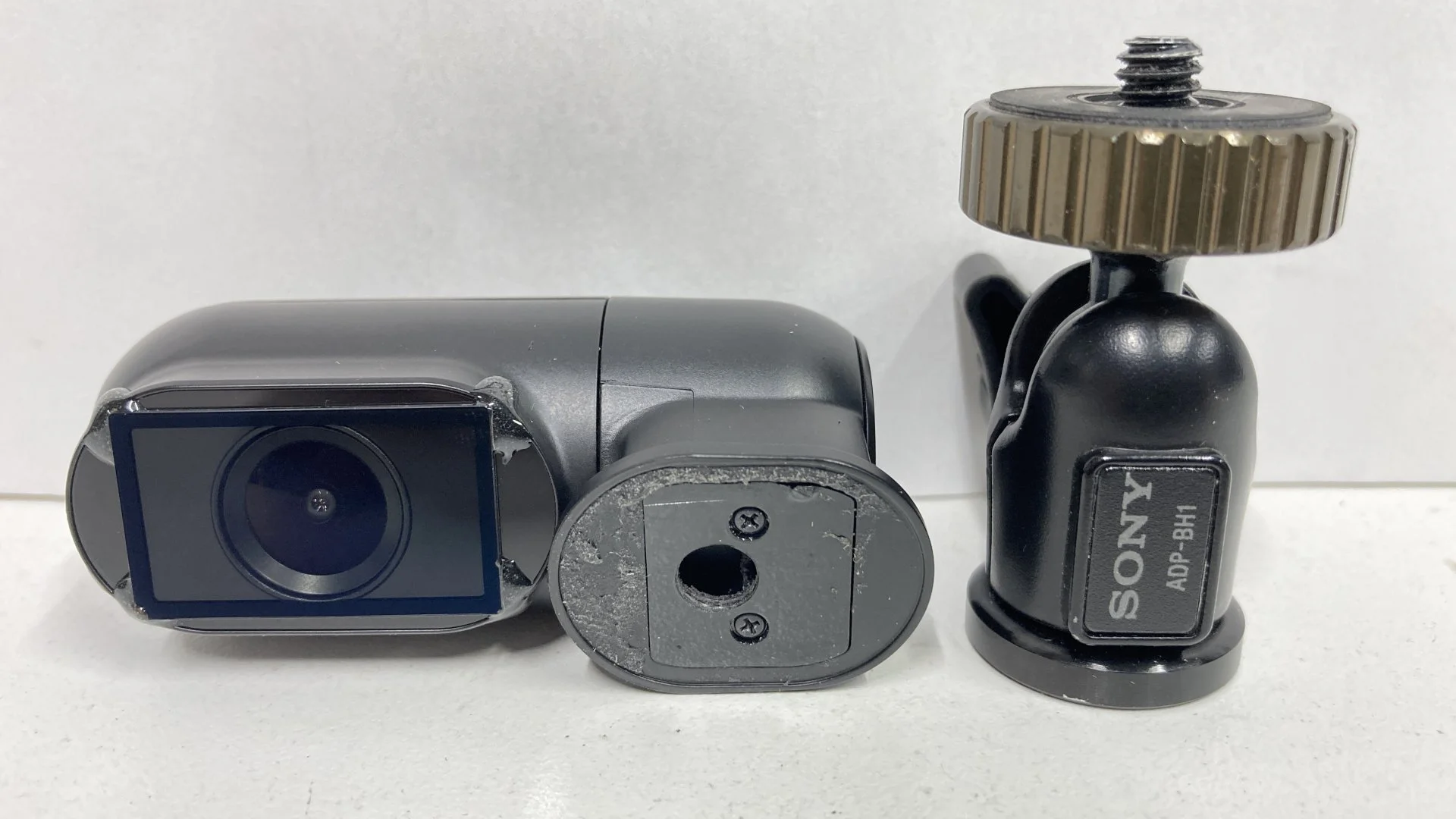

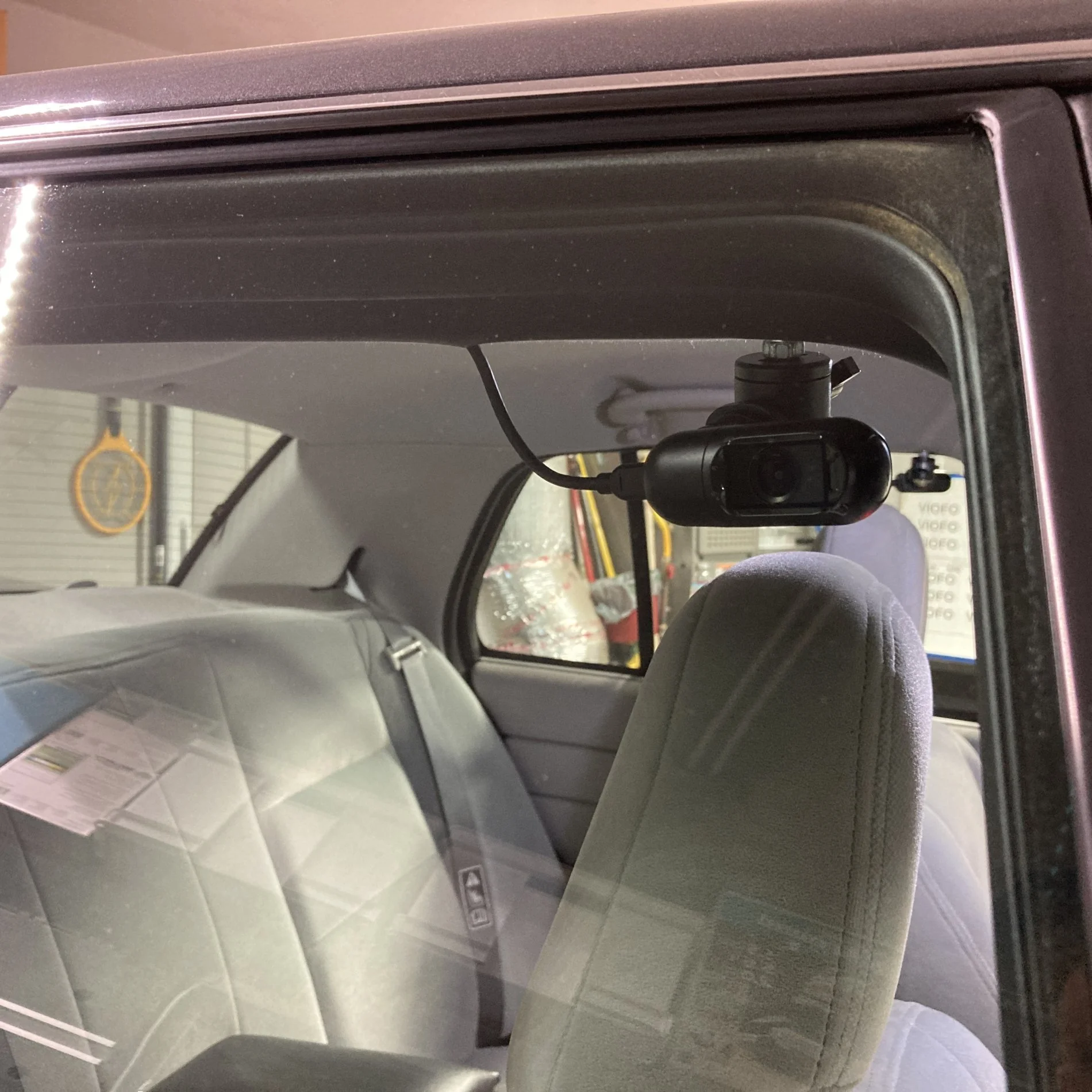

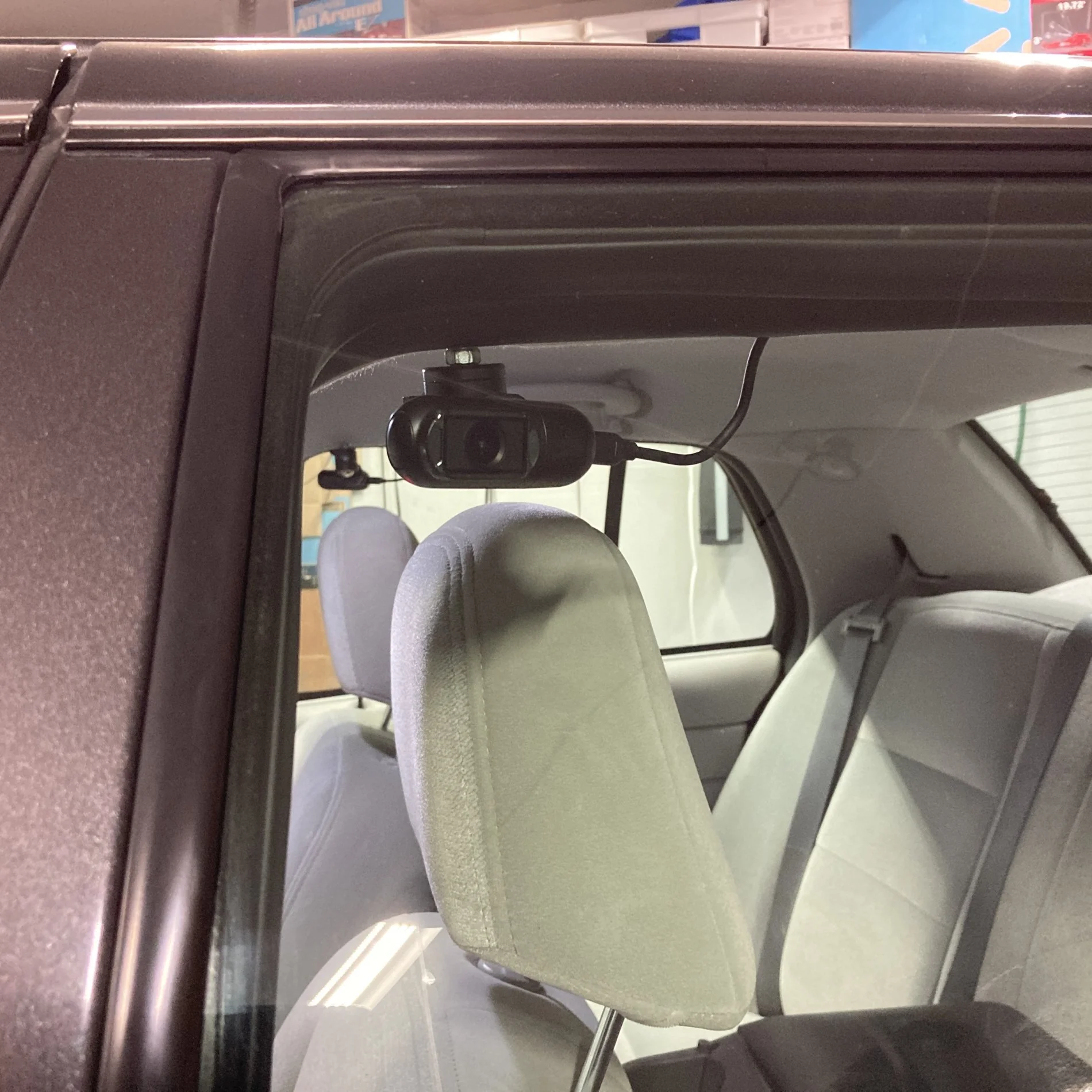

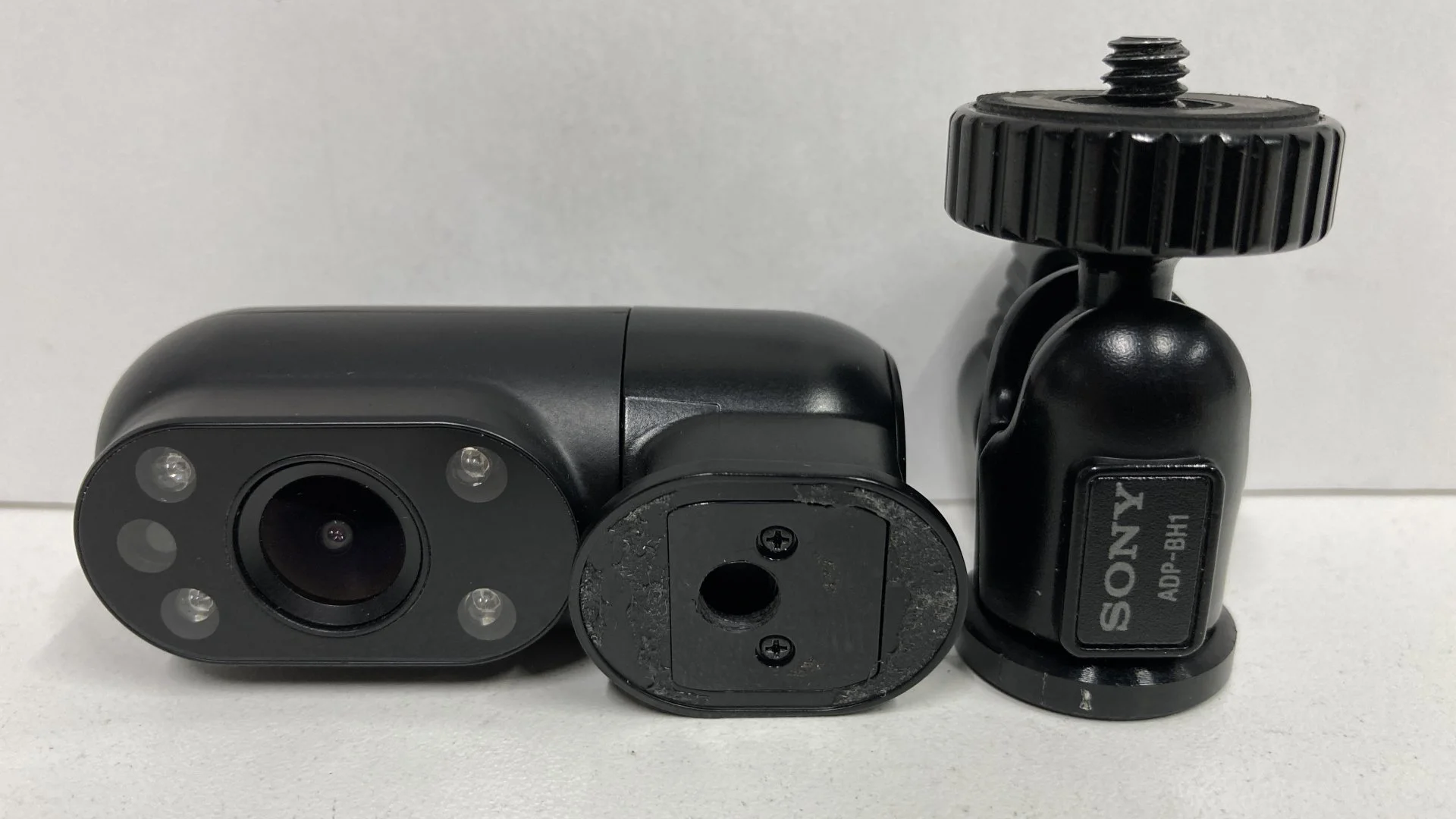

Here’s some photos;
View attachment 71679
View attachment 71680
View attachment 71681
View attachment 71682
View attachment 71683
View attachment 71684
View attachment 71685
Here’s what the look like in action;
Left & Right Side Cameras - Highway;

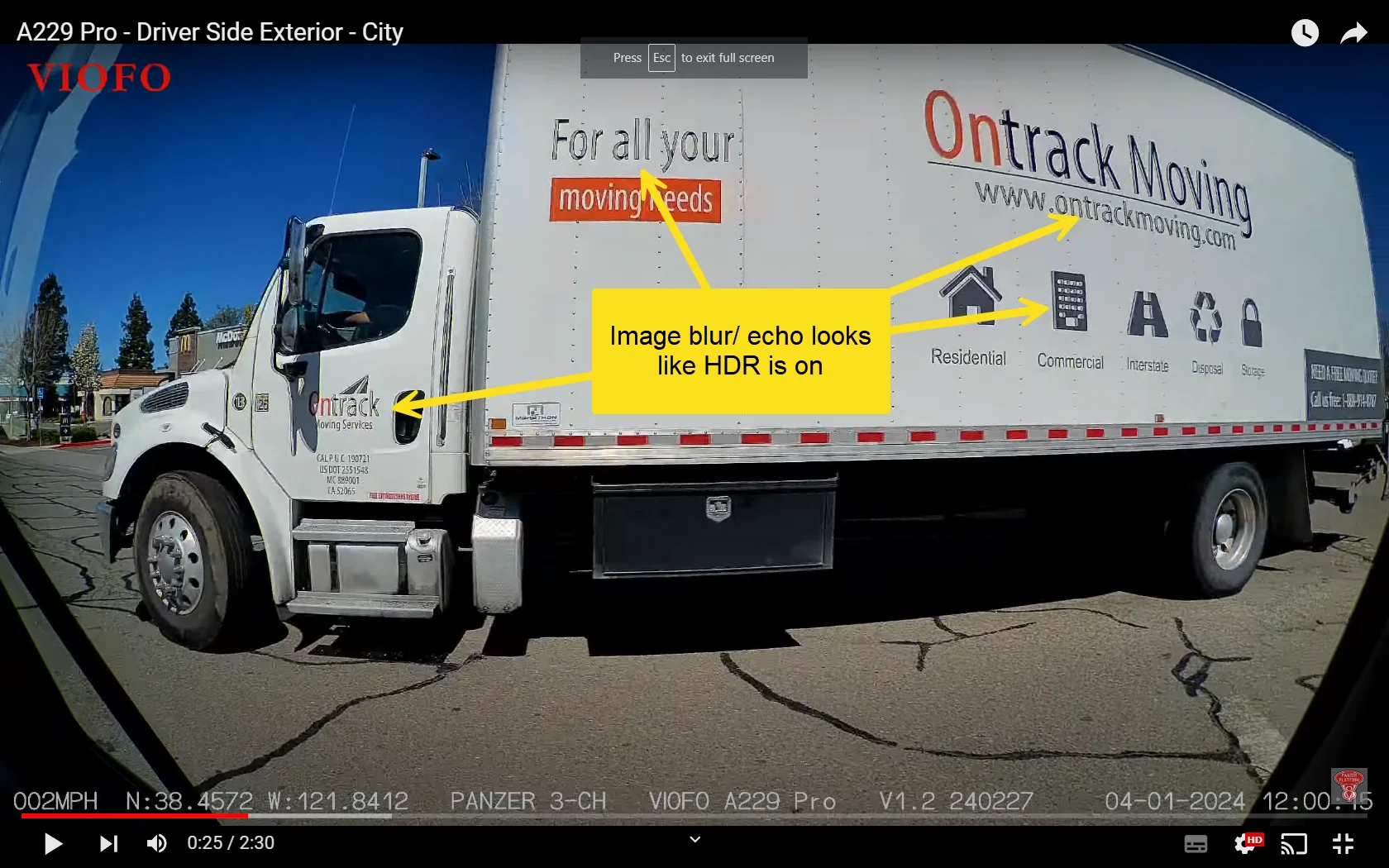

Left & Right Side Cameras - City;

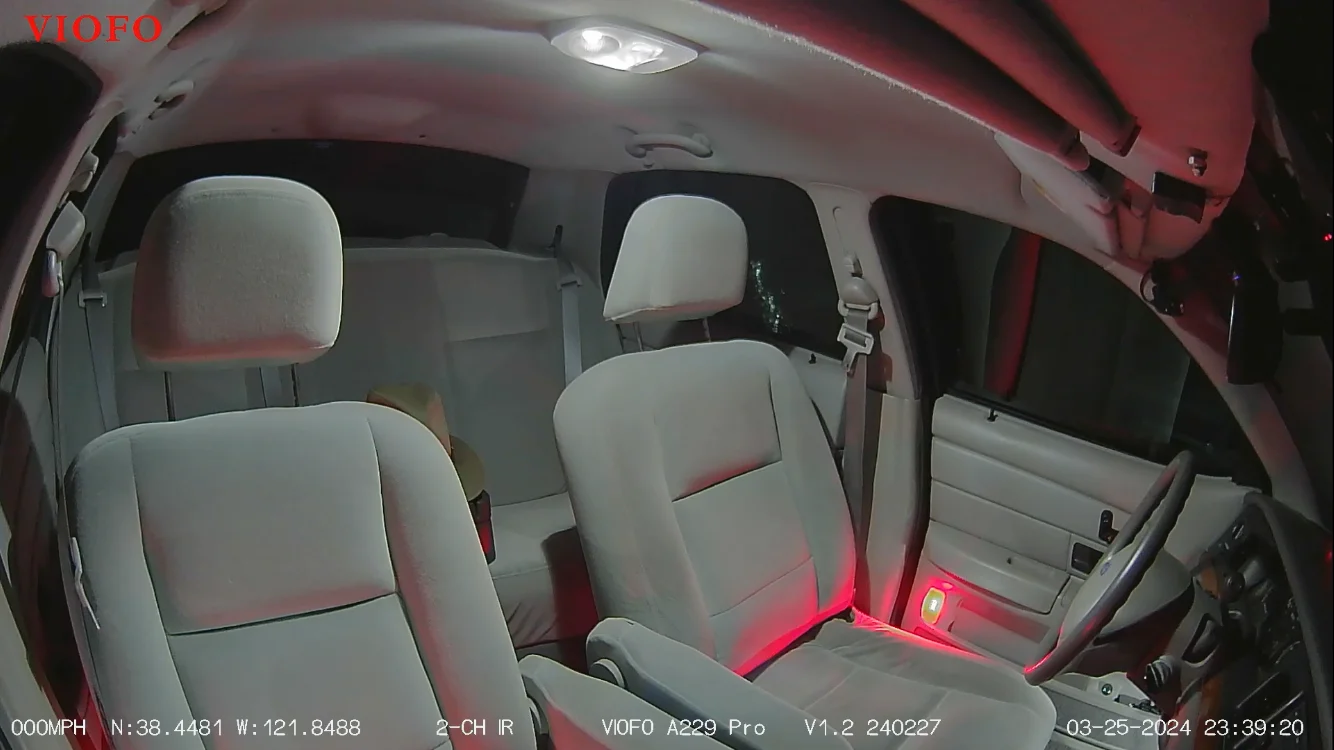

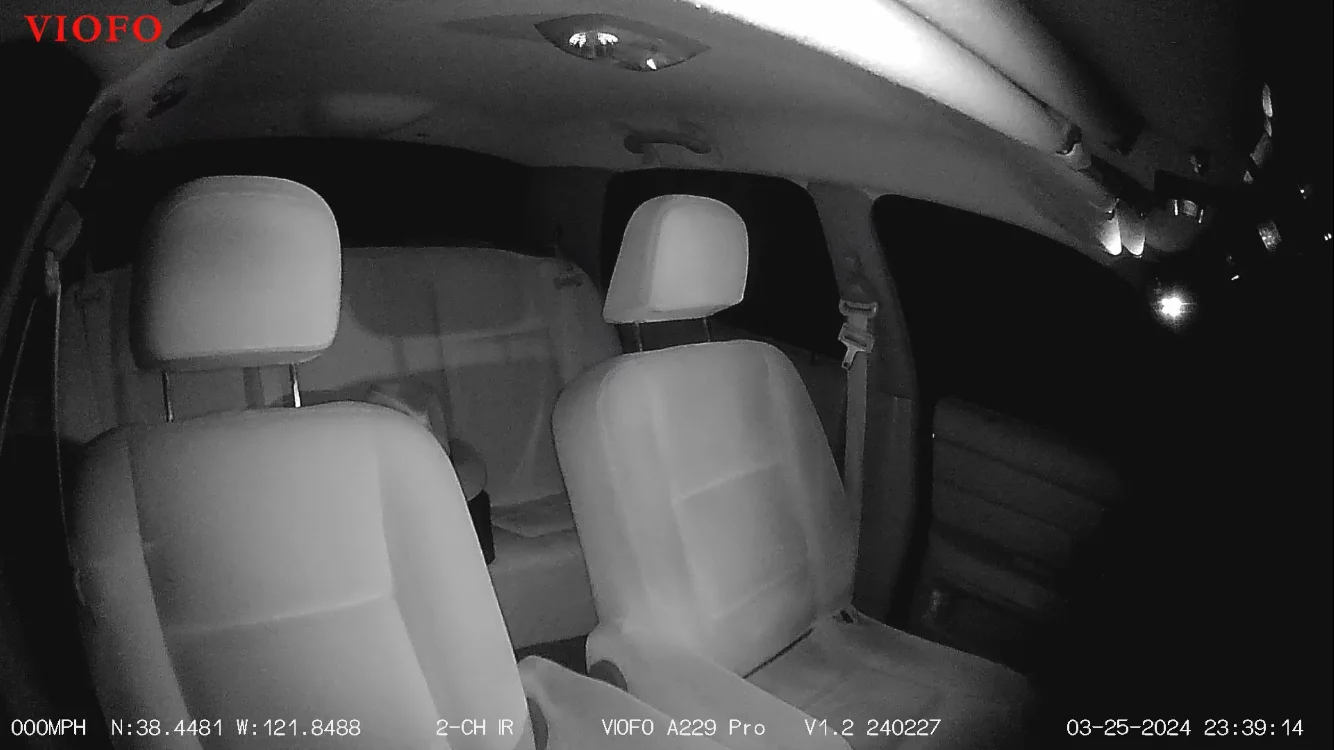

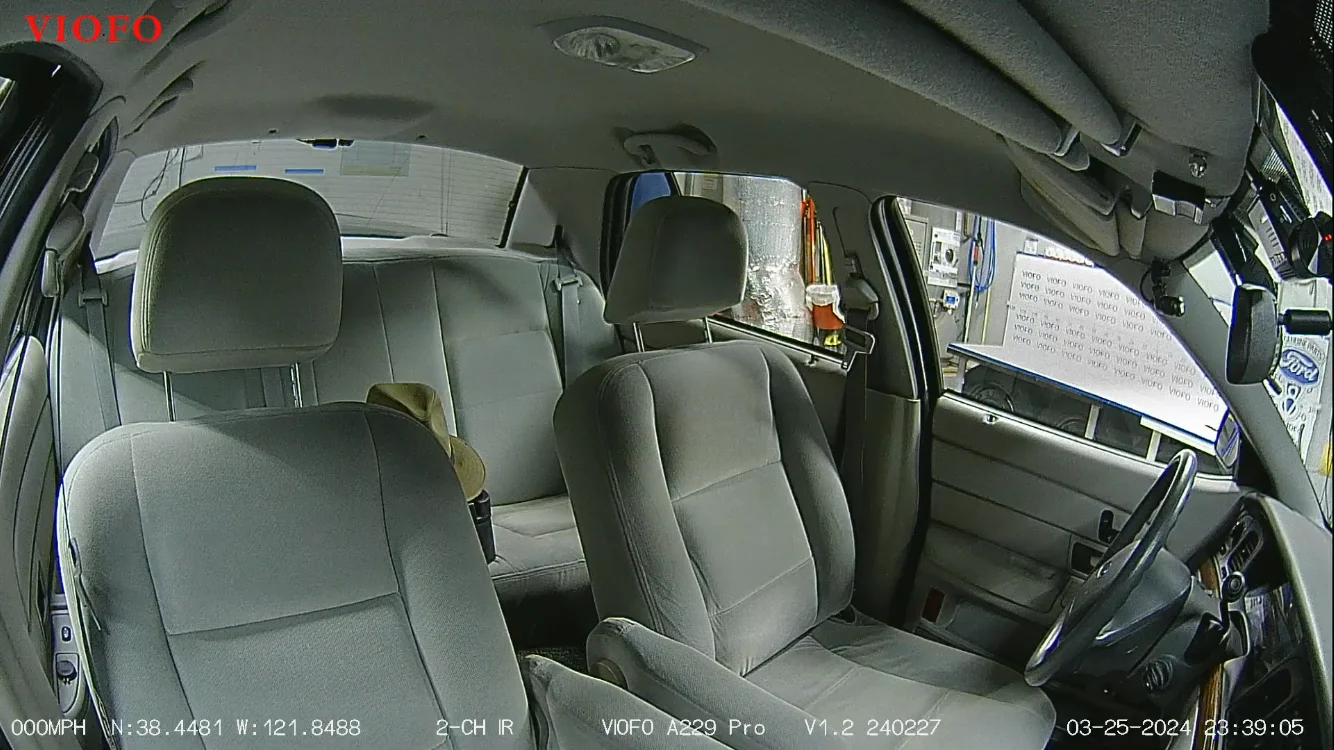

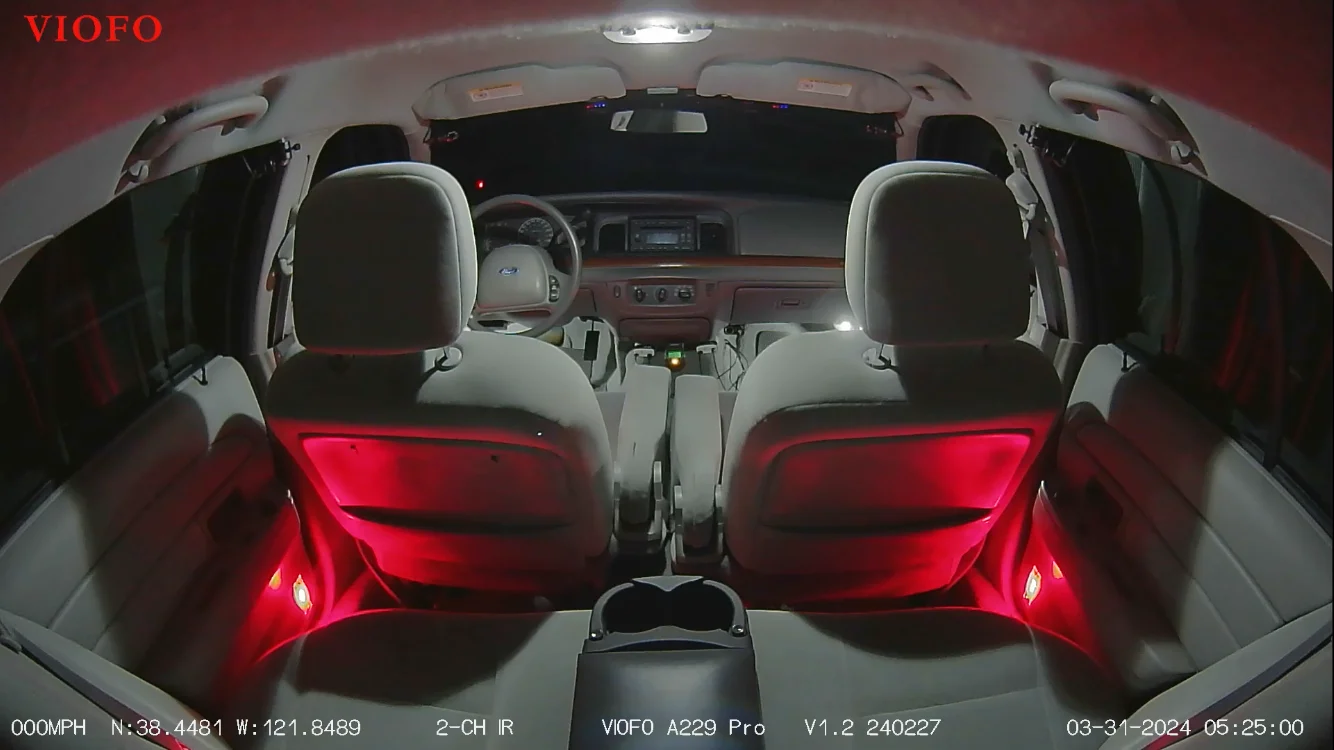

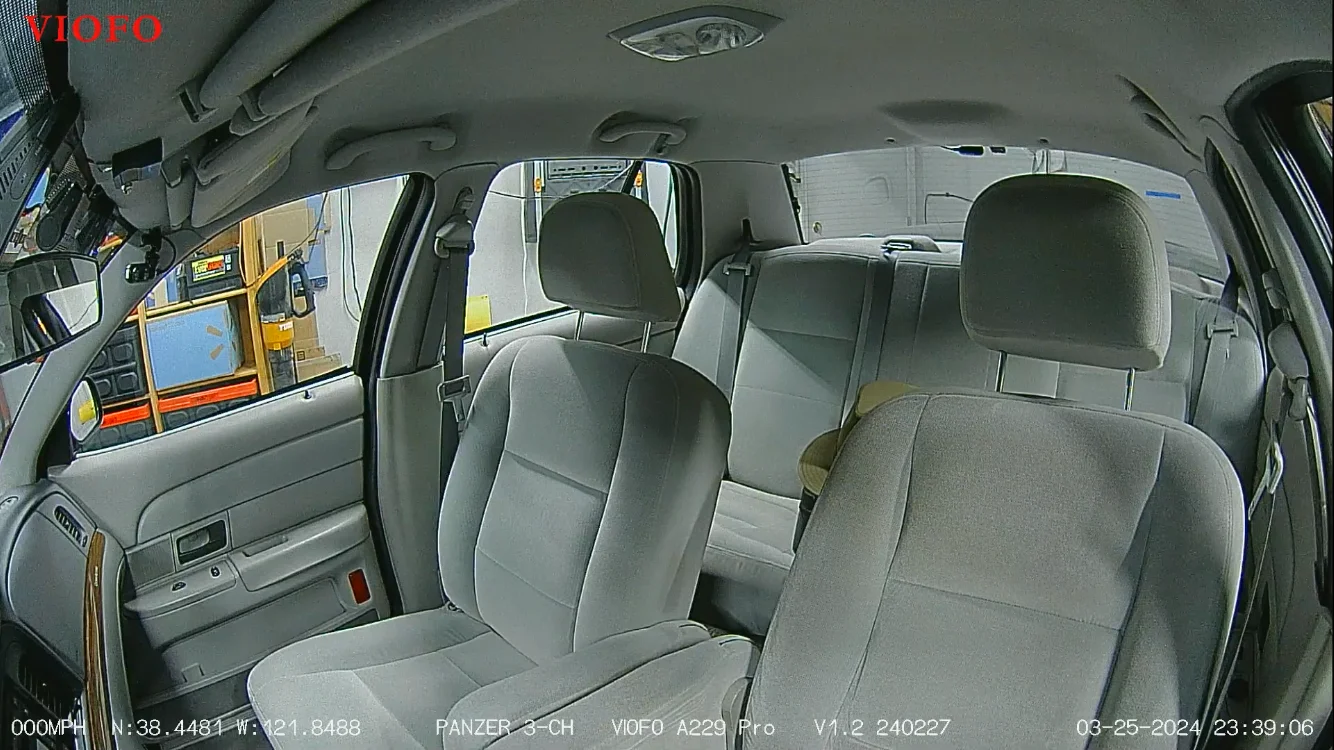

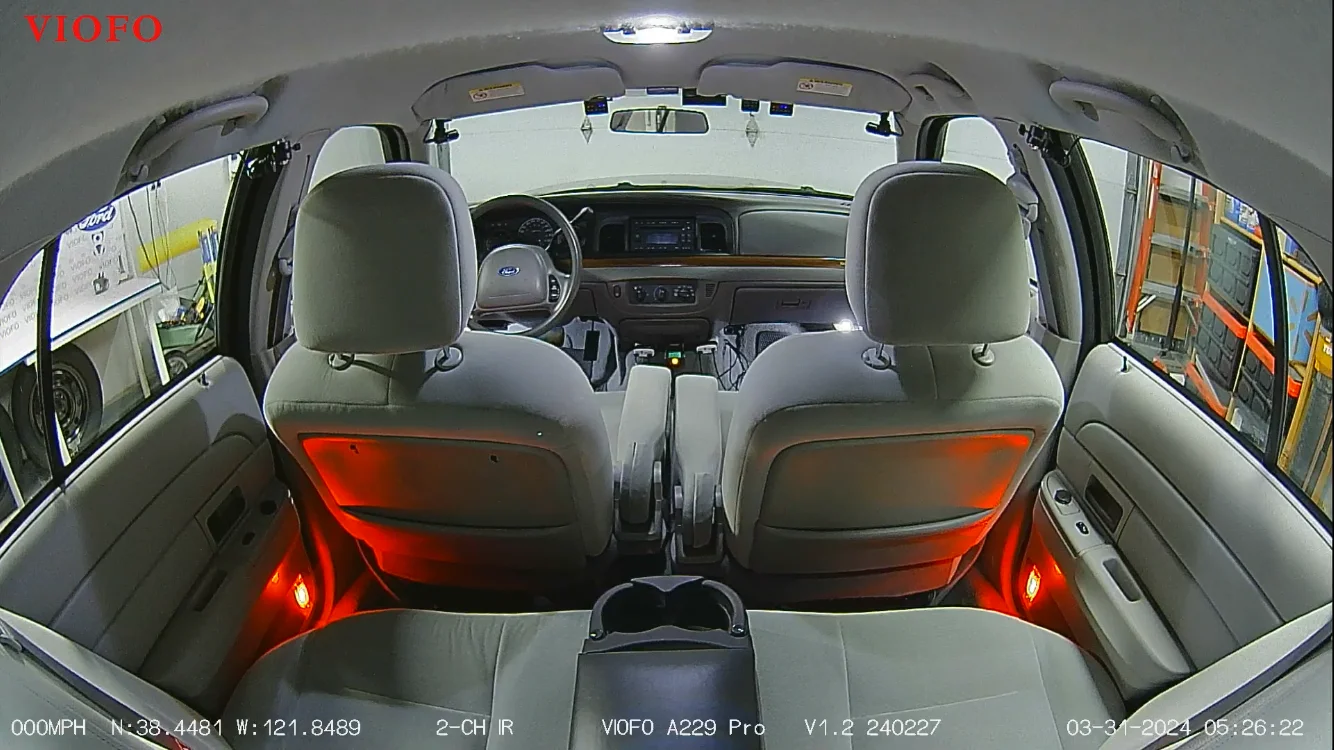

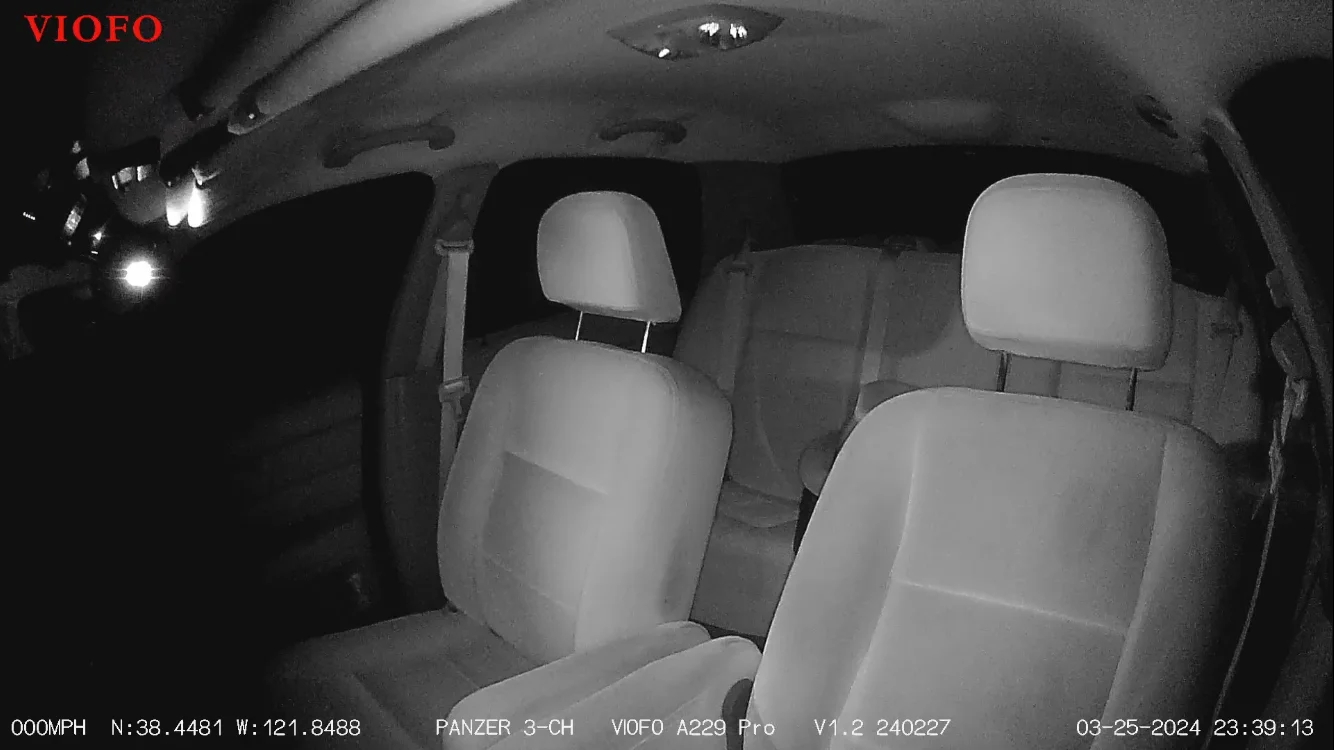

Here’s a clip from the IR Interior camera so you can see how the side cameras are mounted;
