Update #6:
Hello my fellow dashcam enthusiasts!
Long time no

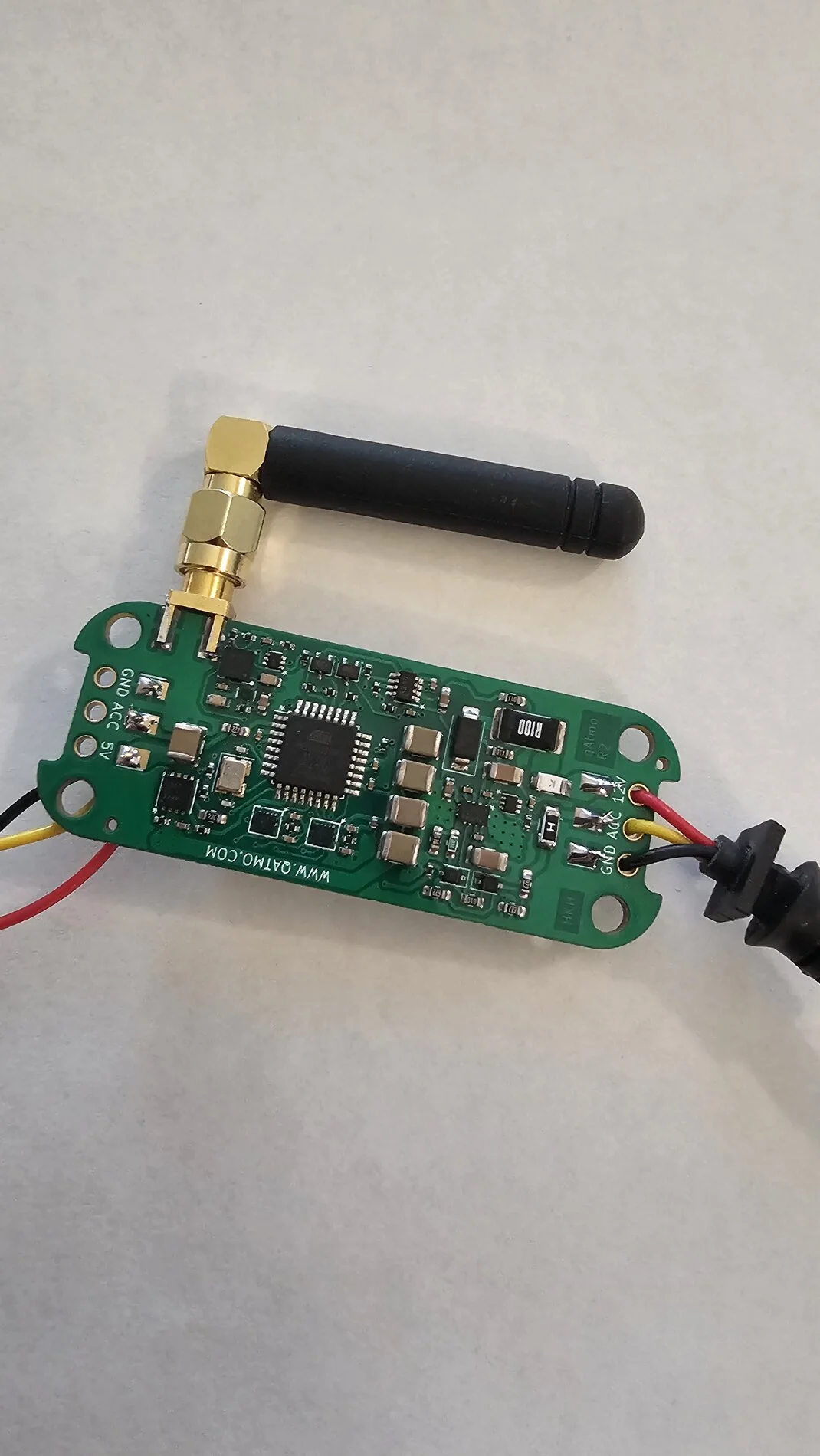

see post! I've finally found some time to finalize the revised version of my HK-kit and order it with my Chinese manufacturer. Below are the first photos of the assembled boards:
As you may recall, my intent was to combine everything I wanted from the HK kit into one board (LoRa, accelerometer, multi-point temps readings, power consumption, low power mode controls, etc...), as well as to test new DC regulator and take to the limits manufacturing capabilities of my Chinese supplier. I've only ordered 2 boards as my supplier was low on stock on one of the key parts.
Well, I got some results - none of the two boards worked from the start!
However, I've eventually managed one of the boards to function after some root-cause analysis and was able to test the capabilities of the HK kit, albeit not the way I intended the whole thing to go.
The good news is that the "power" portion of the circuit exceeded all of my expectations! The DC-DC converter is extremely efficient with virtually no noise! I got over 95% efficiency and what is even better is that the circuit barely heats up! In fact I was able to feel some heat only when I loaded 1.6 Amps on the output, and after about an hour the regulator temps did not exceed 45C! Running only the A129Pro as my test load, temps stayed under 35C which is about 7C above ambient.
Now to the bad news! The reason why the boards did not work out of the box was because... Well, I wanted to test manufacturing capabilities of my Chinese supplier - I've found them out! Some of the parts that I've used were extremely small and right on the edge of listed capabilities. I had a tiny linear voltage regulator to power all the 3.3v stuff which turns out has failed at the connection end. That part is smaller than your classical 0603 size resistor, yet has 5 pads underneath. I believe the output pad of that part did not get properly connected to the board, so I never got 3.3v out. And there is no way of fixing it, so I had to improvise and find a replacement for that part (so that I could test things out). And here is the photos of my "fix", lol:
I've basically soldered a 3.3v regulator right on top so that I can power all the 3.3v stuff and get to testing!
Overall I've spent over $200 on these 2 boards, but I don't regret it, as I've gained knowledge which is valuable for my other projects.

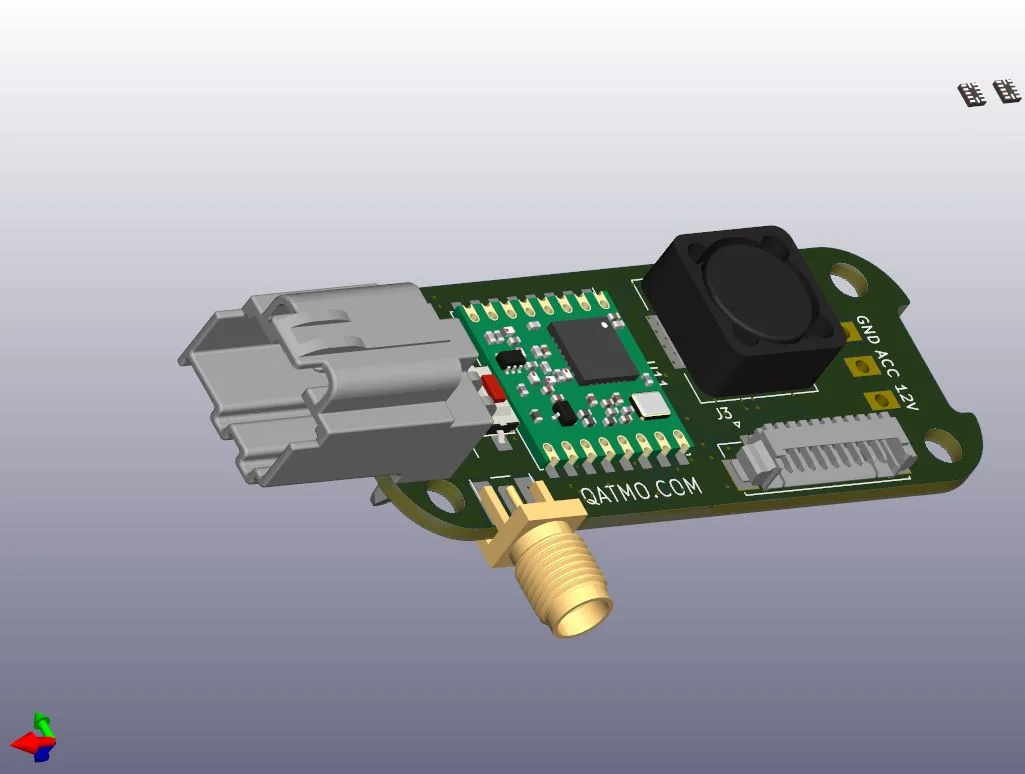

What's next!? I'm now into working on R3, where I part ways from the very tiny parts so that I no longer have this issue again and would also include an automotive grade Molex connector on the camera end. This will help me avoid soldering stuff inside of my cars and instead use a proper connector! Below is the first render of the new revision (for those of you who are still reading my post, lol):
I could have kept quiet about some of these failures, but I believe knowledge is power and thought to share these experiences, which one day may be helpful to others
As always, if you have any recommendations or suggestions on functionality, my attention is all yours!
Cheers!
