SG7LA50G

[jokiin]

Coming soon

Features:

• Street Guardian 1296p30 DVR
• Processor: CPU Ambarella A7LA50
• LCD display: 1.5-inch HD TFT screen
• Lens: 7 Element Glass lens, 120° horizontal viewing angle
• CMOS sensor: Aptina AR0330CS 3.5MP (2304×1536 pixels)
• Video resolution: Full HD 1080P at 30fps @ selectable 15, 18, 22 Mbit/sec
• Video resolution: Super HD 1296P at 30fps @ selectable 15, 18, 22 Mbit/sec
• Video format: H.264 compression mode MOV format
• Microphone/speaker: built-in, on/off menu selectable
• Storage media: SDHC microSD card, maximum 32GB
• Gapless recording: supported
• Recording cycle menu selectable: 1 min/3 min/5 min
• Date stamped video: supported
• Delayed shutdown: supported, last file save and soft shutdown
• Screen saver: supported, menu selectable 3 minutes, 1 minute, off
• Night mode: wide dynamic range (WDR)
• Built-in G-sensor: yes
• Incident file protect: automatic by G-sensor/manual by button
• GPS Logging: internal
• Exposure compensation: menu selectable -2.0 to 2.0
• White balance: auto
• Output mode: mini USB 5-pin port and DC 5V
• Power supply: 3.7V, 120mAh polymer lithium battery



[GJHS]

Very nice, Jokiin. Looks like a winner, well thought out and I really like the mount.



[reverend]

Very nice - lovely evolution of the B40 / A118.

I think there's a new "best discrete dashcam" in town

Nice to see the extra bitrate for 1296p too!

I'll ask the obvious question - is there a capacitor version for those that require it?



[jokiin]

No capacitor version at this stage, still investigating the possibility at the moment



[soundesciple]

loving them both. Very interested.



[Street Guardian USA]

Very nice - lovely evolution

I think there's a new "best discrete dashcam" in town

Nice to see the extra bitrate for 1296p too!

I'll ask the obvious question - is there a capacitor version for those that require it?

I'm feeling very good about this upcoming product as well. 2K Action! Built in GPS, Easy to remove from docking station, and cable is off to the side for an even higher mount position.

EDIT: SG7LA50G Super-HD DashCam Now Available for Pre-Sale!
https://shop.pier28.com/index.php/e...treet-guardian-sg7la50g-super-hd-dashcam.html

Pier28 Ships Street Guardian Products World Wide, except to locations that already have local authorized sellers.
Please see the following link:http://www.streetguardian.info/where-to-buy/



[Dashmellow]

Me like!

I need to ask the same question I've posed before though. Is the lens adjustable side to side as well as up and down for those of us who can't have the camera mounted in the center of the windscreen directly behind the rear view mirror?



[jokiin]

No side to side adjustment on this one but we're working on that on one of the other models already



[Dashmellow]

No side to side adjustment on this one



[Mtz]

I see more cameras working with 5V compared to korean which usually have 12V input. I expect 5V to keep camera cooler compared to 12V.
jokiin, do you have some picture from the other side where is the lens?
I see a lot of buttons. Maybe one of them can be used for manually mute microphone instead of entering in the camera menu?

enjoy,
Mtz



[jokiin]

jokiin, do you have some picture from the other side where is the lens?
I see a lot of buttons. Maybe one of them can be used for manually mute microphone instead of entering in the camera menu?

enjoy,
Mtz

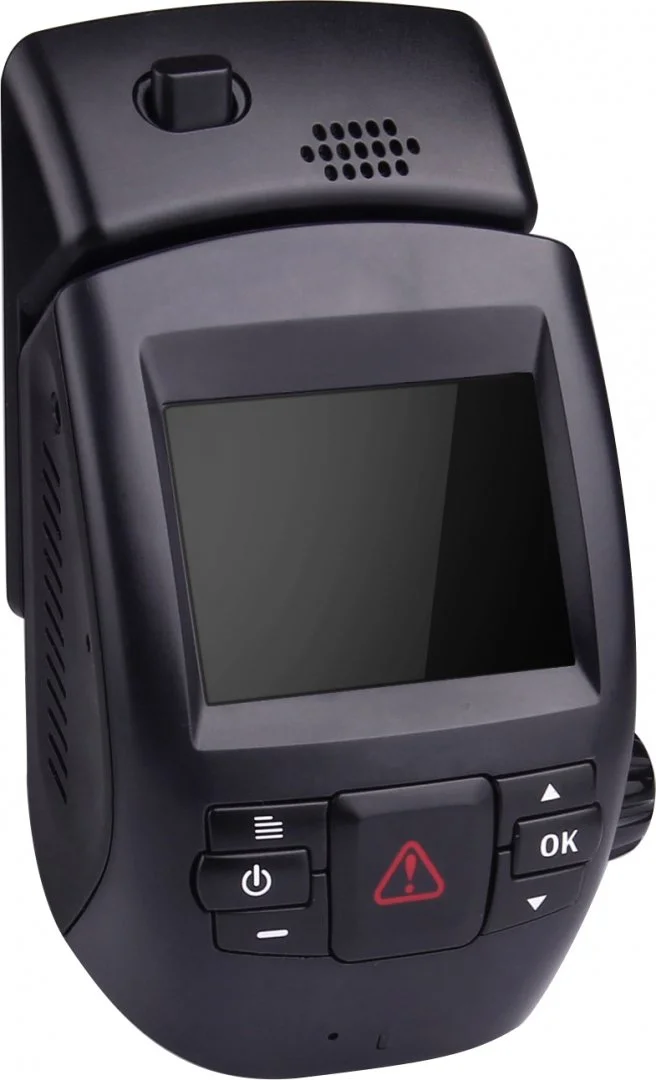

Sorry, forgot to post the other pics before

Top right button can mute/unmute the microphone



[Mtz]

I see the USB connector on the side of the camera. The USB power cable will be angled?
The product is looking very nice and professional and I think the idea is based on the windshield upper black dots.
Waiting to see it mounted on the windshield.

enjoy,
Mtz



[jokiin]

I see the USB connector on the side of the camera. The USB power cable will be angled?

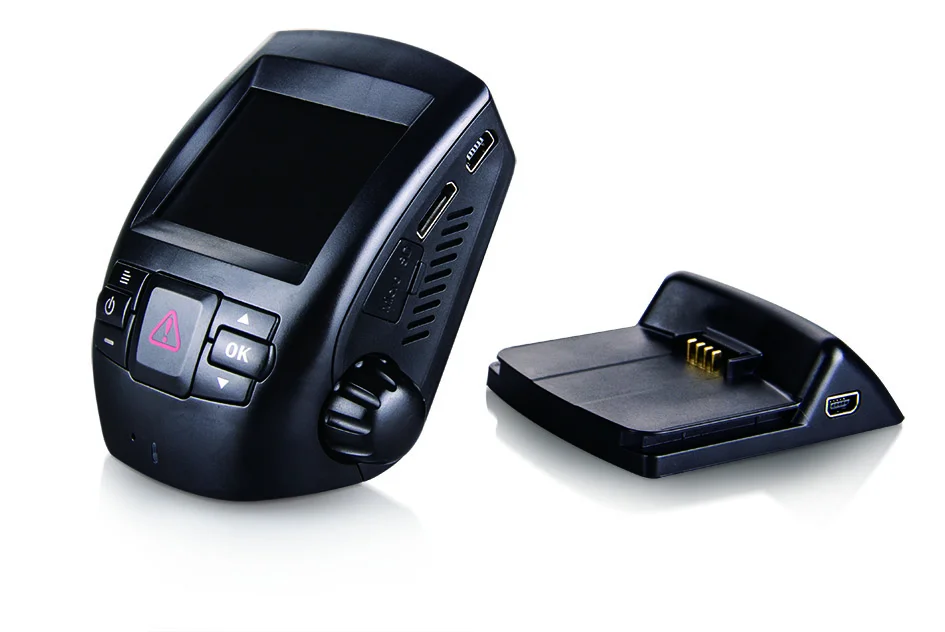

it does have a right angle USB plug however the power is through the dock, no need to unplug anything to remove the camera



[Mtz]

Yes I understood how is powered the dock but an angled USB connector like yours will save space if the camera will be mounted near the mirror. I was expecting this type of cable also for other 5V cameras I have, but unfortunately I lost a good position of these cameras on the top position of the windshield just because of the USB cable connector.

enjoy,
Mtz



[GJHS]

Like the SD card door. How firm is the mount?



[jokiin]

How firm is the mount?

locks in well, can't see any issues with it



[GJHS]

locks in well, can't see any issues with it

Looks like a winner. Should be a big seller. Look forward to seeing it progress



[jokiin]



[FourEyes]

Mini 0803 killer? ;-)



[jokiin]

I'm sure the 0803 will still have plenty of followers
