[App] AFT 1.3.2 - Ambarella firmware editor (development paused)

z768

Member
Joined
Aug 18, 2014
Messages
79
Reaction score
71
Country
Belarus
a link to the original firmware can be obtained?

OP
Tobi@s

Tobi@s

Well-Known Member
App Developer
Joined
Nov 12, 2013
Messages
1,377
Reaction score
843
Location
Remote
Country
Germany
Dash Cam
none
Tobi@s, btw, that's what happens when I try to open the firmware of GoPro Hero3+ (Plus) BE

The firmware here https://yadi.sk/d/WmNOqyJ3epkz5
Is this the firmware you got from there: http://gopro.com/update/HERO3_plus
The one you posted looks different and thats why AFT can't read it.

OP
Tobi@s

Tobi@s

Well-Known Member
App Developer
Joined
Nov 12, 2013
Messages
1,377
Reaction score
843
Location
Remote
Country
Germany
Dash Cam
none
I see, the binary file is an output file from arm-elf-objcopy. Generated by converting elf to bin. Basically this .bin file is flashable with DirectUSB... But thats the wrong format for AFT


vvs49

Well-Known Member
Joined
Jan 8, 2015
Messages
362
Reaction score
403
Country
Ukraine
Gentlemen, I regained my DOD GSE550 and have a working firmware.
It has a file strings.bin, that's what happened.
Green noted that changing, changing their places, changed from 00 to FFno result.
Why is it so what is the reason ??
Error in AFT132.jar?
Can take a look here firmware.
https://yadi.sk/d/sRXawNnheqT2j
Thank.


Attachments

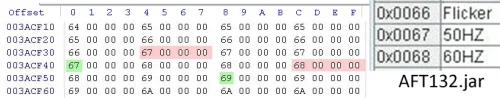

  • 50-60.jpg
    120.3 KB · Views: 36
OP
Tobi@s

Tobi@s

Well-Known Member
App Developer
Joined
Nov 12, 2013
Messages
1,377
Reaction score
843
Location
Remote
Country
Germany
Dash Cam
none
Gentlemen, I regained my DOD GSE550 and have a working firmware.
It has a file strings.bin, that's what happened.
Green noted that changing, changing their places, changed from 00 to FFno result.
Why is it so what is the reason ??
Error in AFT132.jar?
Can take a look here firmware.
https://yadi.sk/d/sRXawNnheqT2j
Thank.
Will have a look at it


z768

Member
Joined
Aug 18, 2014
Messages
79
Reaction score
71
Country
Belarus
Hi.
Header gzip, sorry Delphi...

Code:
type
  PAbGzHeader = ^TAbGzHeader;
  TAbGzHeader = packed record  { SizeOf(TGzHeader) = 10}
    ID1        : Byte;  { ID Byte, should always be $1F}
    ID2        : Byte;  { ID Byte, should always be $8B}
    CompMethod : Byte;  { compression method used}
    { 0..7 reserved, 8 = deflate, others undefined as of this writing (4/27/2001)}
    Flags      : Byte; { misc flags}
      { Bit 0: FTEXT    compressed file contains text, can be used for}
                      { cross platform line termination translation}
      { Bit 1: FCONTINUATION file is a continuation of a multi-part gzip file}
                      { RFC 1952 says this is the header CRC16 flag, but gzip}
                      { reserves it and won't extract the file if this is set}
                      { header data includes part number after header record}
      { Bit 2: FEXTRA   header data contains Extra Data, starts after part}
                      { number (if any)}
      { Bit 3: FNAME    header data contains FileName, null terminated}
                      { string starting immediately after Extra Data (if any)}
                      { RFC 1952 says this is ISO 8859-1 encoded, but gzip}
                      { always uses the system encoding}
      { Bit 4: FCOMMENT header data contains Comment, null terminated string}
                      { starting immediately after FileName (if any)}
      { Bit 5: FENCRYPTED file is encrypted using zip-1.9 encryption }
                      { header data contains a 12-byte encryption header }
                      { starting immediately after Comment.  Documented in}
                      { "algorithm.doc", but unsupported in gzip}
      { Bits 6..7 are undefined and reserved as of this writing (8/25/2009)}
    ModTime    : LongInt; { File Modification (Creation) time,}
                          { UNIX cdate format}
    XtraFlags  : Byte;   { additional flags}
      { XtraFlags = 2  -- Deflate compressor used maximum compression algorithm}
      { XtraFlags = 4  -- Deflate compressor used fastest algorithm}
    OS         : Byte; { Operating system that created file,}
                       { see GZOsToStr routine for values}
  end;

const
  { Header Signature Values}
  AB_GZ_HDR_ID1 = $1F;
  AB_GZ_HDR_ID2 = $8B;

  { Test bits for TGzHeader.Flags field }
  AB_GZ_FLAG_FTEXT         = $01;
  AB_GZ_FLAG_FCONTINUATION = $02;
  AB_GZ_FLAG_FEXTRA        = $04;
  AB_GZ_FLAG_FNAME         = $08;
  AB_GZ_FLAG_FCOMMENT      = $10;
  AB_GZ_FLAG_FENCRYPTED    = $20;
  AB_GZ_UNSUPPORTED_FLAGS  = $E2;

  { GZip OS source flags }
  AB_GZ_OS_ID_FAT         = 0;
  AB_GZ_OS_ID_Amiga       = 1;
  AB_GZ_OS_ID_VMS         = 2;
  AB_GZ_OS_ID_Unix        = 3;
  AB_GZ_OS_ID_VM_CMS      = 4;
  AB_GZ_OS_ID_AtariTOS    = 5;
  AB_GZ_OS_ID_HPFS        = 6;
  AB_GZ_OS_ID_Macintosh   = 7;
  AB_GZ_OS_ID_Z_System    = 8;
  AB_GZ_OS_ID_CP_M        = 9;
  AB_GZ_OS_ID_TOPS20      = 10;
  AB_GZ_OS_ID_NTFS        = 11;
  AB_GZ_OS_ID_QDOS        = 12;
  AB_GZ_OS_ID_AcornRISCOS = 13;
  AB_GZ_OS_ID_VFAT        = 14;
  AB_GZ_OS_ID_MVS         = 15;
  AB_GZ_OS_ID_BEOS        = 16;
  AB_GZ_OS_ID_TANDEM      = 17;
  AB_GZ_OS_ID_THEOS       = 18;
  AB_GZ_OS_ID_unknown     = 255;

function VerifyHeader(const Header : TAbGzHeader) : Boolean;
begin
  { check id fields and if deflated (only handle deflate anyway)}
  Result := (Header.ID1 = AB_GZ_HDR_ID1) and
     (Header.ID2 = AB_GZ_HDR_ID2) and
     (Header.CompMethod = 8 {deflate});
end;

Last edited:
OP
Tobi@s

Tobi@s

Well-Known Member
App Developer
Joined
Nov 12, 2013
Messages
1,377
Reaction score
843
Location
Remote
Country
Germany
Dash Cam
none
Hi.
Header gzip, sorry Delphi...
Thanks..But Java already has a built in library for GZIP :)
Code:
 * Copyright (c) 1996, 2013, Oracle and/or its affiliates. All rights reserved.

package java.util.zip;

import java.io.SequenceInputStream;
import java.io.ByteArrayInputStream;
import java.io.FilterInputStream;
import java.io.InputStream;
import java.io.IOException;
import java.io.EOFException;

/**
* This class implements a stream filter for reading compressed data in
* the GZIP file format.
*
* @see         InflaterInputStream
* @author      David Connelly
*
*/
public
class GZIPInputStream extends InflaterInputStream {
    /**
     * CRC-32 for uncompressed data.
     */
    protected CRC32 crc = new CRC32();

    /**
     * Indicates end of input stream.
     */
    protected boolean eos;

    private boolean closed = false;

    /**
     * Check to make sure that this stream has not been closed
     */
    private void ensureOpen() throws IOException {
        if (closed) {
            throw new IOException("Stream closed");
        }
    }

    /**
     * Creates a new input stream with the specified buffer size.
     * @param in the input stream
     * @param size the input buffer size
     *
     * @exception ZipException if a GZIP format error has occurred or the
     *                         compression method used is unsupported
     * @exception IOException if an I/O error has occurred
     * @exception IllegalArgumentException if {@code size <= 0}
     */
    public GZIPInputStream(InputStream in, int size) throws IOException {
        super(in, new Inflater(true), size);
        usesDefaultInflater = true;
        readHeader(in);
    }

    /**
     * Creates a new input stream with a default buffer size.
     * @param in the input stream
     *
     * @exception ZipException if a GZIP format error has occurred or the
     *                         compression method used is unsupported
     * @exception IOException if an I/O error has occurred
     */
    public GZIPInputStream(InputStream in) throws IOException {
        this(in, 512);
    }

    /**
     * Reads uncompressed data into an array of bytes. If <code>len</code> is not
     * zero, the method will block until some input can be decompressed; otherwise,
     * no bytes are read and <code>0</code> is returned.
     * @param buf the buffer into which the data is read
     * @param off the start offset in the destination array <code>b</code>
     * @param len the maximum number of bytes read
     * @return  the actual number of bytes read, or -1 if the end of the
     *          compressed input stream is reached
     *
     * @exception  NullPointerException If <code>buf</code> is <code>null</code>.
     * @exception  IndexOutOfBoundsException If <code>off</code> is negative,
     * <code>len</code> is negative, or <code>len</code> is greater than
     * <code>buf.length - off</code>
     * @exception ZipException if the compressed input data is corrupt.
     * @exception IOException if an I/O error has occurred.
     *
     */
    public int read(byte[] buf, int off, int len) throws IOException {
        ensureOpen();
        if (eos) {
            return -1;
        }
        int n = super.read(buf, off, len);
        if (n == -1) {
            if (readTrailer())
                eos = true;
            else
                return this.read(buf, off, len);
        } else {
            crc.update(buf, off, n);
        }
        return n;
    }

    /**
     * Closes this input stream and releases any system resources associated
     * with the stream.
     * @exception IOException if an I/O error has occurred
     */
    public void close() throws IOException {
        if (!closed) {
            super.close();
            eos = true;
            closed = true;
        }
    }

    /**
     * GZIP header magic number.
     */
    public final static int GZIP_MAGIC = 0x8b1f;

    /*
     * File header flags.
     */
    private final static int FTEXT      = 1;    // Extra text
    private final static int FHCRC      = 2;    // Header CRC
    private final static int FEXTRA     = 4;    // Extra field
    private final static int FNAME      = 8;    // File name
    private final static int FCOMMENT   = 16;   // File comment

    /*
     * Reads GZIP member header and returns the total byte number
     * of this member header.
     */
    private int readHeader(InputStream this_in) throws IOException {
        CheckedInputStream in = new CheckedInputStream(this_in, crc);
        crc.reset();
        // Check header magic
        if (readUShort(in) != GZIP_MAGIC) {
            throw new ZipException("Not in GZIP format");
        }
        // Check compression method
        if (readUByte(in) != 8) {
            throw new ZipException("Unsupported compression method");
        }
        // Read flags
        int flg = readUByte(in);
        // Skip MTIME, XFL, and OS fields
        skipBytes(in, 6);
        int n = 2 + 2 + 6;
        // Skip optional extra field
        if ((flg & FEXTRA) == FEXTRA) {
            int m = readUShort(in);
            skipBytes(in, m);
            n += m + 2;
        }
        // Skip optional file name
        if ((flg & FNAME) == FNAME) {
            do {
                n++;
            } while (readUByte(in) != 0);
        }
        // Skip optional file comment
        if ((flg & FCOMMENT) == FCOMMENT) {
            do {
                n++;
            } while (readUByte(in) != 0);
        }
        // Check optional header CRC
        if ((flg & FHCRC) == FHCRC) {
            int v = (int)crc.getValue() & 0xffff;
            if (readUShort(in) != v) {
                throw new ZipException("Corrupt GZIP header");
            }
            n += 2;
        }
        crc.reset();
        return n;
    }

    /*
     * Reads GZIP member trailer and returns true if the eos
     * reached, false if there are more (concatenated gzip
     * data set)
     */
    private boolean readTrailer() throws IOException {
        InputStream in = this.in;
        int n = inf.getRemaining();
        if (n > 0) {
            in = new SequenceInputStream(
                        new ByteArrayInputStream(buf, len - n, n),
                        new FilterInputStream(in) {
                            public void close() throws IOException {}
                        });
        }
        // Uses left-to-right evaluation order
        if ((readUInt(in) != crc.getValue()) ||
            // rfc1952; ISIZE is the input size modulo 2^32
            (readUInt(in) != (inf.getBytesWritten() & 0xffffffffL)))
            throw new ZipException("Corrupt GZIP trailer");

        // If there are more bytes available in "in" or
        // the leftover in the "inf" is > 26 bytes:
        // this.trailer(8) + next.header.min(10) + next.trailer(8)
        // try concatenated case
        if (this.in.available() > 0 || n > 26) {
            int m = 8;                  // this.trailer
            try {
                m += readHeader(in);    // next.header
            } catch (IOException ze) {
                return true;  // ignore any malformed, do nothing
            }
            inf.reset();
            if (n > m)
                inf.setInput(buf, len - n + m, n - m);
            return false;
        }
        return true;
    }

    /*
     * Reads unsigned integer in Intel byte order.
     */
    private long readUInt(InputStream in) throws IOException {
        long s = readUShort(in);
        return ((long)readUShort(in) << 16) | s;
    }

    /*
     * Reads unsigned short in Intel byte order.
     */
    private int readUShort(InputStream in) throws IOException {
        int b = readUByte(in);
        return (readUByte(in) << 8) | b;
    }

    /*
     * Reads unsigned byte.
     */
    private int readUByte(InputStream in) throws IOException {
        int b = in.read();
        if (b == -1) {
            throw new EOFException();
        }
        if (b < -1 || b > 255) {
            // Report on this.in, not argument in; see read{Header, Trailer}.
            throw new IOException(this.in.getClass().getName()
                + ".read() returned value out of range -1..255: " + b);
        }
        return b;
    }

    private byte[] tmpbuf = new byte[128];

    /*
     * Skips bytes of input data blocking until all bytes are skipped.
     * Does not assume that the input stream is capable of seeking.
     */
    private void skipBytes(InputStream in, int n) throws IOException {
        while (n > 0) {
            int len = in.read(tmpbuf, 0, n < tmpbuf.length ? n : tmpbuf.length);
            if (len == -1) {
                throw new EOFException();
            }
            n -= len;
        }
    }
}


z768

Member
Joined
Aug 18, 2014
Messages
79
Reaction score
71
Country
Belarus
I realized unpacking means Delphi.
Packaging had gzip utility.

gzip.exe -d -N file.gz
gzip.exe -9 -n file.bin
;)
This is an example:)


I have no money to pay for the components of the programming environment.:(
Because tacked free utility for packing ...:)


Stu_UK

New Member
Joined
Feb 23, 2015
Messages
12
Reaction score
1
Country
United Kingdom
Dash Cam
Mini 0806
Hi,

I am using your latest tool 1.3.2. I tried updating the boot and shutdown logo as per your instructions.

I compiled the new firmware, updated it on my Mini 0806, yet the images did not change (same as original boot logo)?

I decompiled the newly created firmware file again to double check that the boot logos had indeed changed properly and they were the images I had changed them to. Very strange.

Any ideas? I have attached my boot logo / shutdown logo.

Edit: Seems to be working now. Strange.


Attachments

  • boot_logo.jpg
    64.1 KB · Views: 15
Last edited:
OP
Tobi@s

Tobi@s

Well-Known Member
App Developer
Joined
Nov 12, 2013
Messages
1,377
Reaction score
843
Location
Remote
Country
Germany
Dash Cam
none
I fixed this bug in 1.0test if I remember correctly. I relied on a static value for Rom payload start but it's not static at all..


z768

Member
Joined
Aug 18, 2014
Messages
79
Reaction score
71
Country
Belarus
I'll try to fix it.
Reading Rom Section should be done at a different address space.
The results sent.


z768

Member
Joined
Aug 18, 2014
Messages
79
Reaction score
71
Country
Belarus
Code:
TSecHeader = record // = 0x100
    Crc32:       DWORD; // crc32
    Version:     DWORD; // version
    DateSec:     DWORD; // date
    LengthSec:   DWORD; // length
    MemAdress:   DWORD; // memory adress
    FlagSection: DWORD; // flag
    MagicConst:  DWORD; // CNS_MAGIC_CONSTANT = $A324EB90
    ZeroBytes:   array [1..57] of DWORD; // alignment bytes
  end;


TSecHeader = record // = 0x100
    Crc32:       DWORD; // crc32
    Version:     DWORD; // version
    DateSec:     DWORD; // date
    LengthSec:   DWORD; // length
    MemAdress:   DWORD; // memory adress
    FlagSection: DWORD; // flag
    MagicConst:  DWORD; // CNS_MAGIC_CONSTANT = $A324EB90
    UnknownFlag: DWORD: // ..................????? = $00000001
    ZeroBytes:   array [1..56] of DWORD; // alignment bytes
  end;

change a little algo read with the unknown flag ...
;)

Last edited:
OP
Tobi@s

Tobi@s

Well-Known Member
App Developer
Joined
Nov 12, 2013
Messages
1,377
Reaction score
843
Location
Remote
Country
Germany
Dash Cam
none
T0 plotter:)
Your unpacked section rom.
30 minutes of operation.
https://yadi.sk/d/vwvQ0yb0evMAK
Если это еще для Вас интересно ...
Good Luck.;)
Hi,
I just recognized that I somehow got the bug (problem with this rom partition) back into AFT. I definitely fixed it in v1.0test but now it is bugged again :(
No idea what happened. Need to check it now.

I mixed something up.. I fixed it for G90 but not for plotters firmware. Seems like I missed his post.
The Rom partition from that firmware is indeed corrupted. Something is wrong with the alignment.

Last edited:

z768

Member
Joined
Aug 18, 2014
Messages
79
Reaction score
71
Country
Belarus
After the file names no byte alignment!
Offset's are wrong!
I fixed a partition.
Now it is read and stored properly program.
Need to be tested.
I do not have a chance to test.

link to the revised firmware
https://yadi.sk/d/k8K515ePewHmx

Last edited:
OP
Tobi@s

Tobi@s

Well-Known Member
App Developer
Joined
Nov 12, 2013
Messages
1,377
Reaction score
843
Location
Remote
Country
Germany
Dash Cam
none
Thank you I will wait.
I checked it, the difference is due to different strings.bin generation algorithms. Should work anyways.
